1pcs Channel DC 6-24V Flip-Flop Latch Relay Module Bistable Self-locking Switch

1pcs Channel DC 6-24V Flip-Flop Latch Relay Module Bistable Self-locking Switch Description

Specification:

Working voltage: DC 6-24V

Working current: 60-70MA

Standby current: 1UA

Load current : AC 250V/10A, DC 30V/10A

Trigger mode: Low pulse trigger

Size: 48mm*16mm *18.5mm (L*W*H),  Very small size

Weight: 14.3 g

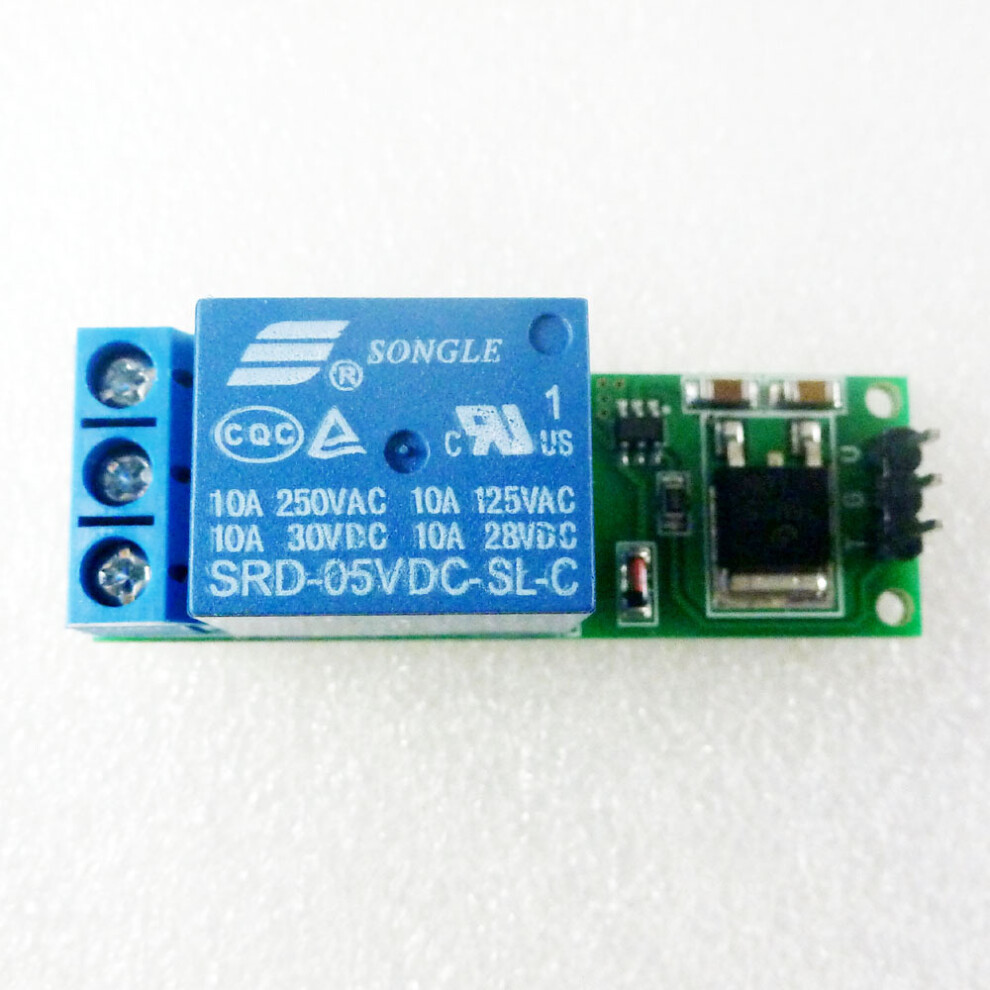

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);

Trigger again, the relay releases (and holds)

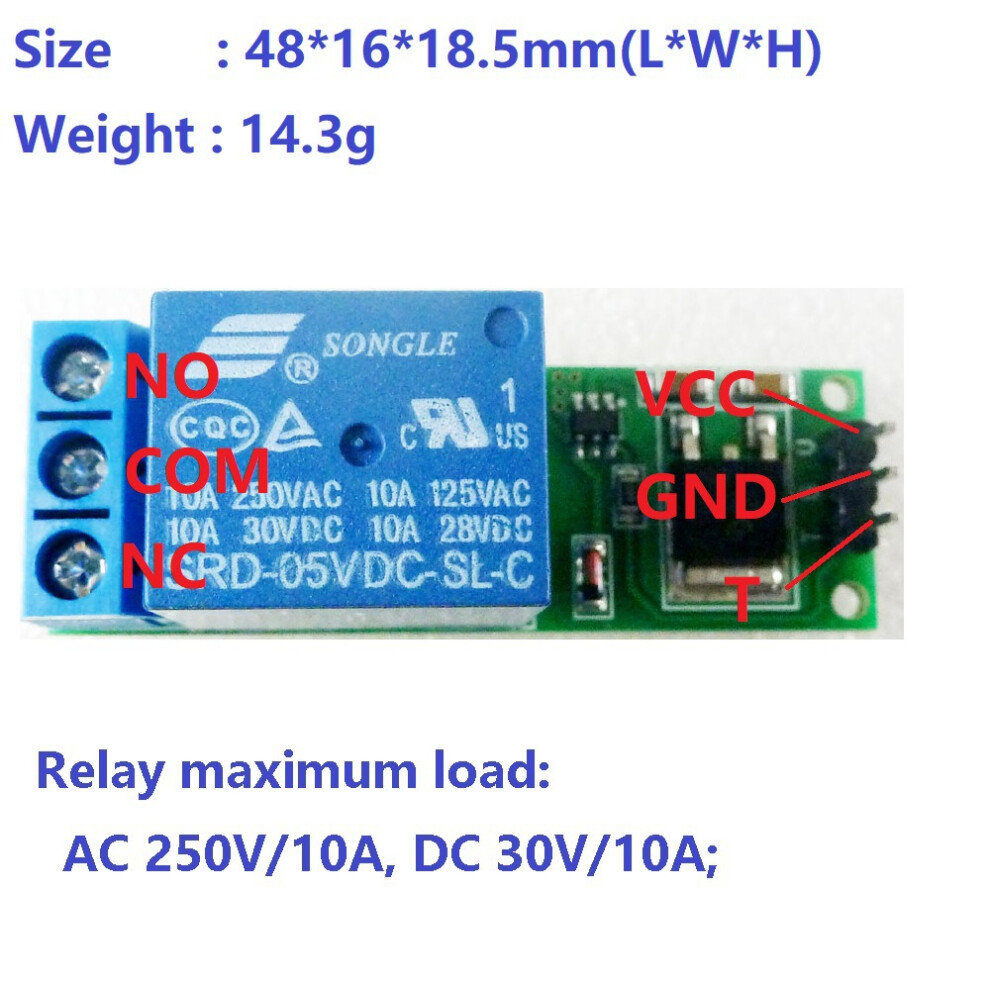

Module interface:

1. VCC: positive power supply (VCC)

2. GND: negative power supply (GND)

3. T  : Low pulse trigger

Relay outputs:

1. NO: normally open relay interface

2. COM: Common Interface Relays

3. NC: normally closed relay interface

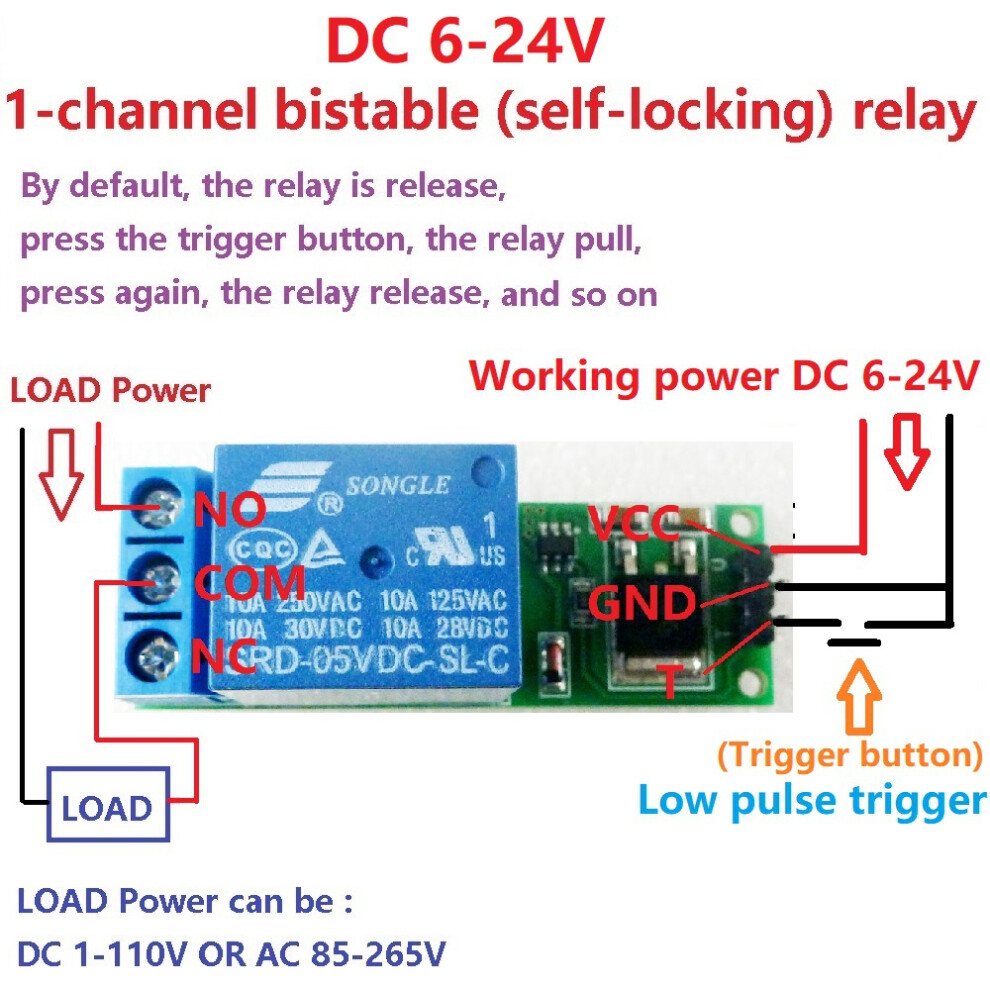

USE:

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

Typical applications:

Automotive electronics

Industrial equipment

Motor

LED

Smart Home

Emergency lighting

MCU development board

Toy car

Package includes:

1 pcs*Self-locking Relay Module
