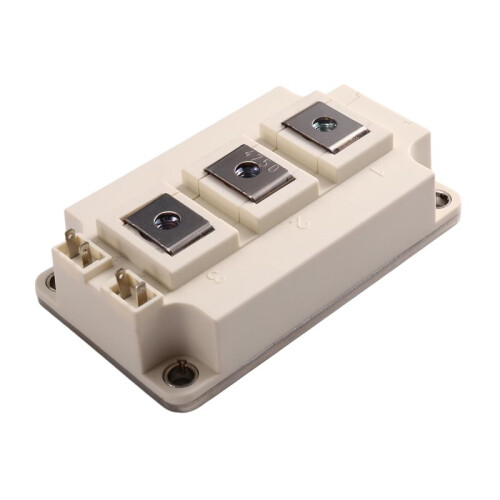

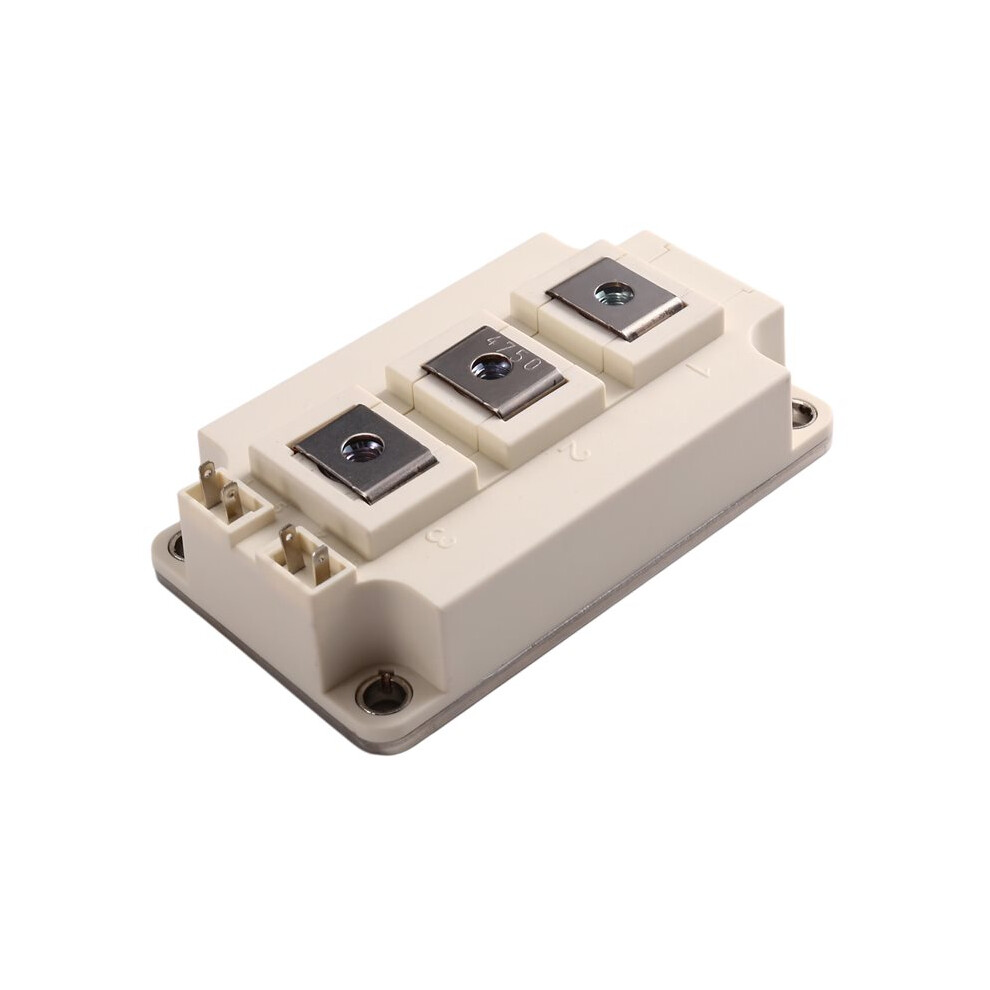

1PCS New IGBT Single Transistor, Silicon Controlled Rectifier IGBT Module BSM200GB170DLC 1700V/200A
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (£4.76) | Wed 28th Oct - Tue 3rd Nov
Returns: 30 days
180-day payment protection
You might also like
Summary
- Transistor Type: IGBT Driver
- IGBT Module
- IGBT Driver Module
- IGBT Driver
- BSM200GB170DLC
1PCS New IGBT Single Transistor, Silicon Controlled Rectifier IGBT Module BSM200GB170DLC 1700V/200A Description
Transistor Type: IGBT Driver
Collector-Emitter Breakdown Voltage (VCES) (V): 1700V
Maximum Collector Current (IC(max)) (A): 200A
Gate-Emitter Voltage (VGES) (V): 20
Switching Frequency (kHz): 50kHz
Operating Temperature Range (C): -40C~175C (TJ)
Collector Pulse Current (ICM) (A): 50
-State Voltage Drop (VCE()) (V): 15
Maximum Power Dissipation (Pd(max)) (W): 1.4kW
Collector-Base Cut-off Current (ICBO) (A): 20μA
Collector-Emitter Cut-off Current (ICEO) (A): 5µA
Gate Charge (Qg) (C): 20nC
Reverse Recovery (trr): 150ns
Collector Continuous Current (IC) (A): 50
Collector-Emitter Saturation Voltage (VCE(sat)) (V): 2.3V
Color: White
Material: ABS
Package Contents:
1x IGBT Driver Module
Details
| OPC | PVMBC9B |
|---|---|
| Codes | 6031396511102 (EAN) |
Product Data
| Height | 5cm |
|---|---|
| Width | 10cm |
| Length | 20cm |
| Weight | 0.42kg |
| Colour | White |
| Material | ABS |
