1Pcs Variable Frequency Drive VFD Inverter 220V 1.5kW 2.2kW Single Phase Motor Speed Controller with Precise Control and Energy Saving Operation

1Pcs Variable Frequency Drive VFD Inverter 220V 1.5kW 2.2kW Single Phase Motor Speed Controller with Precise Control and Energy Saving Operation Description

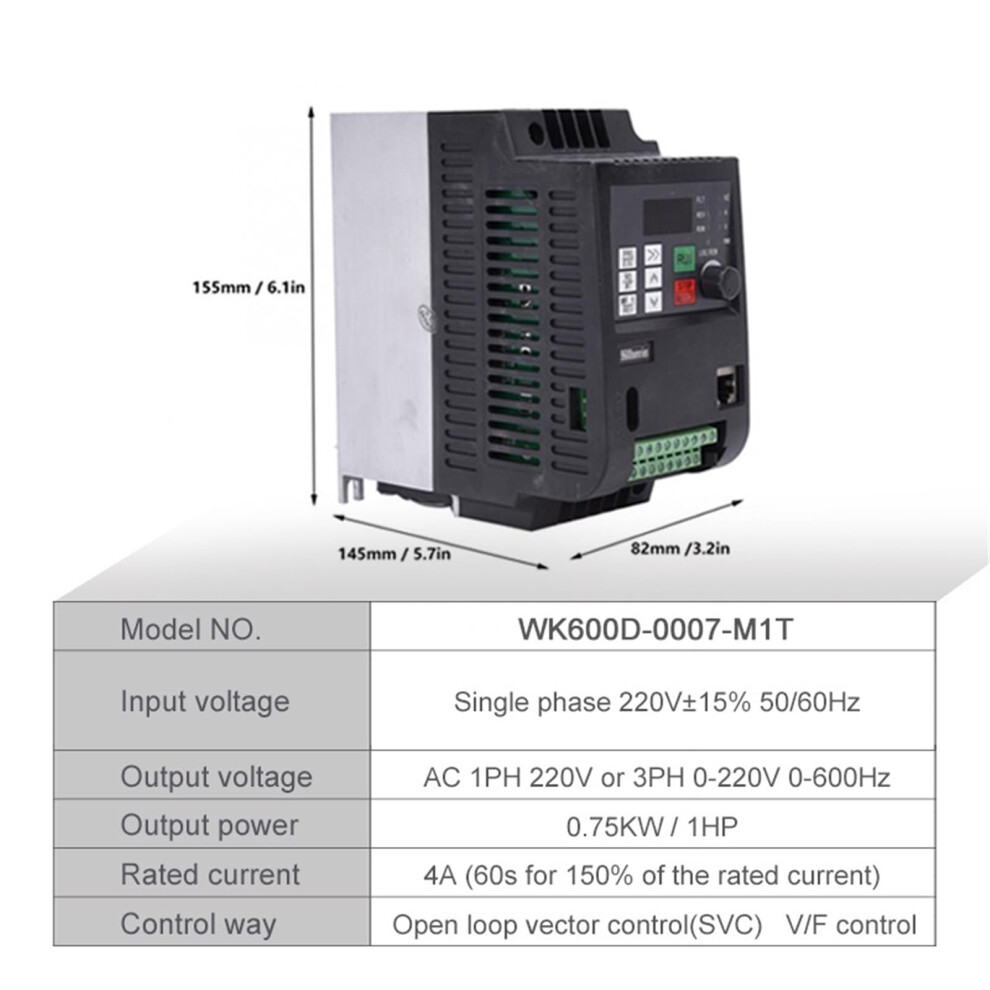

Singlephase 220V variable frequency drive inverter for singlephase motors. Designed to provide precise speed control, smooth starting, and flexible control options for pumps, fans, conveyors, machine tools, mixers, and other small to medium duty applications. Key benefits Direct compatibility with singlephase 220V motors without removing capacitors, simplifying installation and reducing downtime. Open loop vector control (SVC) and V/F control for improved torque response and stable speed regulation over a wide frequency range. Builtin PID, multi segment speed programming, analog input, and relay output for process control and automation integration. Compact dimensions and light weight for easy panel mounting and retrofit into existing systems. Core features Input voltage: single phase 220V +/15% at 50Hz/60Hz. Output voltage: single phase 220V +/15% or three phase 0220V depending on configuration. Output frequency range: 0 to 600 Hz. Control modes: open loop vector control (SVC) and V/F control. Starting capability for G type machines: 0.5 Hz with 150% torque (SVC). Analog inputs: 420 mA or 010 V supported for external speed reference. Relay output: internal relay available for programmable alarms or status signals. PID function for closedloop process control without external controllers. Multi segment function: up to 16 programmable speed segments. Carrier frequency: adjustable, with level parameter settings available. Replay output supported. Selection and installation notes Singlephase motor current can be relatively. Select an inverter rated about 1 to 2 levels above the motor power rating for reliable operation under heavy or peak loads. Read the product instructions carefully and choose the model based on required functions and power to avoid wiring errors. For heavy loads or frequent start stops, choose an inverter with a higher power rating than the motor. External switch wiring diagrams are provided with the product for correct control wiring. Available models and specifications WK600D0007MIT Input voltage: single phase 220V +/10% 50Hz/60Hz Output voltage: single phase 220V or three phase 0220V Power: 0.75 kW / 1 HP Rated current: 4 A Size: 155 x 82 x 135 mm Packing size: 220 x 150 x 130 mm Weight: 1.2 kg WK600D0015MIT Input voltage: single phase 220V +/10% 50Hz/60Hz Output voltage: single phase 220V or three phase 0220V Power: 1.5 kW / 2 HP Rated current: 7 A Size: 155 x 82 x 135 mm Packing size: 220 x 150 x 130 mm Weight: 1.2 kg WK600D0022MIT Input voltage: single phase 220V +/10% 50Hz/60Hz Output voltage: single phase 220V or three phase 0220V Power: 2.2 kW / 3 HP Rated current: 10 A Size: 155 x 82 x 135 mm Packing size: 220 x 150 x 130 mm Weight: 1.2 kg WK600D0040G1T Input voltage: single phase 220V +/15% 50Hz/60Hz Output voltage: single phase 220V or three phase 0220V Power: 4 kW / 5 HP Rated current: 16 A Shape size: see product documentation Practical application scenarios Pump speed control: Maintain stable flow and reduce mechanical wear by matching pump speed to demand using PID control and multi segment presets. Conveyor or material handling: Smooth starts and speed changes reduce product spillage and mechanical shock during load transfers; programmable segments allow easy process sequencing. Small machine tools and mixers: Improved torque at low speeds with SVC control for precise machining or mixing operations, while preserving motor life. Why choose this inverter Purposebuilt for singlephase 220V motors with flexible control functions commonly required in industrial and light industrial automation. Multiple communication and analog input options for easy integration into existing control systems. Practical sizing guidance and protective features to help avoid common installation issues. Refer to the product manual for detailed wiring diagrams, parameter programming, and full installation instructions before commissioning.
