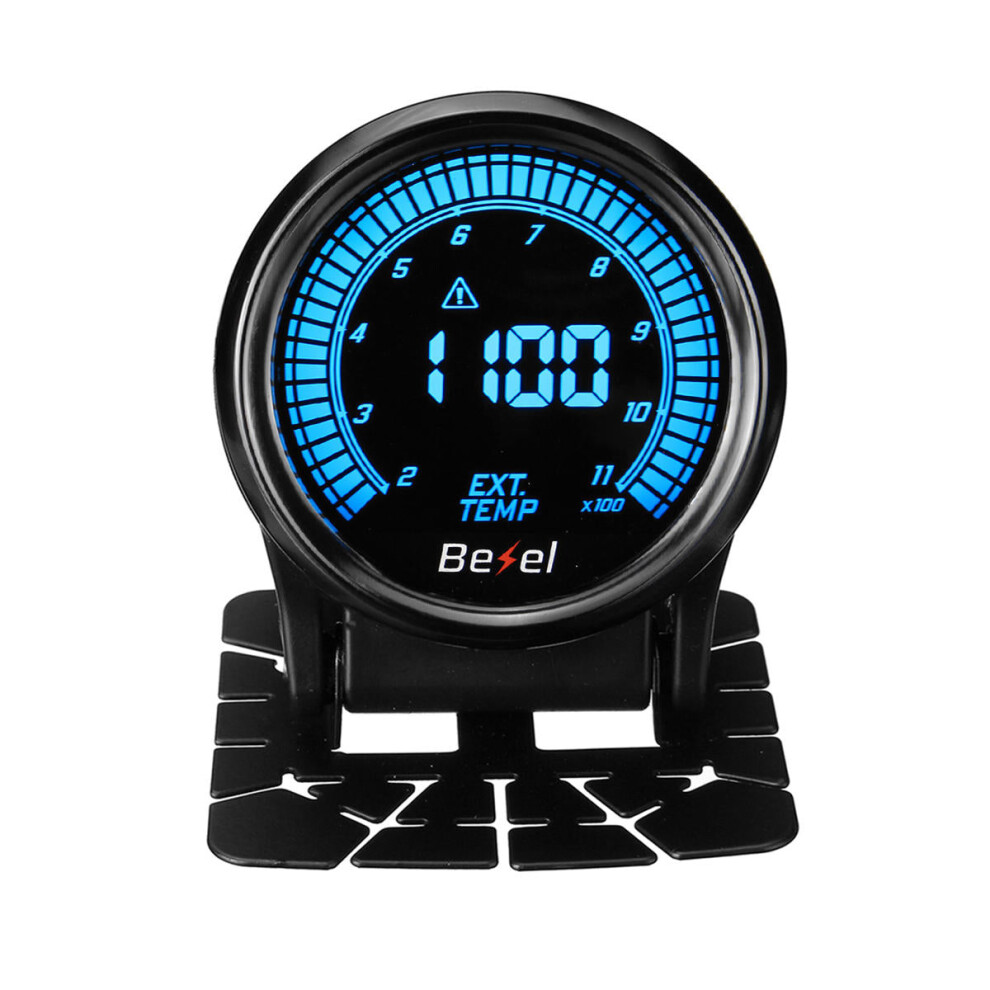

2" 52mm Exhaust Gas Temp Temperature Gauge Meter Digital LED Display w/Sensor

2" 52mm Exhaust Gas Temp Temperature Gauge Meter Digital LED Display w/Sensor Description

Specification:
Voltage: 12V.
Face Color: Black.
Material: Aluminum.
Housing Color: Black.

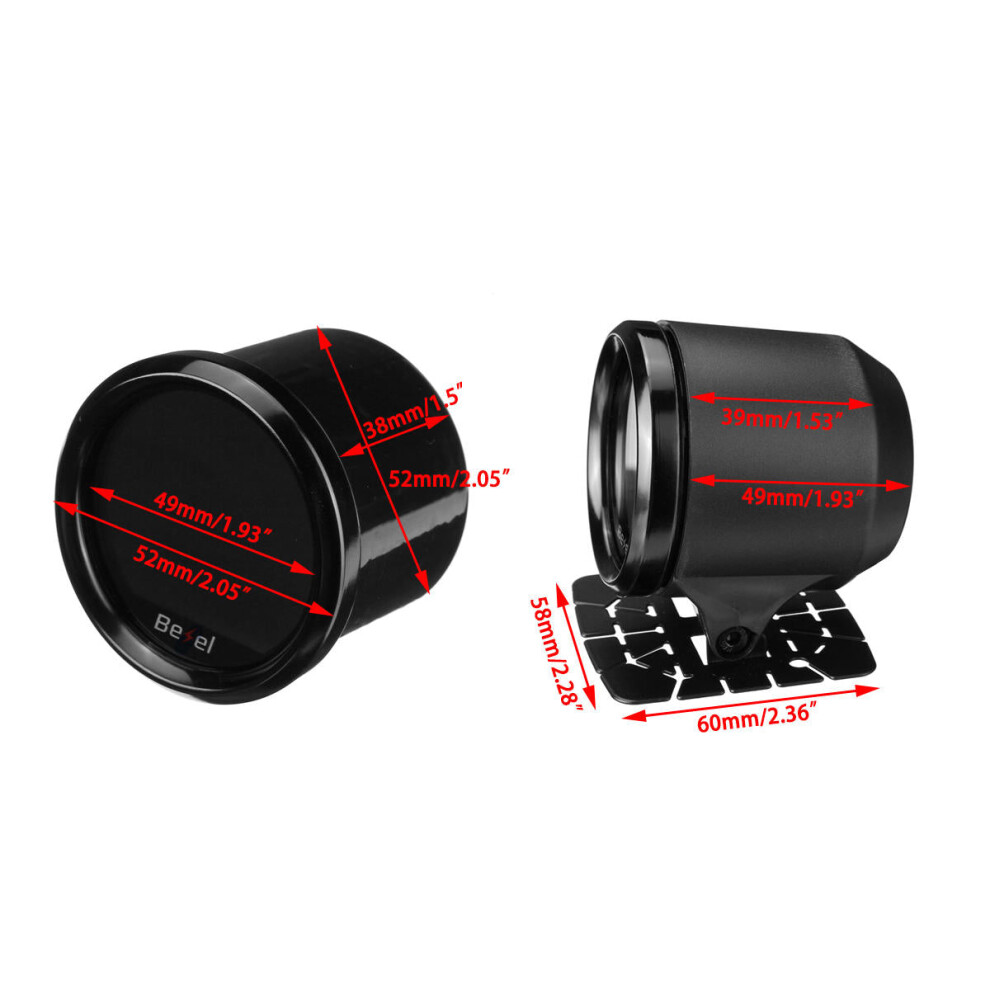

Diameter Size: 2" (52mm).
Style: Digital LED Readout.
Sensor Thread Size: 1/8" NPT.
Reading range: 2 - 12x100C.
Product Name: 2" 52mm Exhaust Gas Temperature Gauge.

Features:
-2" (52mm) diameter gauge.
-3 buzzer types can be selected.
-4 buzzer levels can be selected.
-Black dial face when ignition is off.
-3 different open ceremonies can be selected.
-3 different types indicator movement can be selected.
-10 colors backlights can be selected, and it can memory the setting in the both daytime and night mode.
-A warning value (arbitrary) can be set and the warning buzzer can be selected from three variations or turn off.
-Brightness can be selected in 6 different levels, and it can memory the setting in the both daytime and night mode.
-Data obtained during driving (peak value and warning value) can be stored up, and the peak value can be reviewed and cleared.

Common Button Operation:

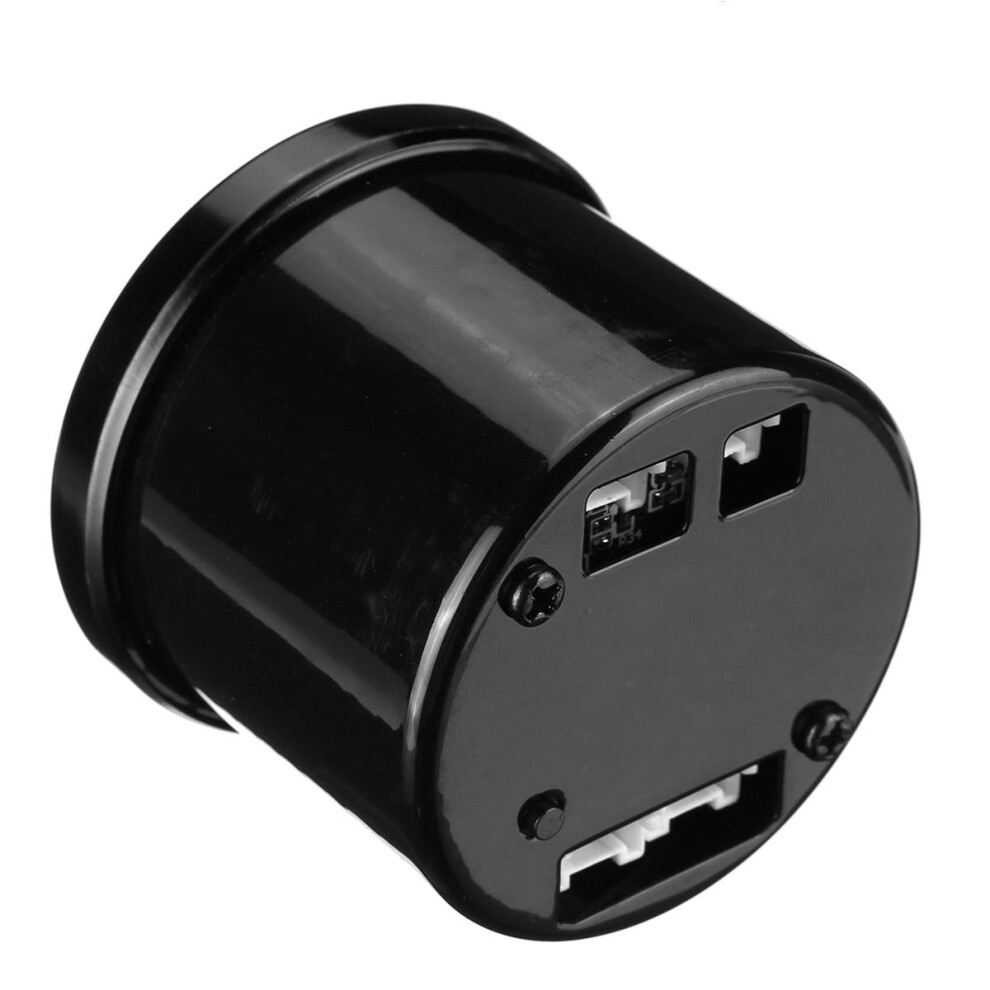

1. There is a button in the backside of the gauge, the remote button is included.They are used to review and clear peak value,change the colors, adjust the brightness, choose the buzzer, set the warning etc.The remote button is same function as the button in the gauge.
2. Short press to switch between different functions settings,long press until buzzer sounds, then enter the setting mode.It will return to normal status when the button is released after 5 seconds.

Power Wire Connecting:
Black wire: To ground.
Red wire:To 12V battery wire.
White wire: To 12V wire when ignition on.
Yellow wire: To 12V wire when small lamp on.

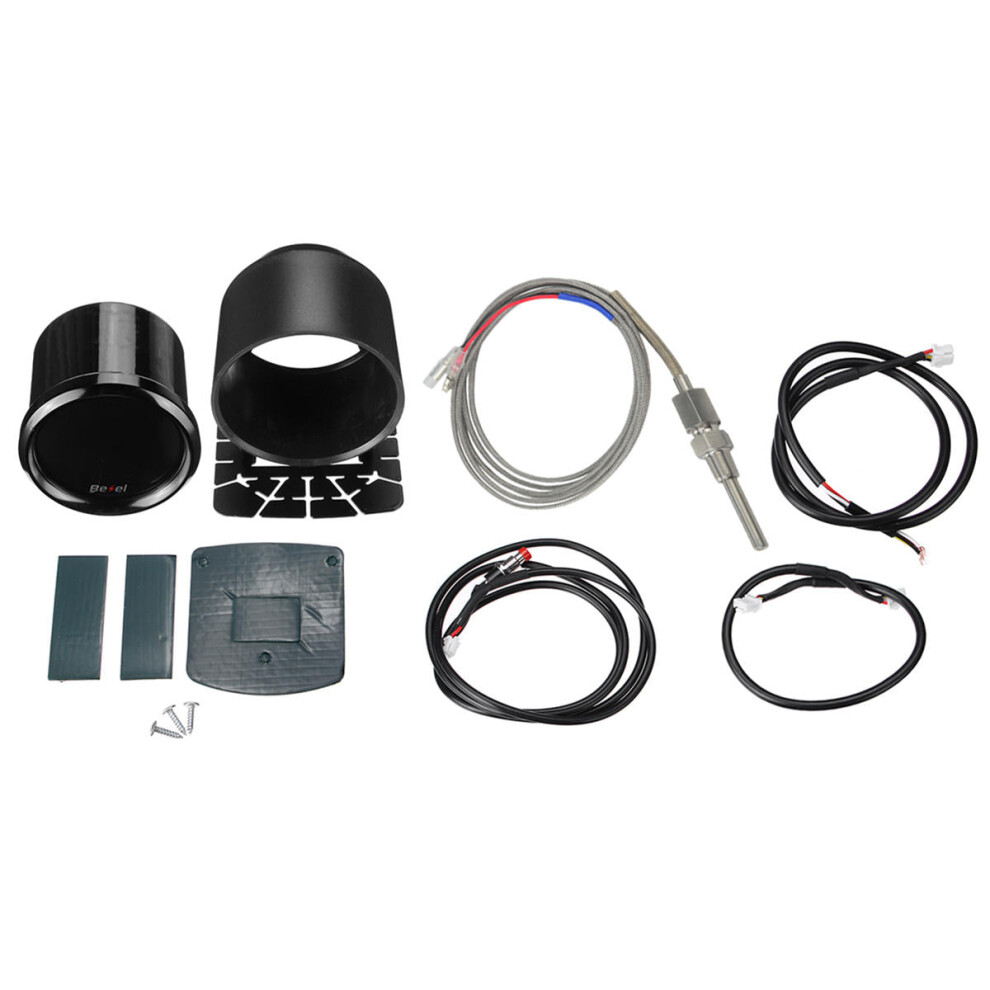

Package Included:
1xExhaust Tem Gauge.

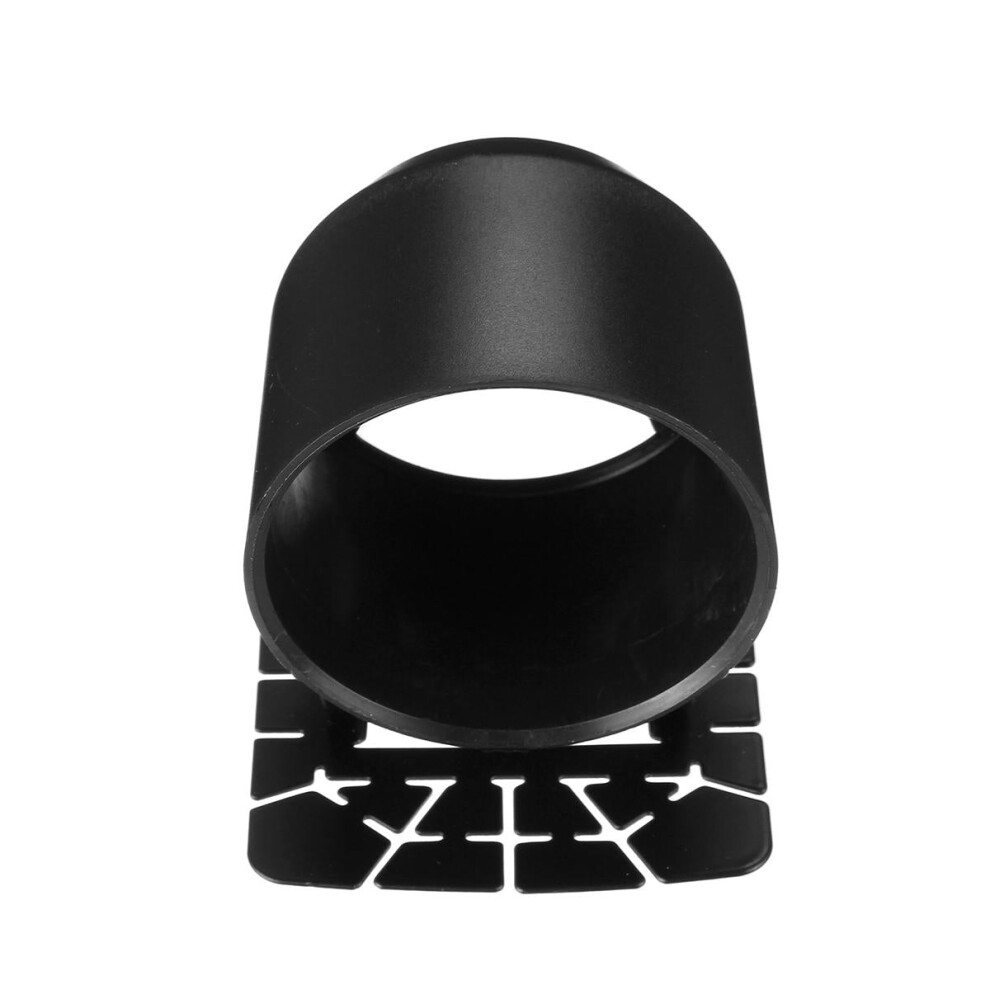

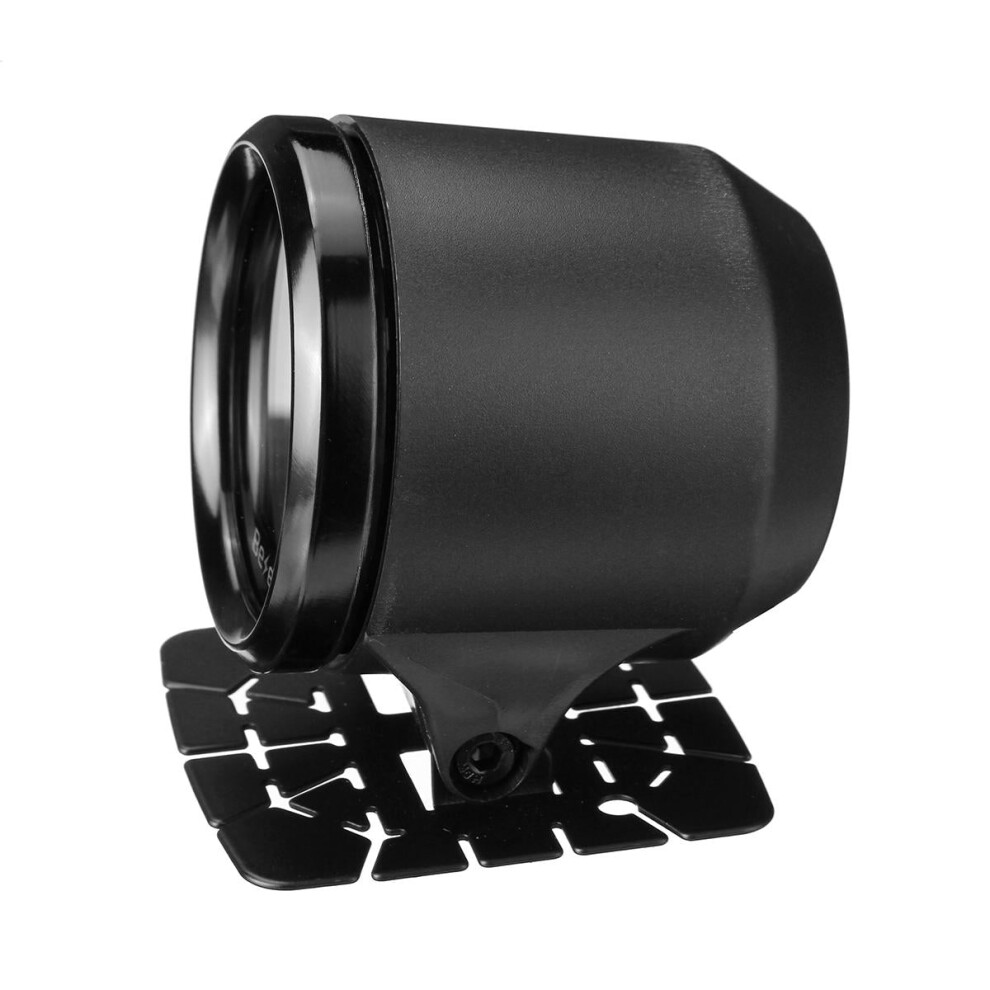

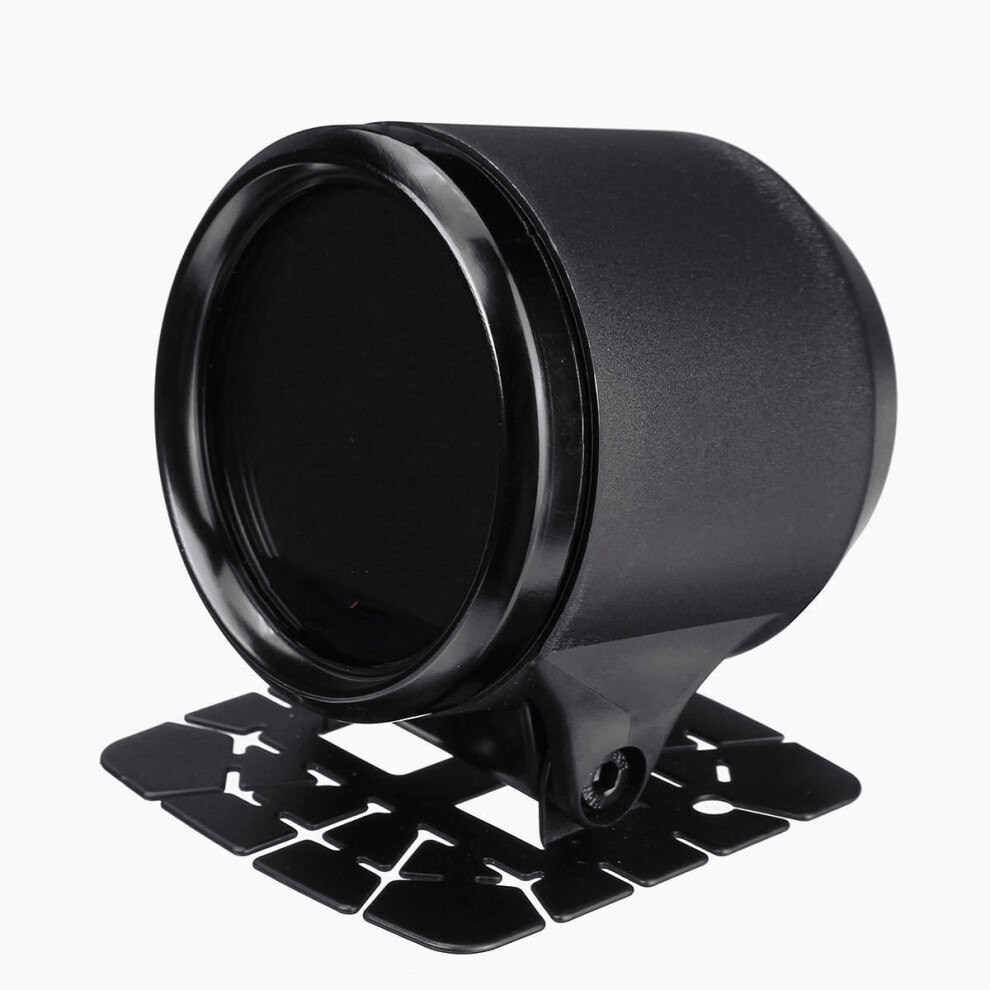

1XMount Bracket Cup.
1XRemote Button Wire.
1XPower Supply Wire.
1XDouble Sided Tape.
1XEnglish Manual.
1XMeter Wire.
1XSensor Wire.
2XBuffer.

Note:
- The product is designed for use on 12v vehicles.Do not install this product on vehicles with 24v systems.
- Do not perform installation of this product immediately after the engine has been switched off. The engine and exhaust system are extremely hot at this time and can cause burns if touched.
- The LED color display of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
- Please allow 0.5-1 inch difference due to manual measurement. (1inch=2.54cm)
- Instructions Is Included.Professional Installation Is Highly Recommended!!If you want to know how to use or install it,please contact us by Email.We will provide help as much as possible.
