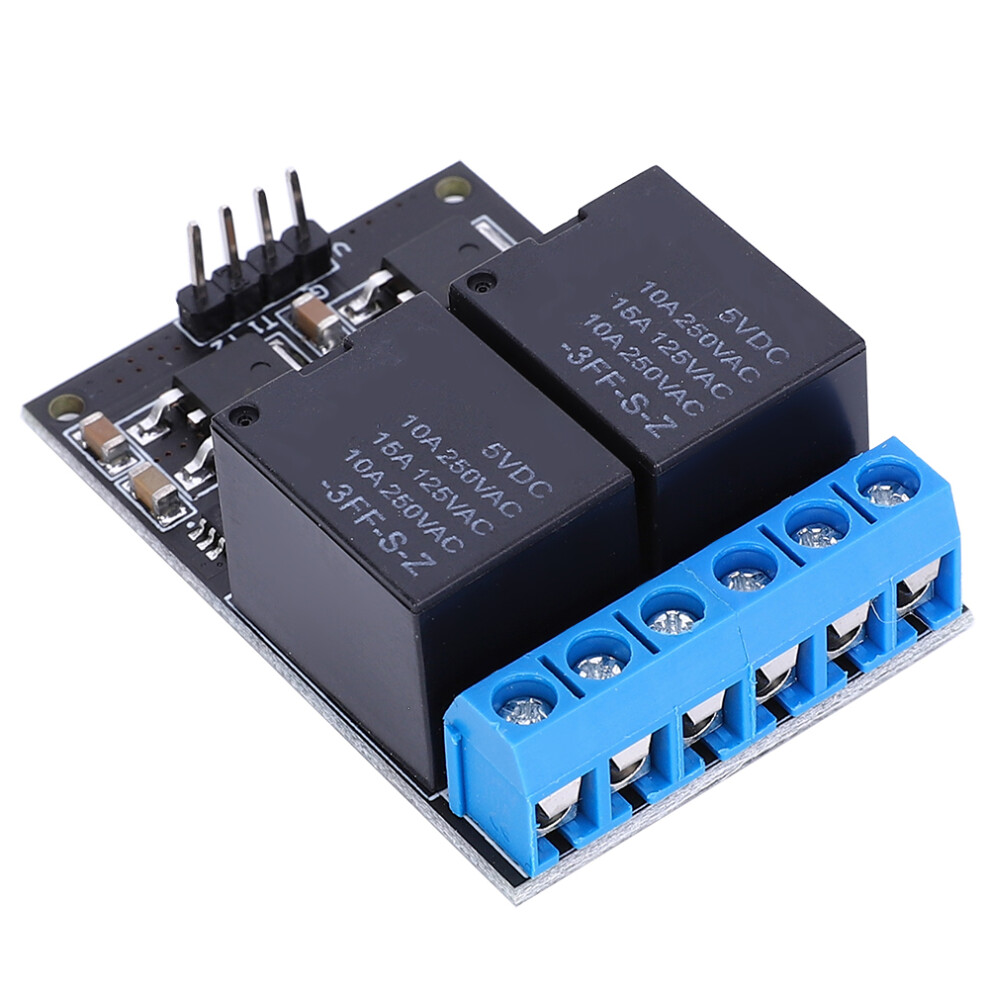

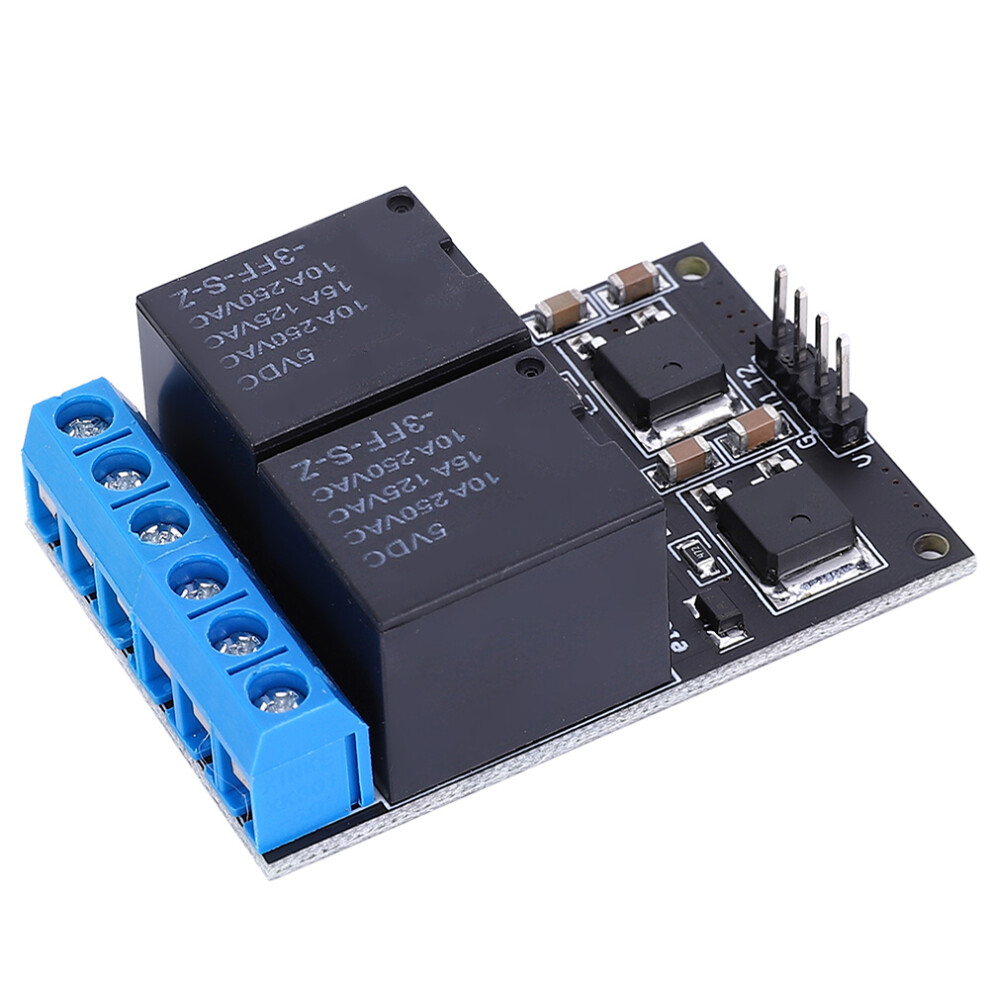

2 Channel Bistable Self Locking Trigger Board 12V MCU Control

2 Channel Bistable Self Locking Trigger Board 12V MCU Control Description

1、Very durable, high accuracy relay module can be easy to use in the practical life. 2、As a low pulse trigger, trigger mode supports high performance according to strict rule. 3、Supports simple installation, relay board with strong stability not requires particularly complicated operations. 4、After many inspections before leaving the factory, relay module's quality is guaranteed, you can use it with confidence. 5、Built to strict quality control standards, 2-channel relay is improved for more durability.
Item Type: Relay module
Model: SL35B02
Working Current: 1 relay pull-in 70MA, 2 relay pull-in 140MA
Static Working Current: 0.24mA
Trigger Mode: Low level trigger
Pin Description:
V: Positive power supply
G: Negative terminal of power supply and ground terminal of trigger signal;
T (T1 / T2 / T3 / T4): Trigger signal input (0.2-2 second low pulse).
NO: Relay normally open port
COM: Relay common port
NC: Relay normally closed port
Instructions:
While at power-on, the relay opens. Click the trigger port (T1 / T2 / T3 / T4 port) relay to pull in (and hold), then click the relay again to disconnect, and so on.
1 x Relay Module
