2 Pcs Aluminum Clad Wire Wound Resistors 25W 30 Ohm 5%

2 Pcs Aluminum Clad Wire Wound Resistors 25W 30 Ohm 5% Description

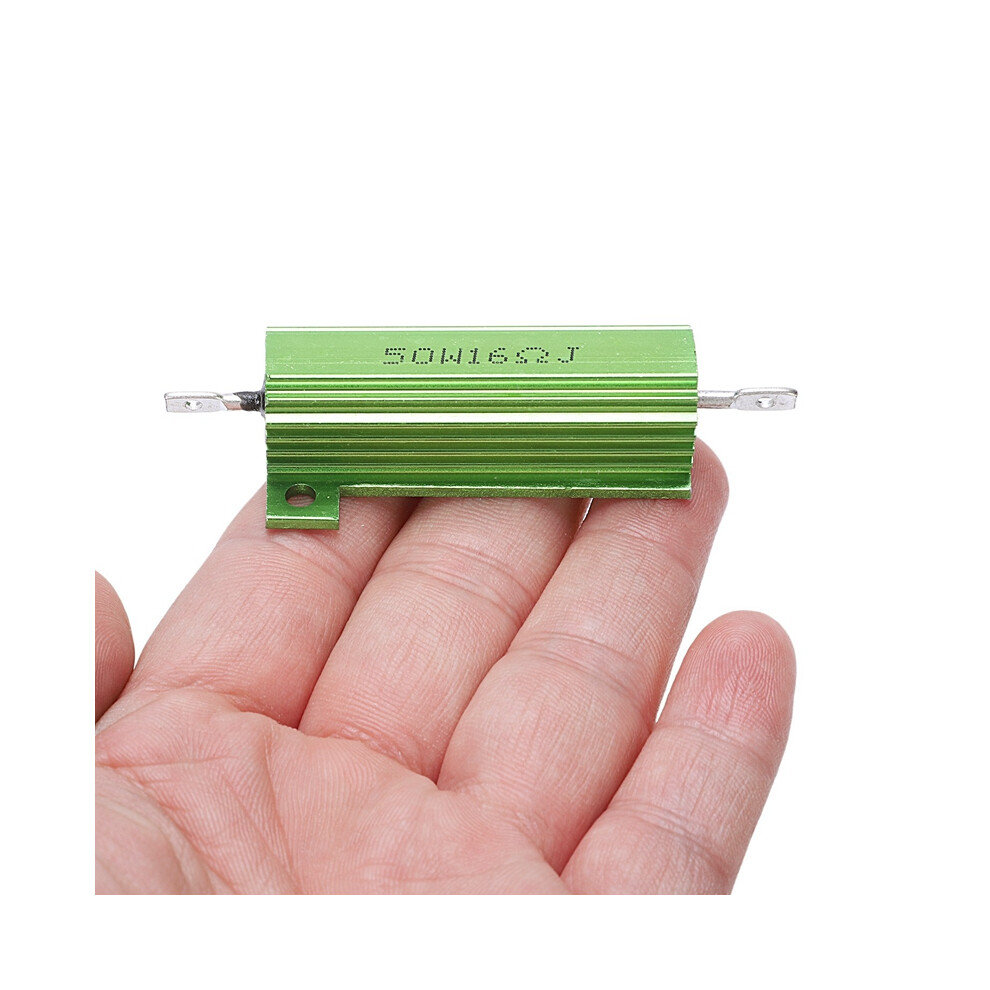

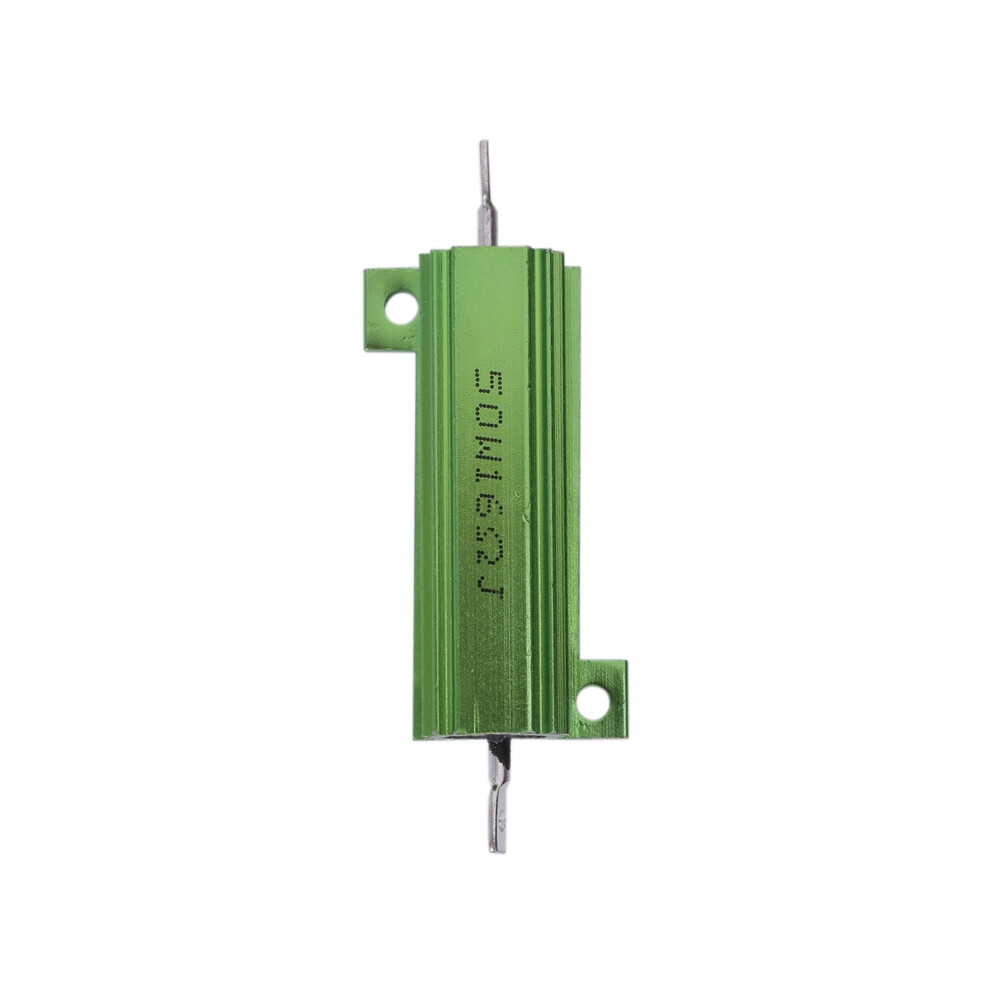

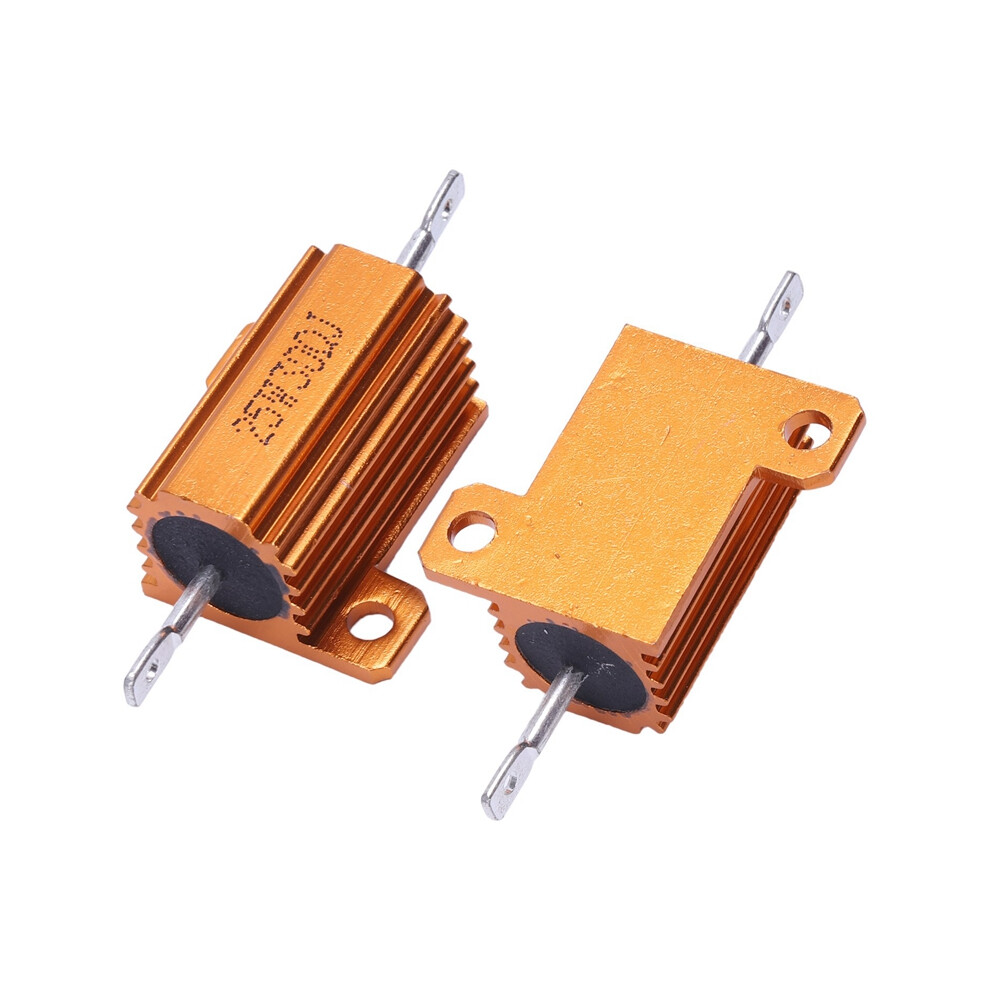

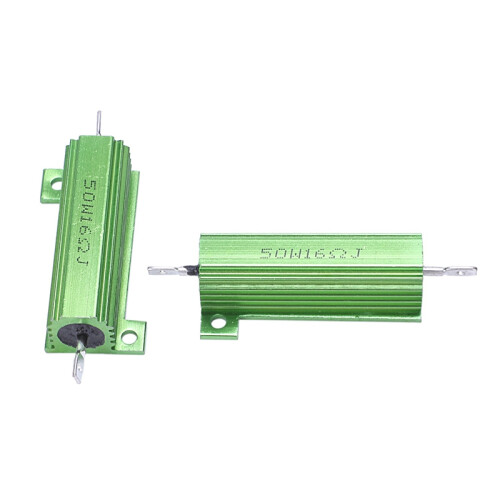

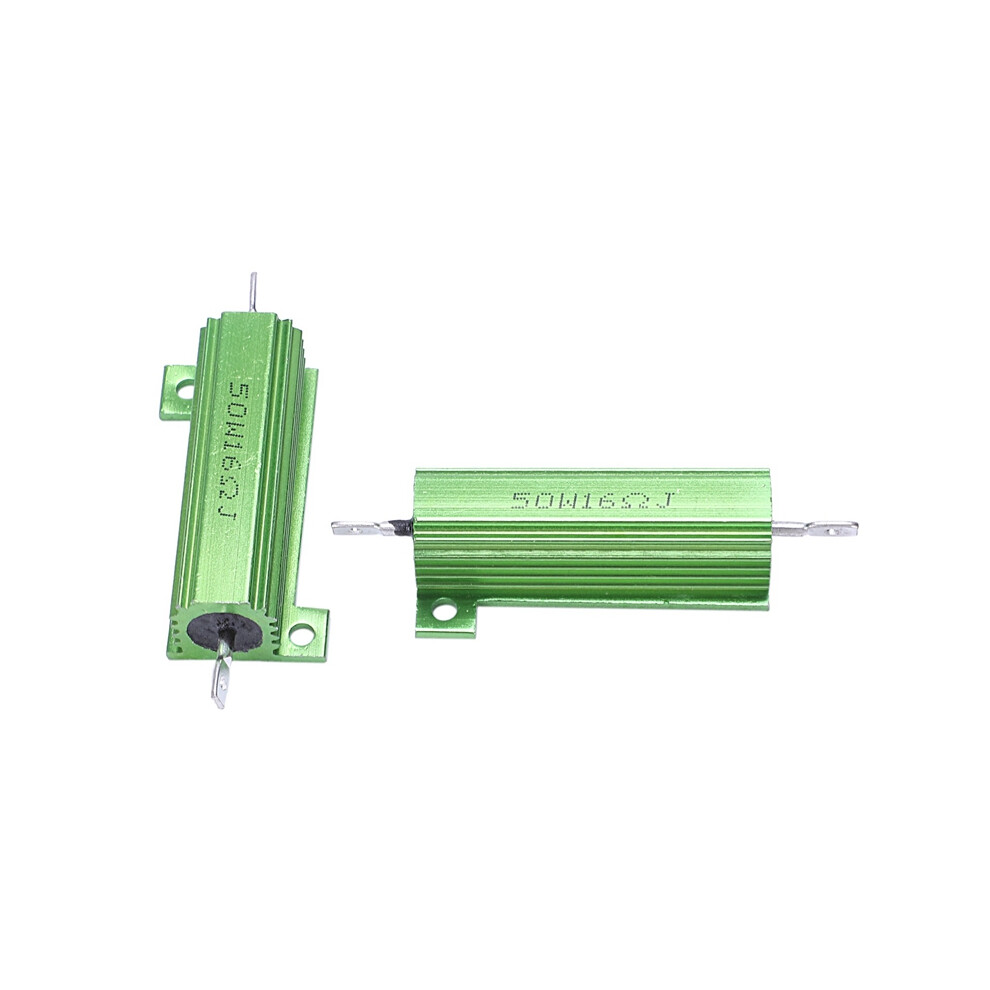

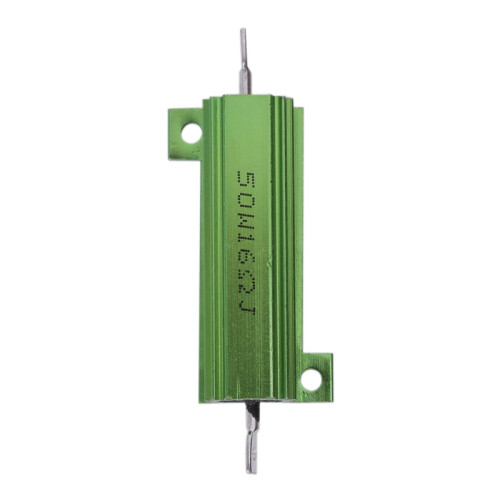

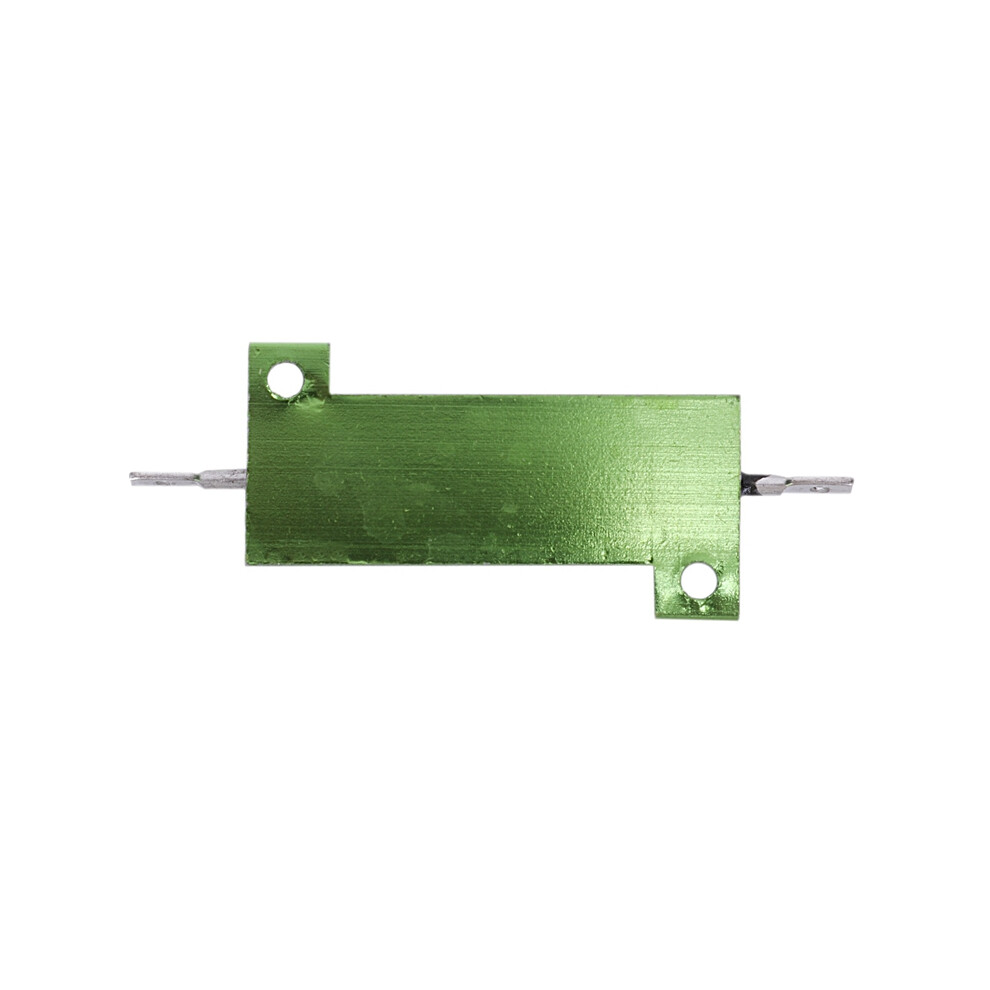

4 pcs Aluminum Housed Wire Wound Resistors: 2 Pcs 50W 16 Ohm & 2 Pcs 25W 30 Ohm
Aluminum housing for heat dissipation, suitable for cooling plate installation, can be used in atrocious environment.
Small size, high power load, standard and non-inductive winding types.
High insulating capacity, good performance in vibration. Multiple connection modes, easy to install.
Widely used in power supply, transducer, elevator, audio and high requirement equipment industry.
Product Name: Aluminum Housed Resistor
Resistance Value: 16ohm & 30 Ohm
Power Rating: 50W & 25W
Resistance Tolerance: +/-5% (J)
Body Size: 4.9 x 1.5cm/ 1.9 inch x 0.59 inch & 2.7 x 1.5cm / 1.1 inch x 0.6 inch (L x D)
Mounted Hole Size: 1.8mm/ 0.07 inch, 3mm/ 0.12 inch
Total Size: 7 x 2.1 x 1.5cm/ 2.75 inch x 0.83 inch x 0.59 inch & 5.2 x 2.8 x 1.5cm / 2 inch x 1.1 inch x 0.6 inch (L x W x T)
Color: Green & Gold
Casing Material: Aluminum
Package Content:
4 x Aluminum Housed Wire Wound Resistors
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
