2 Port POE Extender 10/100Mbps with IEEE 802.3Af Standard

2 Port POE Extender 10/100Mbps with IEEE 802.3Af Standard Description

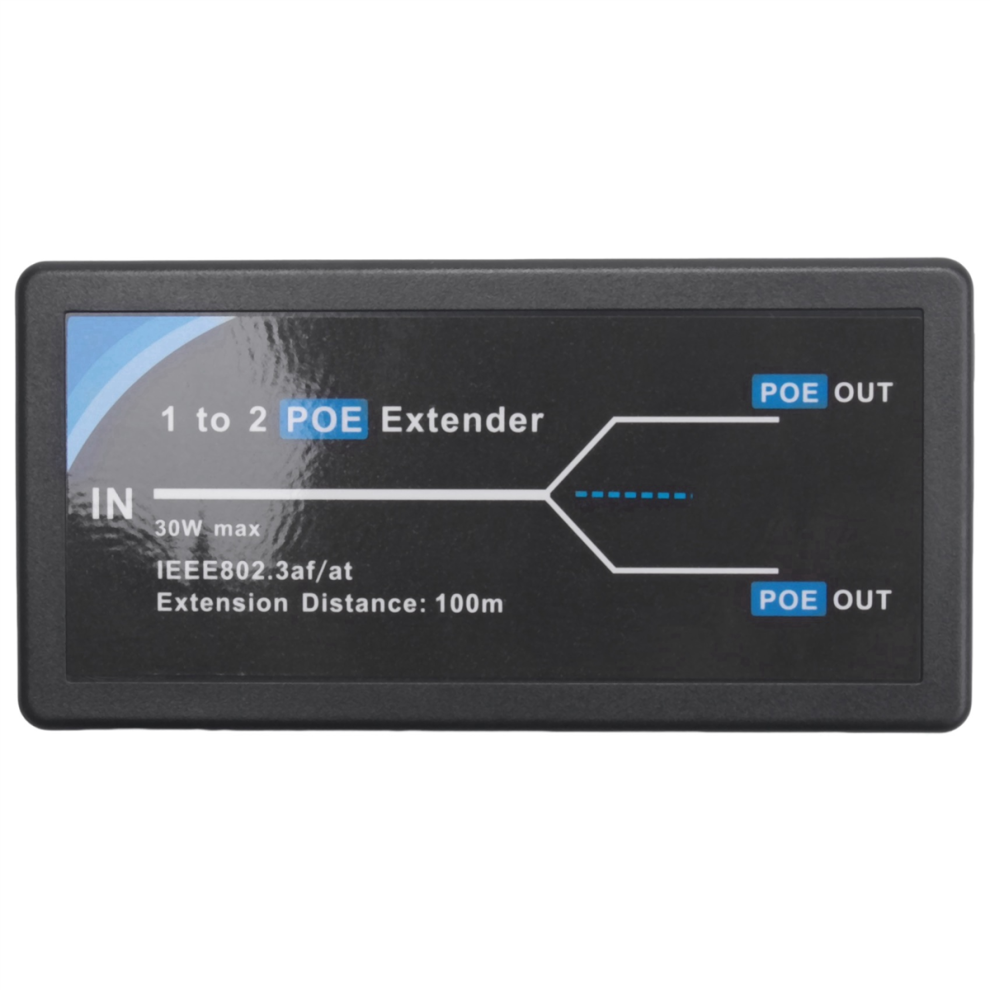

The PoE Extender features one 30W PoE input port and two 15W PoE output port, running one cable to connect to 2 POE IP devices.
The POE extender can extend the range of the Ethernet network by an additional 100m (328 ft). Extended PoE installation range by additional 100M. The maximum is 6 pieces, 700 meters (2296ft) when deployed in cascade.
Supports 10,100Mbps data rates, comply with IEEE802.3at and IEEE802.3af Standard. Provides 802.3af power levels when powered by any 802.3at source.
The PoE Extender cost effective installation - does not require local power and other configuration required. Powered via the PoE input, Plug and Play. Automatically detects and protects PoE equipments from being damaged by incorrect installation.
It can forward both Ethernet and PoE power for 1 terminal equipment via Cat5,Cat5e,Cat6,Cat6e,UTP cable(less than 120m).

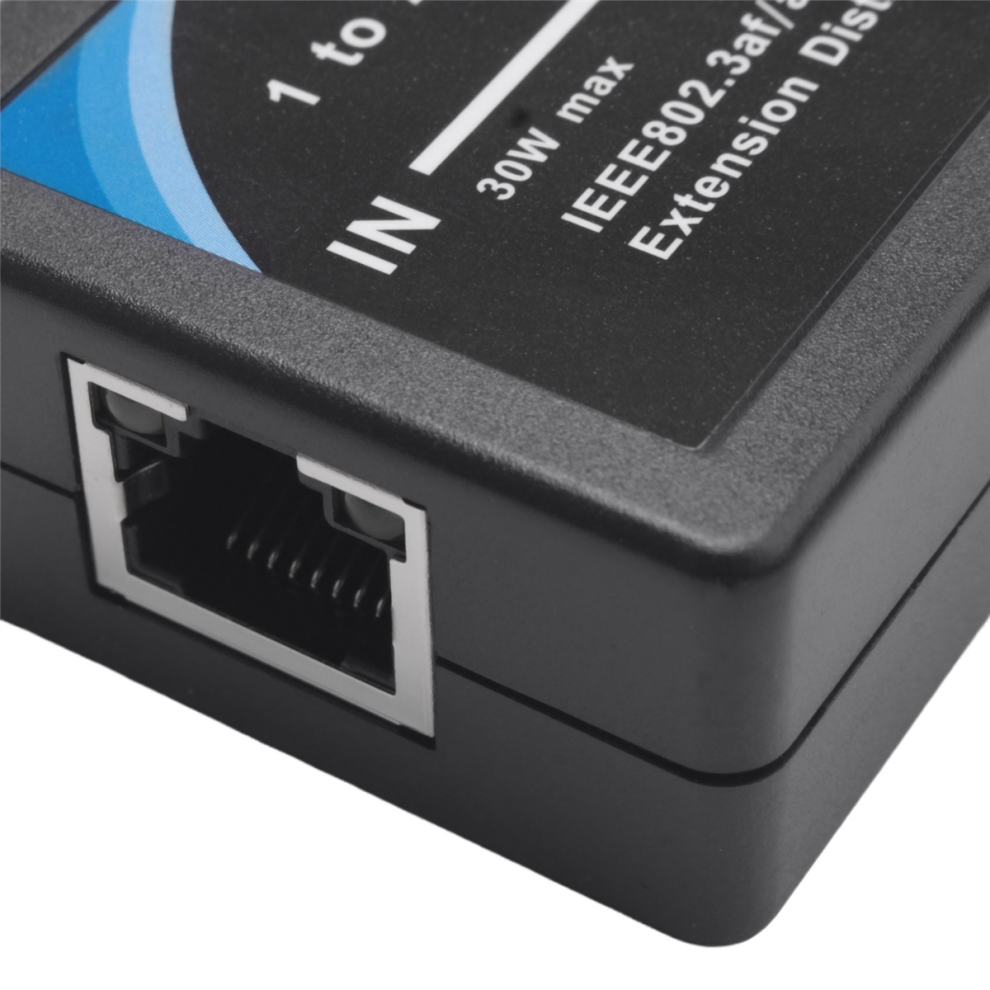

PoE input: 1 RJ45 port(DC 48-57V)

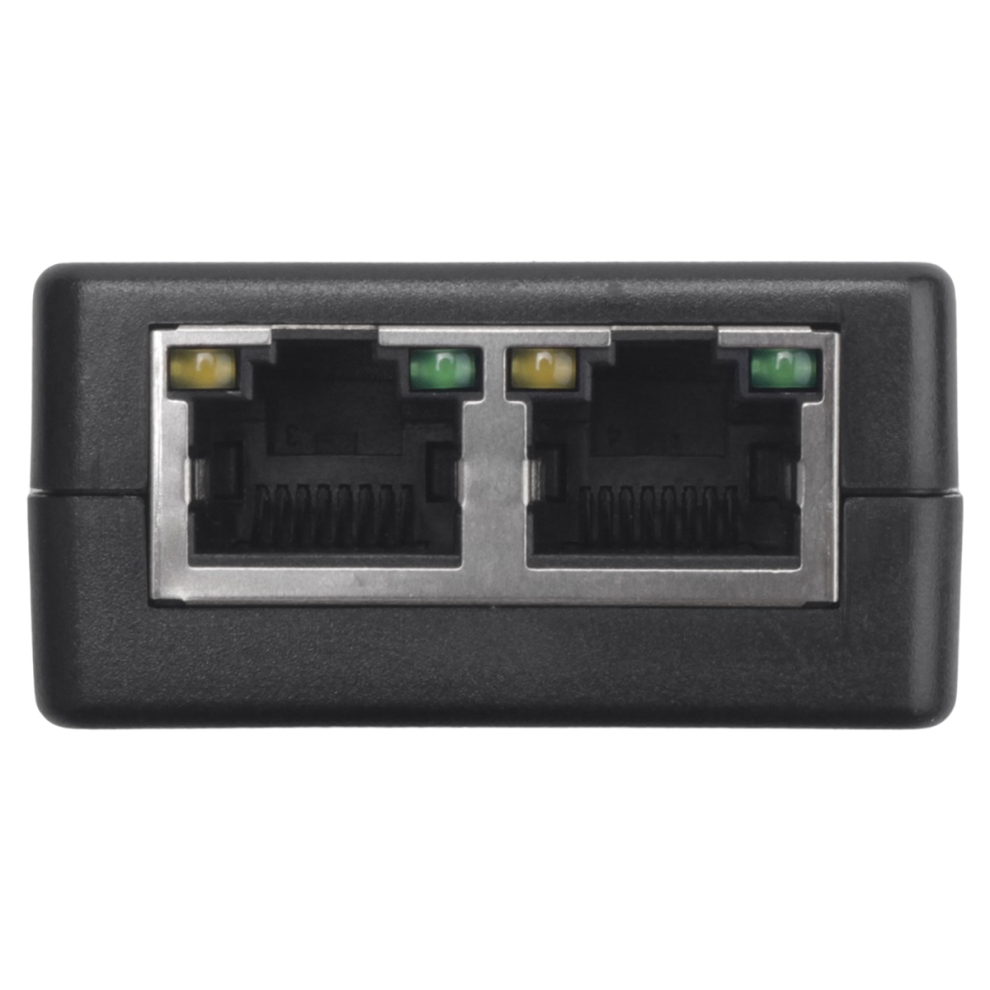

PoE output: 2 RJ45 port
Input power: 30 Watts Max
Output power: 15.4 Watts Max
Network Medium: Cat5 ,Cat5e,Cat6,Cat6e,UTP cable(less than 120m)
Daisy Chain Distance: up to 700m(6 pieces)
Repeater Mode: Store and forward
Address Table: 2K
Packet Buffer Memory: 48 Byte
Switching Capacity: 400Mbps
PoE Standard: IEEE 802.3af/at
PoE Cable Core: 1/2(+), 3/6(-)
Power Supply Type: Mode A,End-Span
LED Display: PoE Working status, Ethernet
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet.
Storage Humidity: 5%~90%, No Condensation
Colour:black
Material:plastic

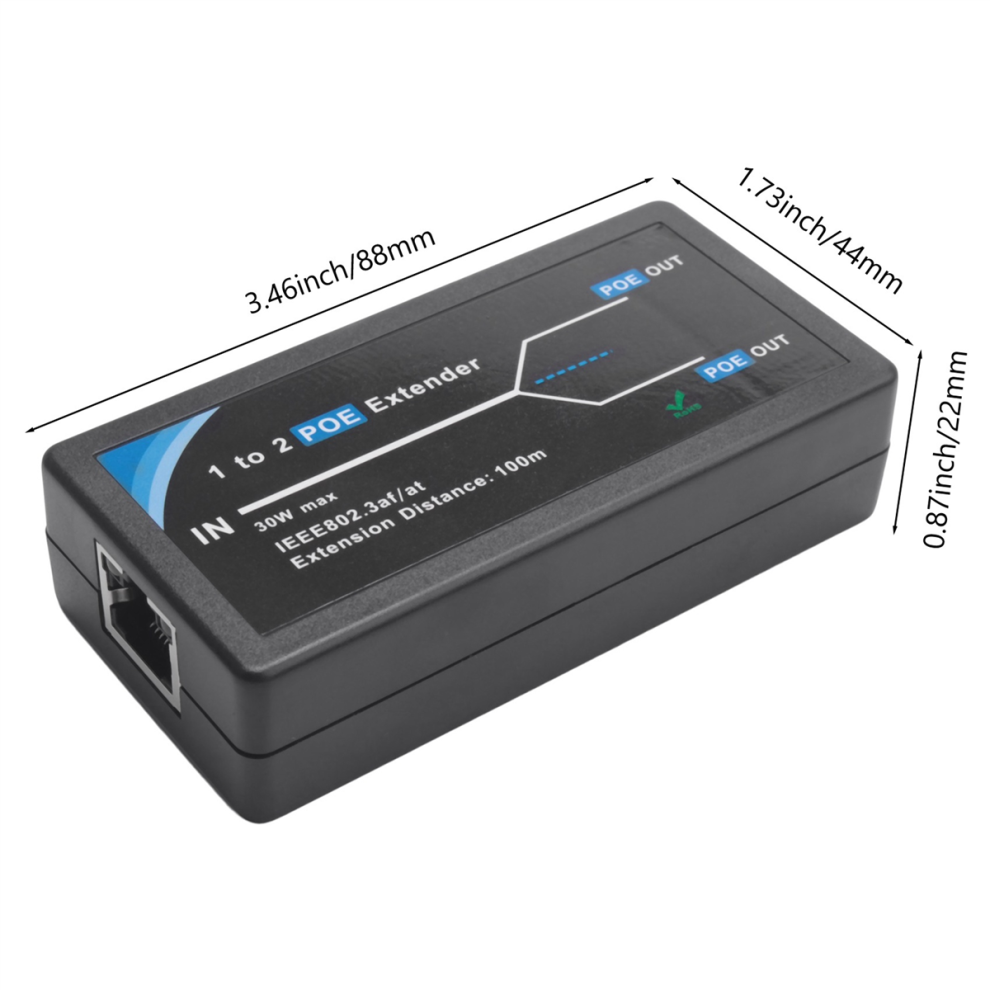

Size:88 x 44 x 22mm

Package Contents:

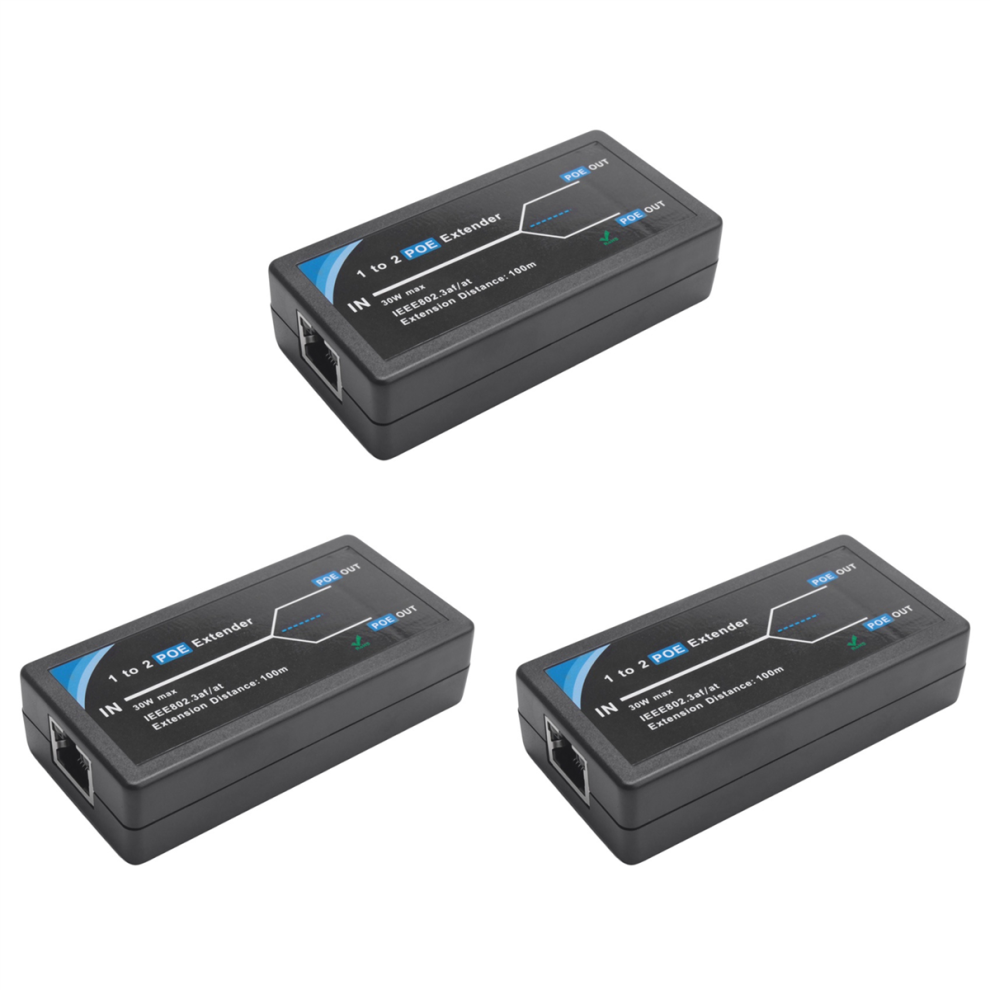

3 x 2 Port POE Extender

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
