Product Images
2-PORT SERIAL PCIE CARD PCI
Brand StarTech.com
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
£118.29
FREE Delivery
1%
Earn £1.18 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 27th Jun - Fri 3rd Jul
Returns: 30 days
180-day payment protection
Most Popular in Serial Adapters
Description & Details

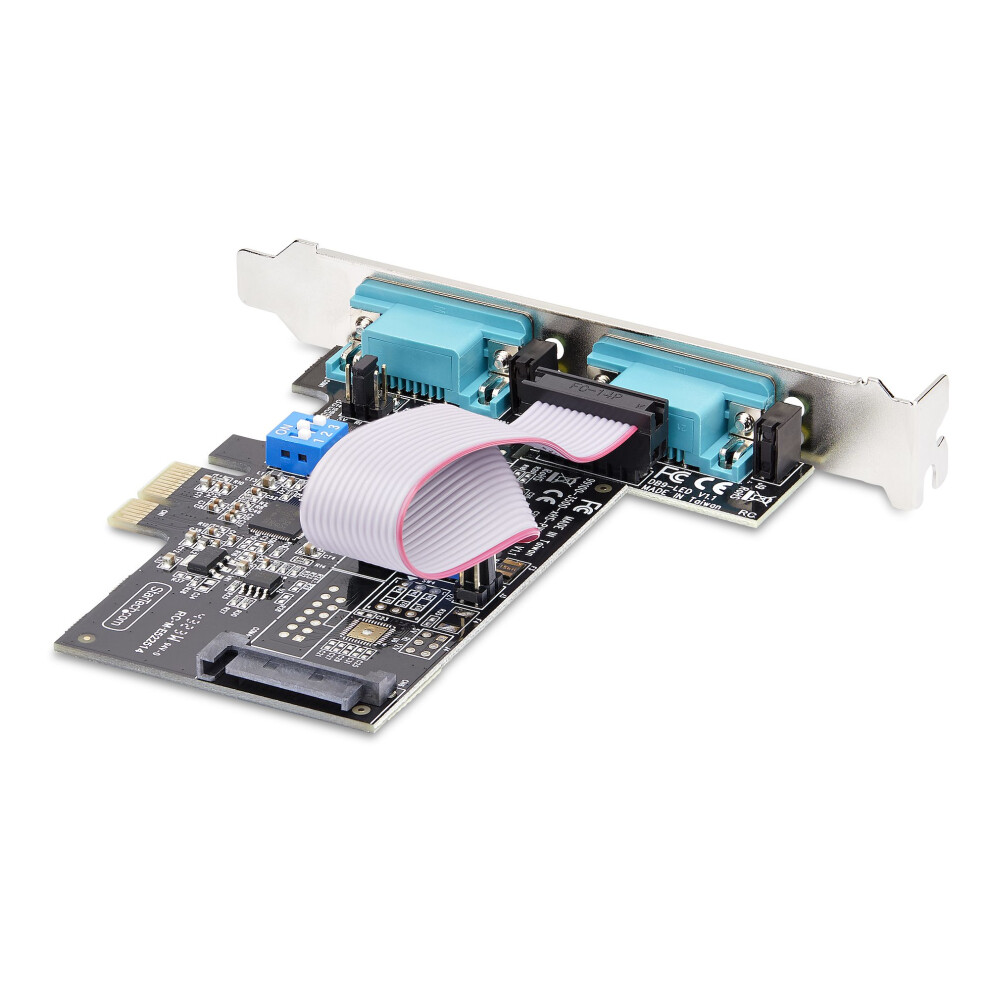

2-PORT SERIAL PCIE CARD PCI Description
Add two RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion CardAdd serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.Per-Port Serial ConfigurationThis PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.Configurable External SATA PowerThe PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.Legacy ConnectivityThis serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes).The StarTech.com Advantage
Details
| OPC | PDYGJTN |
|---|---|
| Brand | |
| Codes | 0065030900270 (EAN) |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Design
| Internal | Yes |
|---|---|
| Product colour | Black |
Weight & dimensions
| Weight | 57 g |
|---|---|
| Height | 16 mm |
| Width | 102 mm |
| Depth | 105 mm |
Operational conditions
| Operating relative humidity (H-H) | 20 - 80% |
|---|---|
| Storage temperature (T-T) | -20 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
Features
| Chipset | ASIX - AX99100 |
|---|---|
| Flow control support | Yes |
| Baud rate | 921.6 Kbit/s |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) | 256 B |
Packaging data
| Package weight | 147.6 g |
|---|---|
| Cables included | Ribbon cable |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package width | 142 mm |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
Ports & interfaces
| Serial interface type | RS-232/422/485 |
|---|---|
| Serial ports quantity | 2 |
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card standard | PCIe 2.0 |
Logistics data
| Master (outer) case height | 306 mm |
|---|---|
| Master (outer) case width | 685 mm |
| Master (outer) case length | 345 mm |
| Products per master (outer) case | 75 pc(s) |
Other features
| Electrostatic Discharge (ESD) protection | 15 kV |
|---|
System requirements
| Windows operating systems supported | Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows 11, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64 |
|---|---|
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
Technical details
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
