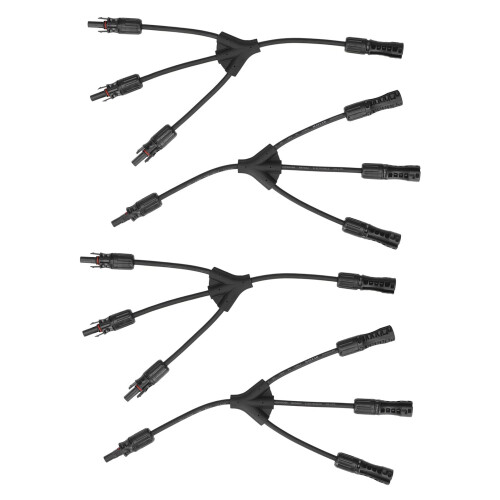

2 Set Solar Panel Branch Connector MC4 Y Type, Waterproof Quick Lock for PV System 1500V 30A

2 Set Solar Panel Branch Connector MC4 Y Type, Waterproof Quick Lock for PV System 1500V 30A Description

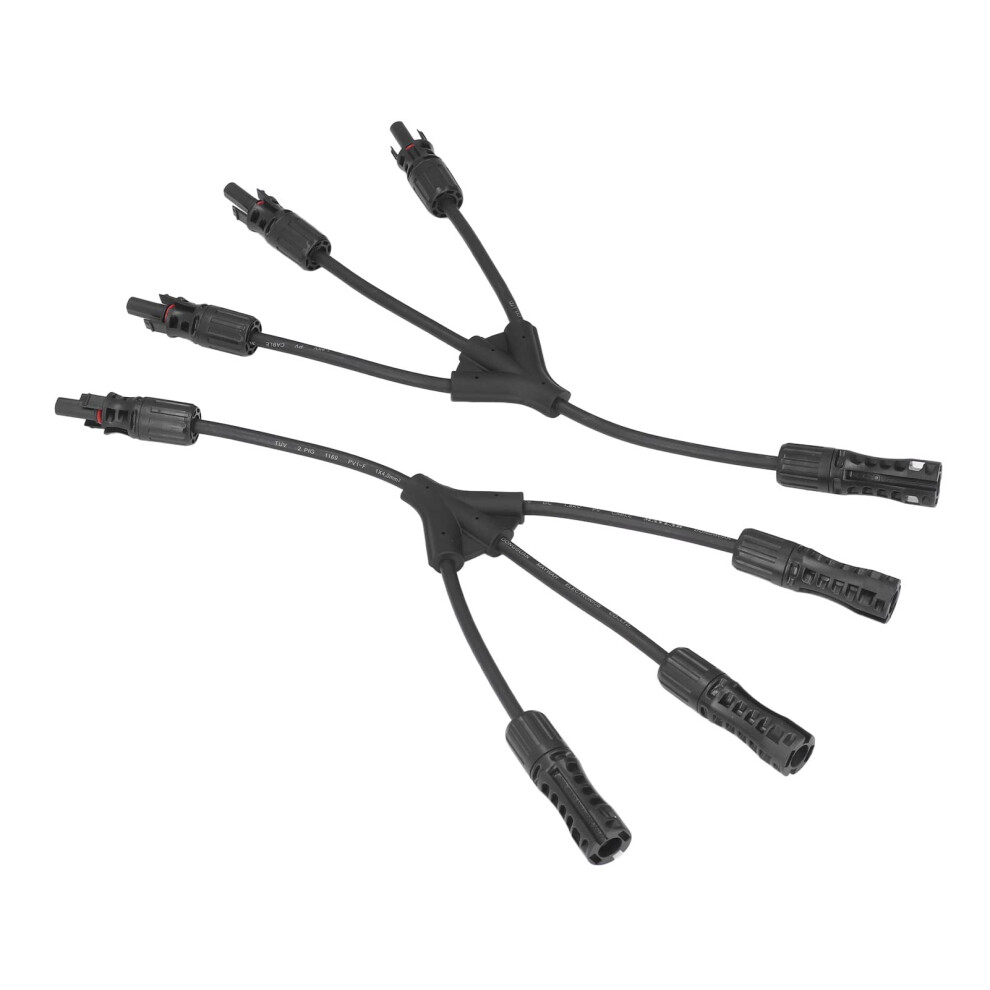

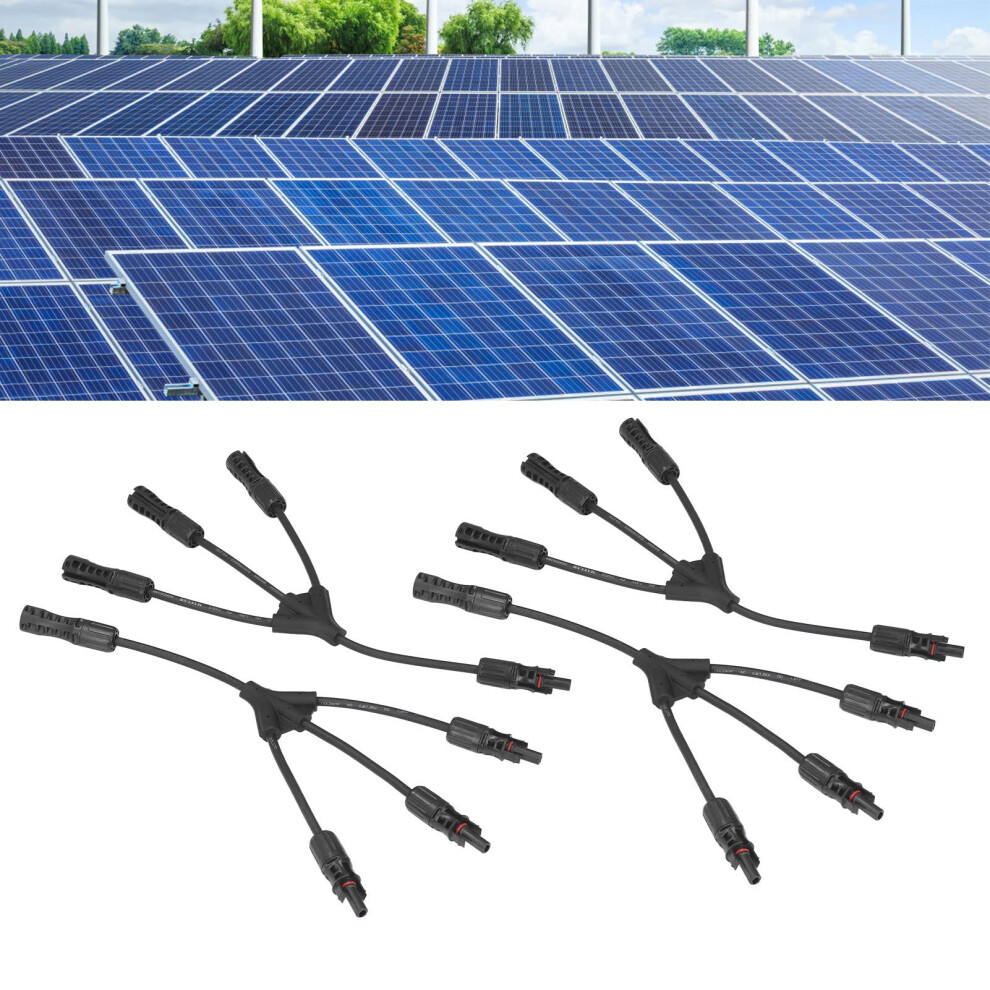

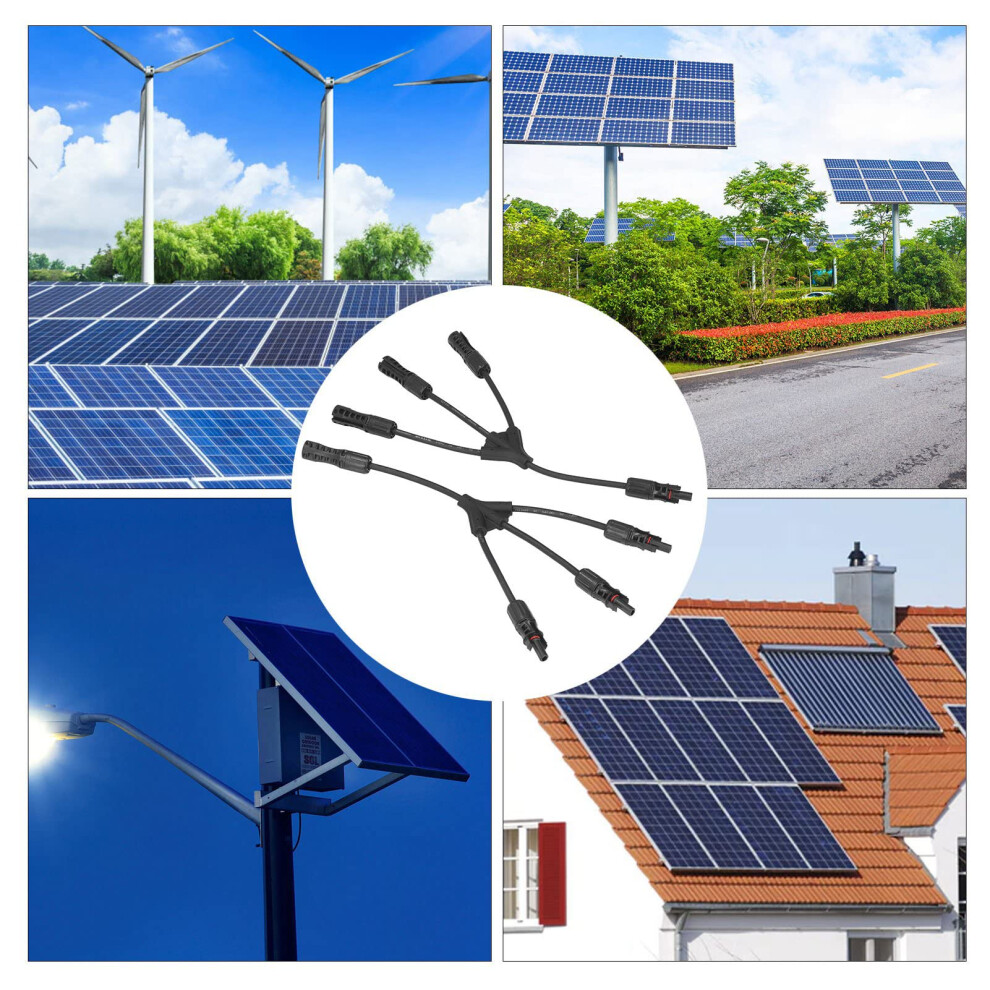

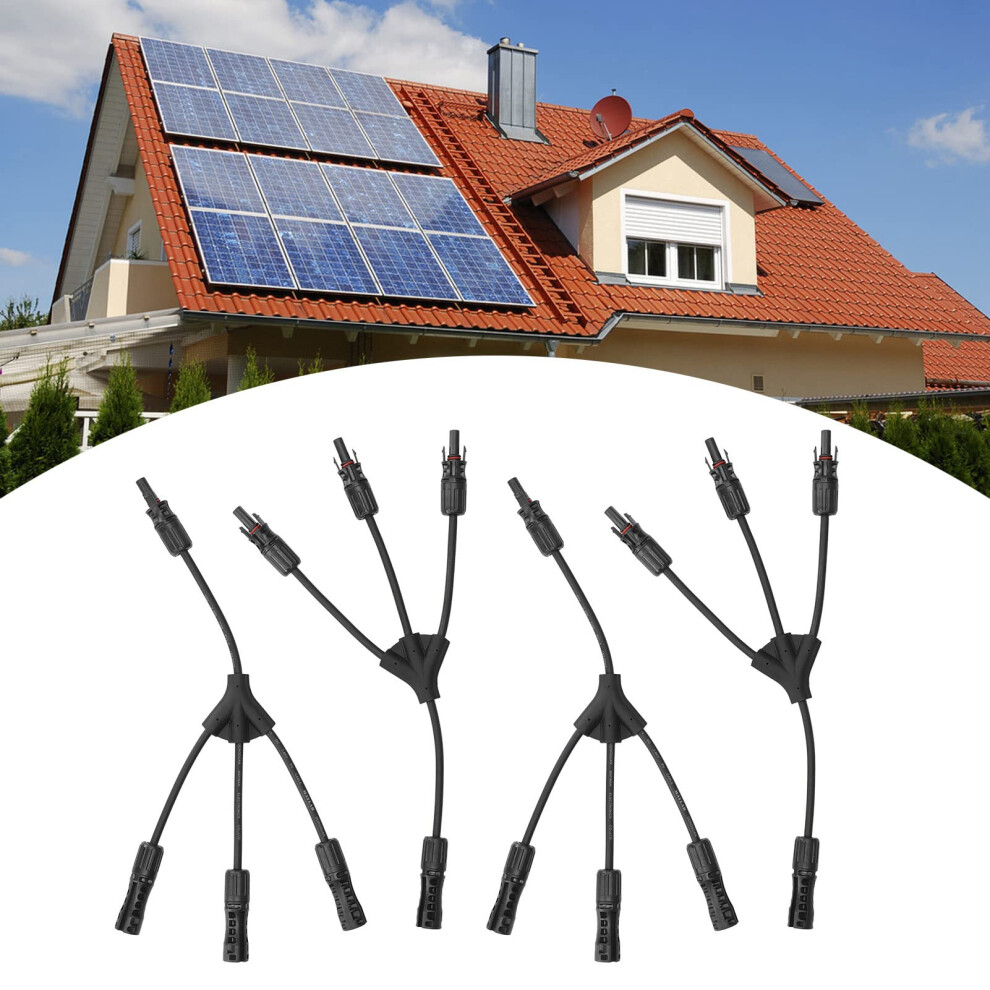

Branch Connector Model 15MCY301 for Solar Panel Parallel Connections Key benefits Quick, reliable connections: Builtin selflocking design lets you insert and release the connector by pressing the two sides of the lock with your fingers. Installations are fast and joints stay secure. Durable weather protection: Heavyduty waterproof sealing provides reliable protection against water and dust for outdoor solar installations. Long service life under harsh conditions: PPO plastic body and tinned copper conductors resist radiation, impact, and heat while maintaining stable electrical performance. current and voltage capacity: Designed for solar arrays with a rated voltage of 1500 V and rated current of 30 A, suitable for common PV system requirements. What it does This multipoint branch connector provides a simple and robust method to create parallel connections between solar panels. The embedded selflocking mechanism ensures secure mating, and crimpstyle wiring delivers low resistance and consistent conductivity for longterm use. Key specifications Model: 15MCY301 Item type: Branch connector (parallel bypass connector) Rated voltage: 1500 V Rated current: 30 A Conductor: Tinned copper Insulation material: PPO plastic Wiring specification: 4 mm2 Wiring method: Crimping Connection: Multipoint connection with embedded selflocking Resistance: 0.35 mOhm or less Ambient temperature range: 40 C to +90 C Product temperature range: 40 C to +135 C Waterproof rating: IP68 (water and dust resistant) Weight: Approx. 414 g (14.6 oz) Package: 2 sets x branch connector (4 pieces) Durability and performance Material: PPO plastic body for radiation resistance, impact resistance, and flameretardant properties suitable for prolonged outdoor exposure. Thermal performance: Wide operating temperature range supports stable performance in cold and hot climates. Low electrical loss: Tinned copper conductors and tight crimp connections deliver low contact resistance for efficient power transfer. Typical applications Residential rooftop solar arrays for parallel panel connections and string branching. Offgrid and RV solar systems where compact, secure parallel connections are needed. Solar street lighting and small commercial installations requiring reliable waterproof connectors. Installation notes Use crimping tools compatible with 4 mm2 photovoltaic cable for secure conductor termination. Insert the male and female connectors until the embedded lock engages; press both sides of the lock to release when disconnection is required. The product may be supplied in either the or old version; units are sent randomly. Please confirm this is acceptable before ordering. What is included 2 sets x branch connector (4 pieces) This connector is intended for solar panel connection applications requiring a compact, easytouse, and durable parallel branching solution.
