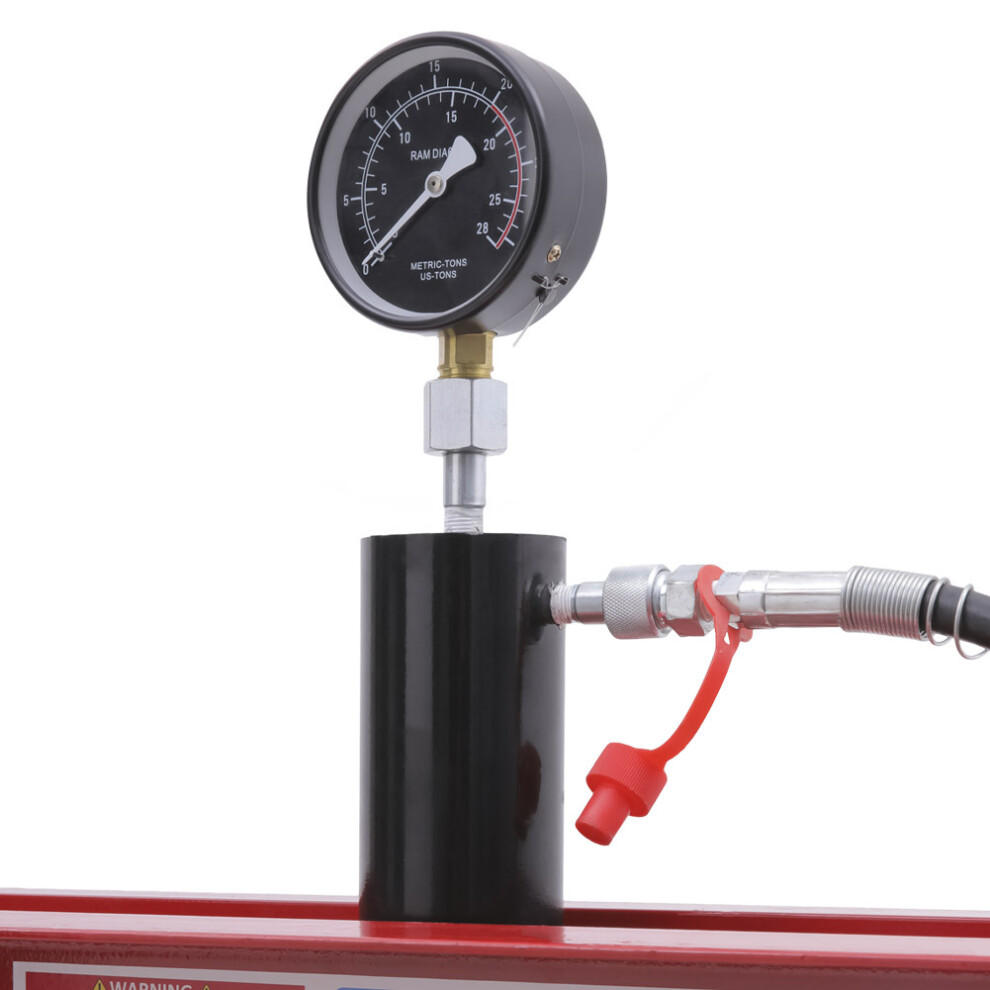

20-Ton Double Pump Hydraulic Press with Press Gauge

20-Ton Double Pump Hydraulic Press with Press Gauge Description

Description

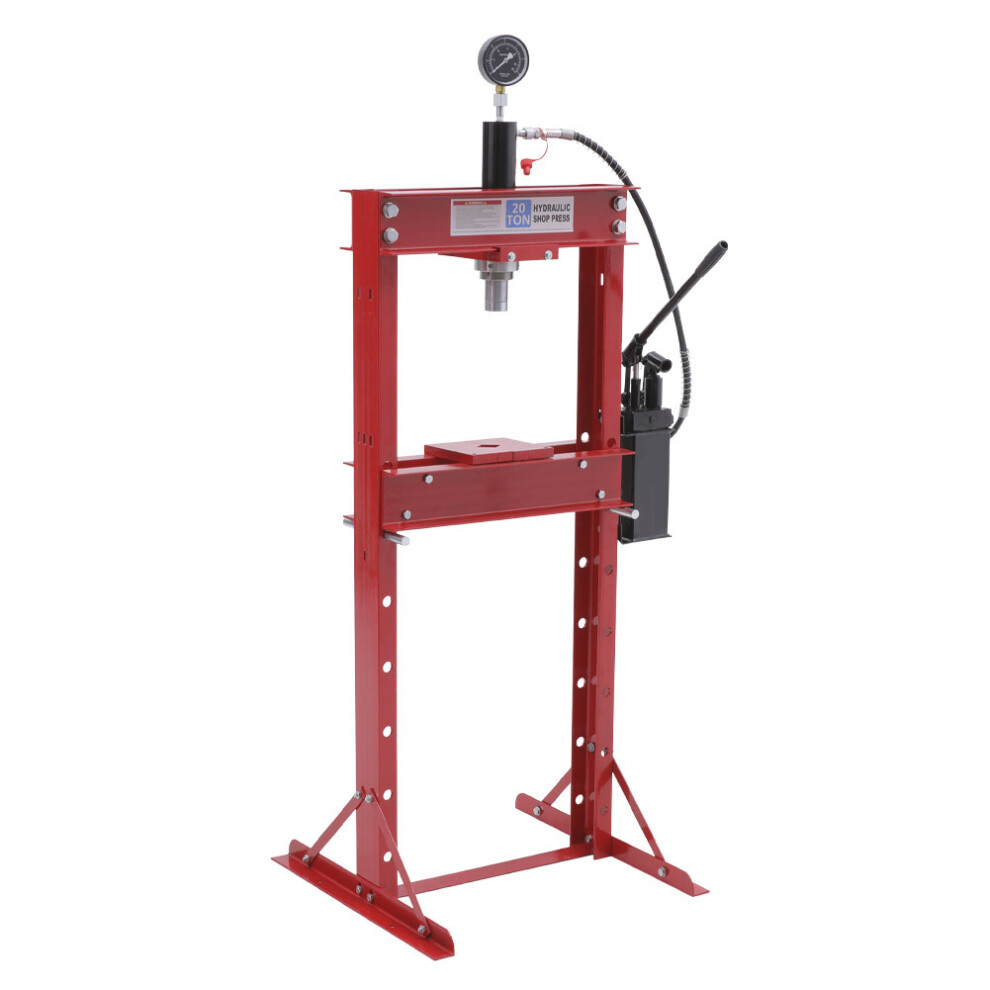

Constructed from heavy-duty steel, this Hydraulic Press is designed for long-lasting performance in any shop or garage setting. It features two removable stamped plates to secure small parts during use and an extra-long handle for easy pumping force. Perfect for both large and small workshops, it serves a variety of metalworking applications. The height of the hydraulic press support rod can be quickly adjusted, facilitating the positioning of larger materials and accommodating various stamping applications. The spring return ram speeds up your work, enhancing overall efficiency.

Specifications

Dimensions: 70cm W x 70cm D x 178cm H

Material: Metal

Maximum Applied Force: 20 Tons

Finish: Red

Power Source: ‎Hydraulic

Assembly Required: Yes

Package Content

1 x Hydraulic Shop Press

1 x Hardware Kit

1 x Instruction Manual

Operation Guide

1. Place the workpiece on the bed frame.
2. Locate and close the release valve.
3. Pump the handle until the ram approaches the workpiece.
4. Apply the load to the workpiece by pumping the handle, and avoid overloading.
5. Release the load from the workpiece by turning the release valve. Stabilize the workpiece to prevent it from falling during pressure release.
6. Remove the workpiece after the ram is fully retracted.

Safety Instructions

• Use this product only if you are trained.
• Do not exceed its rated capacity.
• Avoid compressing springs or shatter-prone objects.
• Inspect for loose or damaged parts before each use.
• Replace damaged parts and tighten loose bolts before operation.
• Exercise caution with parts that may pop out or explode under pressure.
