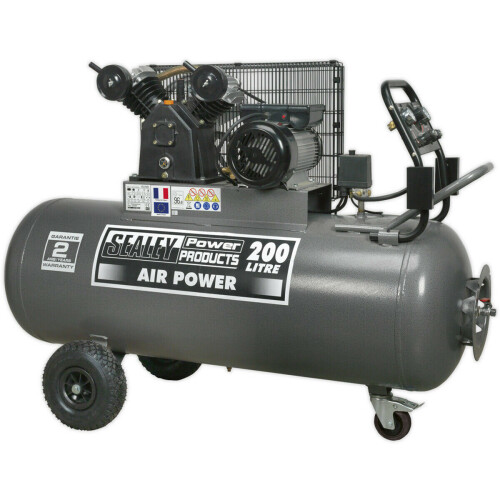

200 Litre Belt Drive Air Compressor - Front Control Panel - 3hp Electric Motor

200 Litre Belt Drive Air Compressor - Front Control Panel - 3hp Electric Motor Description

200 Litre Belt Drive Air Compressor - Front Control Panel - 3hp Electric Motor

Overview:

Twin capacitors and a centrifugal switch aid trouble-free start-up on a good 13A supply. Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life. Features an easy-to-use bespoke control panel with two outlets, one regulated and one direct. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Heavy-duty pneumatic wheels with single front lockable castor for easy manoeuvrability. Supplied with hose reel to keep your workspace tidy. Includes a drain valve for easy release of condensed water build-up in the tank.

Features:

• Air Displacement: 13.4cfm(380L/min).
• Maximum Free Air Delivery: 10.9cfm(310L/min).
• Maximum Pressure: 145psi(10bar).

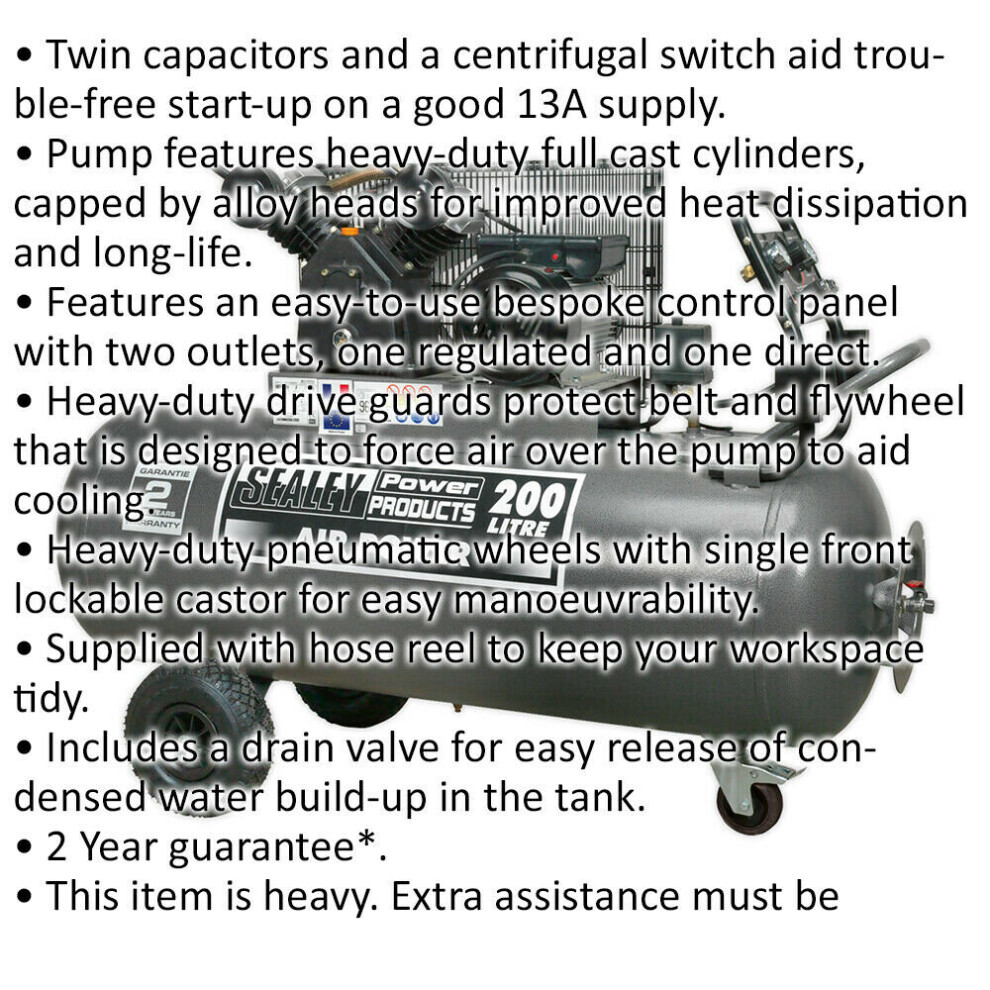

• Twin capacitors and a centrifugal switch aid trouble-free start-up on a good 13A supply.
• Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
• Features an easy-to-use bespoke control panel with two outlets, one regulated and one direct.
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• Heavy-duty pneumatic wheels with single front lockable castor for easy manoeuvrability.
• Supplied with hose reel to keep your workspace tidy.
• Includes a drain valve for easy release of condensed water build-up in the tank.
• 2 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Air Displacement cfm(L/min) - 13.4(380)
• Maximum Free Air Delivery cfm(L/min) - 10.9(310)
• Maximum Pressure - 145psi(10bar)
• Minimum Rated Supply - 16A
• Motor Output - 3hp
• Net Weight - 103kg
• Outlet - Hi-Flow Quick Release Coupling
• Phase - 1ph
• Receiver Capacity - 200L
• Size (W x D x H) - 1410 x 600 x 1020mm
• Speed - 1243rpm
• Supply - 230V
