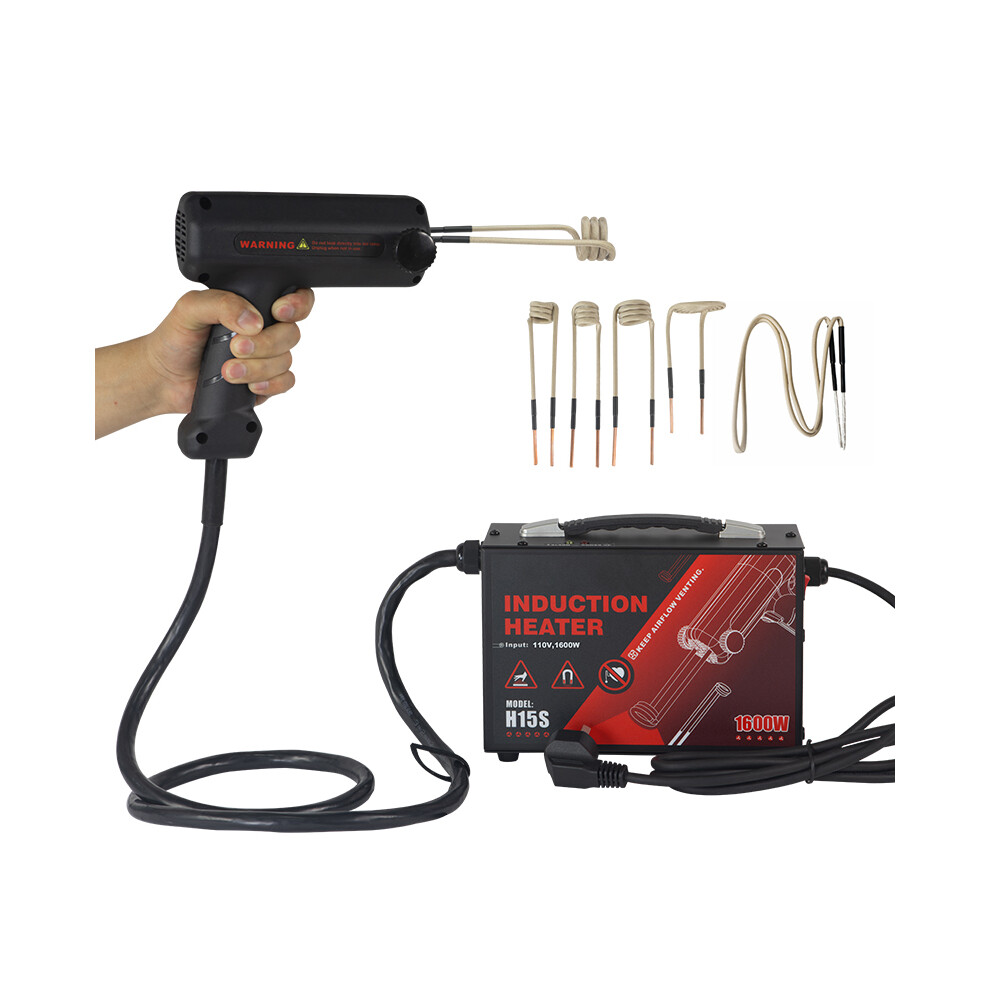

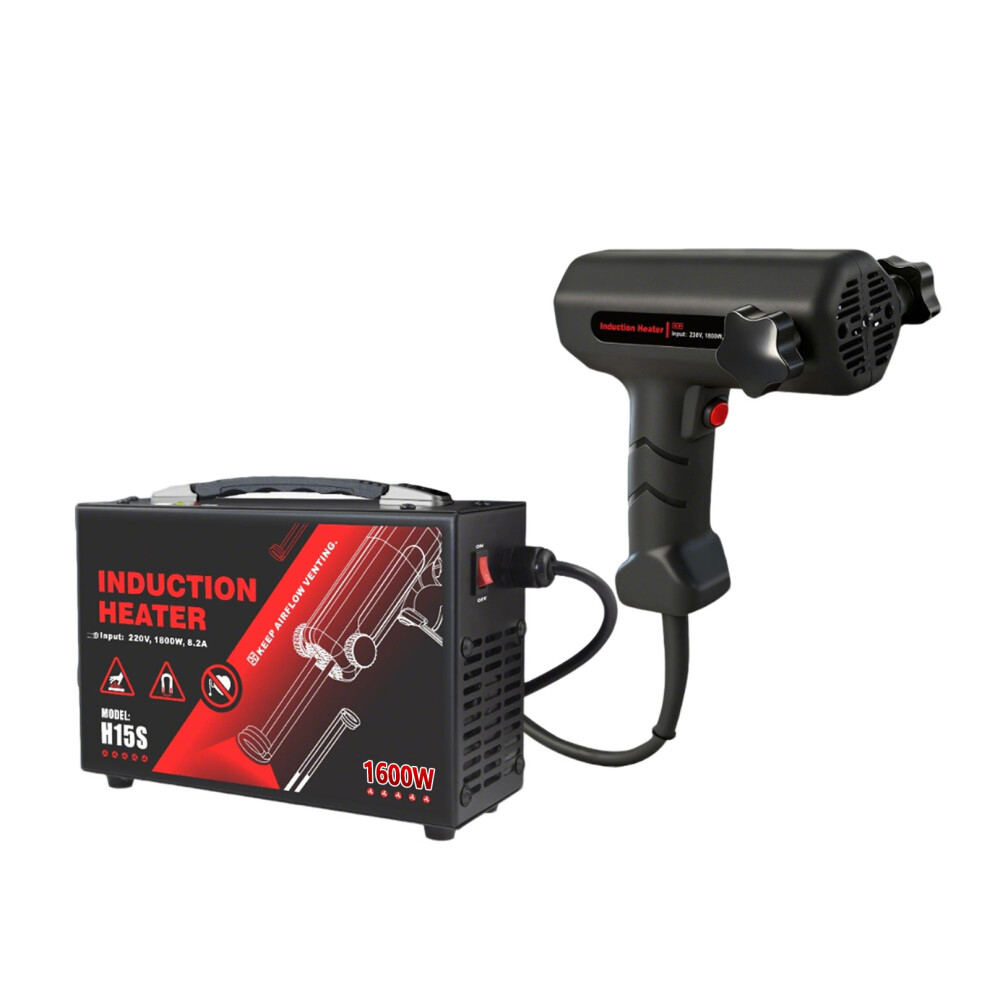

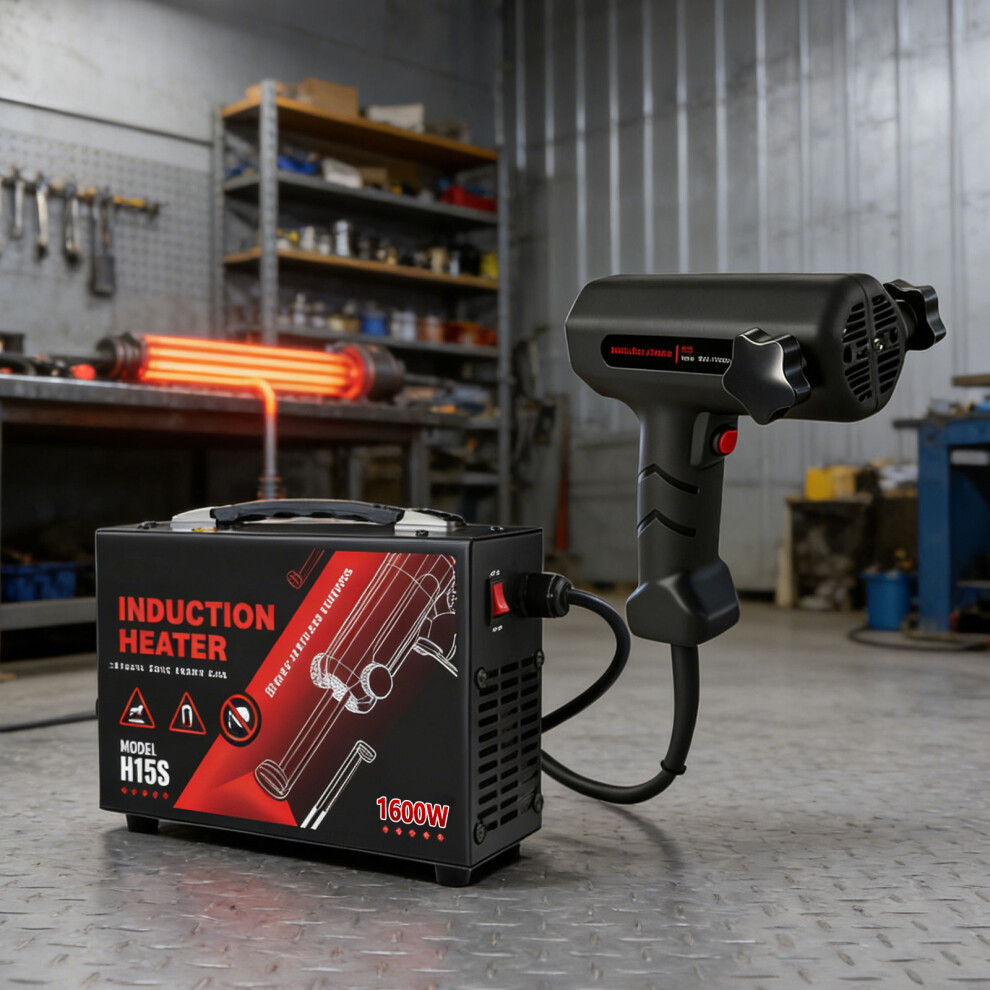

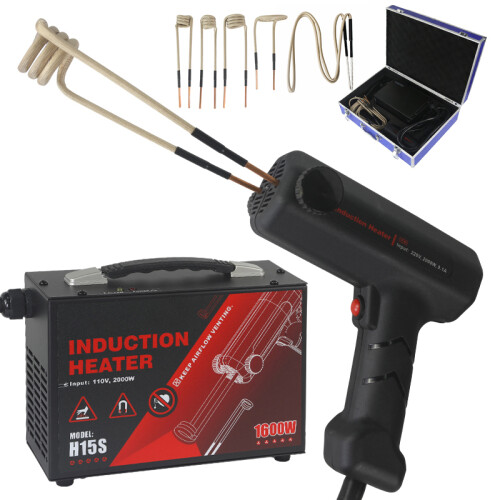

2000W Pro Induction Heating Machine Electromagnetic Heater Bolt Remover Kits

2000W Pro Induction Heating Machine Electromagnetic Heater Bolt Remover Kits Description

Product Description:

Pre-purchase Notes:

1. Do not heat continuously for extended periods. Only heat for 3-6 minutes at a time, with intermittent breaks.

The machine has overheat protection.

2. When installing the heating coil, ensure it is tightly tightened and positioned at the bottom. Then tighten the bolts on both sides and test pull

to check for looseness. Loose coils may cause the machine to overheat and burn out.

3. Do not heat copper/aluminum/other alloys. Only heat steel and iron.

4. Use the correct wattage.

5. Only heat materials with a maximum diameter of 60mm or a thickness of 1cm or less. For bearings, the maximum diameter is generally 5-6cm.

The power is 1100W. Only heat the outer diameter; do not heat the inner diameter.

6. This machine continuously heats at high temperatures. Avoid back-and-forth friction during heating to prevent short circuits.

Minimize back-and-forth friction. If the coil turns red, stop heating immediately.

7. If you need to use coiled wire, you can choose our 600mm hard wire and 1000mm soft wire.

Both sizes are flexible and can be bent freely. Other sizes cannot be coiled.

The coil is a consumable item. During the heating process, the higher the temperature, the faster the surface insulation sleeve will break.

Generally, it can be expected that the insulation sleeve will break after about seven or eight uses

(this number is for reference only, depending on actual heating conditions).

8. The coil is a consumable. The coil needs to be replaced when it is about 30-40% damaged.

Too much damage will cause the machine to burn out.

Product Advantages

One click start: Split type induction heater, fast heating;

Precise induction: strong power, fast heating, heating corroded bolts, easy disassembly of connectors,

avoiding damage to surrounding components by open flames and welding guns;

Non contact induction heating: safe operation, heating does not require touching the screen to the heating coil,

but rather the temperature that needs to be reached by the heated metal itself. Induction heating has a metal reaction and does not react to the human body.

Widely applicable: Suitable for disassembling screws of various specifications, various hardware tools,

mechanical and electrical industries, production or mechanical equipment, motorcycle maintenance of automobiles, various qigong/electric components,

and other scenarios.

Input voltage (V): 220V

Power Cable: 3-pin UK Plug

Output power (W): 2000W

Working current (A): 9A

Working frequency (Hz): 50Hz-60Hz

Machine protection temperature (C): 70

Heating temperature (C): 700-800

Gun handle line (m): 1.5m

Weight (kg): 5.5kg

Handheld High-Frequency Induction Heater - Fast Metal Heating Tool for Automotive Repair & Industrial Use

Key Features & Advantages

 Fast & Targeted HeatingMagnetic induction technology heats metal only-no heat transfer to non-metallic materials,

protecting plastic, rubber, and painted surfaces. Stops heating once the workpiece turns red for precise temperature control.

 Safe & Flame-Free OperationEliminates fire risks from open flames; equipped with automatic overheat protection (yellow indicator light alerts).

Cooling fan runs continuously after shutdown to prevent machine burnout, ensuring long-term use.

 Wide Compatibility with Metal WorkpiecesIdeal for heating steel, iron, and other ferromagnetic metals

(note: not for copper/aluminum to protect the transformer). Perfect for loosening corroded/rusted nuts/bolts,

removing oxygen sensors, ball joints, exhaust pipes, and more.

 Ergonomic & Portable DesignLightweight handheld body with a non-slip handle for comfortable grip; compact size for easy operation in tight spaces

(e.g., automotive engine bays). LED work light for clear visibility in dark work areas.

 Multiple Coils for All ScenariosComes with a complete coil set (customizable packaging) to fit different workpiece sizes and applications

-tube coils for fasteners, flexible coils for custom shaping, round pads for dent repair, and bearing coils for axle/race removal.

  Easy Operation Steps

Loosen the coil lock screw, insert the desired coil, and tighten firmly (critical for machine protection).

Plug into a compatible power outlet (220V), turn on the power switch (red indicator lights up).

Wrap the coil around the workpiece with a 5mm gap between coil and metal.

Press the heating button to start heating; stop immediately when the workpiece turns red.

Use corresponding tools to loosen/remove the workpiece-repeat if needed.

 Power Supply Requirements

Direct AC Power: 220V (compatible within 10% voltage range).

Generator: Output power 3.5kW (avoids voltage fluctuation and performance loss).

Inverter Power Supply: Output power 3kW.

Extension Cord: Only 2.0mm2/3.0mm2 cords allowed (1 per use, no series connection); 10m cord 2.0mm2, 20m cord 3.0mm2.

 Important Safety Guidelines

Keep 3ft away if you have a cardiac pacemaker/electronic/metal surgical implants-magnetic fields may interfere with medical devices.

Remove all metallic items (jewelry, keys, coins) and avoid metallic clothing (rivets/zippers) to prevent burns.

Wear safety goggles, heat-resistant gloves, and a dual-filter respirator (for adhesive fumes)-disposable paper masks are not adequate.

Do not use within 4 inches of airbag components, or heat pressurized containers (aerosol/paint cans)-risk of explosion.

Do not immerse the unit in water; keep the work area dry and well-ventilated. Have a fire extinguisher on hand for safety.

 Maintenance & Storage

Cleaning: Use a dry non-abrasive cloth to wipe grease/dirt; for tough stains, use non-volatile automotive interior cleaner (no gasoline/benzene/kerosene).

Storage: Unplug and cool down the machine for 10 minutes before removing coils; store all components in the included box in a dry, cool place.

Consumable Coil: Replace the coil immediately if its insulation layer is damaged to avoid equipment burnout.

 Ideal For

Automotive Repair Shops, Industrial Maintenance, DIY Enthusiasts-loosen rusted fasteners, remove bearings/oxygen sensors,

repair hail/soft dents, remove bonded decals/emblems, and more!

Model: H15S

Input Power: 220V-240V, 50/60Hz

Output Induction Frequency: 45KHZ

Maximum Output Power: 2000W

Cooling Method: Air Cooling

Cable Length: 2-meter power cord

Power Cable: 3-PIn UK Plug

Induction Coil Diameter and Quantity:

1000mm Coil 1

65mm Coil 1

40mm Coil 1

30mm Coil 1

20mm Coil 1

Total Package Weight: 6KG

Total Package Dimensions: 47*15*39CM

It has overheat protection, and the fuse rarely blows in this situation.

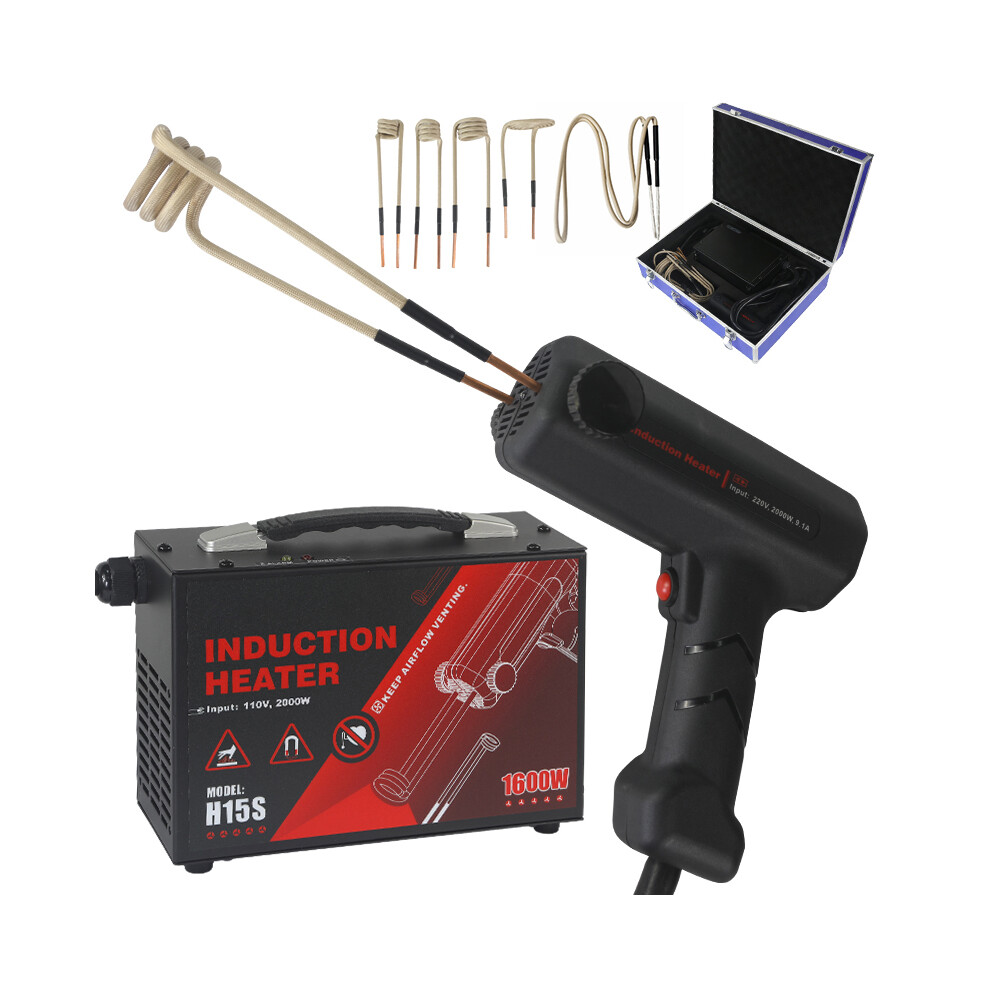

Package Included:

1 x  2000KW Induction Heater

1 x 1000mm flexible coil

1 x 40mm flat coil

1 x 30mm coil

1 x 20mm coil

1 x English Manual

1 x Tool Box
