200m Outdoor Rated CAT5e Cable 25 Pair Multi-Core UTP Ethernet Network

200m Outdoor Rated CAT5e Cable 25 Pair Multi-Core UTP Ethernet Network Description

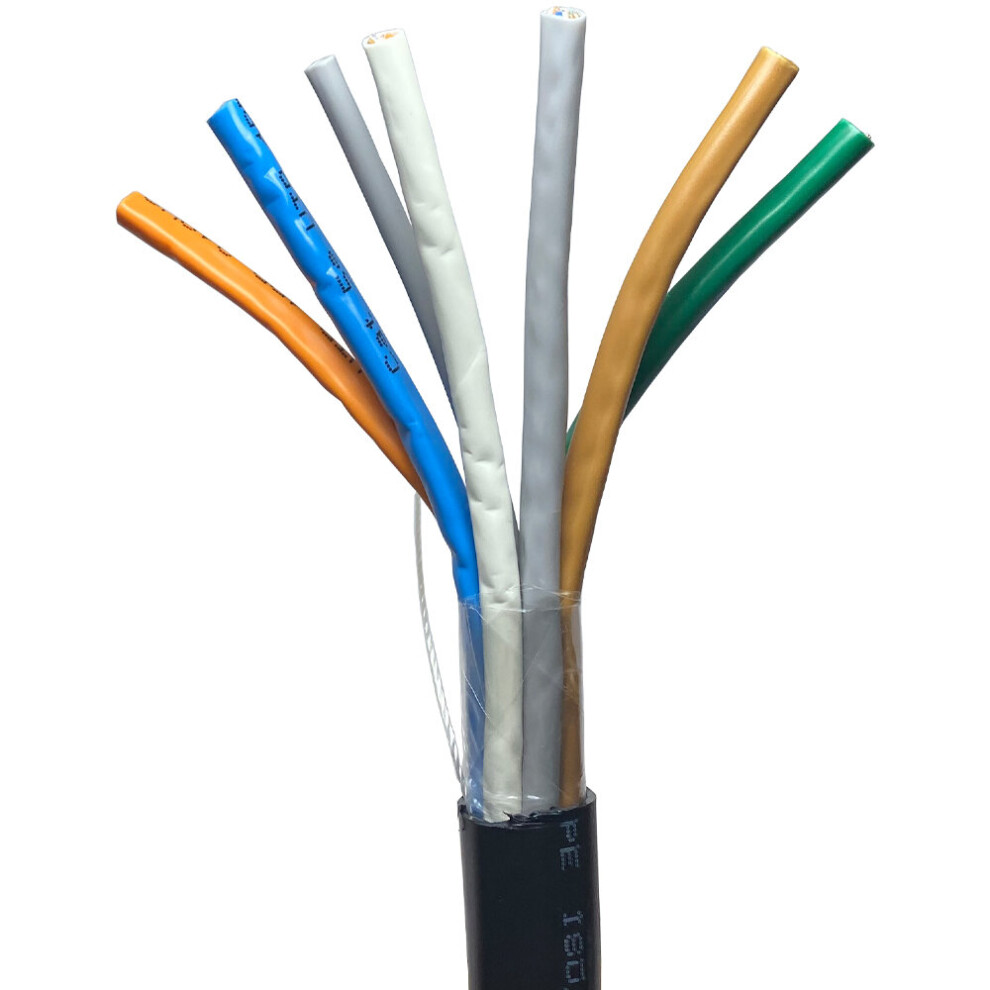

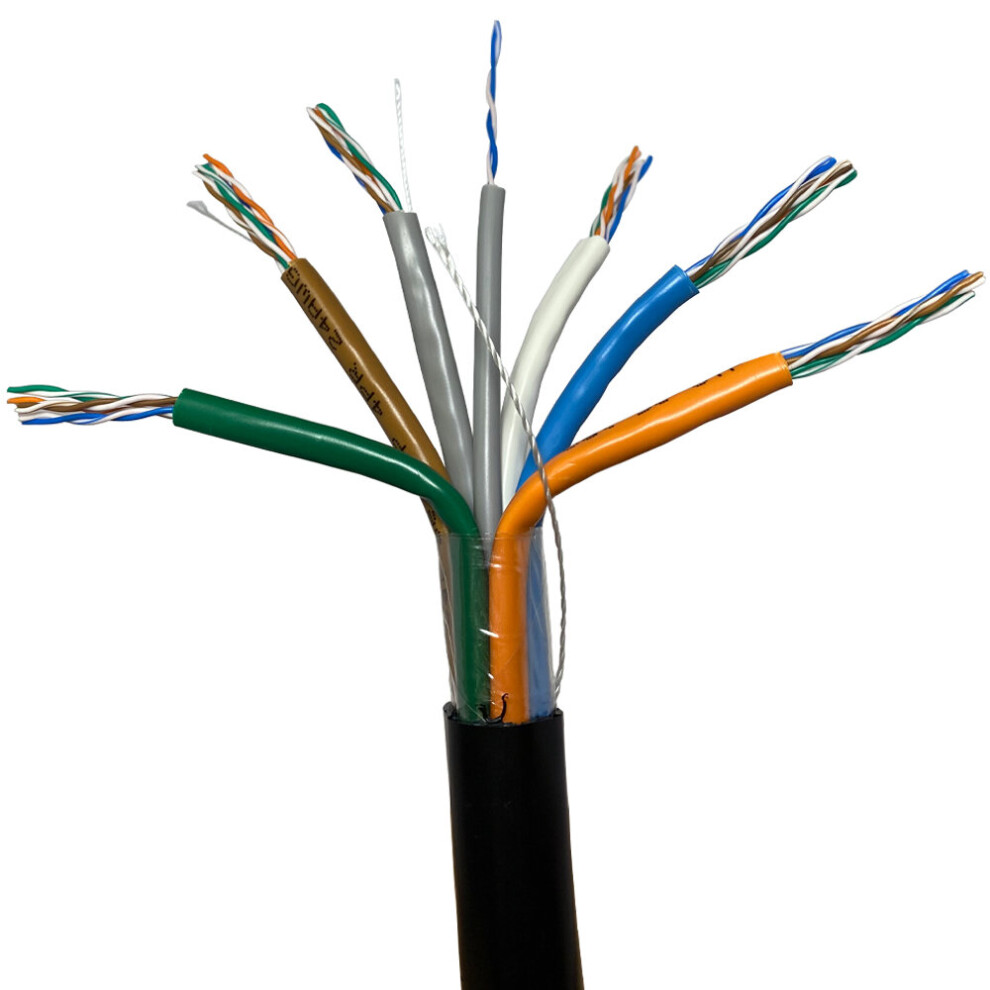

Uses – This 25 Pair Multi-Core cable is made up of 6x 4 Pair CAT5e & 1x 1 Pair CAT5e Conductors. Multi-core cables are ideal for backbone applications or installations that require an increased bandwidth. This CAT5e cable offers a total of 25 pairs, making it the equivalent of 6 individual CAT5e cables. This allows for a much easier installation over running multiple cables over a distance, you can instead just have a single cable running from point A to B.

This premium cable is commonly used for networking, AV installations & POE applications. It can be cut to length and fitted with 8P8C FTP connectors (also called RJ45 FTP), the standard PC networking connector. Depending on the type of connector you're using, you may need a crimping tool.

Made From - Pure copper conductors, this cable has been tested and is certified to CAT5e specification so is fine for use over longer distances.

Colour – Black

Outdoor protection - This variation of CAT5 cable is designed for outdoor usage, and as a result, comes with high density polyethylene (PE) insulation, designed to offer the core protection from cold and damp conditions, it also includes a second layer of flexible polythene film to prevent the ingress of water in the event the shielding is damaged. Should the cable be exposed to sunlight, the insulation is also UV resistant, where standard PVC insulation would decay.

Ease of use - To make measuring easy the cable is marked at 1 metre intervals.

Available in the following lengths – 25m, 50m, 100m, 200m, 300m, 500m & 1000m*

*1000m lengths aren't advertised on any of our stores, but if you get in contact with us, we'll be able to quote you on a 1000m reel.

PLEASE NOTE – 25m, 50m, 100m lengths may not be supplied on a reel.

Technical Features:

Conductor Area CSA: 0.2mm² (24 AWG)

Cable Diameter: 12.6mm

Conductor Make-up: 1/0.5mm - Solid Core

No. of Cores: 50 (25 Pairs)

Unshielded Twisted Pair (UTP)

Suitable for up to 1000Mbps

Suitable for distances up to 100m/328ft if used for networking purposes.

Wiring – Depending on the application in which you hope to use it, the cable can be wired in both the ‘straight through' or ‘cross-over' configurations.

'Cross over' cables are usually used for connecting 2 computers directly to one another, without the use of a Hub or Router. They use 568-A wiring at one end, and 568-B at the other.

'Straight through' cables can be used for connecting a PC or games console to a Hub/Router, or, in conjunction with AV extender devices, for audio and video distribution throughout a home or commercial project. To create a 'straight through' cable, it should be wired using the same wiring variant at both ends. Either ‘568-A to 568-A' or ‘568-B to 568-B'
