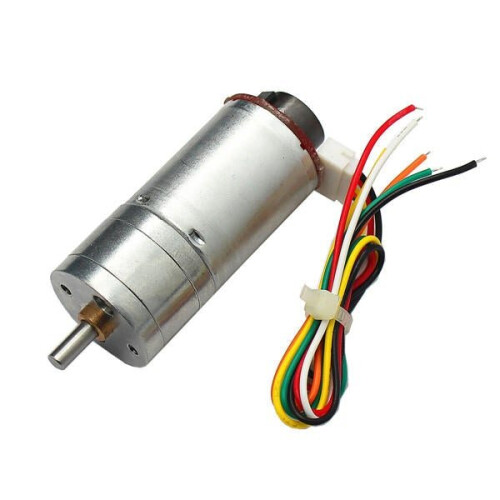

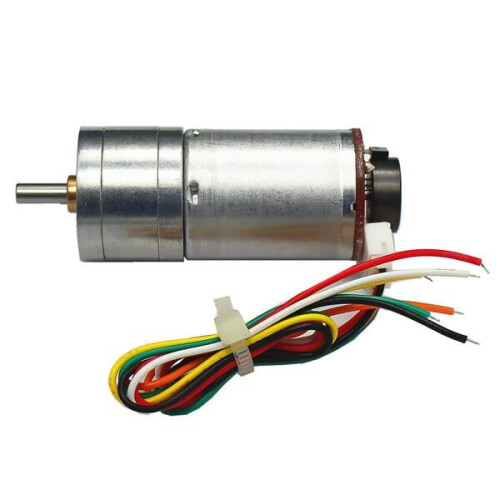

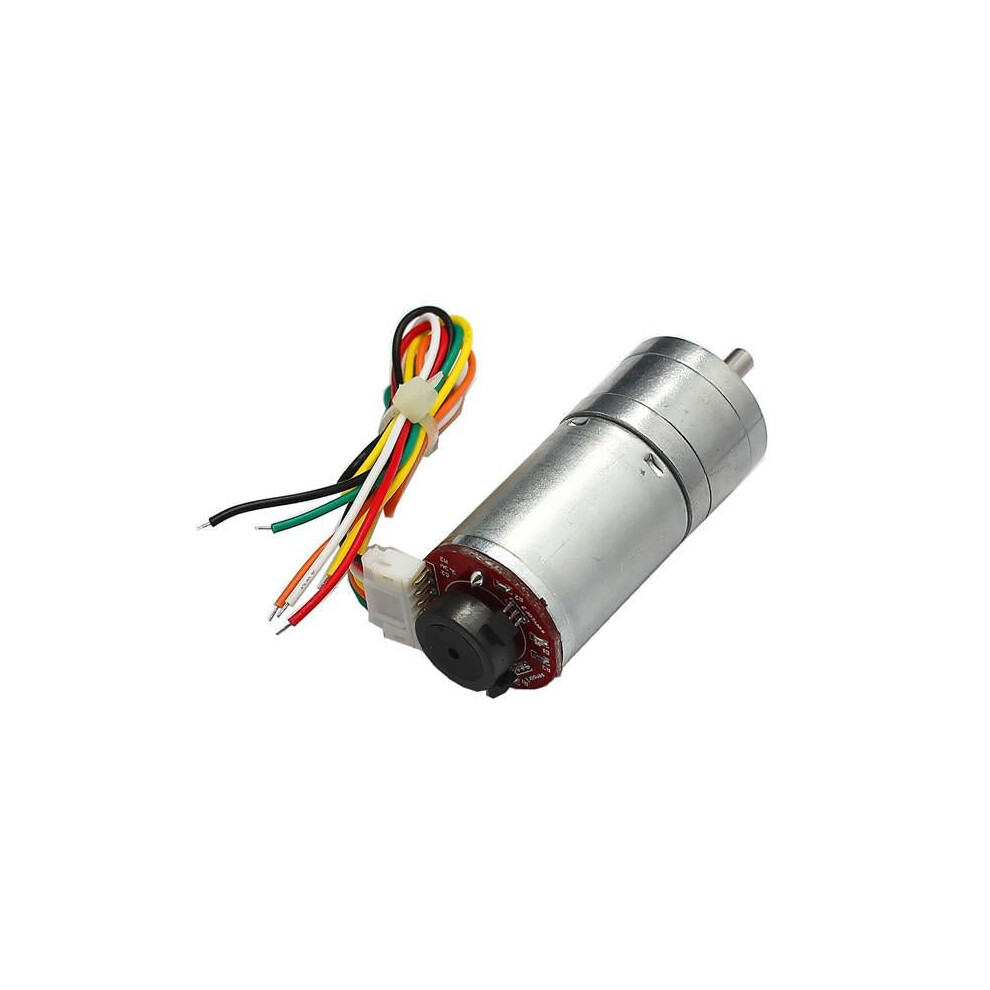

(210RPM) DC Gear Motor 6V 100/210/300RPM Encoder Motor

(210RPM) DC Gear Motor 6V 100/210/300RPM Encoder Motor Description

Description:

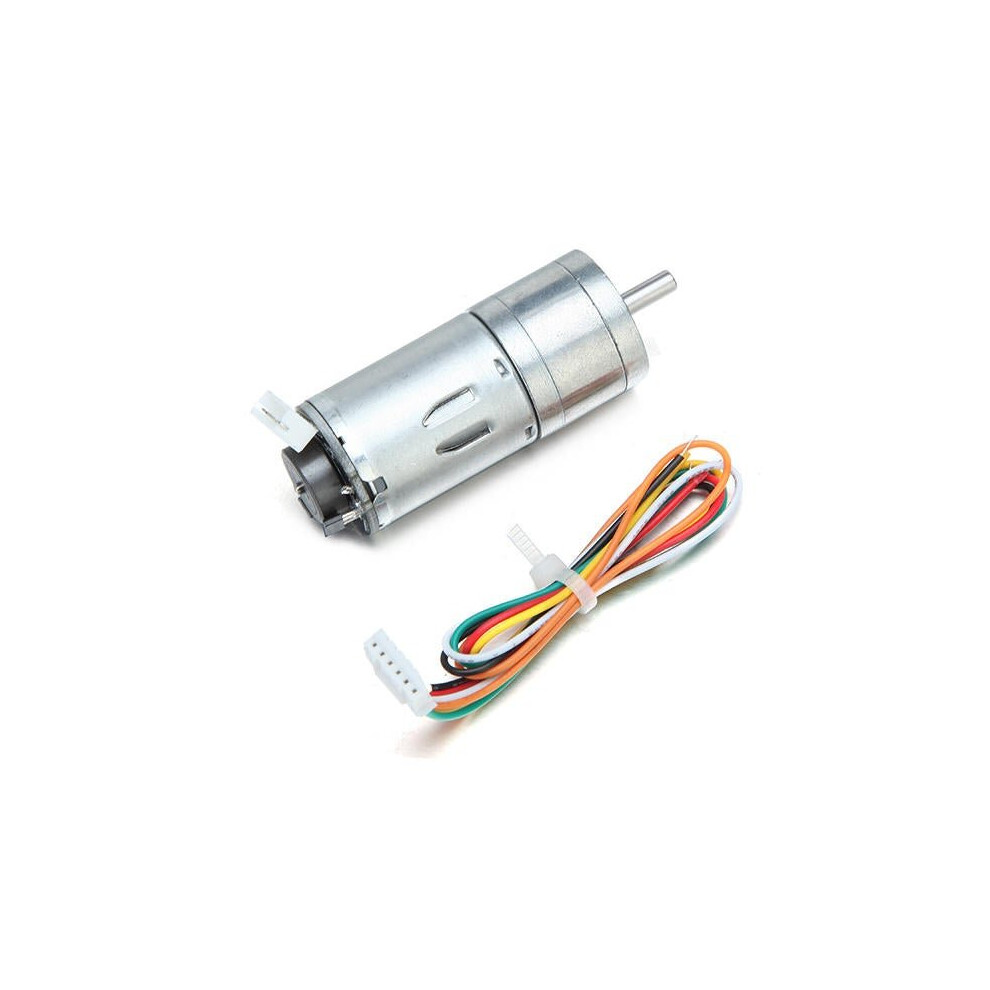

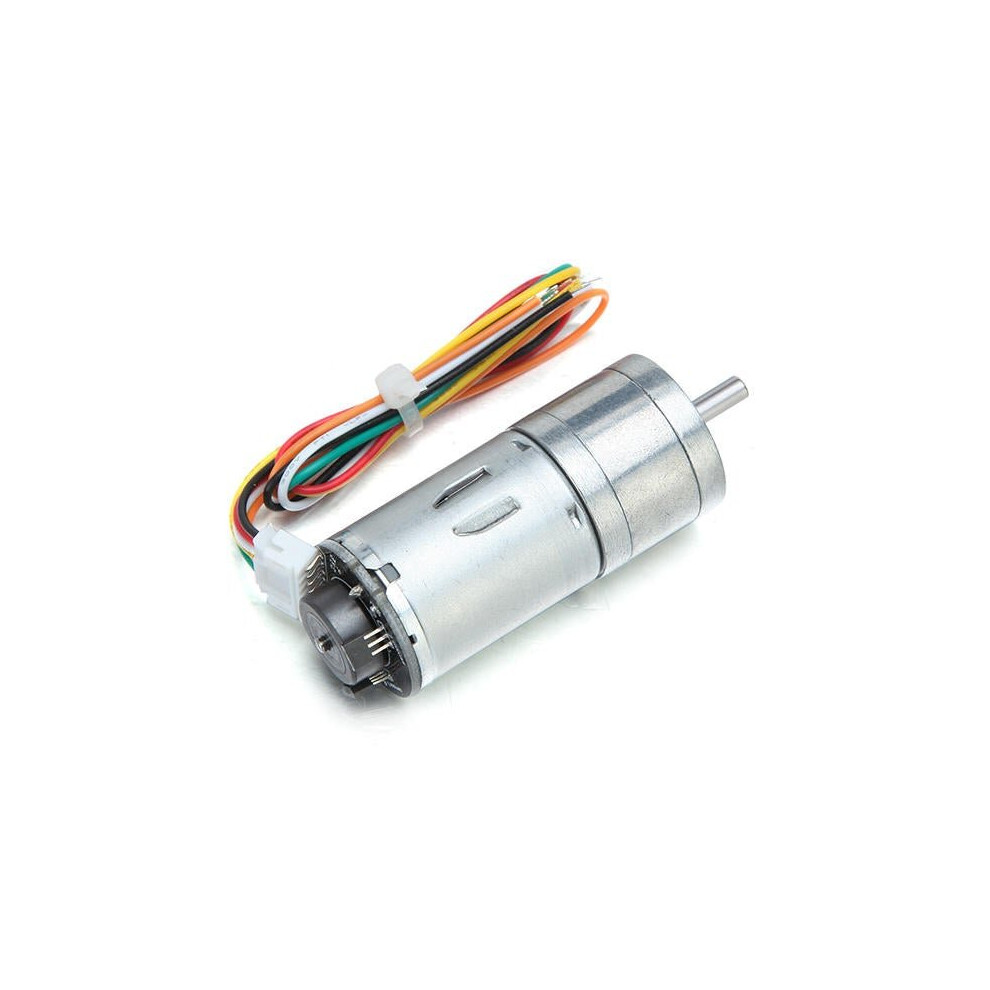

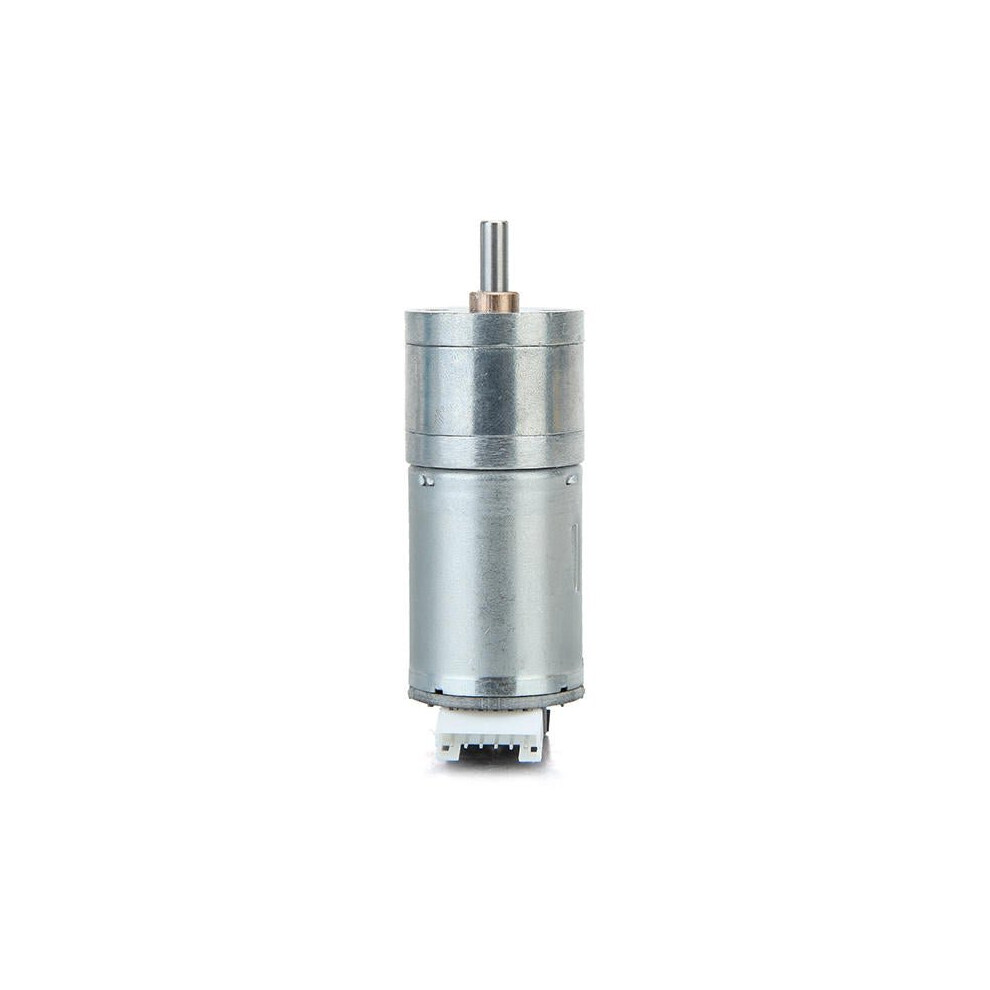

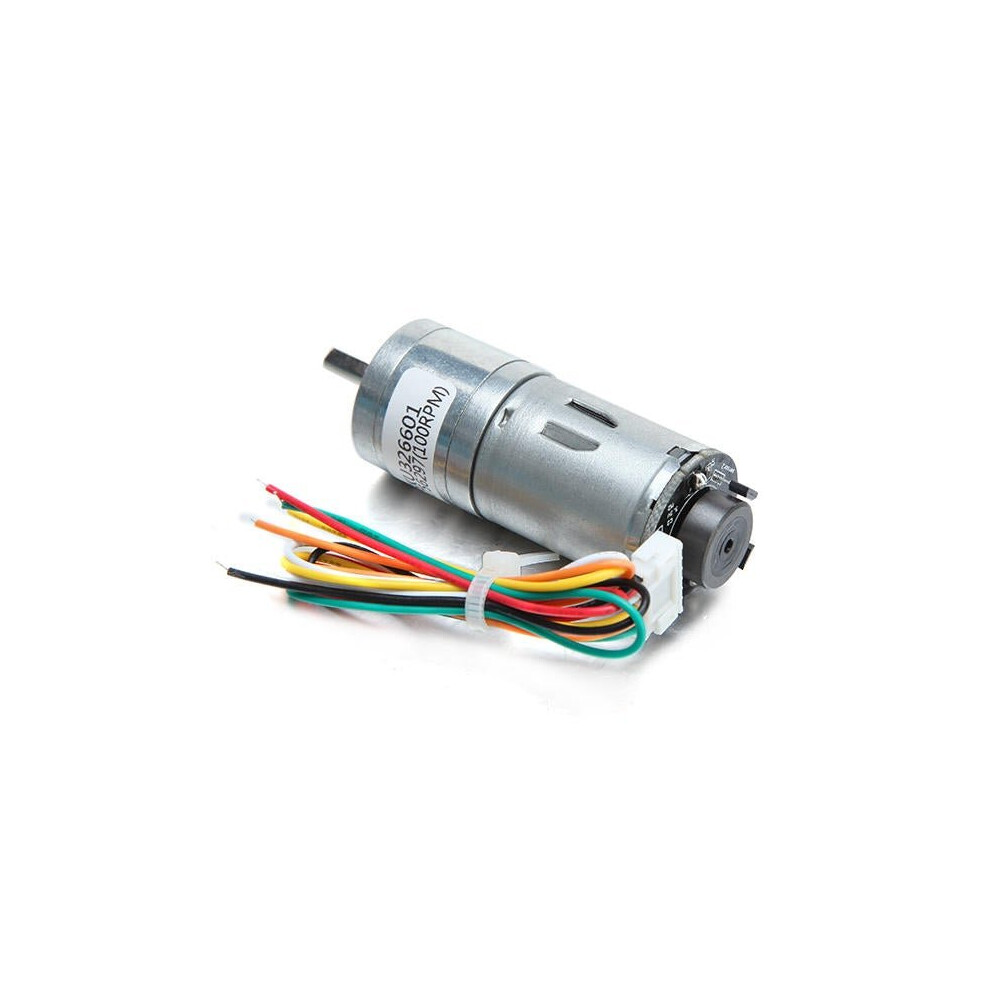

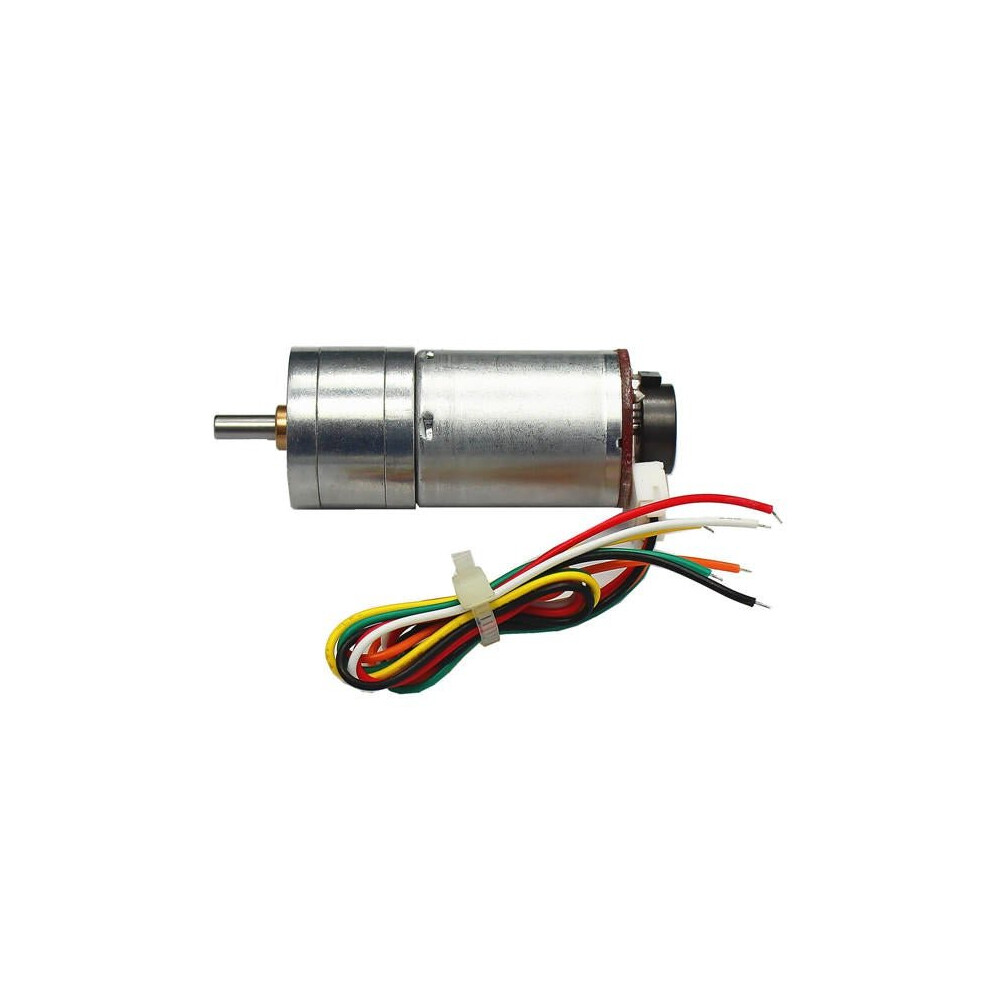

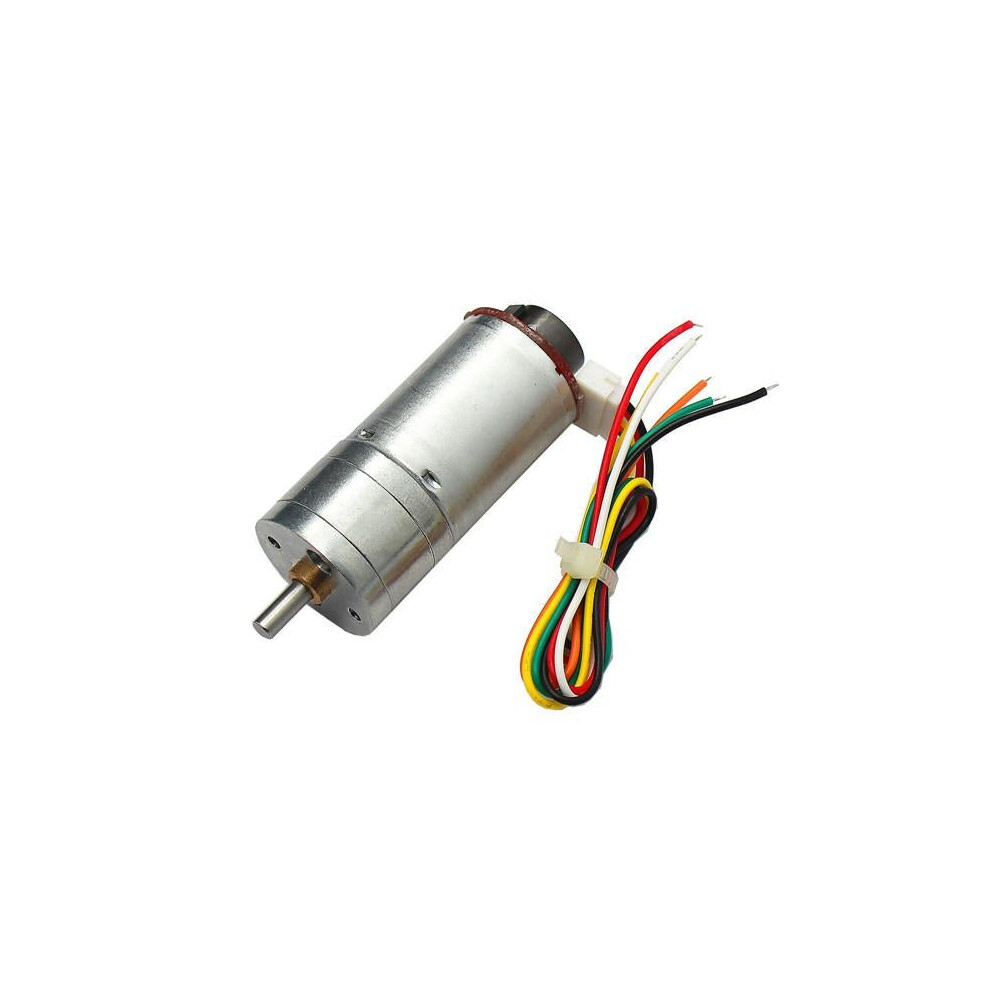

6V 100/210/300RPM Encoder Motor DC Gear Motor.

Specification:
Voltage:DC 6.0V;
Speed:100/210/300RPM;
Shaft diameter:4mm;
Length:12mm;

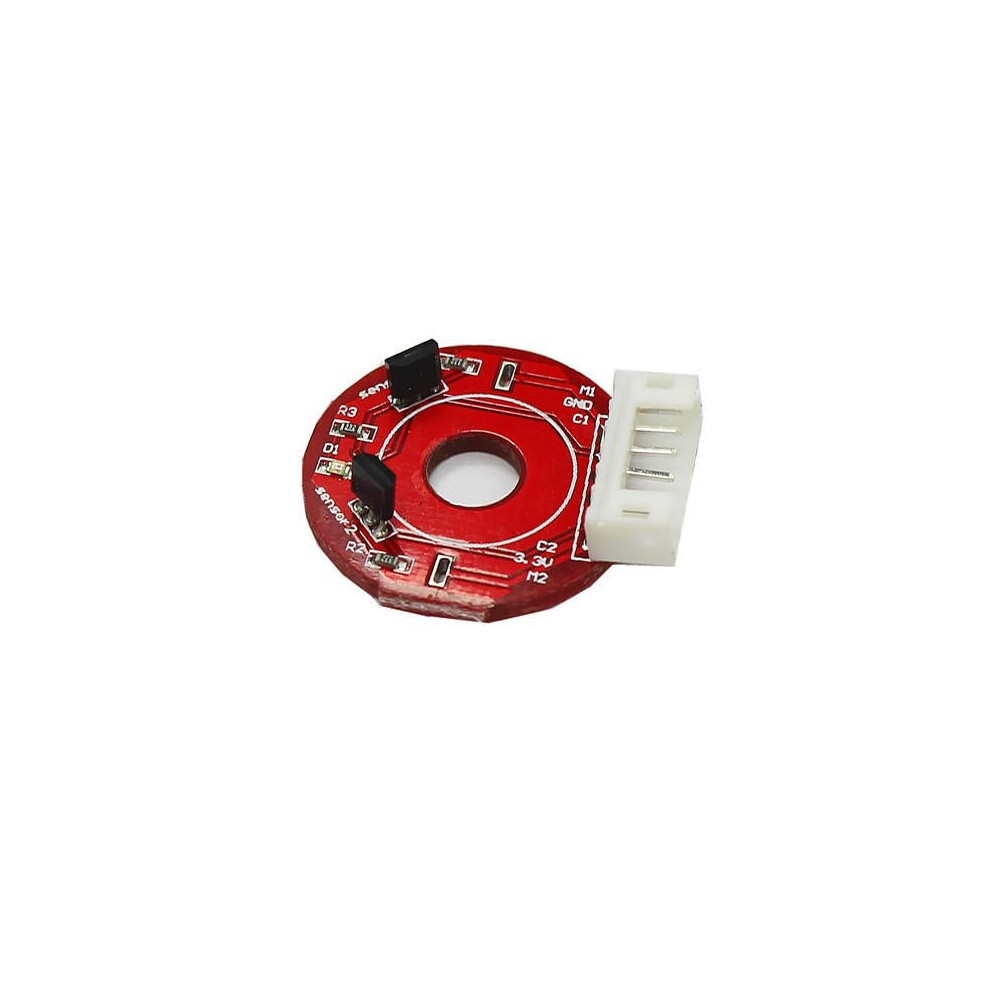

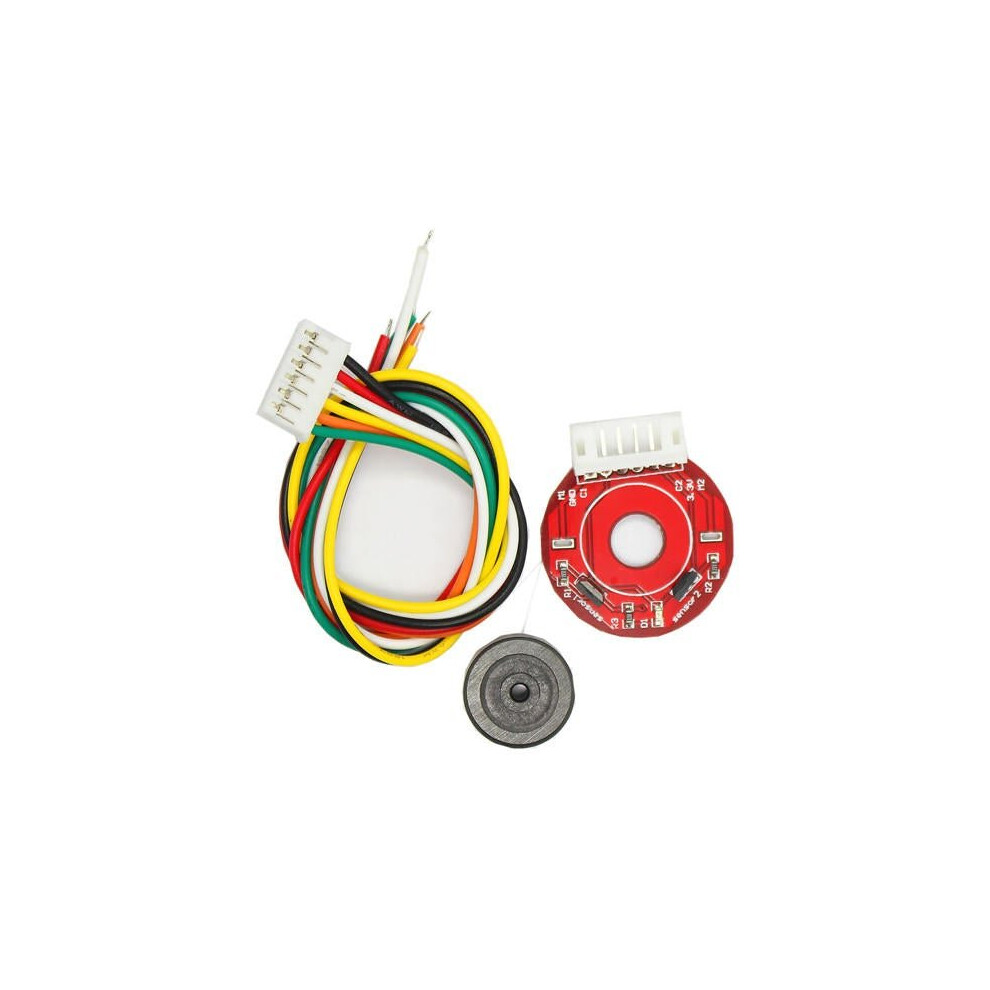

Encoder motor end 11 signals;
Terminal connection length 20cm.

RatedVoltage:DC 6V DC 6V DC 6V;
No-load Speed:100RPM 0.13A 210RPM 0.13A 300RPM 0.1A;
Max Efficiency:1.0kg.cm/80rpm/1.7W/0.5A 2.0kg.cm/170rpm/2.0W/0.60A 0.7kg.cm/245rpm/1.2W/0.4A;
Max Power:3.0kg.cm/55rpm/2.8W/1.0A 5.2kg.cm/110rpm/3.1W/1.10A 1.8kg.cm/160rpm/2W/0.8A;
Stall Torque:6.5kg.cm 3.0A 10kg.cm 3.2A 3.6kg.cm 2.7A;
Retarder Reduction Ratio:1 : 75 1 :34 1 : 20;
Hall Resolution:11 x Ratio 74.83 = 823.1PPR Hall x Ratio 34.02 = 341.2PPR 11 x Ratio 20.4 = 224.4PPR. a

Note:
Please note that the package includes one motor only.
100/210/300RPM is available.

Package Included:
1 x Encoder Motor
