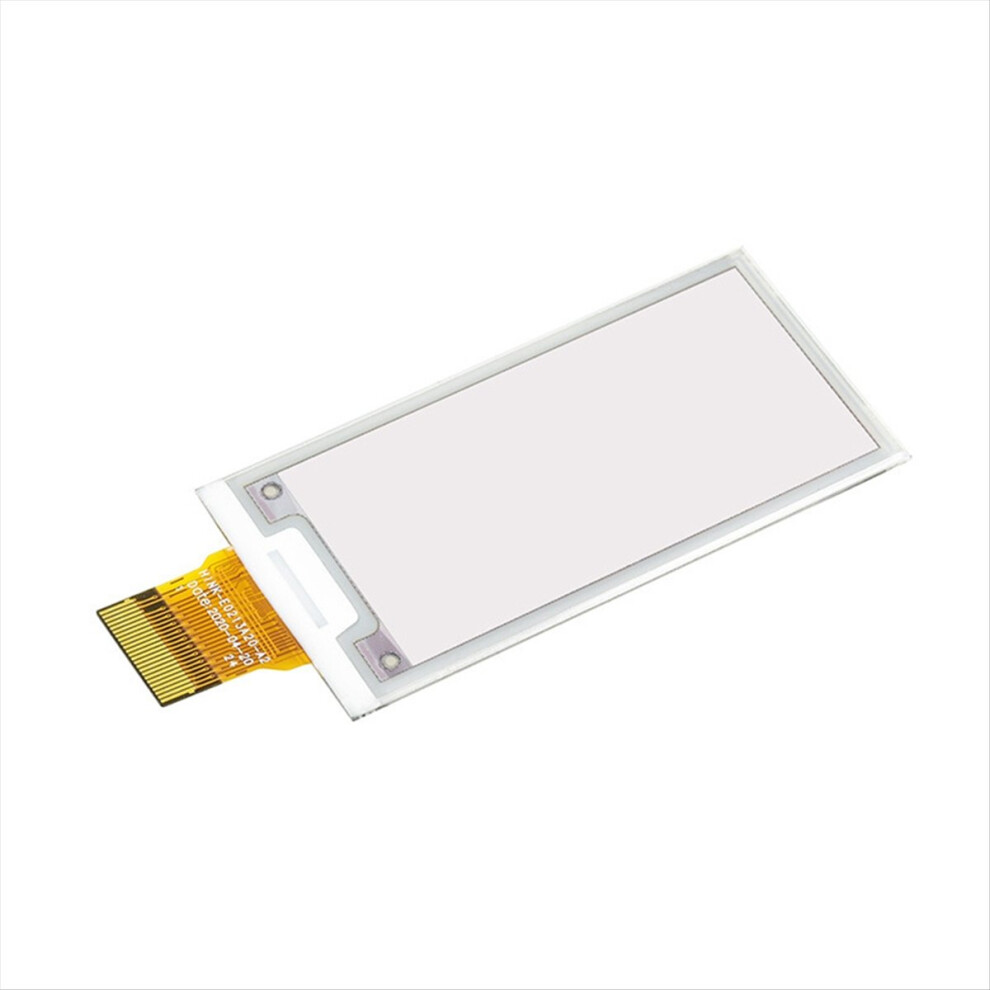

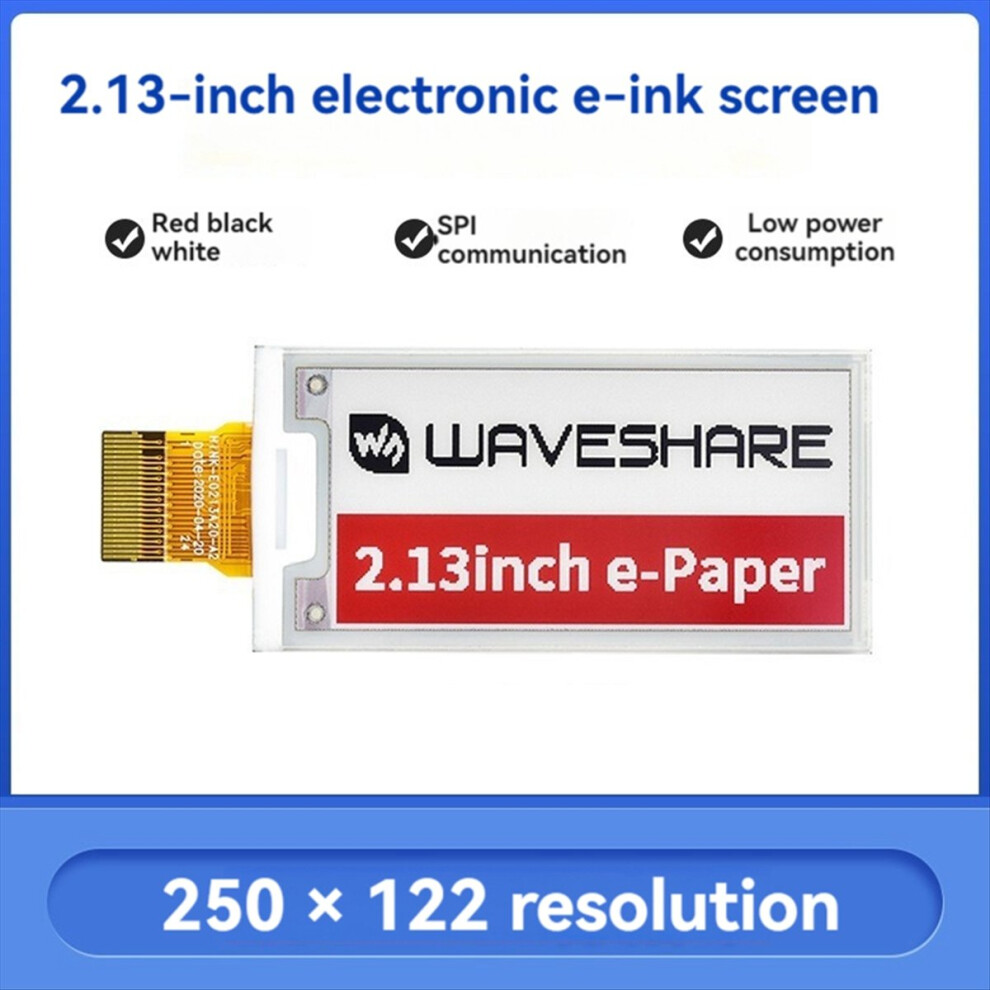

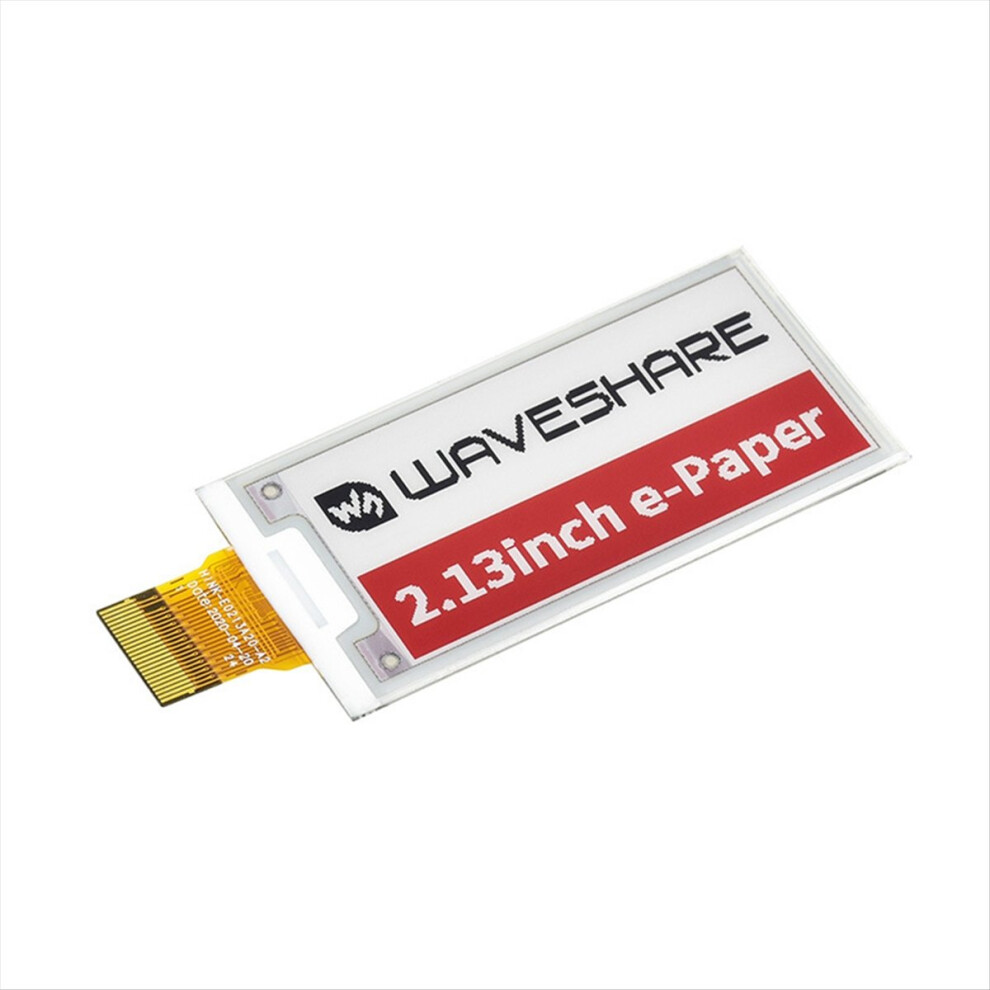

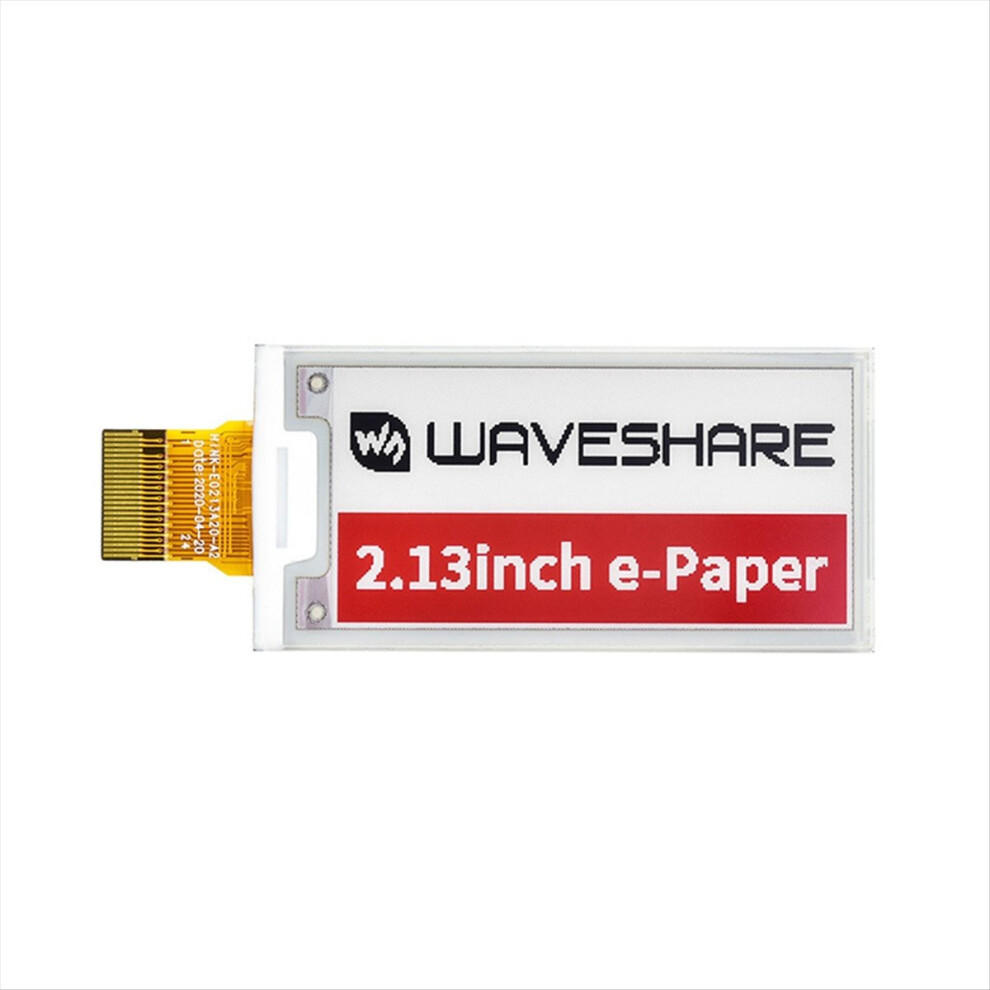

2.13 Inch Ink Screen 250x122pixel SPI Eink Raw Display

2.13 Inch Ink Screen 250x122pixel SPI Eink Raw Display Description

No backlight is required, and the last screen display content can be maintained for a long time when the power is off
The power consumption is very low, and basically only consumes power when refreshing

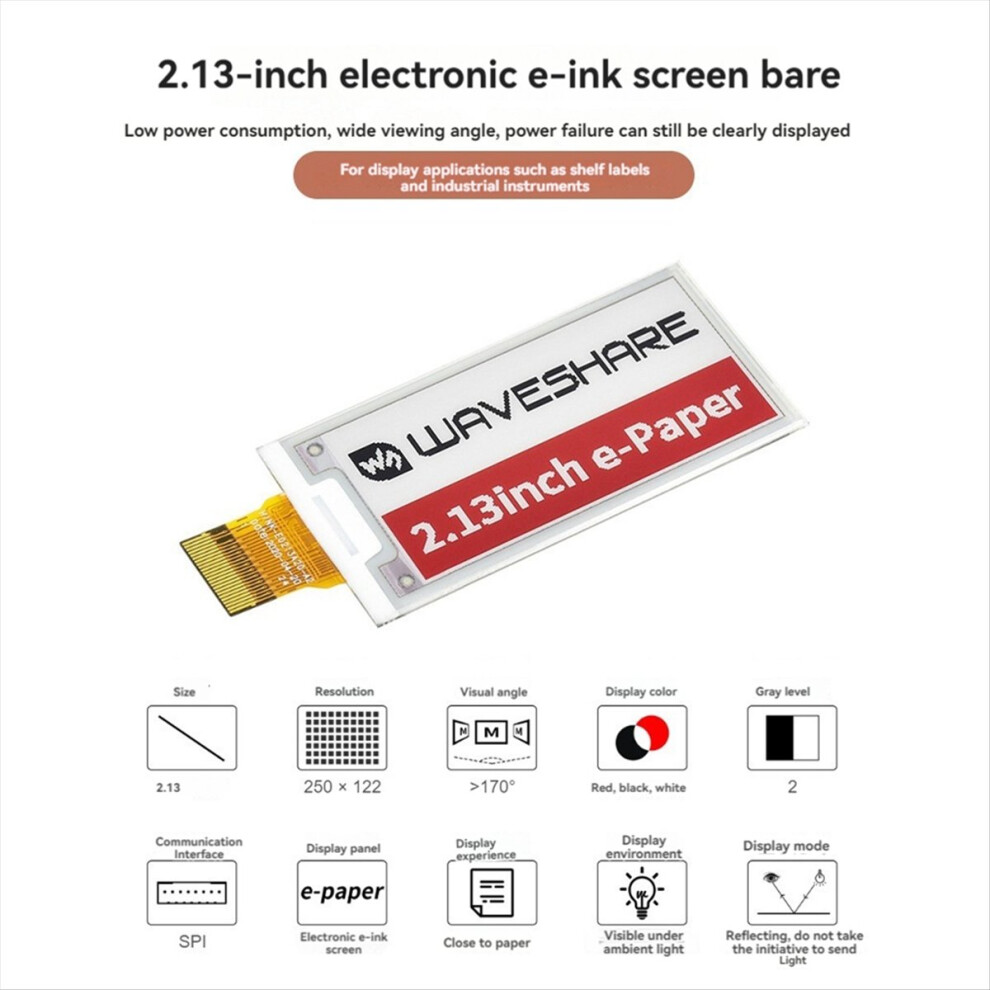

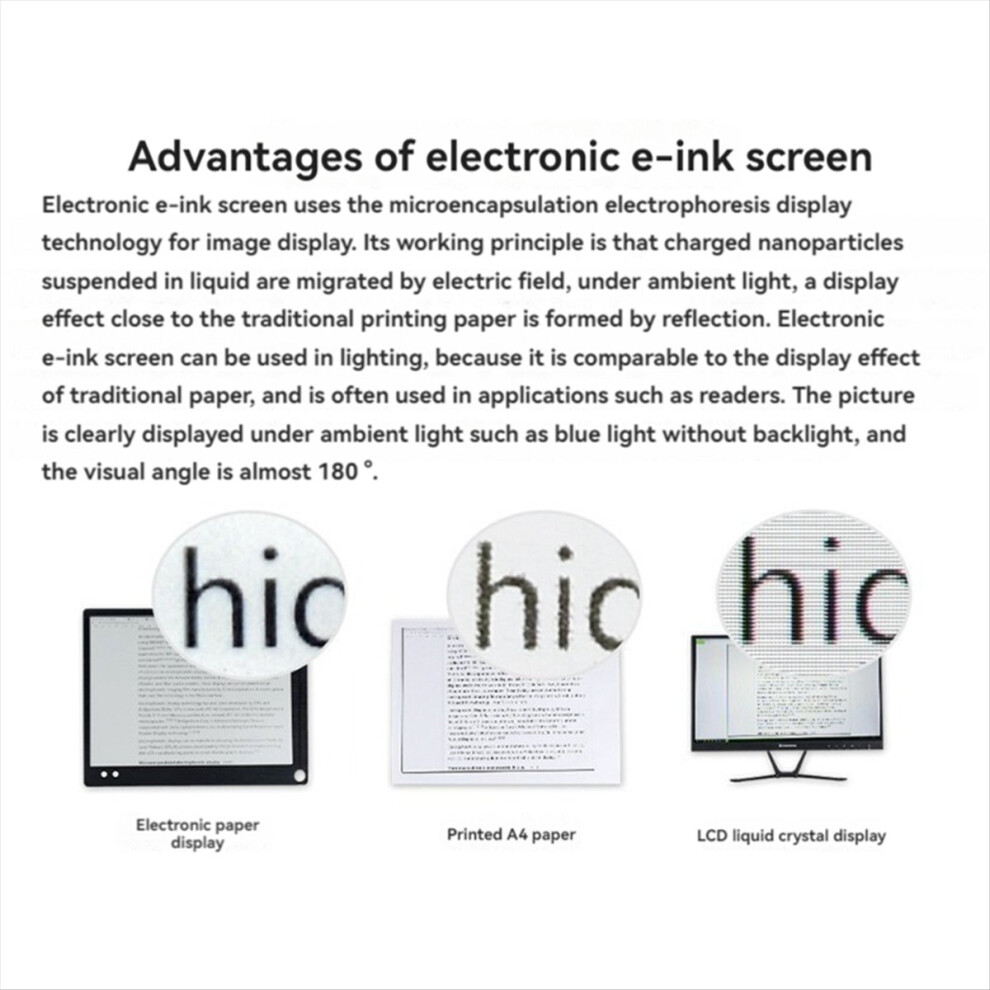

The electronic ink screen can display the picture clearly under ambient light such as light and , without backlight, and the viewing angle is almost 180. Because its display effect is comparable to that of traditional paper, it is often used in applications such as
Applicable to shopping mall price tags, asset equipment tags, electronic shelf tags, conference name tags, etc
Communication interface SPI

Display color: red, black, white
Operating voltage: 3.3V
Communication interface: 3-wire SPI, 4-wire SPI
Grayscale level: 2
Global refresh: 15s
Refresh power consumption: 26.4mW (typ.)
Dot pitch: 0.229x 0.228mm
Standby power consumption: Less than 0.017mW
Resolution: 250 x 122pixels
Viewing angle: 170
Material: PVC
Color: As Shown

Package Contents:
1 x E-ink Screen

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
