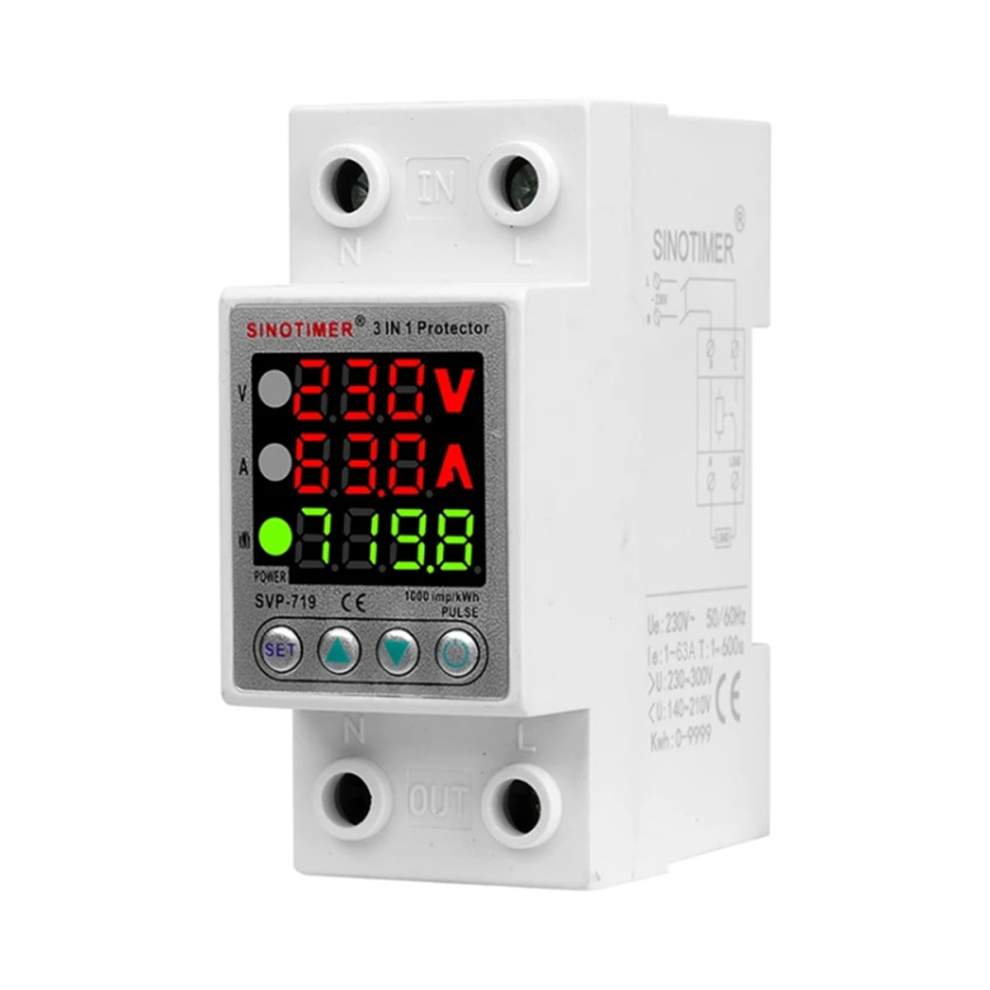

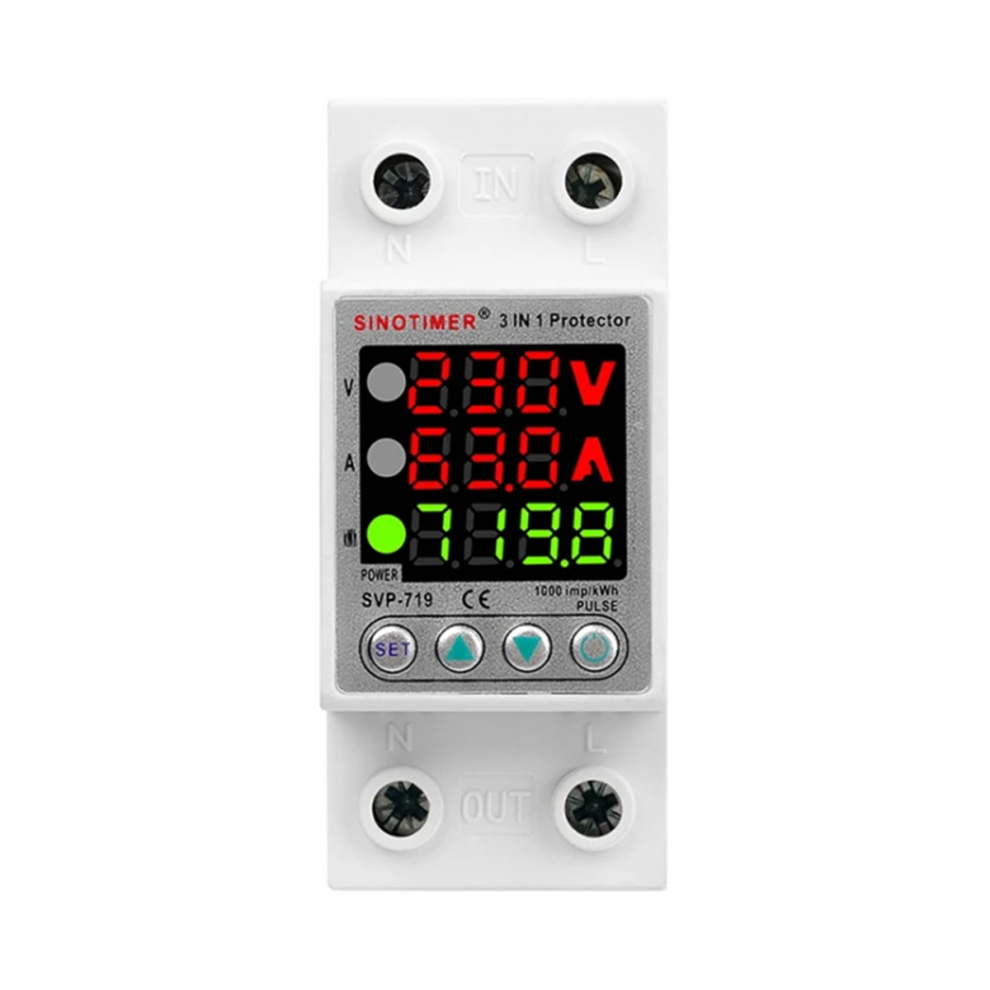

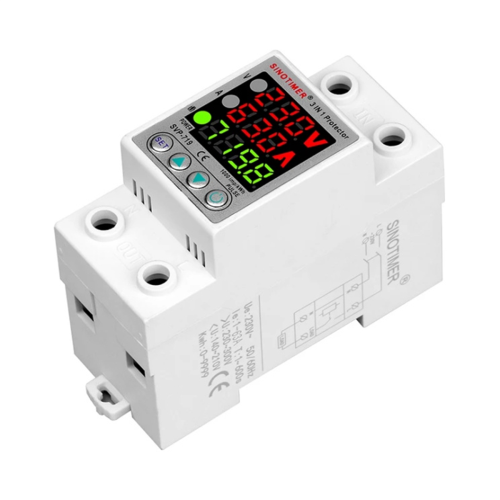

220V Adjust Voltage Relay over Under Voltage Protector 63A

220V Adjust Voltage Relay over Under Voltage Protector 63A Description

1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)

6.Current display (current measurement)
7.Wattmeter kWh Energy Meter Power Consumption

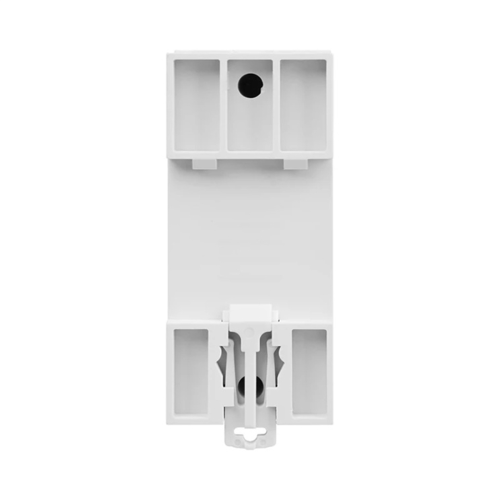

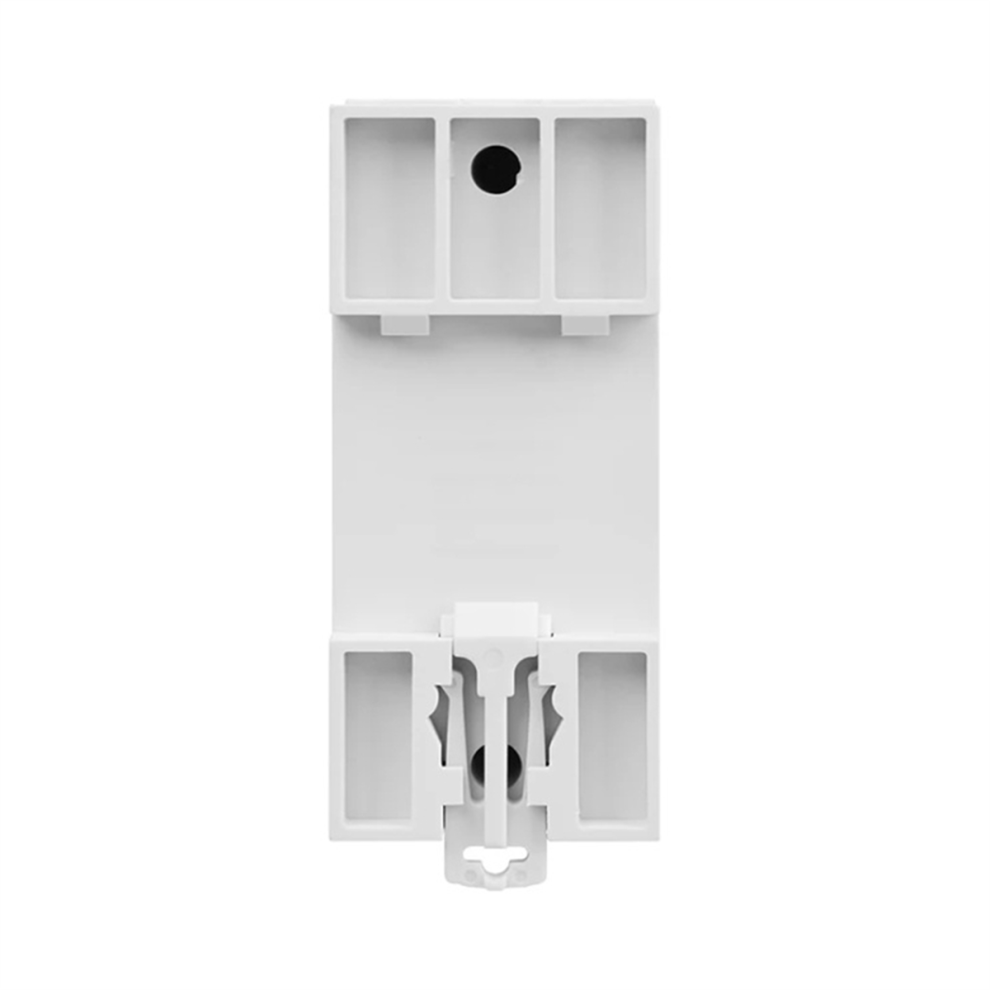

8.Installation:35mm DIN rail
Rated supply voltage:AC 220V
Operation volatge:AC 80-400V(single phase)
Rated frequency:50/60HZ
Kilowatt-hour protection value:1-9999/OFF
Rated current:63A(subject to product label)
Reset /start delay time:1-600s
Voltage measurement accuracy:2%(not exceeding 2% of the overall range)
Rated insulation voltage:400V
Output contact:1NO
Electrical life:100000
Mechanical life:1000000
Protection degree:IP20
Pollution degree:3
Operating temperature:-50-55
Humidity:50% at 40 (without condensation)
Storage temperature:-30-70
Colour:As Shown
Material:plastic

Package Contents:
1 x Adjust Voltage Relay

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
