DM40C Digital Oscilloscope Multimeter with Signal Generator - 50MHz, 10-bit ADC, 4.5-Digit, IPS touchscreen, auto/AC-DC, data logging

DM40C Digital Oscilloscope Multimeter with Signal Generator - 50MHz, 10-bit ADC, 4.5-Digit, IPS touchscreen, auto/AC-DC, data logging Description

Meet the DM40 Digital Oscilloscope Multimeter with built-in signal generator - a compact, handheld all-in-one instrument designed for electronics enthusiasts, field technicians, and automotive troubleshooting. It combines a fast oscilloscope, a high-precision multimeter, and a versatile signal generator into one portable tool, delivering professional performance wherever you work.

Key capabilities include:

• 4.5-digit multimeter accuracy (39999 count max) with a high-precision 5 ppm reference source for long-term stability
• Innovative 3-hole design enabling fully automatic current measurement across µA, mA, and A ranges
• Ultra-fast continuity testing and a diode function with multiple voltage-drop measurements, featuring distinct audible indicators

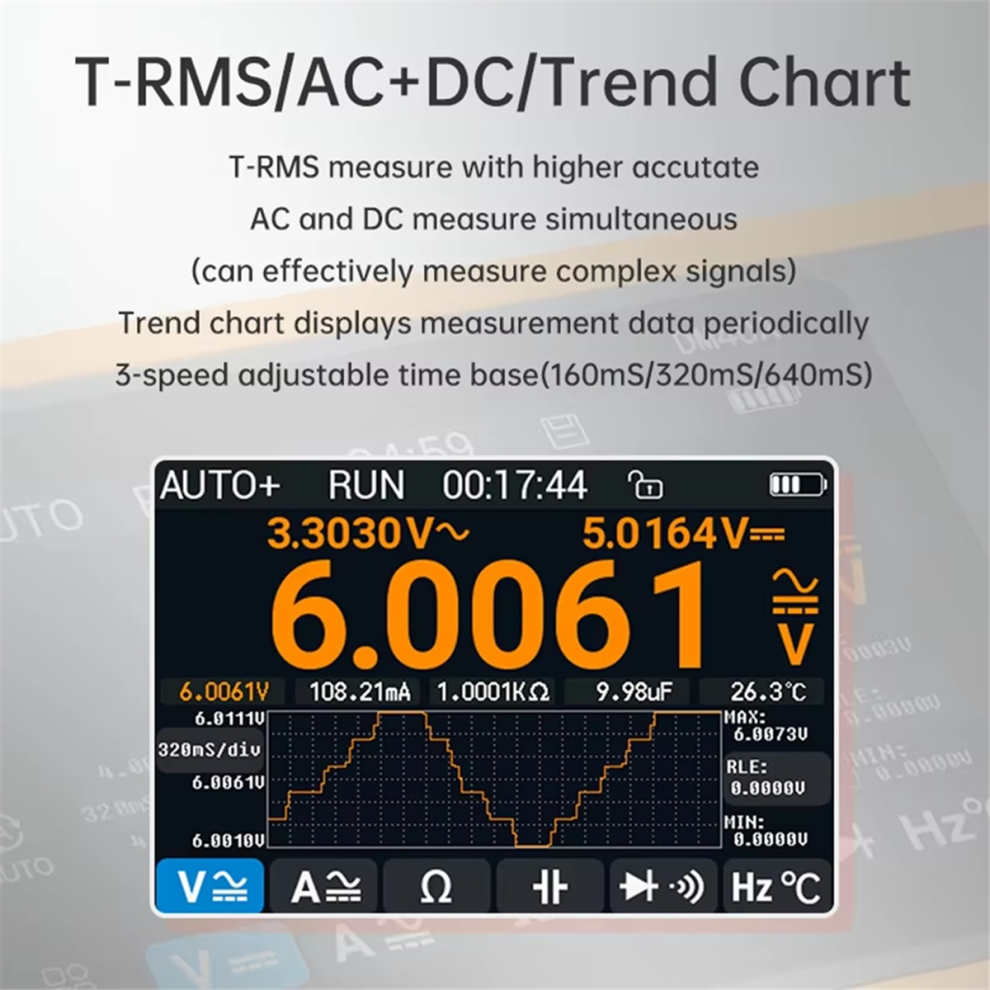

• AC+DC mixed measurement (DM40C) with simultaneous display of both signals for quick correlation

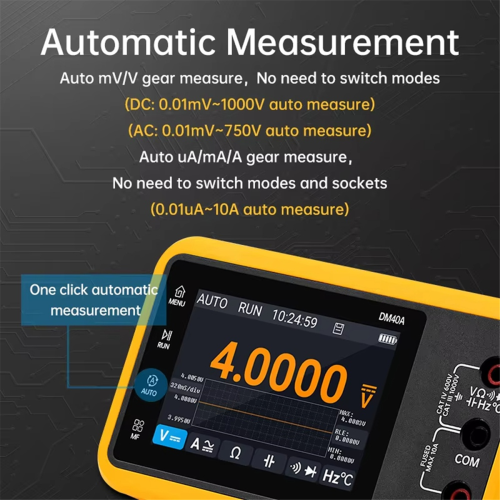

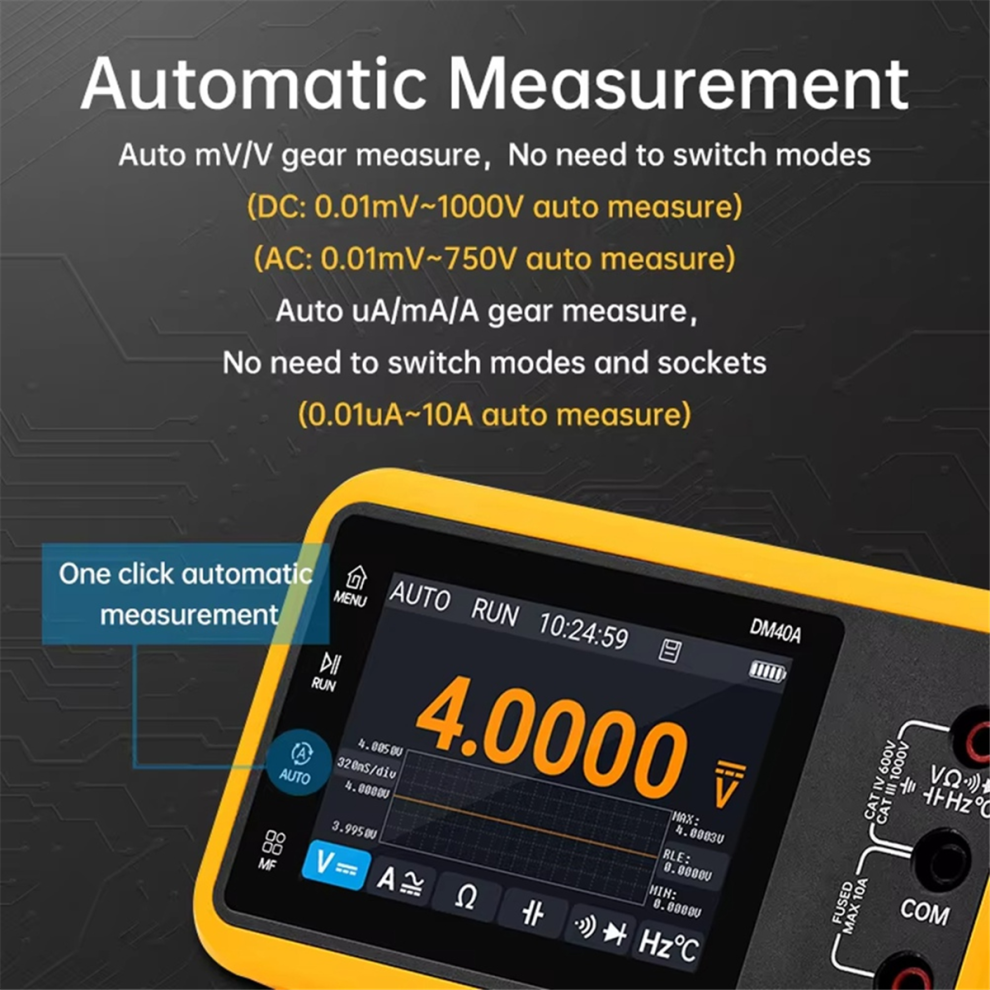

• Auto-measurement, relative measurement, data logging, data hold, and graphing for comprehensive analysis
• High-resolution IPS touchscreen for clear visuals and intuitive interaction
• 10-bit ADC, 50 MHz sampling rate, 10 MHz bandwidth to capture detailed waveforms
• Built-in signal generator to test circuits and validate responses on the go

Specification highlights:

• Model: DM40C Advanced Edition
• Display/Interface: High-resolution IPS touchscreen
• Measurement: 4.5-digit multimeter with 39999 count max
• Frequency/Bandwidth: 10 MHz bandwidth, 50 MHz sampling rate
• ADC: 10-bit
• Special features: Built-in signal generator, auto/relative/data logging/graph
• Color: Yellow
• Material: Plastic

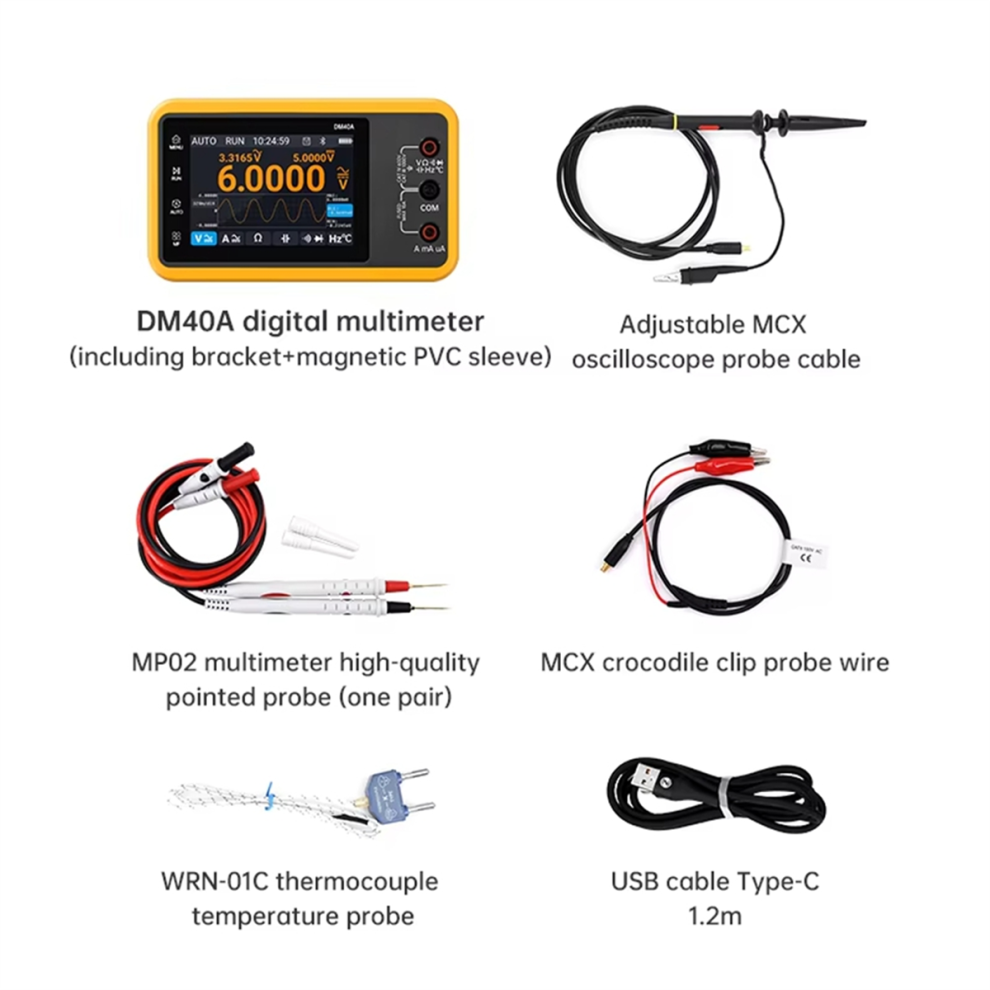

What's in the box:

• 1 DM40 host
• 1 USB to Type-C cable
• 1 pair MP02 multimeter high-quality universal test leads
• 1 Adjustable MCX oscilloscope probe cable
• 1 MCX alligator clip probe cable
• 1 -01C thermocouple temperature probe

Note: Cable colors and accessory finishes may vary randomly; appearance may differ slightly from product photos, but performance and specifications remain unchanged. Light reflections and display variations can cause minor color differences in images.
