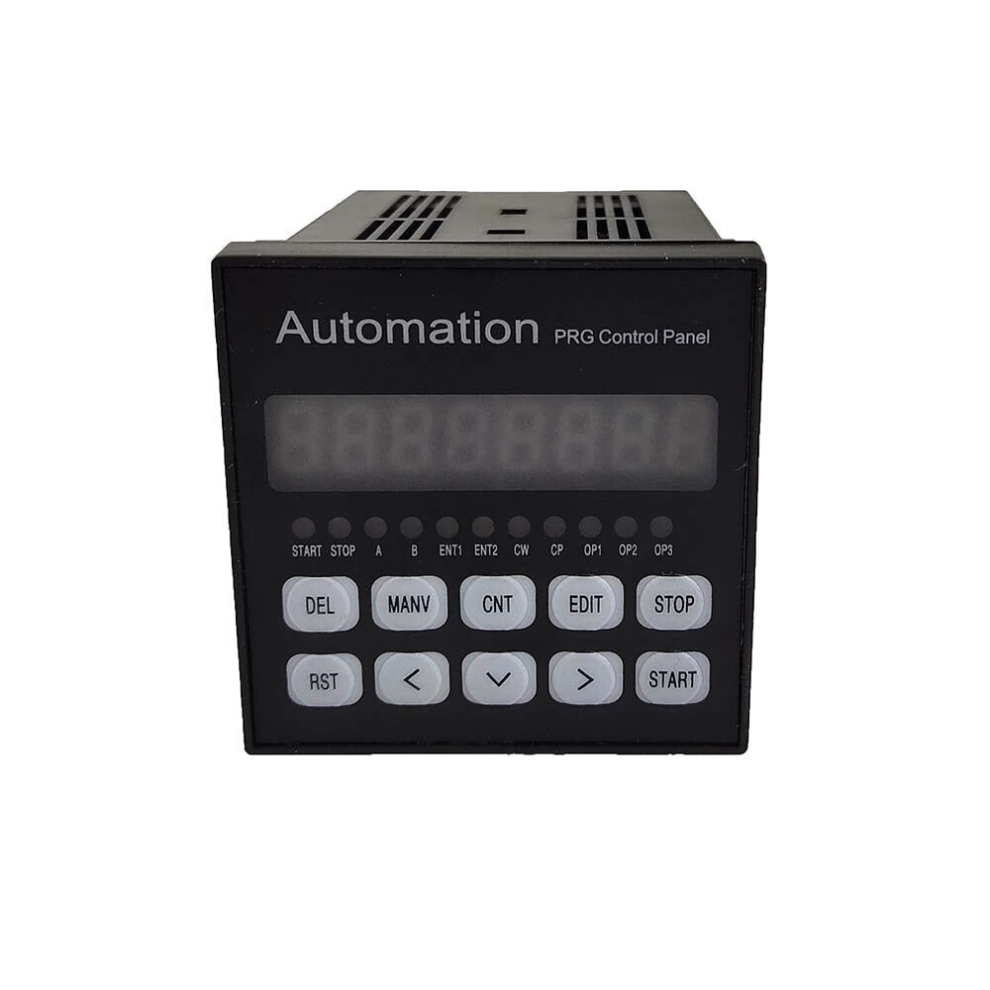

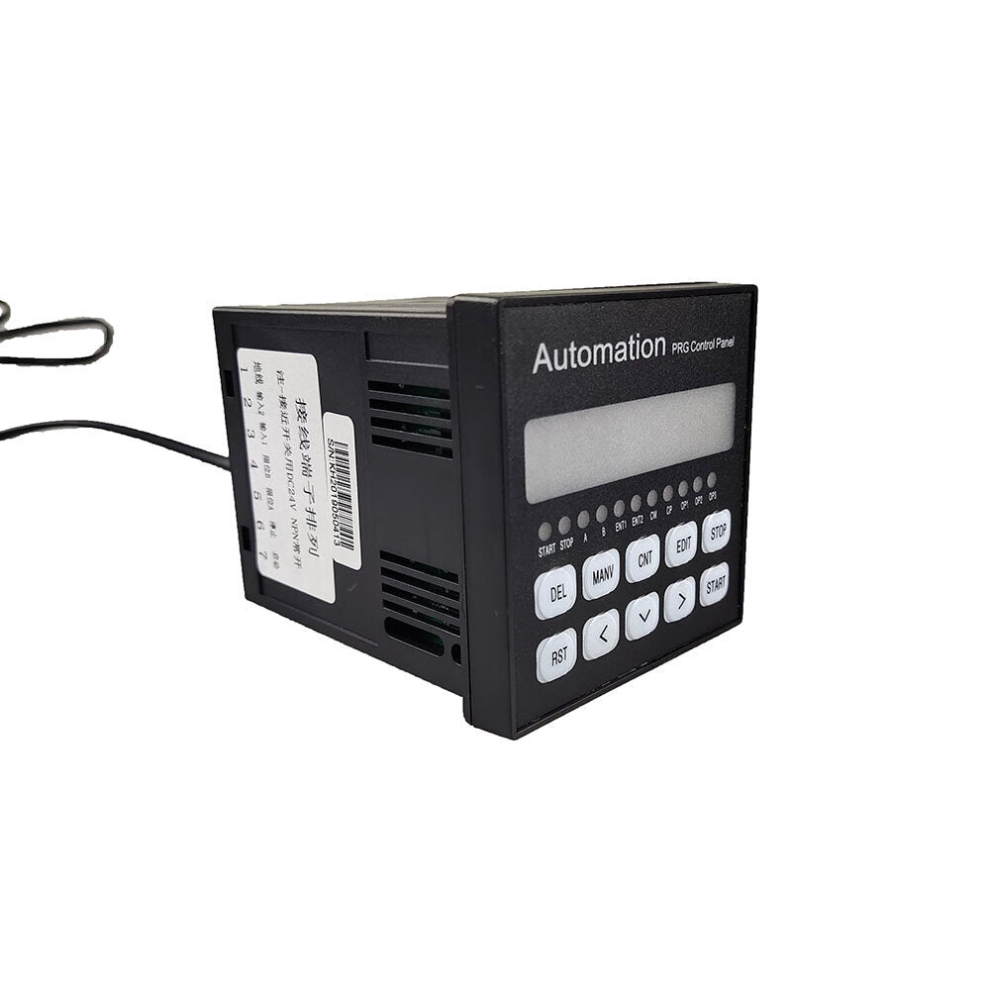

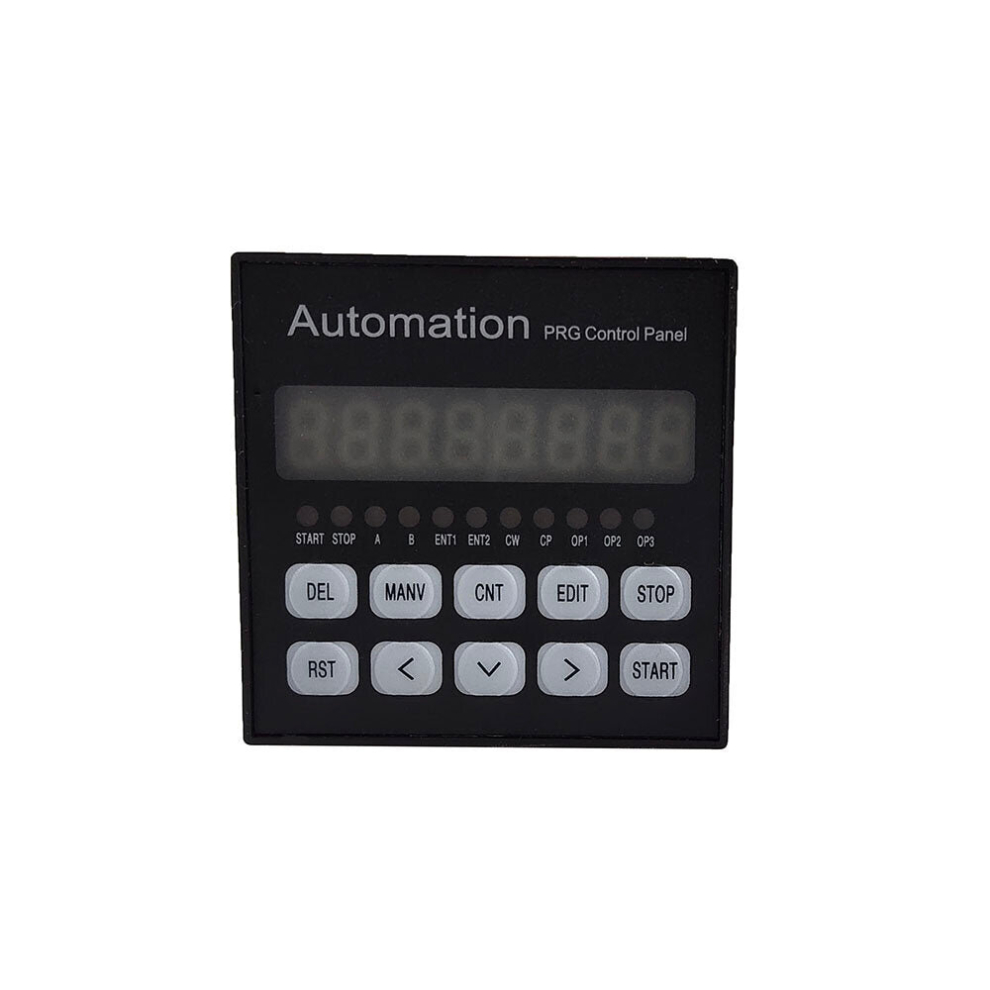

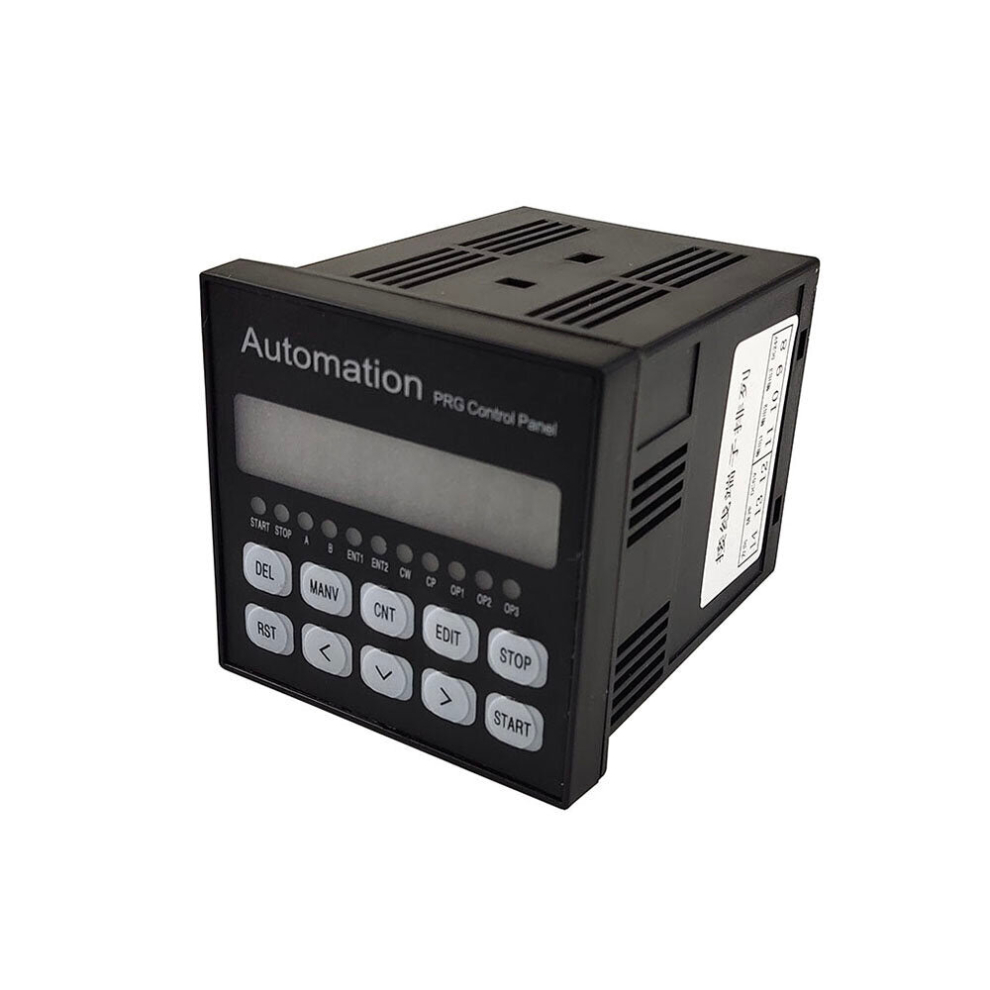

220V CNC Stepper Motor Controller Programmable Single Axis PRG Control Panel

220V CNC Stepper Motor Controller Programmable Single Axis PRG Control Panel Description

Description:
CNC Stepper Motor Controller Programmable Single Axis PRG Control Panel 220V.

Specifications:
Product Name: Stepper Motor Controller.
AC200V: Single axis.
Application: Can edit the program to control the positive and negative control distance.

Features:
Number of control axes: single axis;
Command features: Arbitrary programmable (can achieve a variety of complex operations: positioning control and non-positioning control);
Maximum output frequency: 40KHz (especially suitable for controlling subdivision drivers);
Output frequency resolution: 1Hz;
Number of programming: 99;
Input points: 6 (optical isolation);
Output points: 3 (optical isolation);
One continuous displacement range: -7999999~7999999;
Working status: automatic running status, manual running status, program editing status, parameter setting status;
Lifting speed curve: 2 (optimized);
Display function digits: 8-digit digital tube display, manual/automatic status display, run/stop status display, step/count value/program display, editing program, parameter display, input/output status display, CP pulse and direction display;
Automatic running function: editable, control the start and stop of automatic running through the panel buttons and the level applied to the terminal;
Manual operation function: the position can be adjusted (manual jog speed and jog step can be set);
Parameter setting function: can set the take-off frequency, lifting speed curve, backlash, manual length, manual speed, interrupt jump line number and zero return speed;
Program editing function: You can insert and delete the program that can be modified. It has the function of judging the jump line number, data zeroing, the number of statements is too long and ultra-short;
Zero return function: It can automatically return to zero point in both directions;
Programming instructions: a total of 14 instructions;
External operation function: By parameter setting and programming, an external interrupt operation can be performed by adding a switch on the (limit A) A operation and the (limit B) B operation terminal;
Power supply: AC220V (power supply error is not more than15%).

Package Included:
1 X Motor Controller
