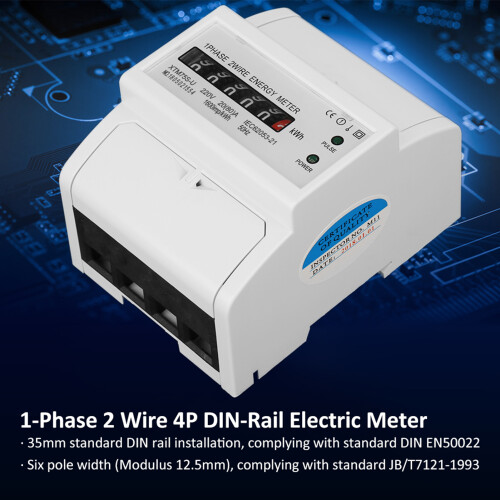

220V Digital 2-Wire 4P DIN Rail Electric Meter, 20(80)A

220V Digital 2-Wire 4P DIN Rail Electric Meter, 20(80)A Description

220V Digital 1 phase 2 Wire 4P Din Rail Electric Meter Electronic KWh Meter(20(80)A )

Features:

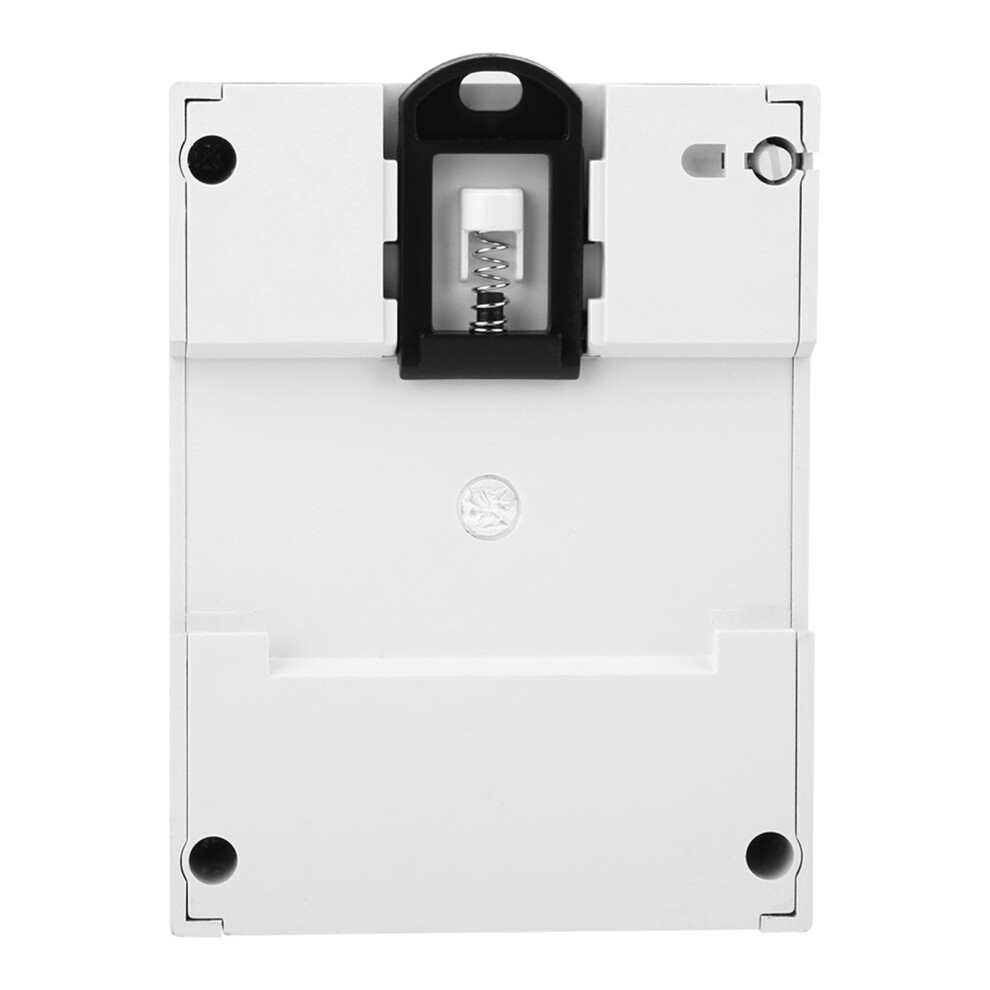

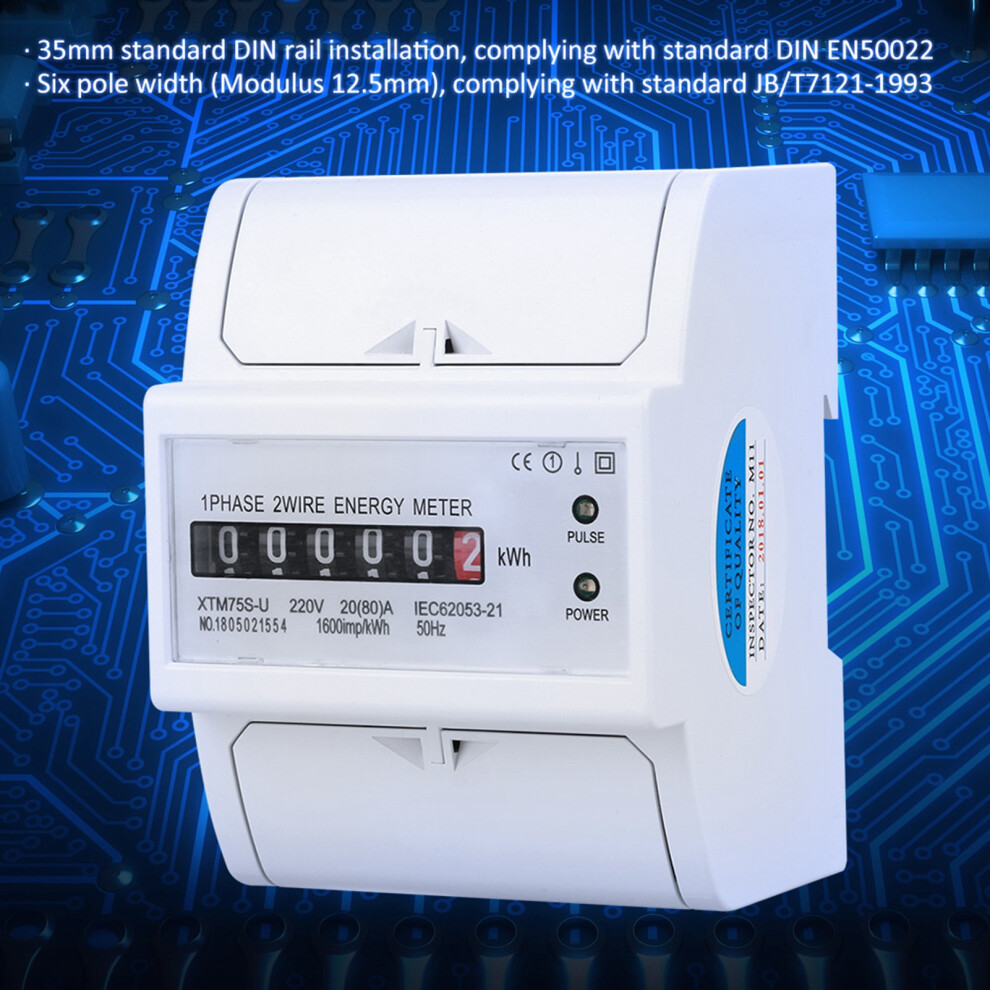

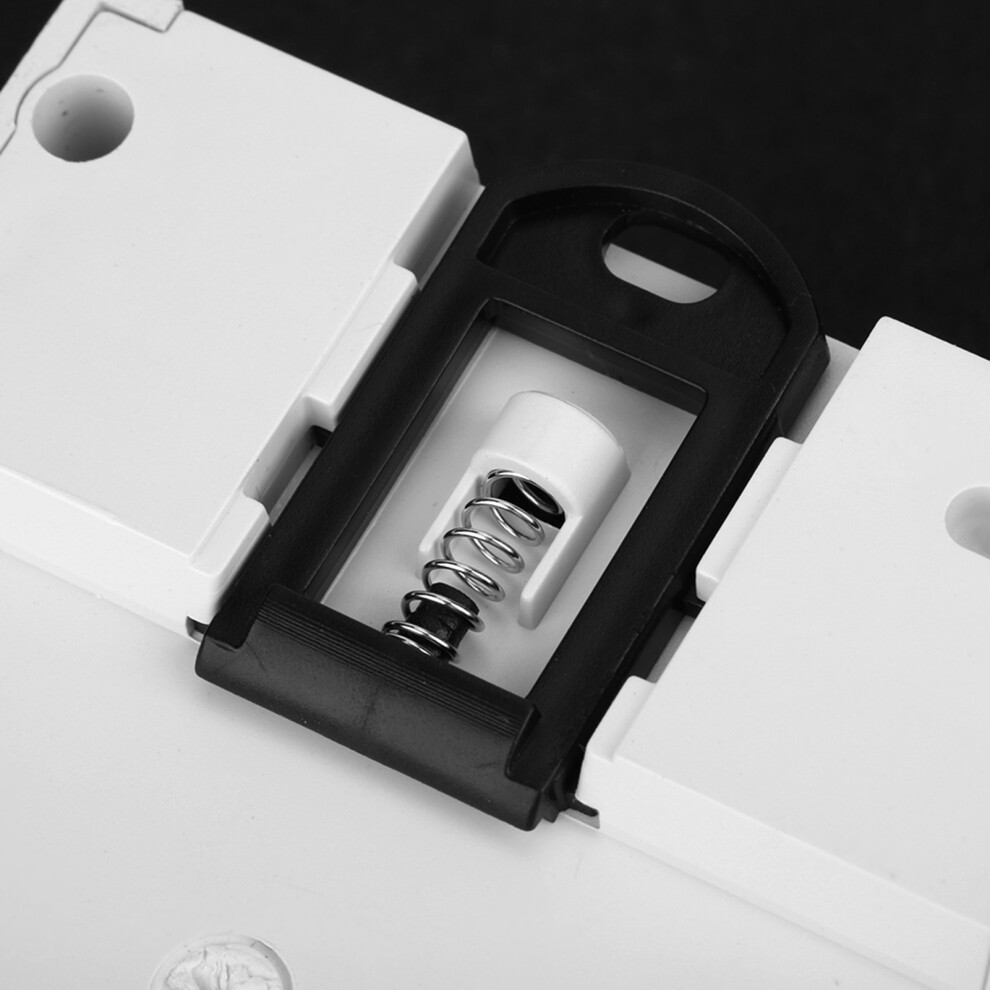

35mm standard DIN rail installation, complying with standard DIN EN50022.


Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.

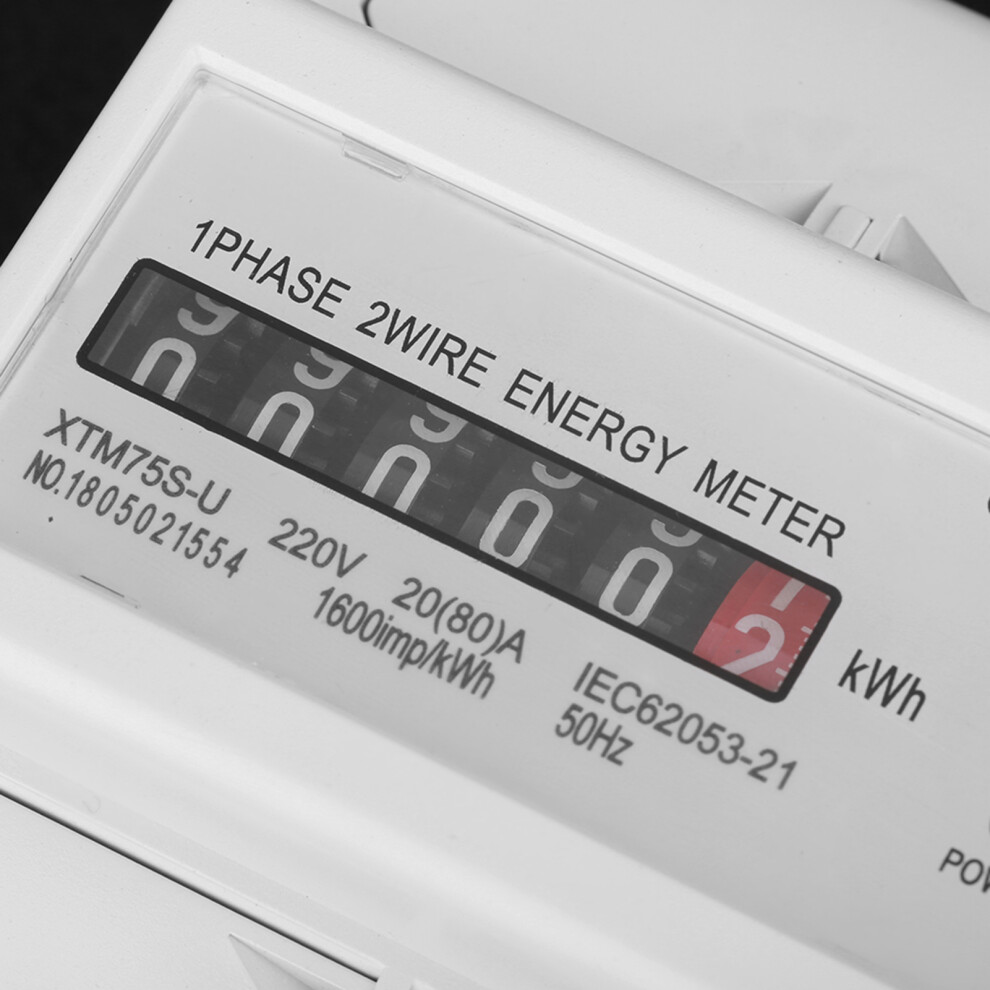

May select 5+1LCD digits display (99999.1kWh) .


Standard configuration one port of pulse output passive (polarity), May select increase  a distant port of pulse output passive (nonpolarity), complying with standard IEC 62053-31


Standard configuration don't detection direction of the flow of load current. May select automatic detection the direction of the flow of load current. And instructions by an individual LED.


Single direction measure single phase two wire active energy consumption. It is nothing with   direction of the flow of load current. Complying with standard IEC 62053-21.

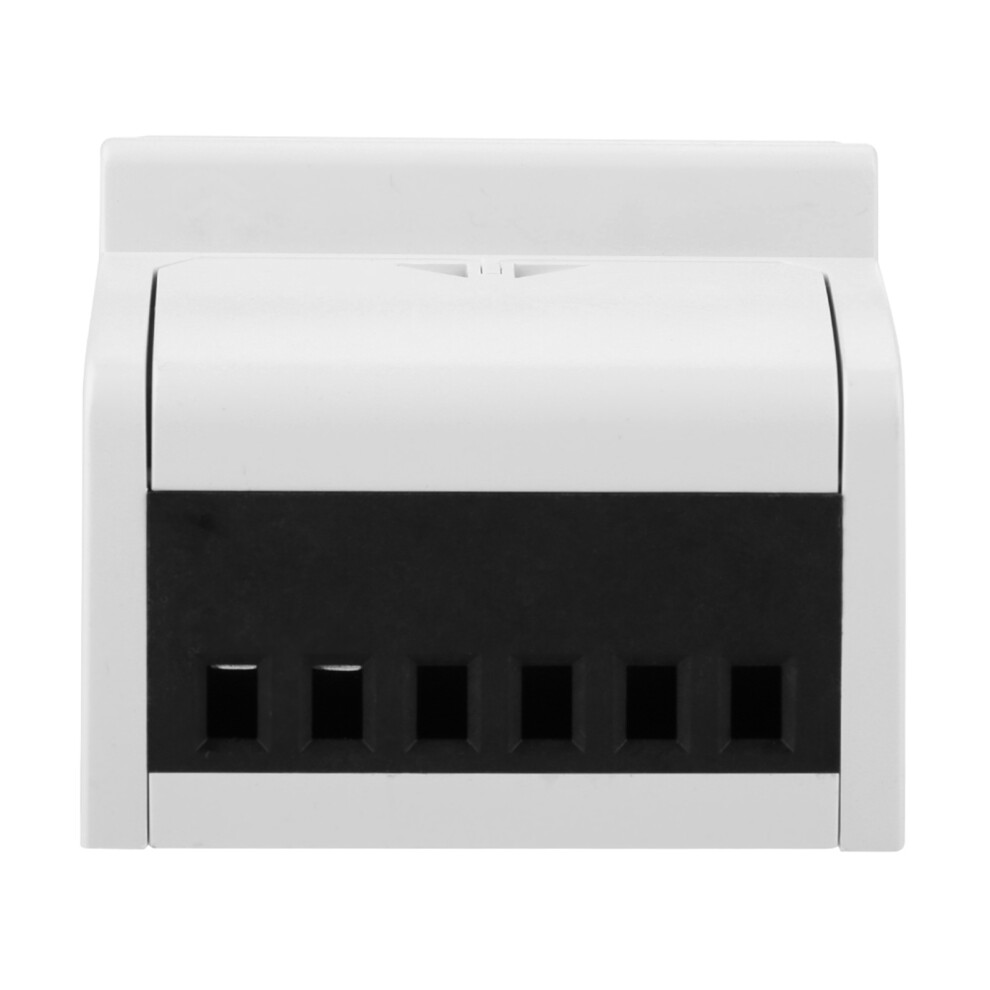

Standard configuration short terminals cover, may select extension terminals cover, in order to protect e safely.


Specifications:
Model: XTM75S-U
Accuracy: Class 1
Voltage: 220V
Current: 5(30)A,15(60)A, 20(80)A (Optional)
Insulation performance: AC voltage 4kv for 1 minute,1.2/50us waveform impulse voltage 6kv
Size: 10 x 7.6cm / 3.94 x 2.99in
Weight: Approx. 270-277g

Package included:
1 x  DIN-Rail Electric Meter
1 x Manual
Note:

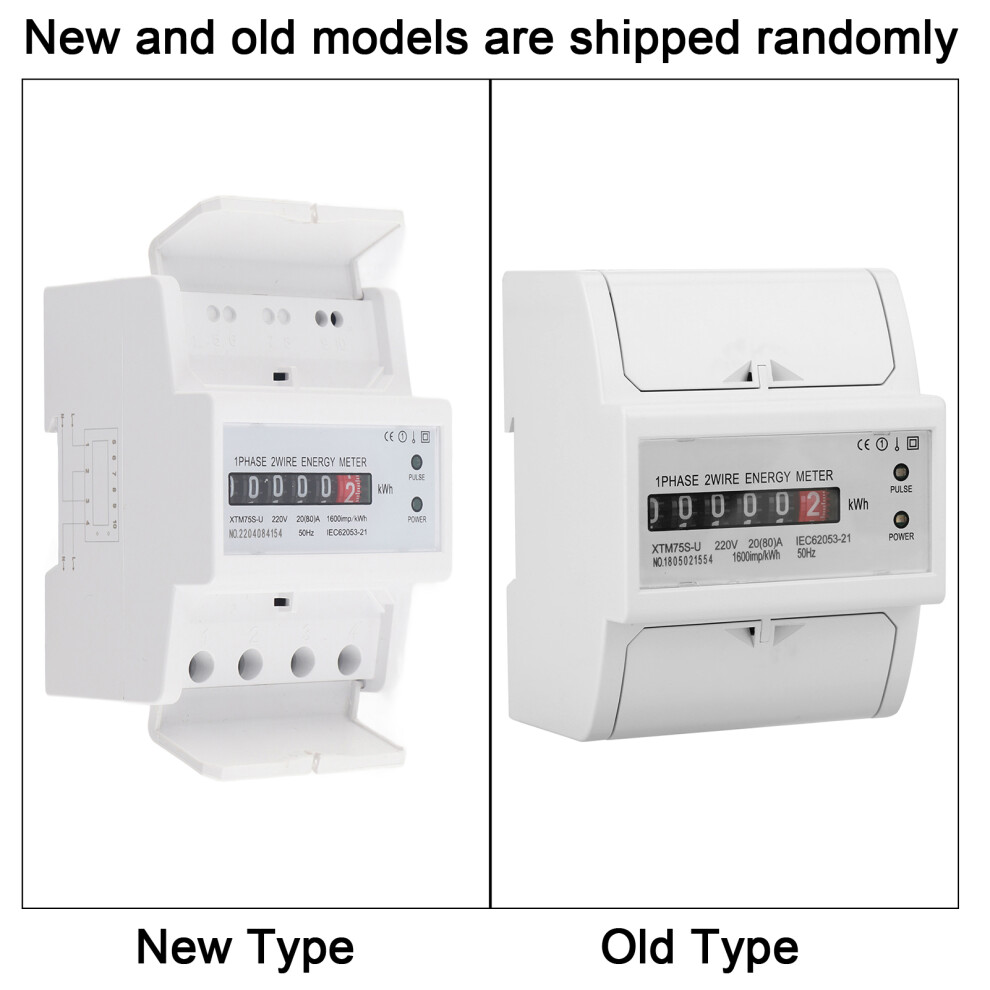

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
