22K Ohm Adjustable Resistors Wire Wound Multi Turn Precision Potentiometer Pots 5pcs

22K Ohm Adjustable Resistors Wire Wound Multi Turn Precision Potentiometer Pots 5pcs Description

Key Features

• Model WXD3-13,Can be used as a voltage divider, rheostat, current controller
• Resistance Value 22K Ohm Tolerance+/-5%
• The role of potentiometers - regulating voltage (including DC voltage and signal voltage) is mainly used in potentiometer instruments, post and telecommunications, power equipment, railway signals, aerospace, aviation
• , easy to weld alloy pins, nickel-plated alloy shaft, flame retardant
• Knurled shaft with split design for push-on knob.（this item do not include Knobs)

Product Description

Product Name: Potentiometer w KnobModel: WXD3-13Resistance Value: 22K ohmPower: 2WTolerance: +/-5%Type: Wire Wound Multi Turn Terminals Number: 5

Features

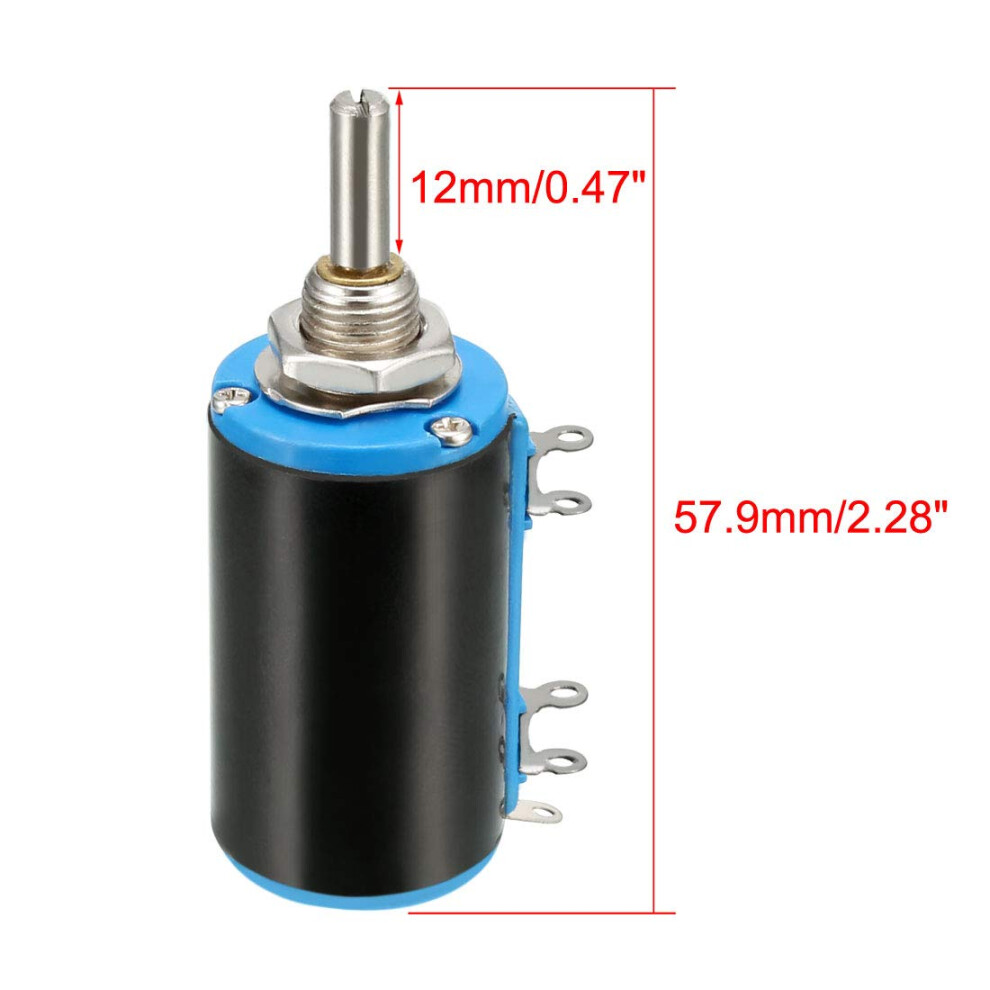

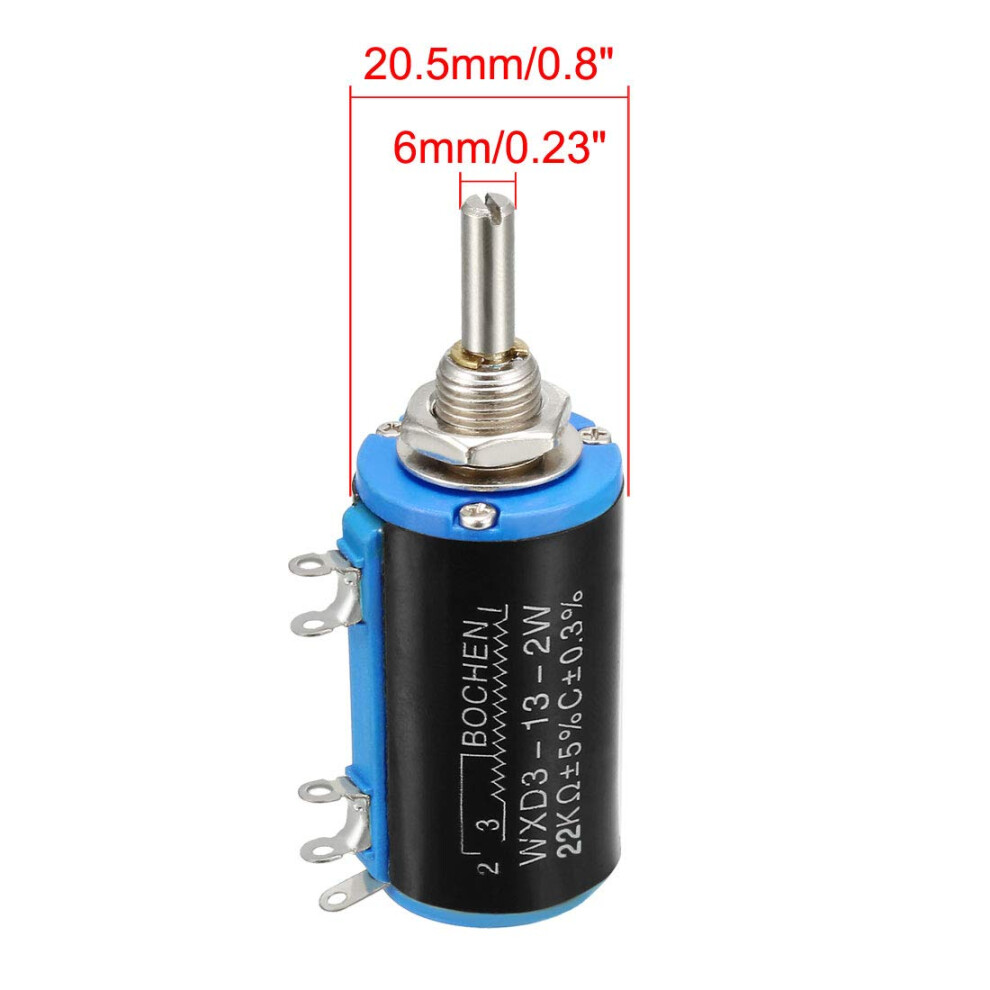

Round ShaftTotal Size: 20.5mm x 57.9mm/0.8 x 2.28 inch (D * H)Screw Thread Dia.: 7.8mm/0.3 inchShaft Diameter: 4mm/0.16 inchShaft Length(do not include the Screw Thread parts): 12mm/0.47 inchShaft Total Length： 20mm/0.79 inch

Package Content

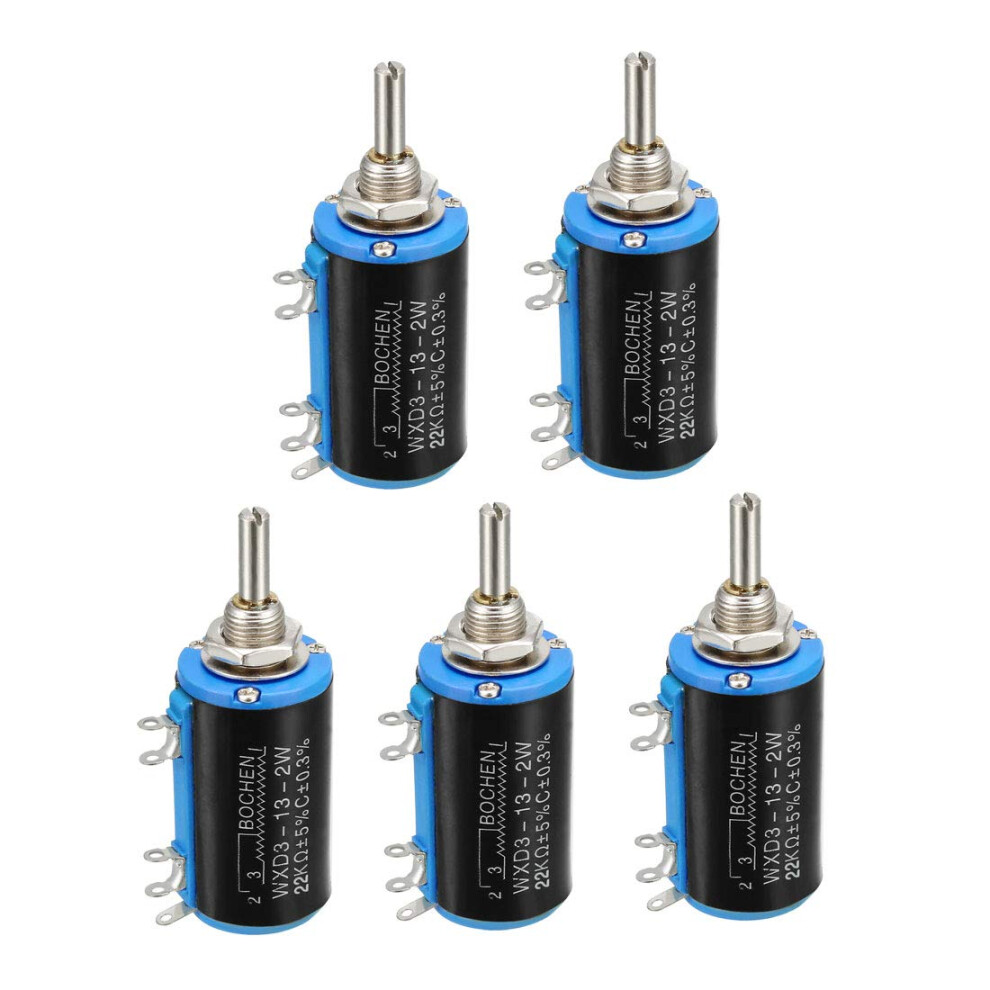

5 x Potentiometer

Features

22K ohm, 5 Terminals, Single Linear, Suits Most Standard Knobs.（ this item do not include Knobs）Main used to control electrical devices such as volume controls on audio equipment.Knurled shaft with split design for push-on knob.

Specifications Product Dimensions5.51 x 3.94 x 1.57 inches
