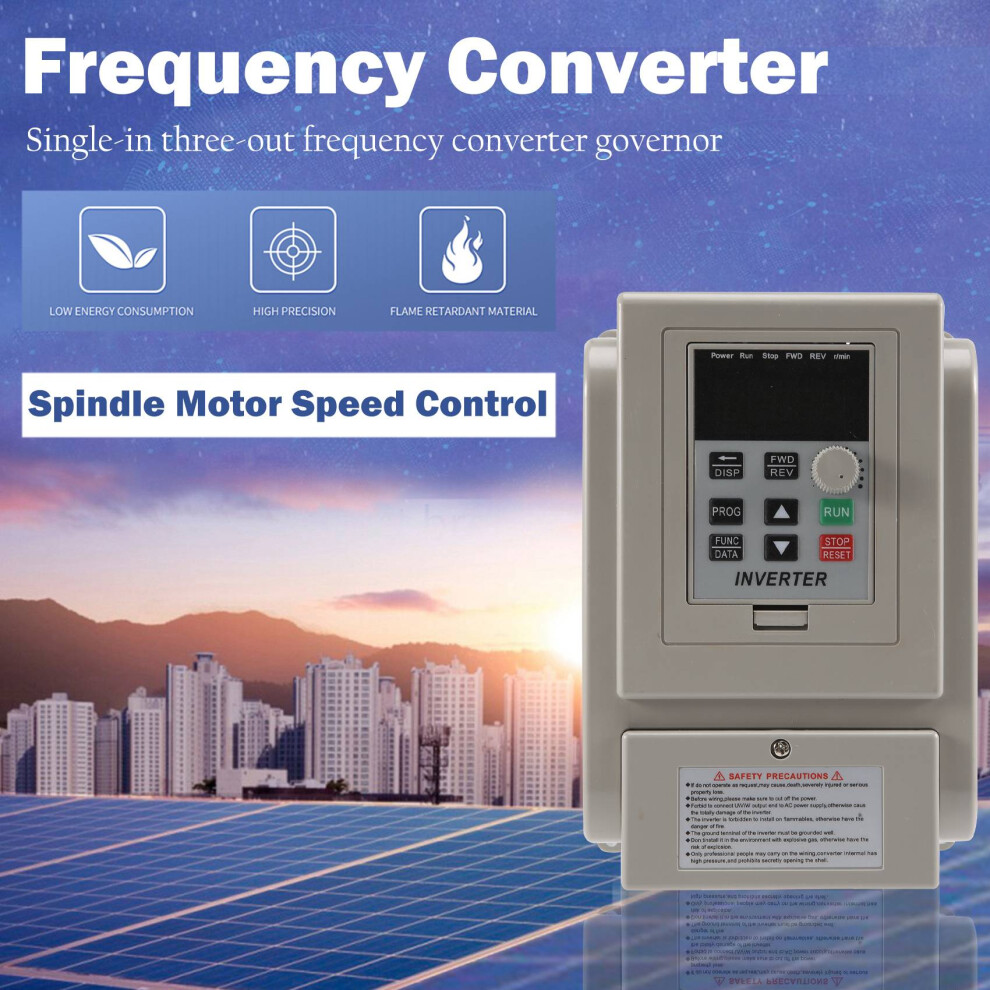

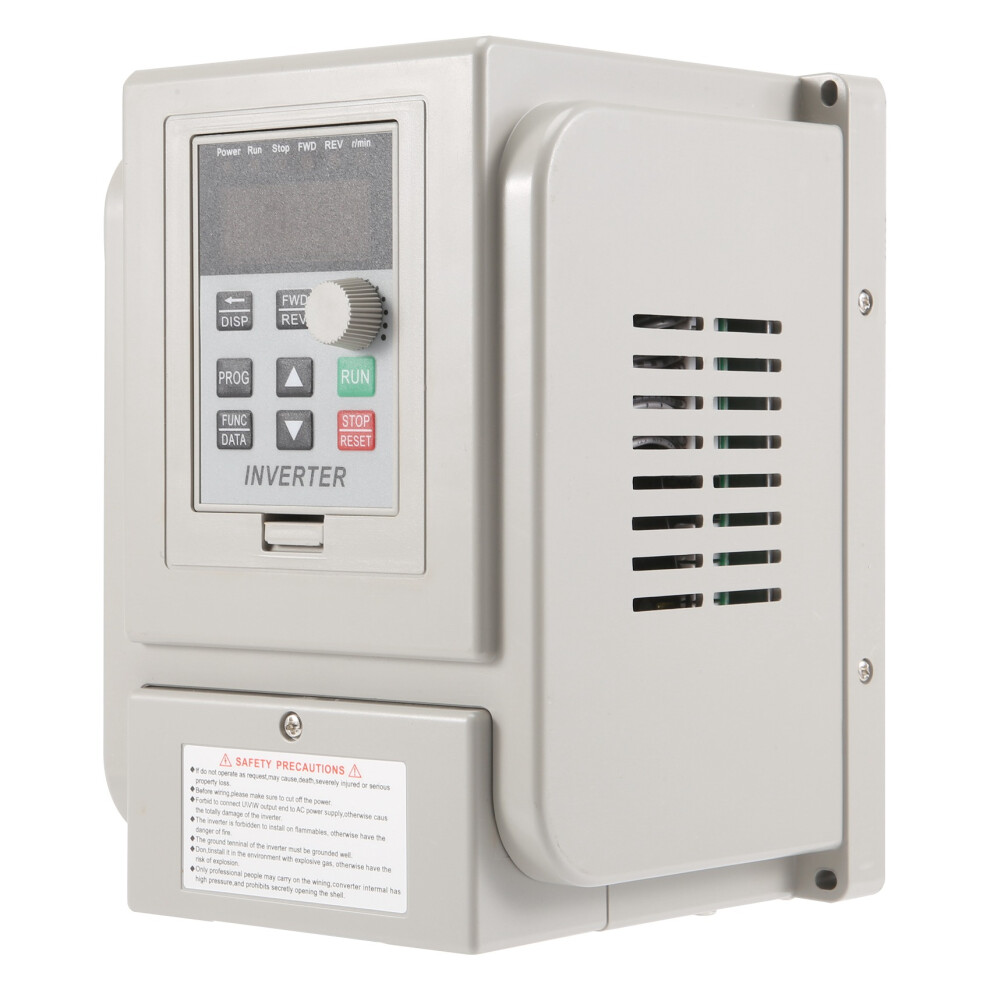

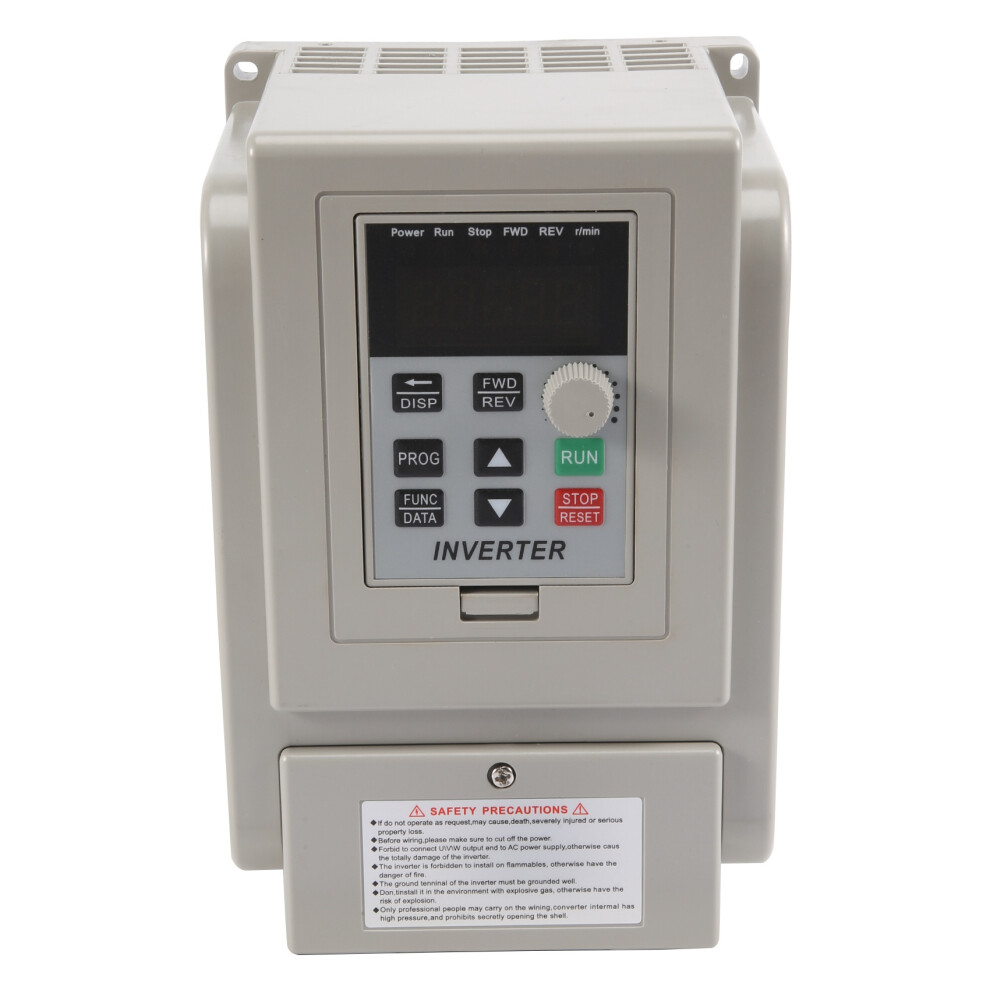

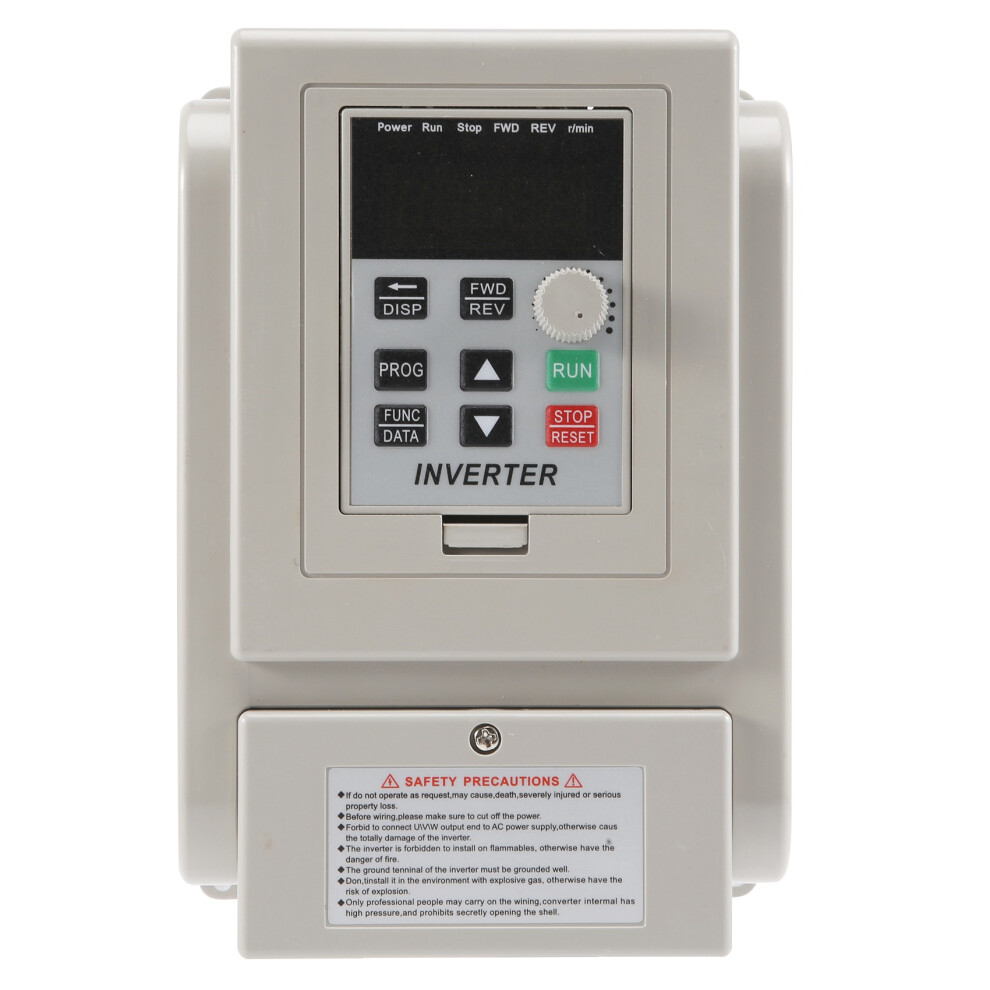

2.2KW 3HP 220V Variable Frequency Drive Inverter CNC VFD VSD

2.2KW 3HP 220V Variable Frequency Drive Inverter CNC VFD VSD Description

This VFD uses control method to realize high moment of force, high precision and wide speed regulating range driving, with high performance.

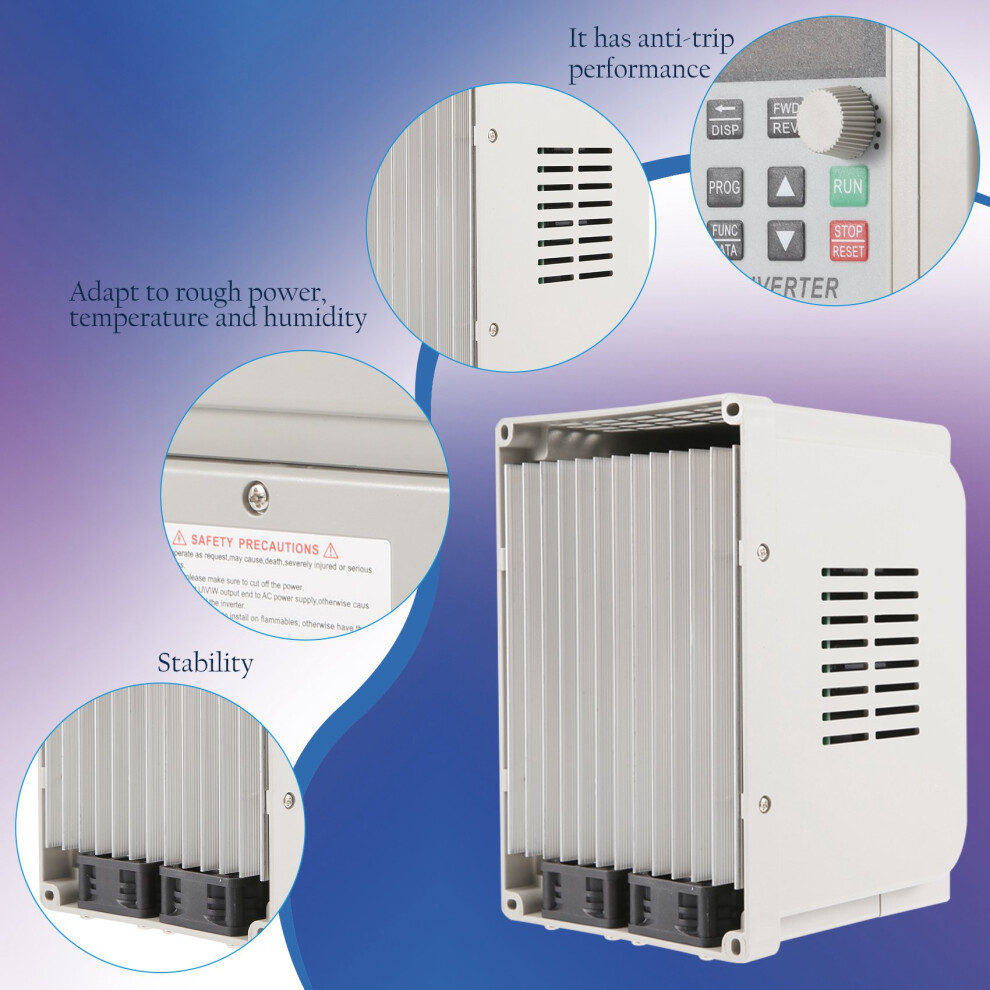

It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability.
By optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference.
Simple to operate and wire, connect to wires by screw terminals which are more convenient.

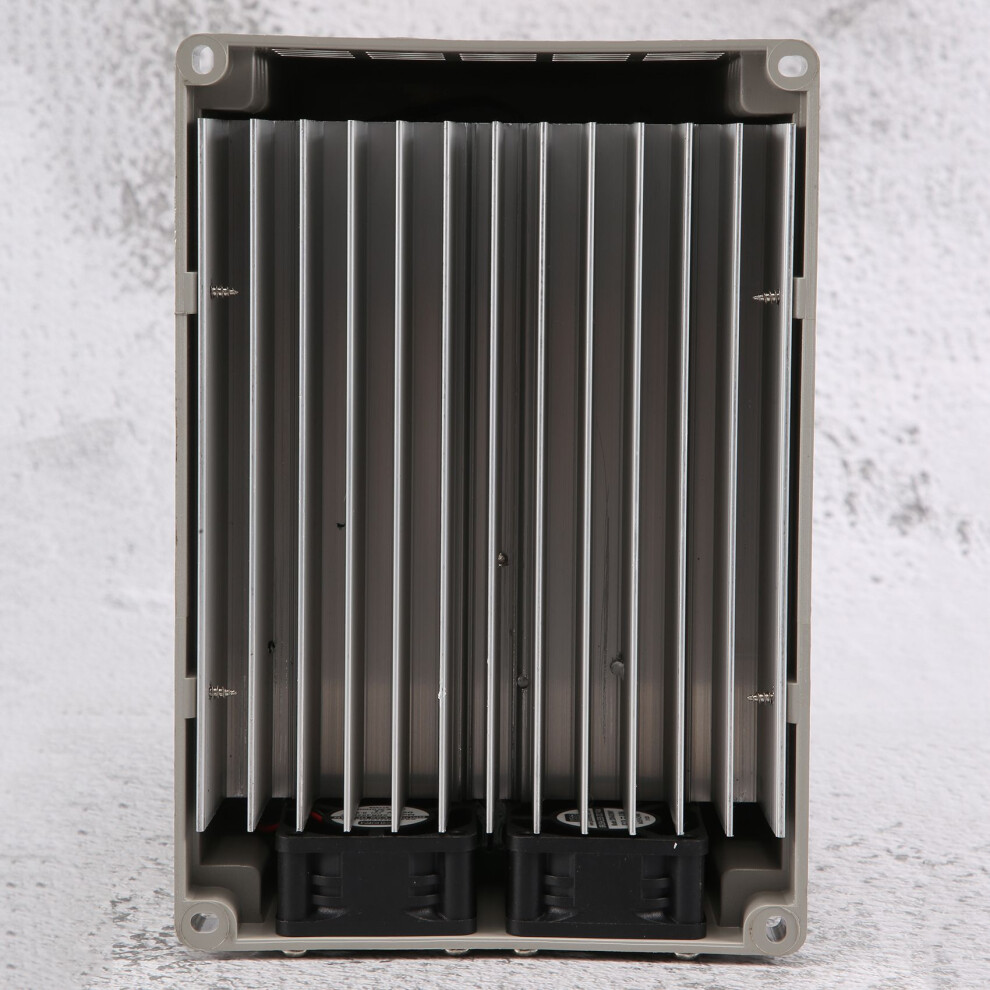

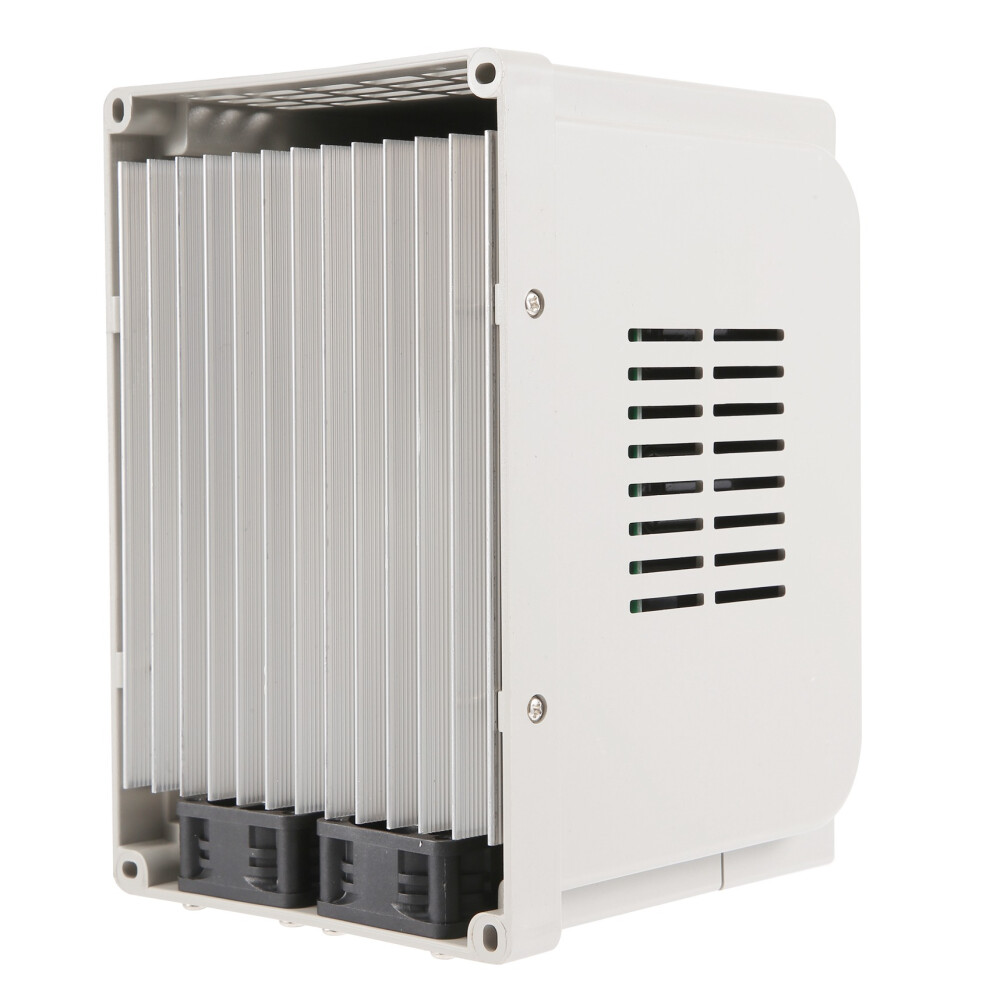

Designed with large heat sink for better heat dissipation.
Power Source Phase: Single-phase
color: White
Material: plastic + metal
Rated Voltage: single-phase/3-phase AC220V
Power Supply Voltage: Low voltage
Suitable Motor Power: 2.2kW
Filter: Built-in filter
DC Power Supply Type: Voltage type
Control Method: V/F closed loop
Output Voltage Adjusting Method: PWM control
Rated Current: 12A
Protection: Over-current, over-voltage, over-heat, under-voltage, short circuit protection
Max. Output Frequency: 400Hz
Size: 18*12.5*12.5cm/7.1*4.9*4.9in
Package Included: 1 x Frequency Converter
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
