2.3-5.5V ADS1219 24-Bit AD Sampling Module 24-Bit ADC-4 Channel -23455

2.3-5.5V ADS1219 24-Bit AD Sampling Module 24-Bit ADC-4 Channel -23455 Description

ADS1219
Operating Voltage (): 2.3V - 5.5V (Note: When powering with a Qwiic cable, the operating voltage is 3.3V only)
Operating Temperature: -40C to 125C
Operation Modes: Single-Shot, Continuous-Conversion, and Power-Down

Analog Inputs:
Four single-ended
Can be configured as one or two differential inputs
Separate reference voltage inputs
VDDA (AVDD) can also be configured via the jumper and breakout pad
Resolution:
24-bit maximum, 20-bit effective
LSB size (gain x1): 244.14nV
LSB size (gain x4): 61.04nV
Sample Rate: 20 Hz to 1 kHz
Combined Current Consumption (Typical): 8μA - 410μA
50Hz and 60Hz noise rejection
Configurable input multiplexer
Sixteen configurable addresses: 0x40 - 0x4F
Default: 0x40
2x Qwiic connection ports
Power LED (configurable)
Dimensions: 1inch x 1inch
Color: As Shown
Material: PC

Package Contents:

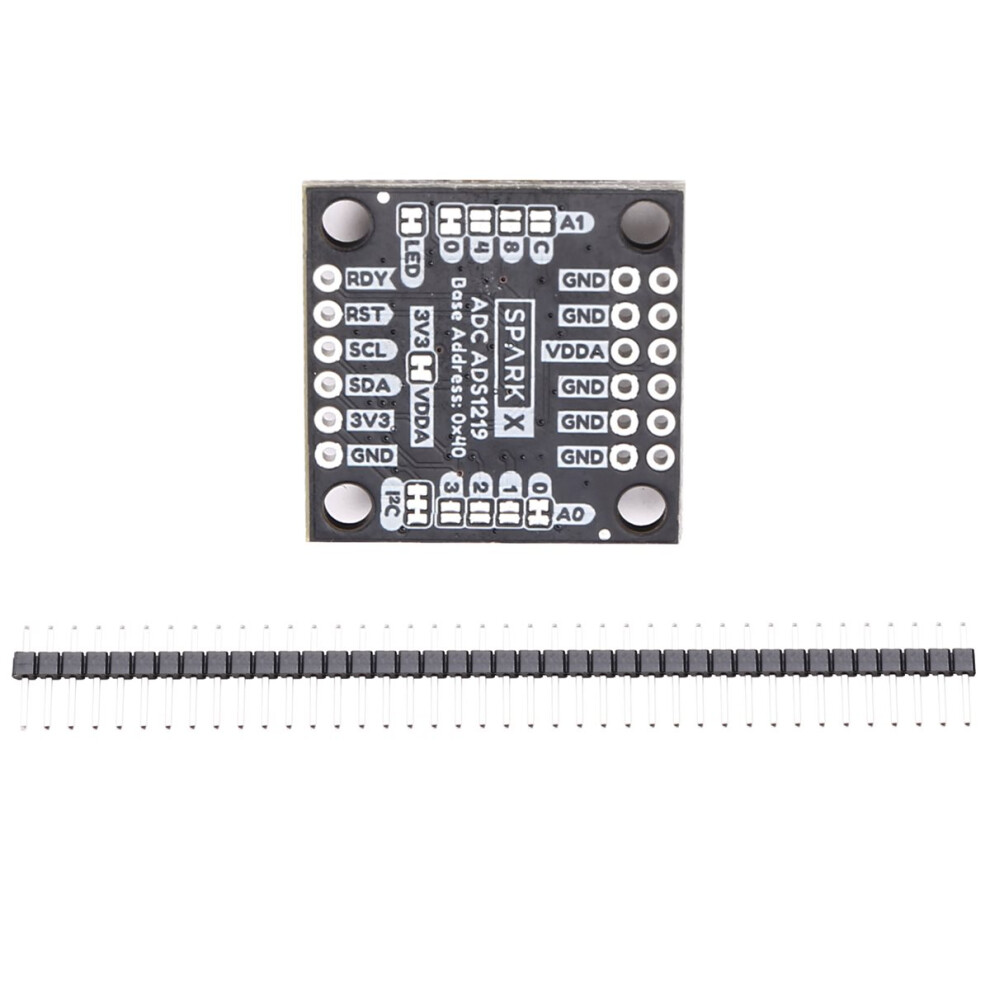

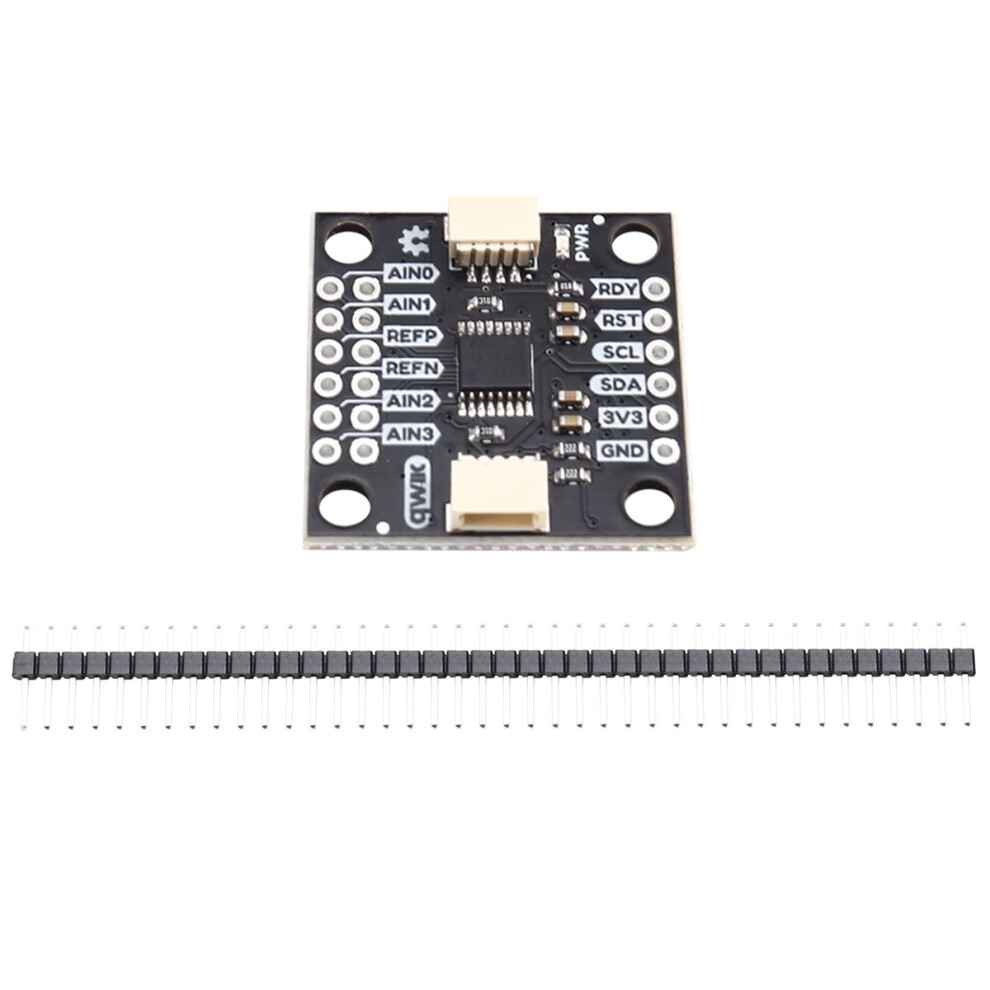

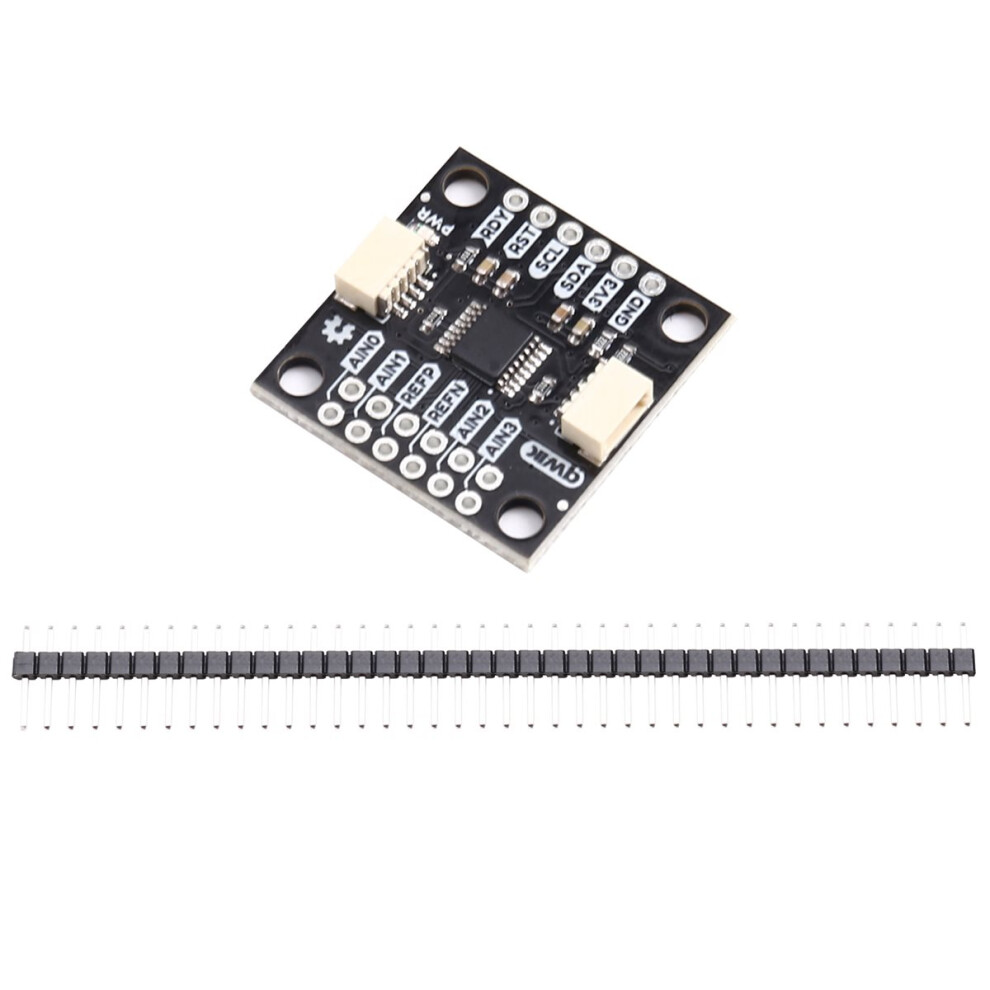

1 * sampling module

Only the above package content, other products are not included.
