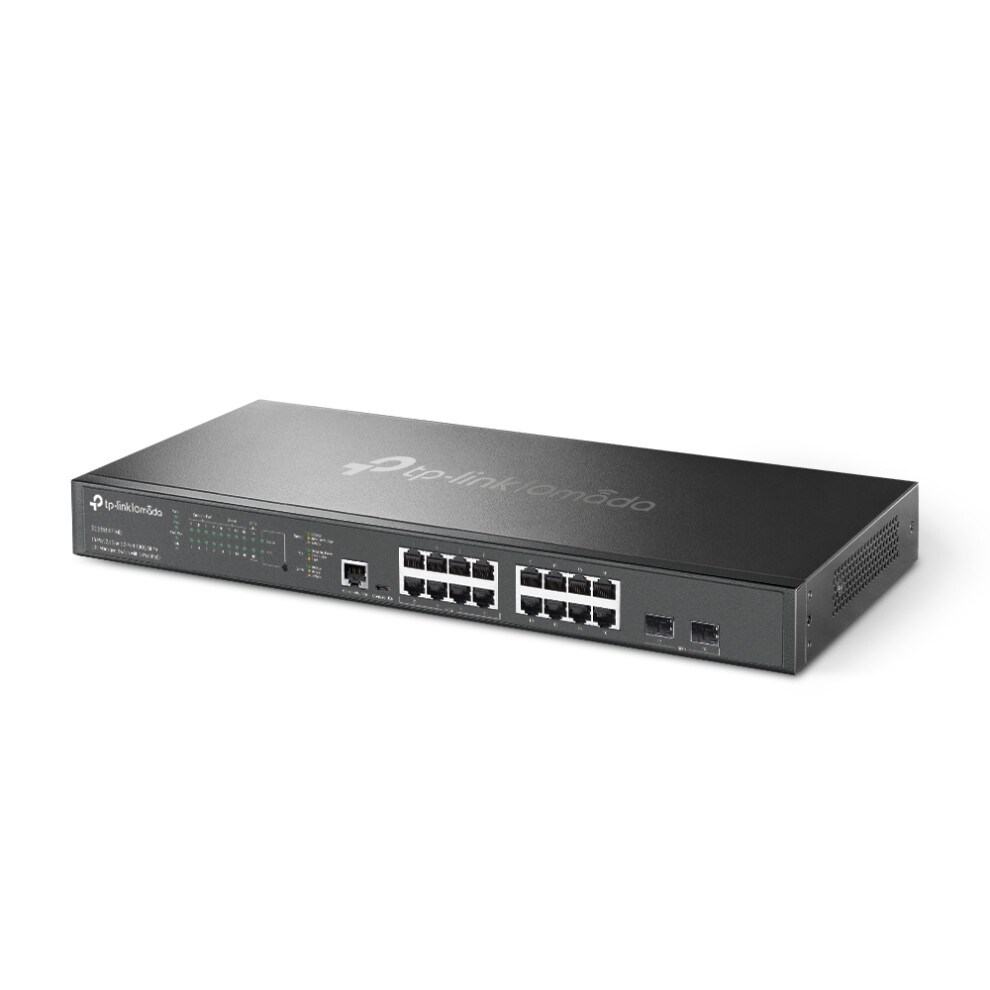

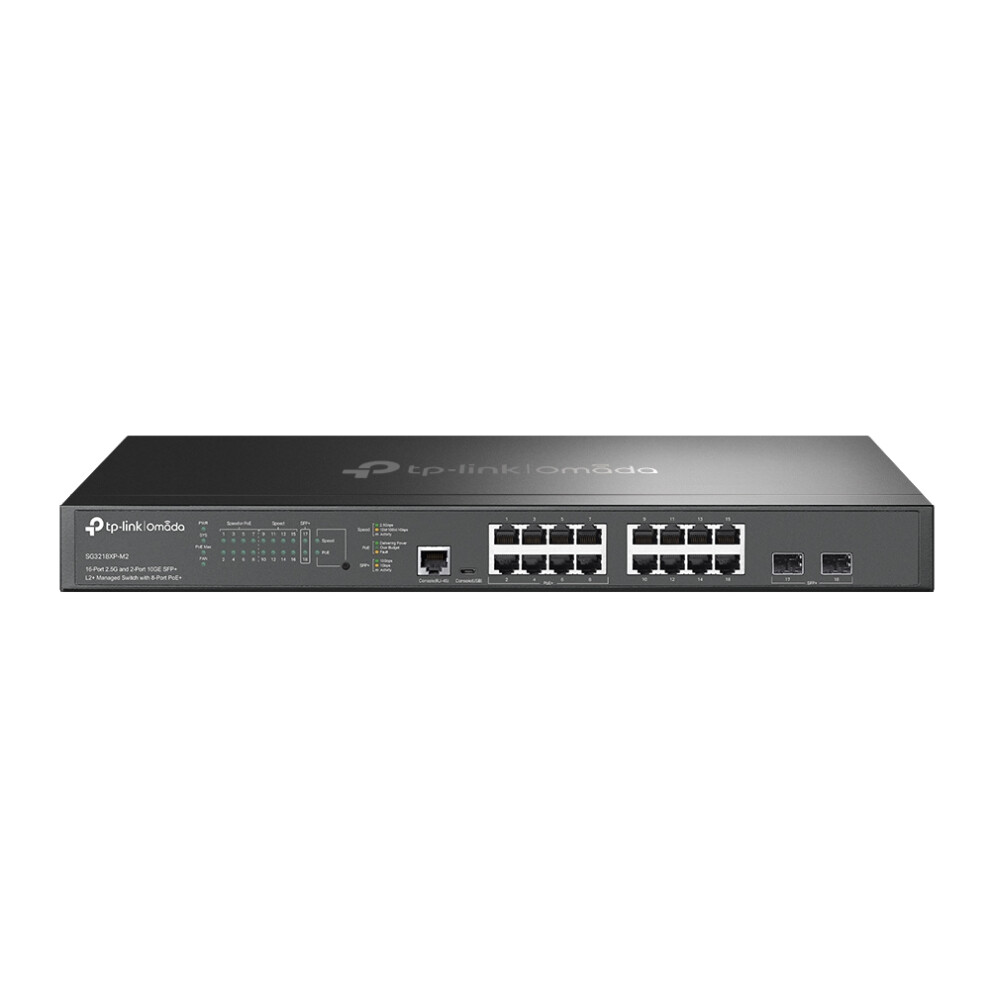

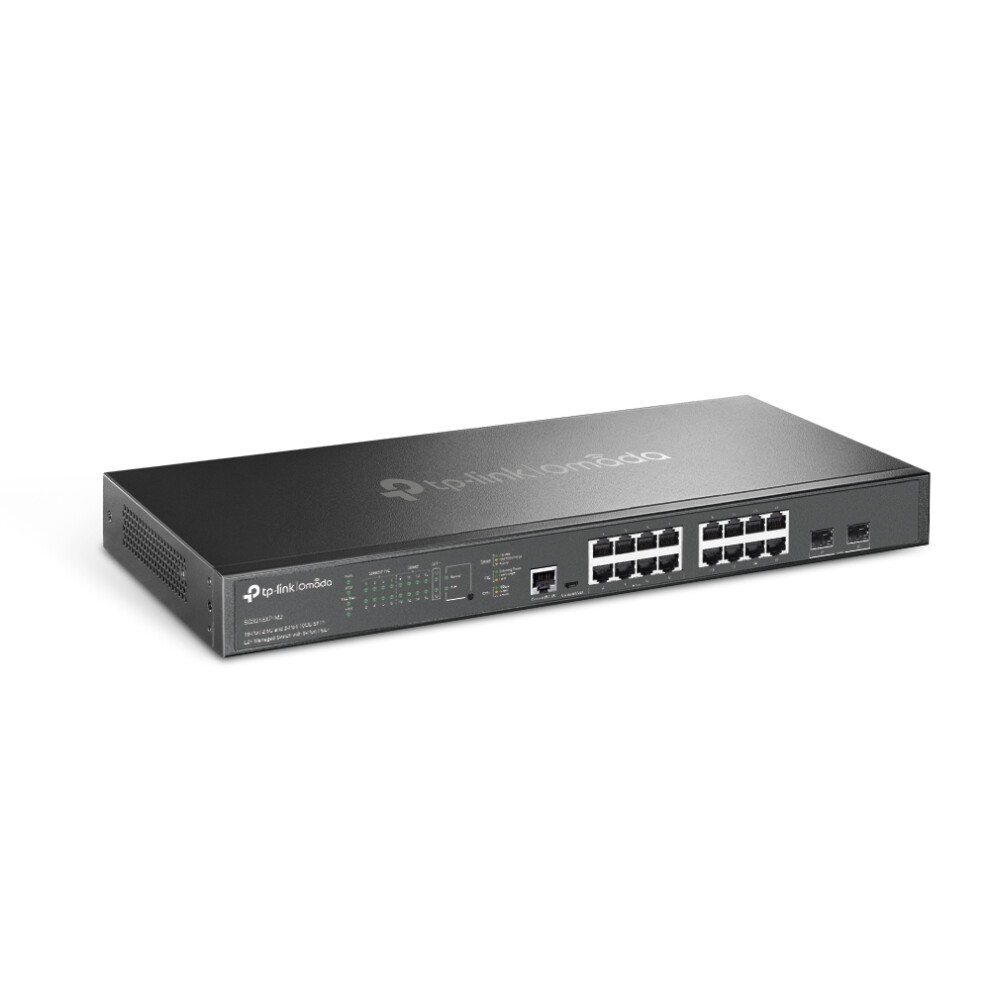

24+4P TP-Link Omada SG3218XP-M2 M RM POE++
Brand TP-LINK
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
£783.10
+£6.50 Delivery
1%
Earn £7.83 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£6.50) | Sat 22nd - Mon 24th Aug
Returns: 30 days
180-day payment protection
You might also like
Description & Details
24+4P TP-Link Omada SG3218XP-M2 M RM POE++ Description
24+4P TP-Link Omada SG3218XP-M2 M RM POE++
Details
| OPC | PGW6MBF |
|---|---|
| Brand | |
| Codes | 4897098689721 (EAN) |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Certificates
| Certification | CE, FCC, RoHS |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
Security
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
|---|---|
| MAC address filtering | Yes |
| Static port security | Yes |
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Authentication type | AAA, TACACS+ |
| Password protection | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
Design
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | Black |
| Number of fans | 2 fan(s) |
Protocols
| Management protocols | SNMP v1/v2c/v3, SNTP |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
Data transmission
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 120 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 89.28 Mpps |
| Packet buffer memory | 12 MB |
| Number of static routes | 48 |
| Number of IP interfaces | 32 |
| Jumbo frames | 9000 |
| Static route | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1021.64 BTU/h |
Power
| Power source | AC |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 299.4 W |
| Power supply included | Yes |
Weight & dimensions
| Height | 44 mm |
|---|---|
| Width | 440 mm |
| Depth | 180 mm |
Network
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
|---|---|
| Flow control support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| IP routing | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| 10G support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
Packaging content
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) power per port | 30 W |
Management features
| MIB support | MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB |
|---|---|
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Switch type | Managed |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
Multicast features
| Multicast support | Yes |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Y |
Packaging data
| Package type | Box |
|---|
Ports & interfaces
| Console port | RJ-45/Micro-USB |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| SFP+ module slots quantity | 2 |
| Power connector | AC-in jack |
Sustainability
| Sustainability compliance | Yes |
|---|
