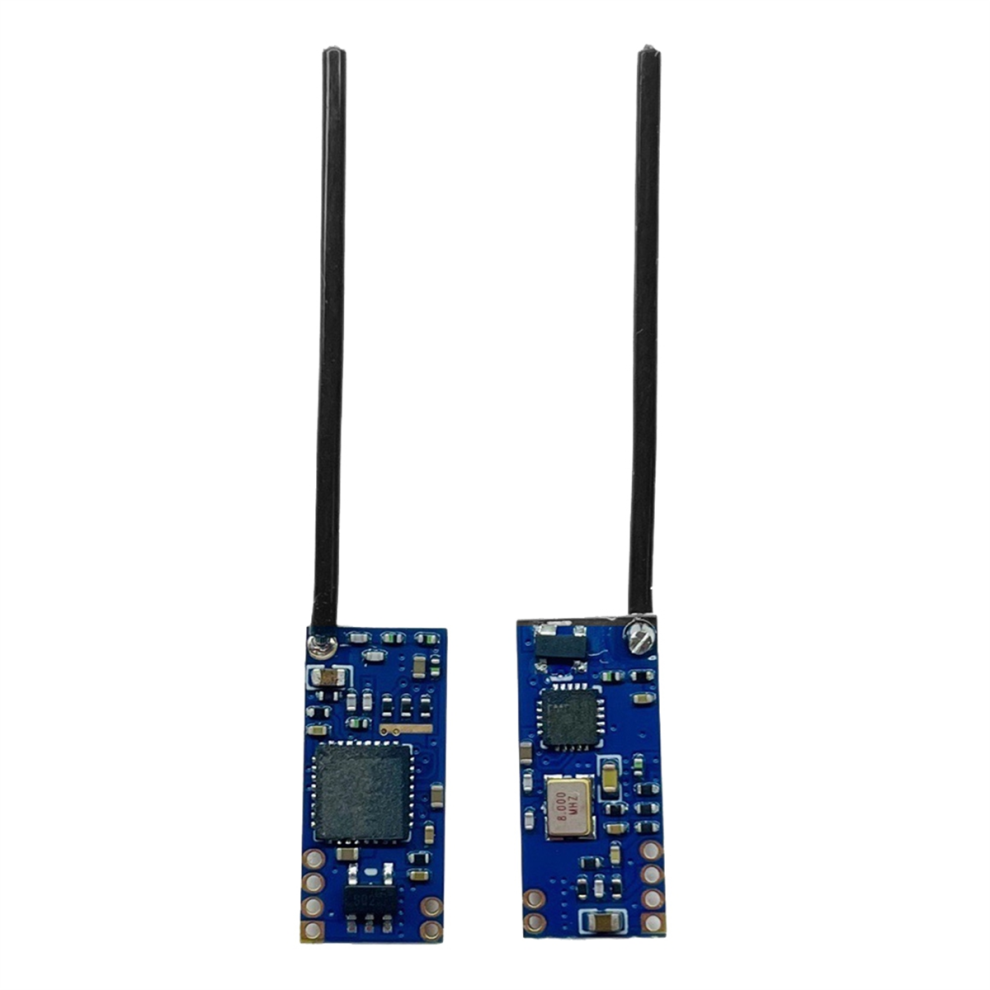

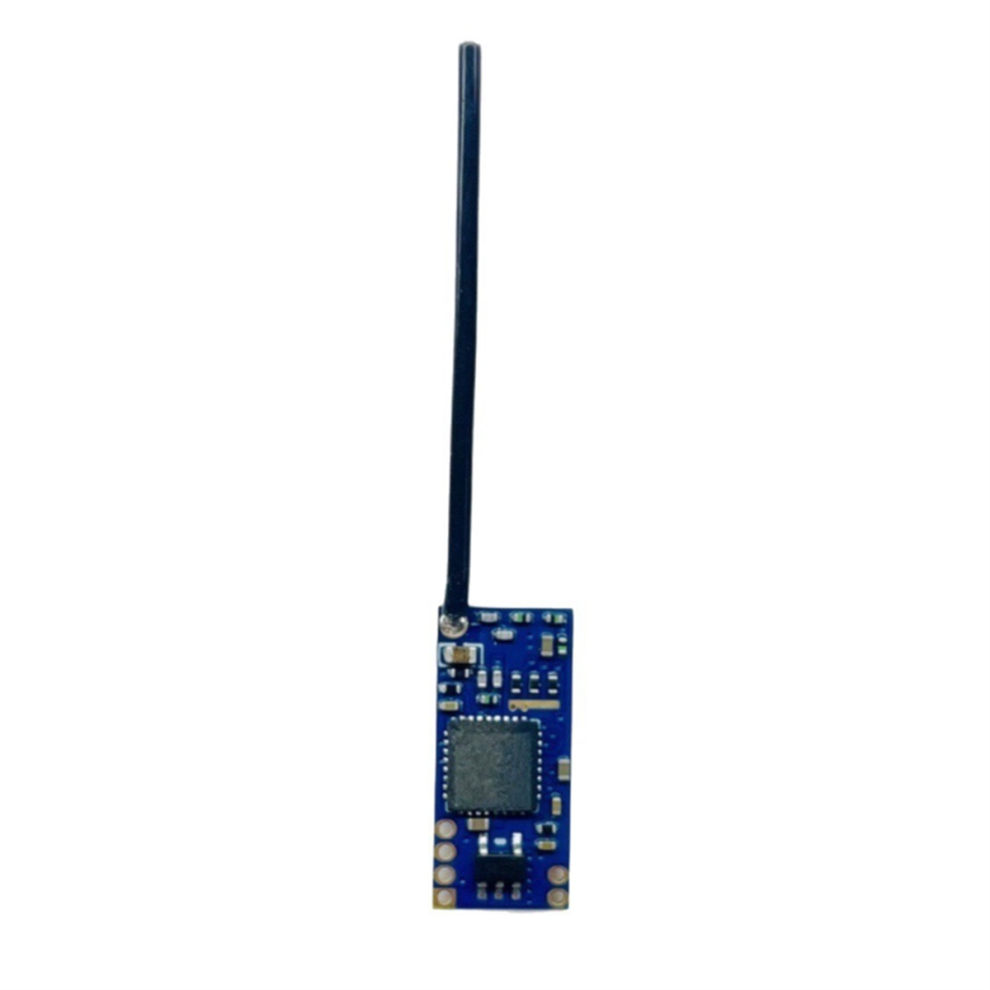

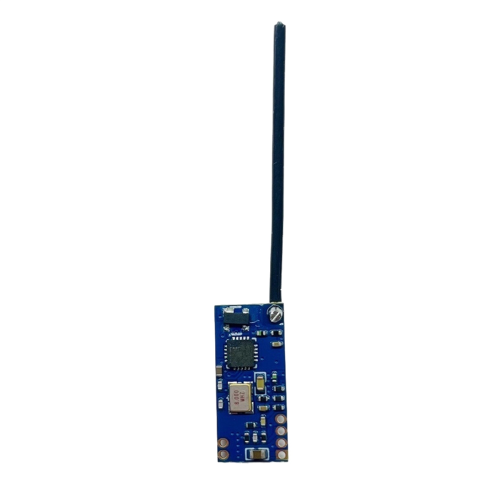

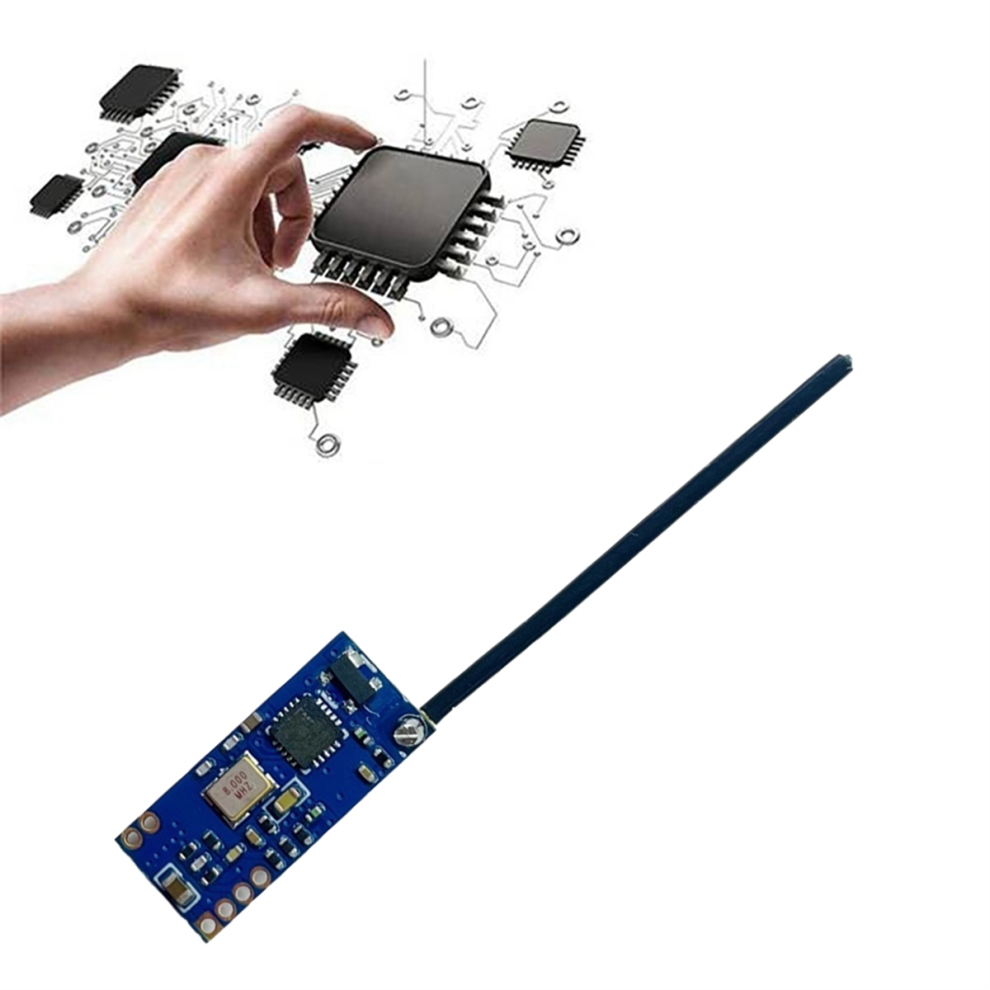

2.4G 50MW TX2570 TX Transmitter Module 2370-2570MHz

2.4G 50MW TX2570 TX Transmitter Module 2370-2570MHz Description

1. 2.4G broadband FM transmission: supports high quality audio transmission, wide coverage, stable and clear signal
2. High output power (17dBm): provides strong transmitting ability and ensures excellent long-distance communication effect.
3. Built-in frequency phase-locked loop: strong frequency stability, effectively reducing interference and guaranteeing the quality of signal transmission.
4. Video signal direct modulation: support video signal direct input and modulation, simplify the equipment connection steps
5. Support 8 frequency points (MHz): 2370, 2390, 2414, 2432, 2450, 2468, 2510, 2570

Application:
1. VCD/DVD/DVB/video wireless transmission
2. Baby monitoring
3. Real-time on-site image monitoring
4. Security transmission system
5. For game to TV
6. Wireless visual reversing
Transmitter module features:
2.4G broadband FM transmission
Wide voltage operation: 3.3-5.5V
Low power consumption: 3.3V 85mA
High output power: 17dBm
Built-in frequency phase-locked loop with high stability
Video signal direct modulation
Eight channels for flexible call
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Color:Random Color(The color is random, and the designation is not accepted)
Material:PCB

Package Contents:
1 * Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
