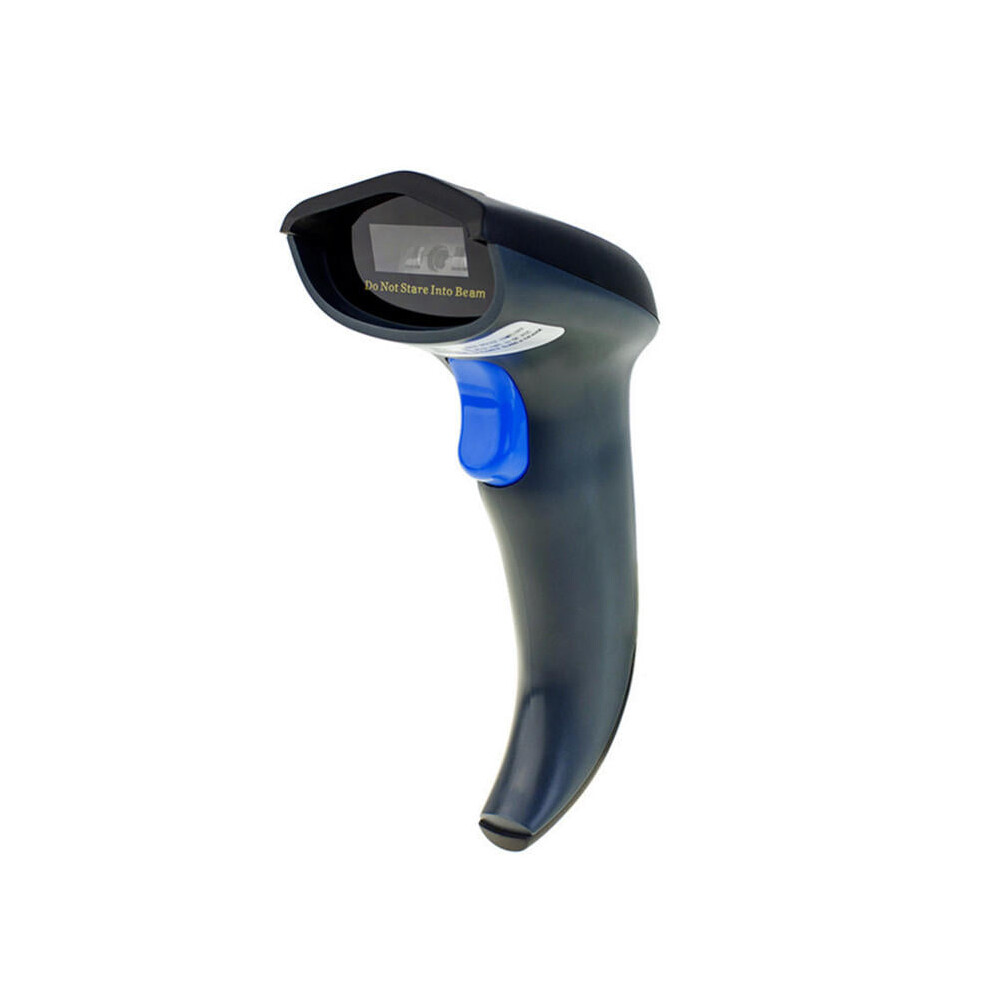

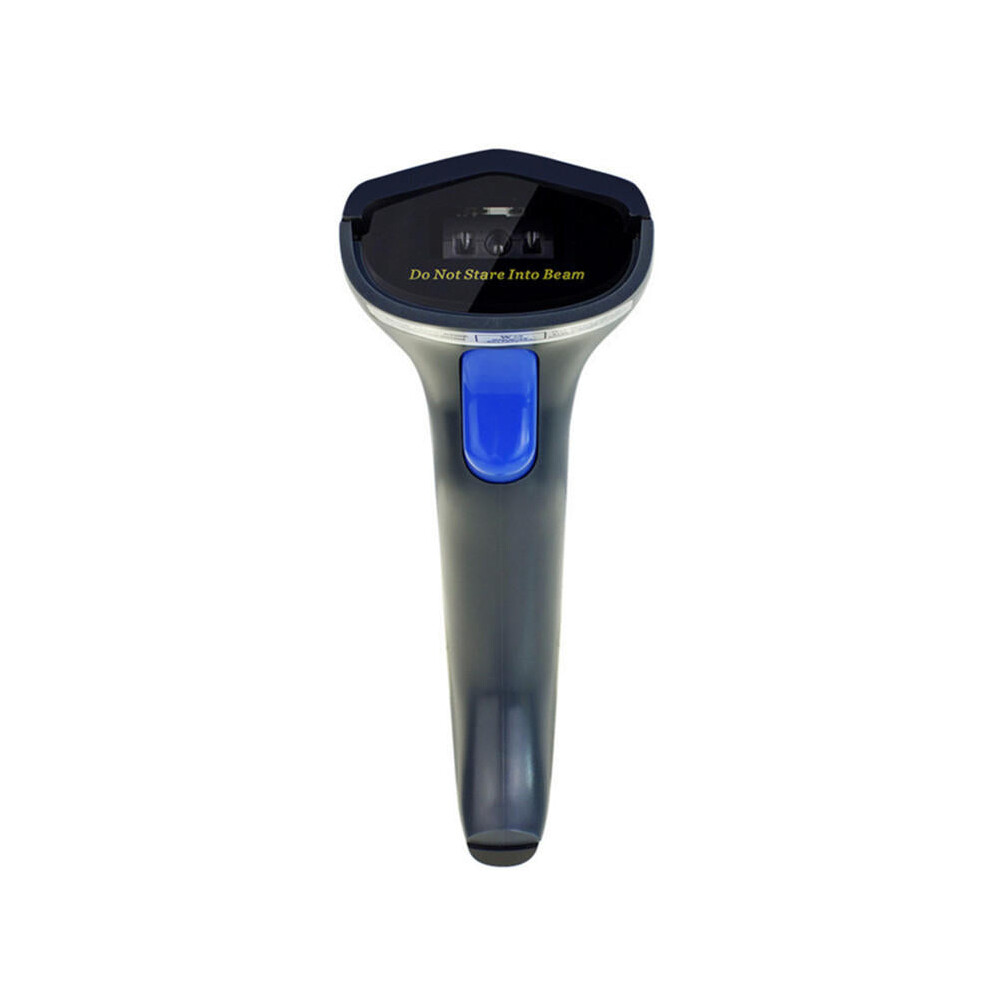

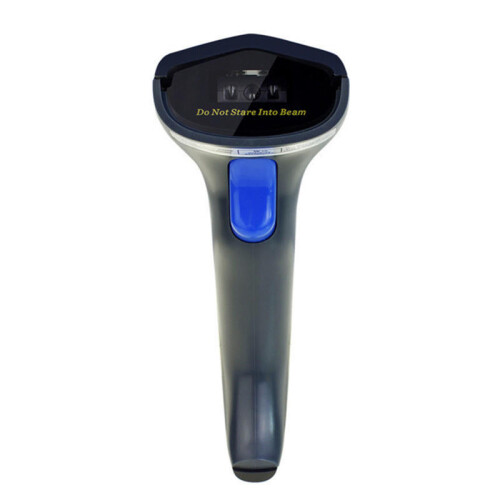

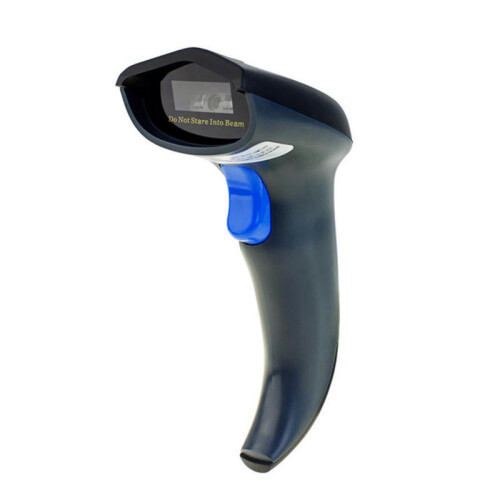

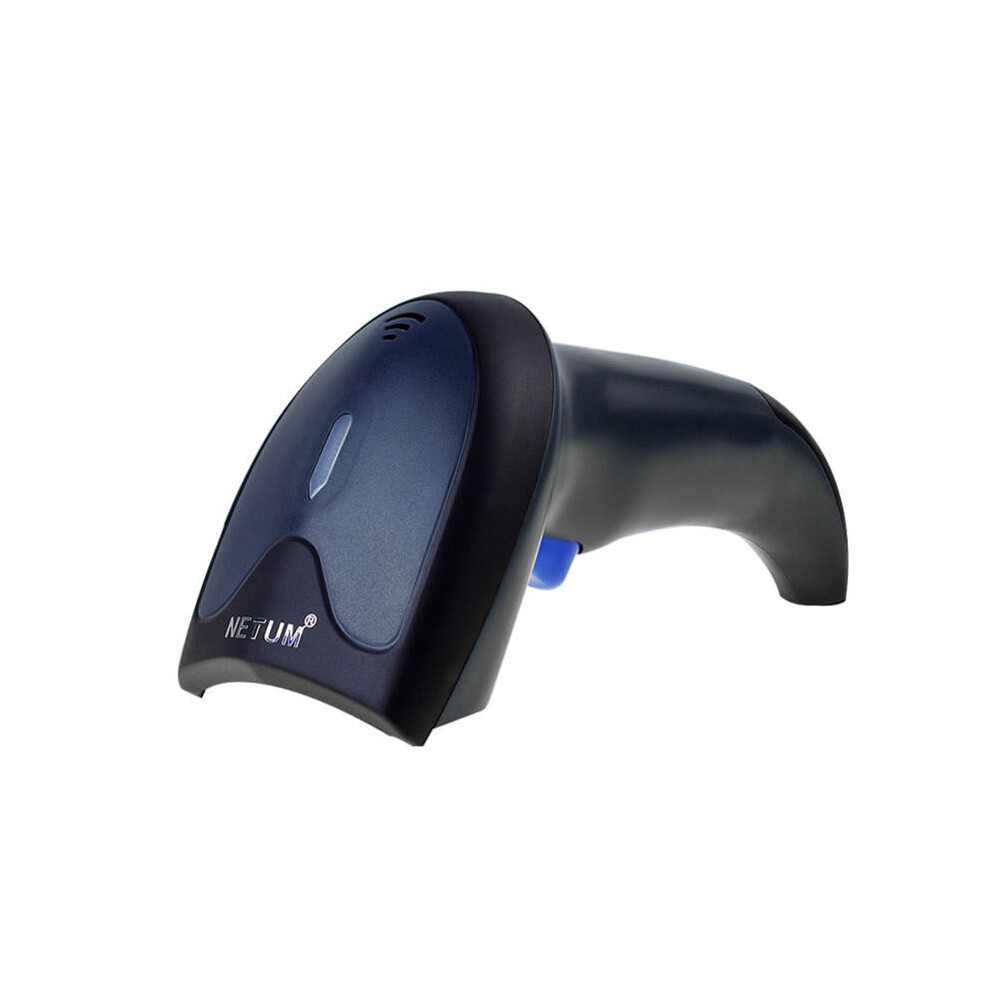

2.4G CCD Wired Red Light One-dimensional Bar Code Scanner Scan Screen Bar Code Stained Code

2.4G CCD Wired Red Light One-dimensional Bar Code Scanner Scan Screen Bar Code Stained Code Description

Features:
Supports 2.4G CCD wired red light one-dimensional bar code scanning.
It can scan the screen bar code and stained code. Furthermore, it is of high endurance, shatterproof and shockproof.
All these code scanning-CCD bar code scanning, Alipay payment, and WeChat payment, can be handled by one scanner.

Specification:
Read the code pattern: CCD;
The light source type: LED (630NM);
Light source: 265 LUX (130nm);
Scanning mode: Image type scanning;
Accuracy: 5mil;
The printing contrast: 30%;
the highest power: 1.33W;
working voltage: (3.3V~4.2V)5%;
maximum current: 350mA;
transmission mode: cable transmission;
profound Angle: 34 46 V x H level (vertical);
scan Angle: 360, 65, 60;
scanning performance(scanning depth of field):(1mil=0.0254mm);
EAN13(13mil):70mm-270mm;
Code39(6mil): 55mm-140mm;
Code39(31mil):200mm -300mm;
Code39(17mil): 80mm - 290mm;
QR Code(15mil): 30mm - 165mm;
Decoding ability: 1D ,Codabar,Codablock A,Codablock F,Code 11 Code32;Code 39,Code 93,Code 128,EAN-13; EAN-8,Full ASCII Code39,GS1 Data Bar,Industrial 2 of 5,Interleaved 2 of 5,ISBN / ISSN,Matrix 2 of 5,MSI / Plessey,UPC-A/ UPC-E;
prompt: buzzer, LED lights;

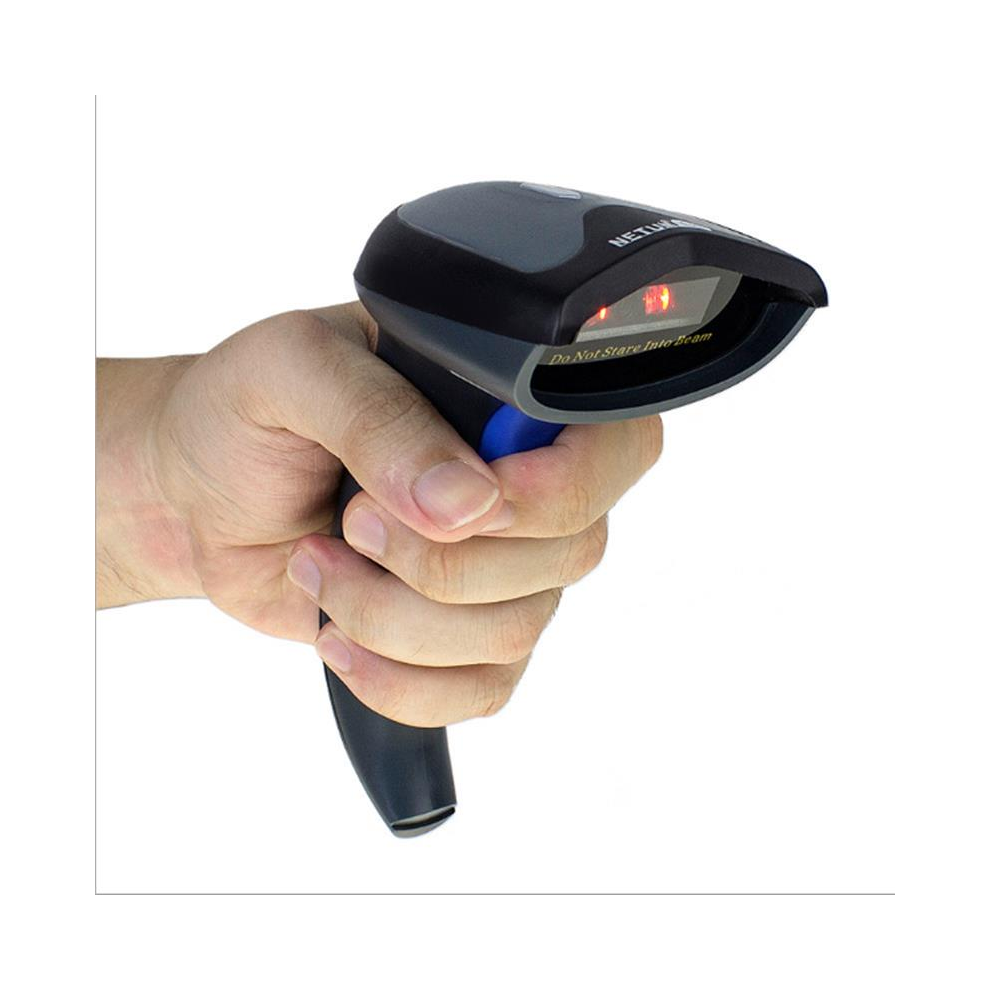

scanning mode: handheld button trigger scanning;
scanning speed: 200/s;
support interface: USB interface;

Package included:
1 * wired scanner
1 * data cable
1 * receiver
1 * user manual
