24G Liquid Level Detection Radar Sensor Module LD2

24G Liquid Level Detection Radar Sensor Module LD2 Description

LD2413 is a 24GHz millimeter wave band radar module equipped with AIOT millimeter wave sensor chip, high performance one-transmitter-one-receiver microstrip antenna, MCU and external auxiliary circuits.
Highly accurate liquid/ material level detection intelligent algorithm, using FMCW waveforms and the chip's proprietary advanced radar signal processing, to achieve accurate detection of the height of liquids and materials.
The product is mainly used in hydrological monitoring, urban pipeline network, water level measurement in fire-fighting water tanks. Support UART output, plug and play, can be flexibly applied to different intelligent scenes.

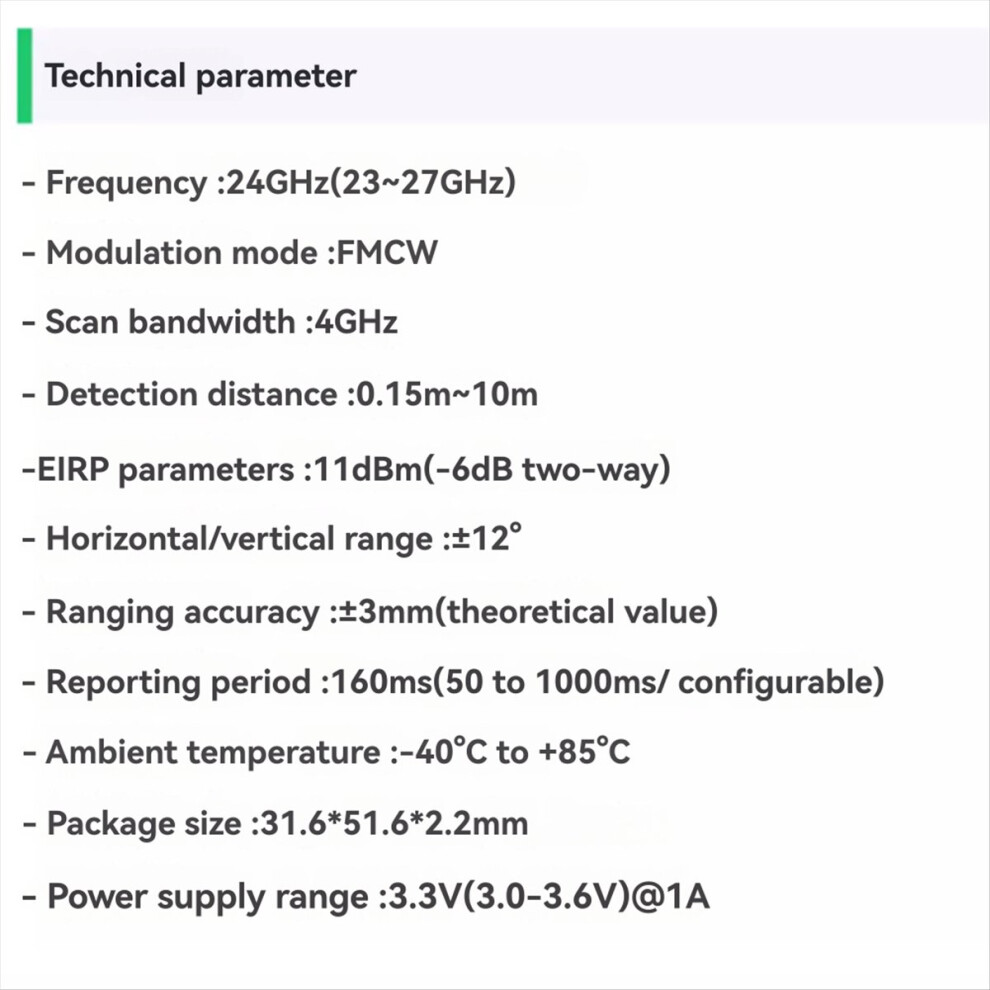

Frequency: 24GHz (23-27GHz)
Modulation: FMCW
Scanning bandwidth: 4GHz
Detection distance: 0.15m-10m
EIRP parameter: 11dBm (-6dB round trip)
Horizontal/vertical range: 12
Distance measurement accuracy: 3mm (theoretical value)
Reporting cycle: 160ms (50-1000ms/configurable)
Ambient temperature: -40C-+85C
Power supply range: 3.3V (3.0-3.6V) 1A
The product appearance and printed words depending on the batch, but this does not affect use
Specification:B:Test suite
Colour:As Shown
Material:PCB

Package Contents:

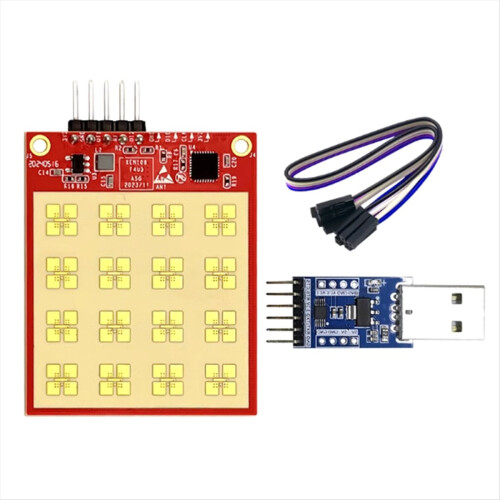

1 x Radar Moudle

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
