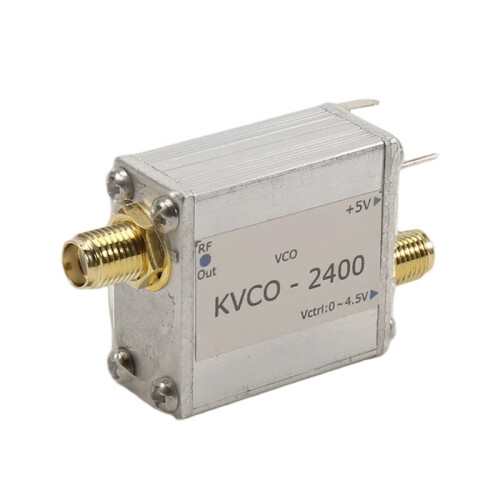

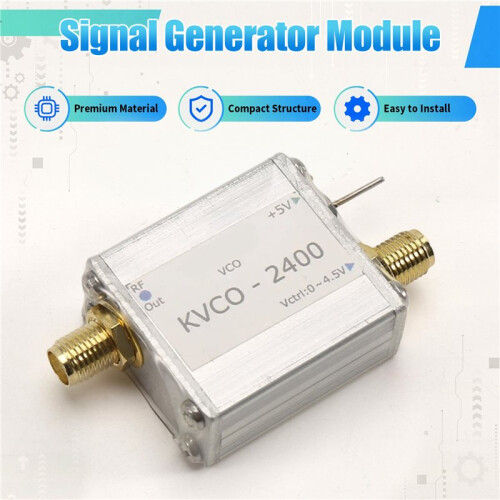

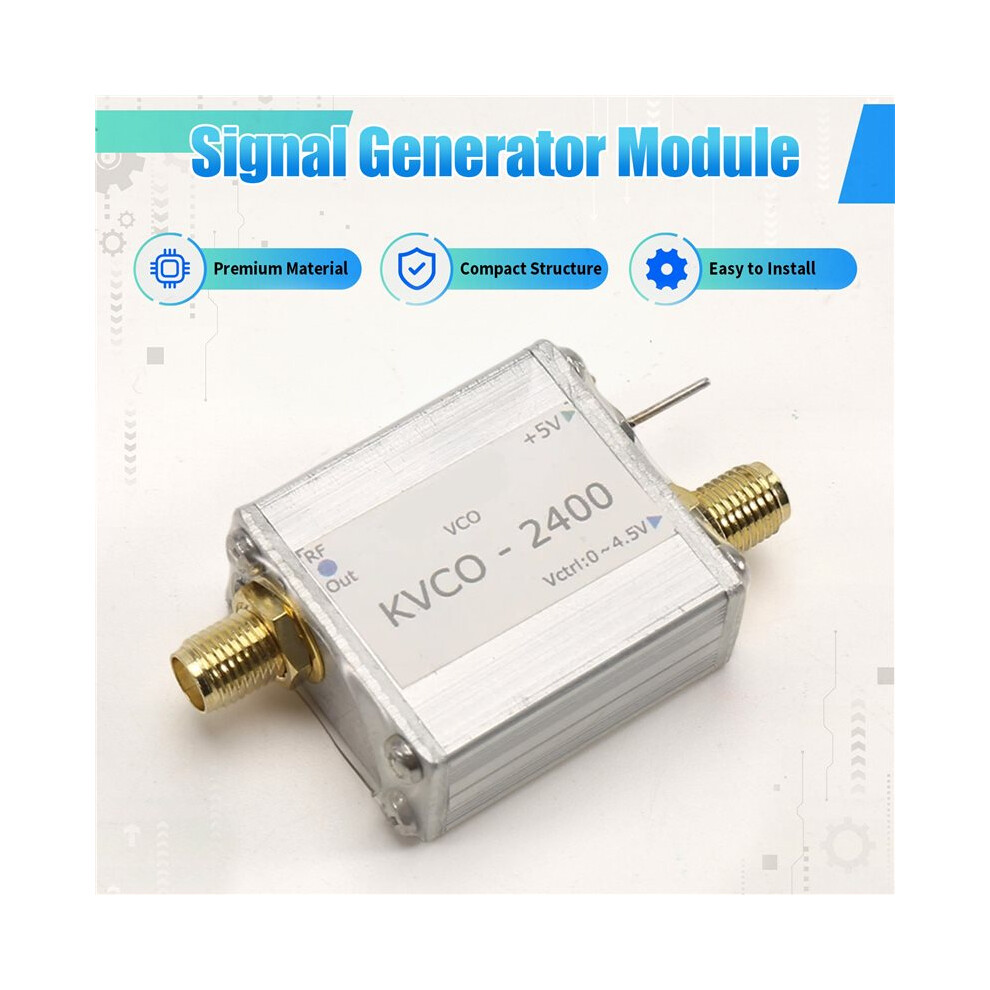

2.4GHz for RF Microwave Voltage Controlled Oscillator, VCO, Sweep Signal Source, Signal Generator Module

2.4GHz for RF Microwave Voltage Controlled Oscillator, VCO, Sweep Signal Source, Signal Generator Module Description

This VCO is specifically designed for 2.4GHz systems, featuring a high-performance module with low power consumption and low phase noise. It offers superior frequency response and tuning linearity compared to discrete components. Housed in a robust aluminum shield, it serves as an excellent local oscillator or DIY sweep signal source for 2.4GHz receivers.

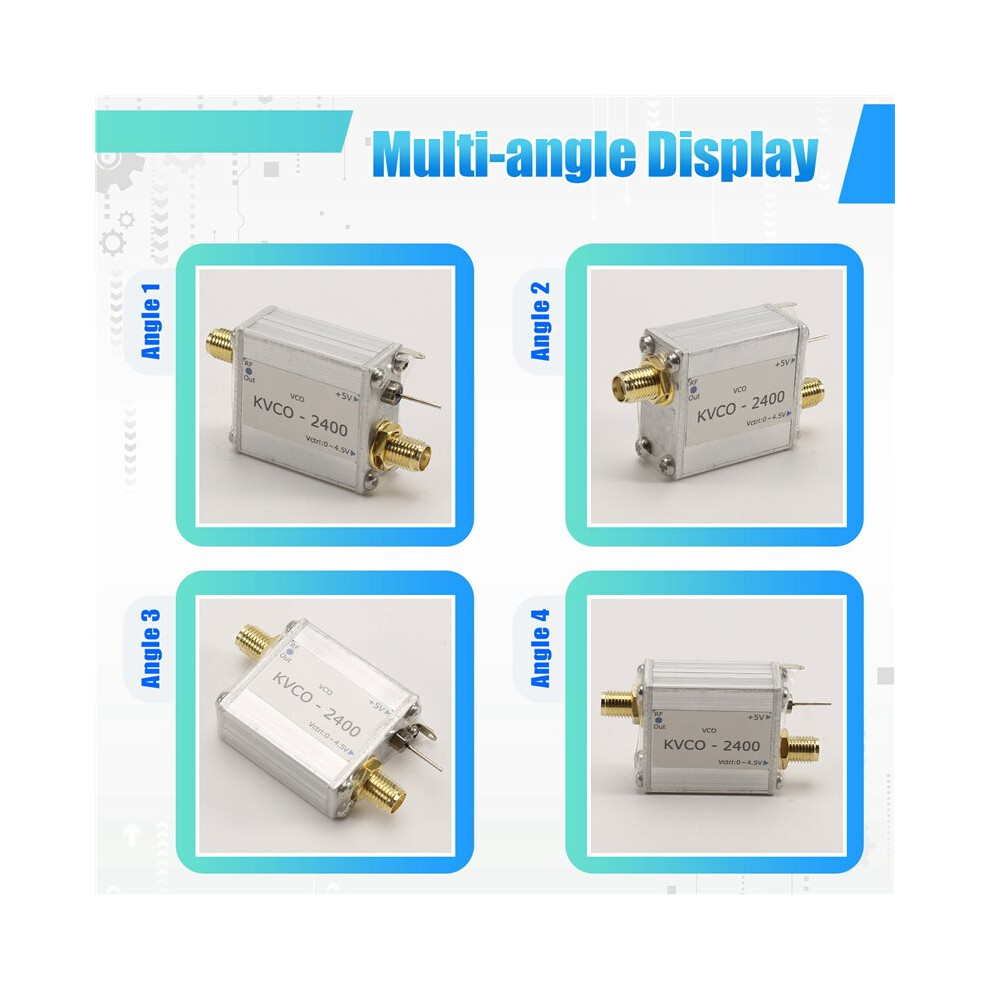

Model: KVCO-2400

Output impedance: 50 Ohms

Output signal frequency: 2350 ~ 2500 MHz

Output signal power: 2.0 ~ 6.0 dBm

Tuning voltage range: 0.3 ~ 3.0V

Tuning sensitivity: 40 ~ 80 MHz/V

Phase noise (C/N): @100 KHz - 100 dBc/Hz

Higher harmonics (2, 3, 4) : >= 20 DBC

Power supply voltage: +5 v.DAC

Working current: 18 ~ 23 mA
Color: As Shown

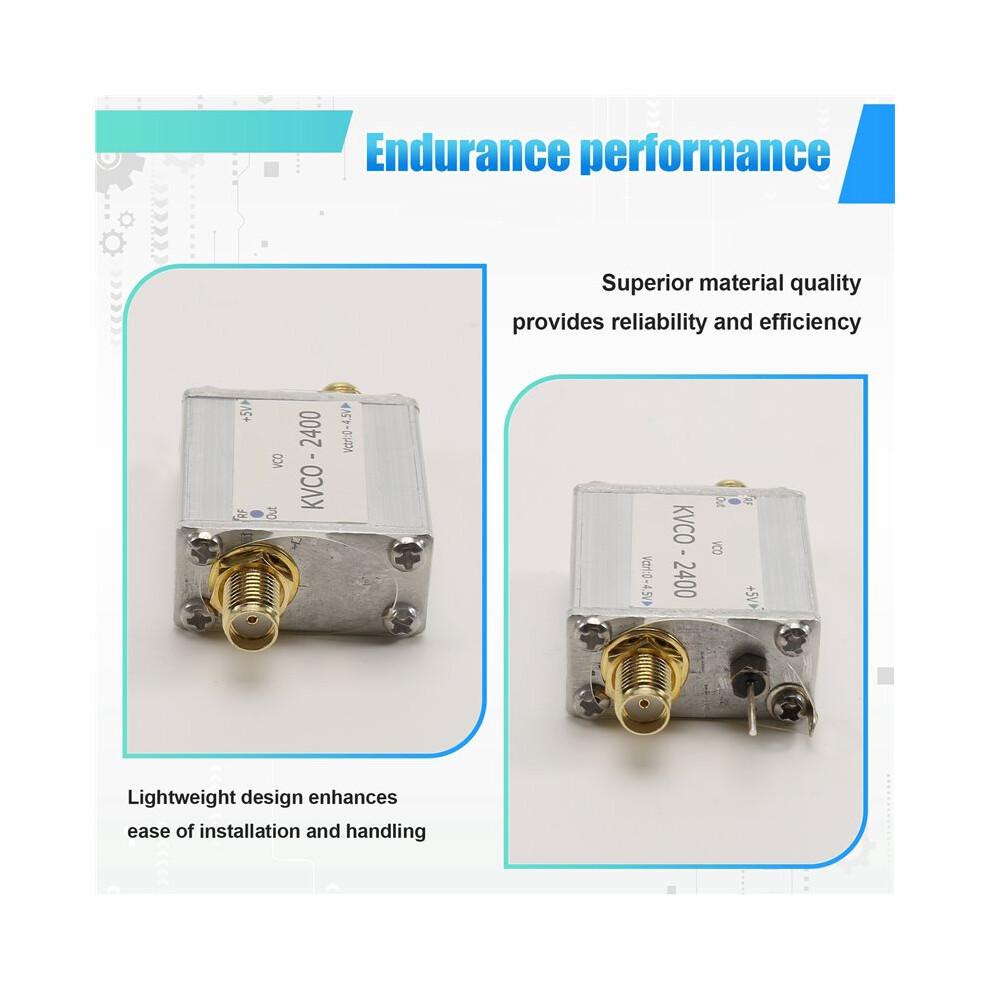

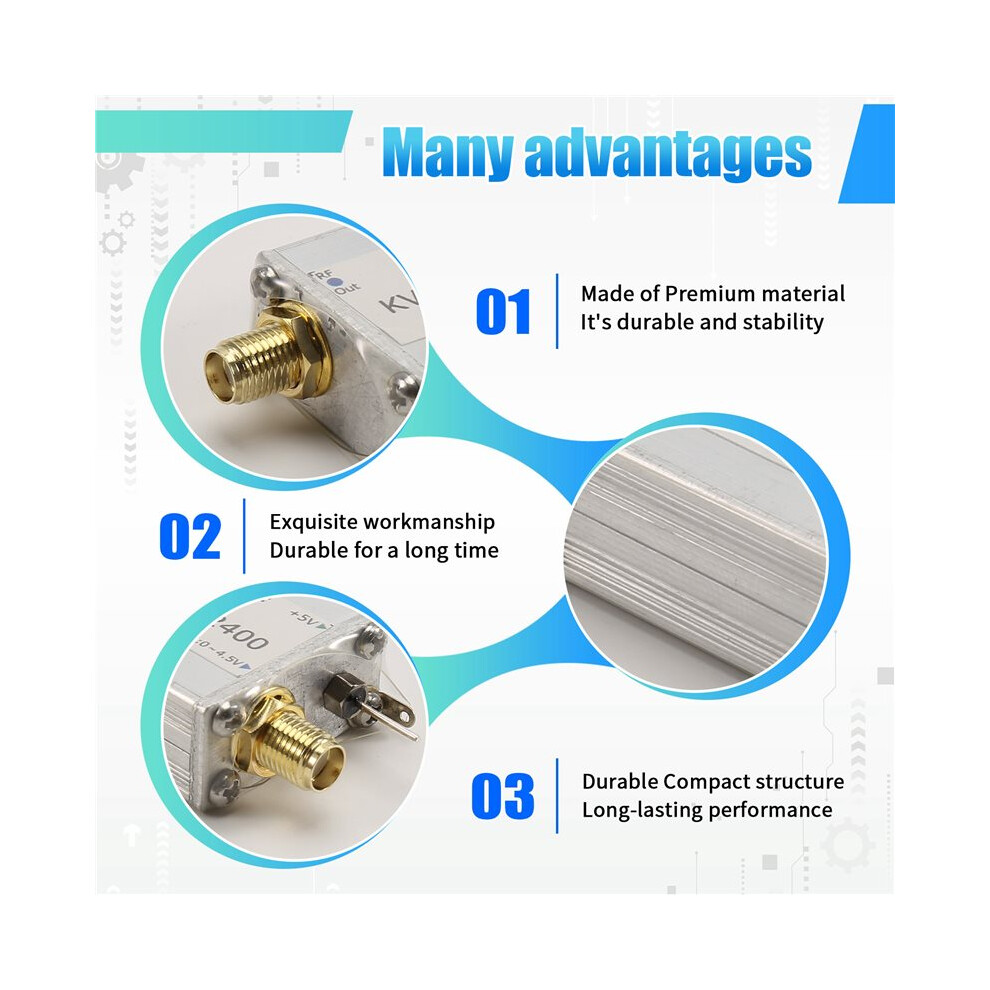

Material: Metal

Package Contents:
1*Module
