2.4GHZ Ring Coupler 3Db Electric Bridge Directional Hybrid

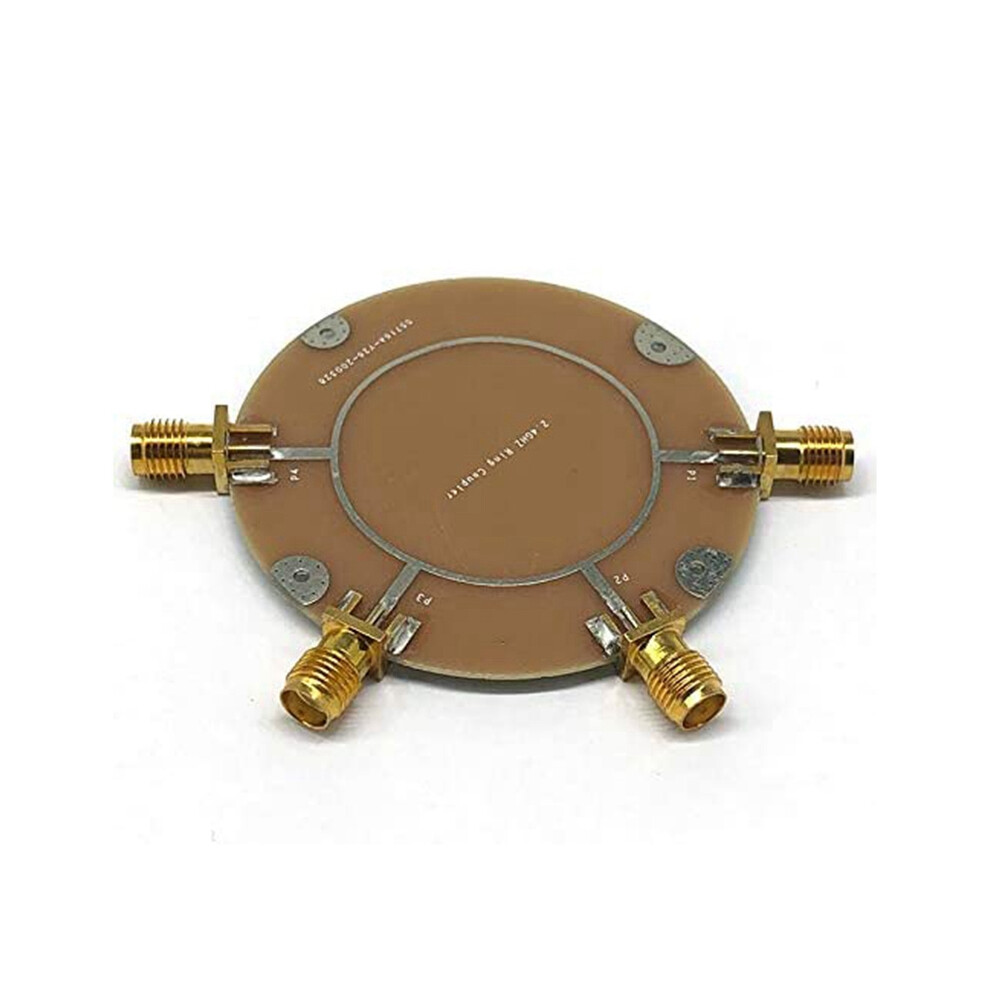

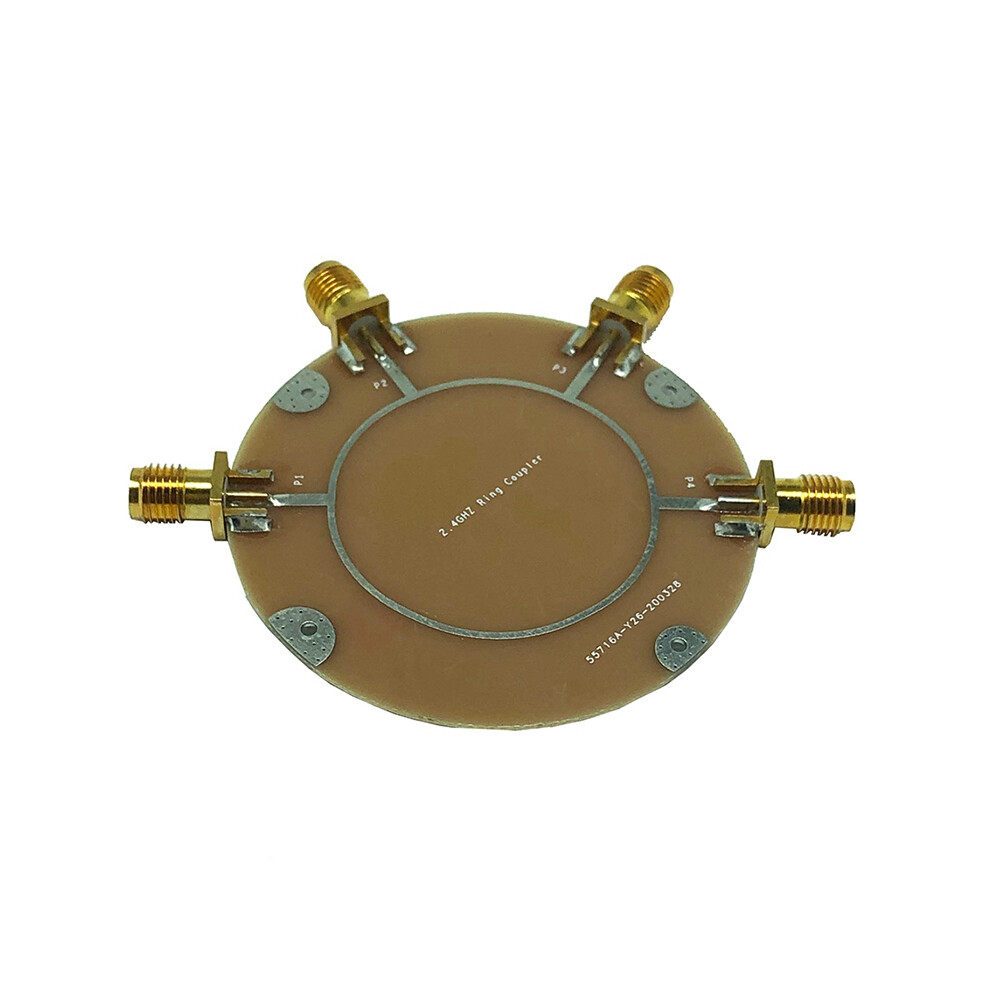

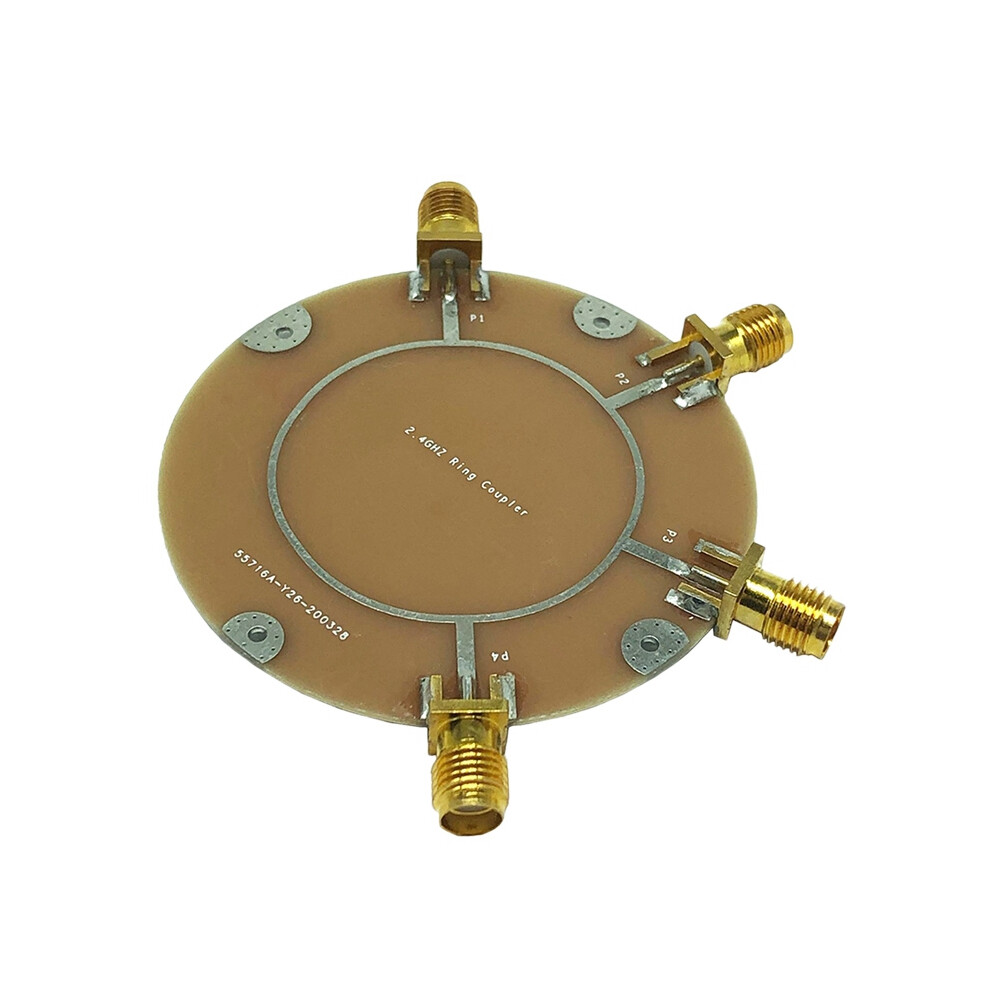

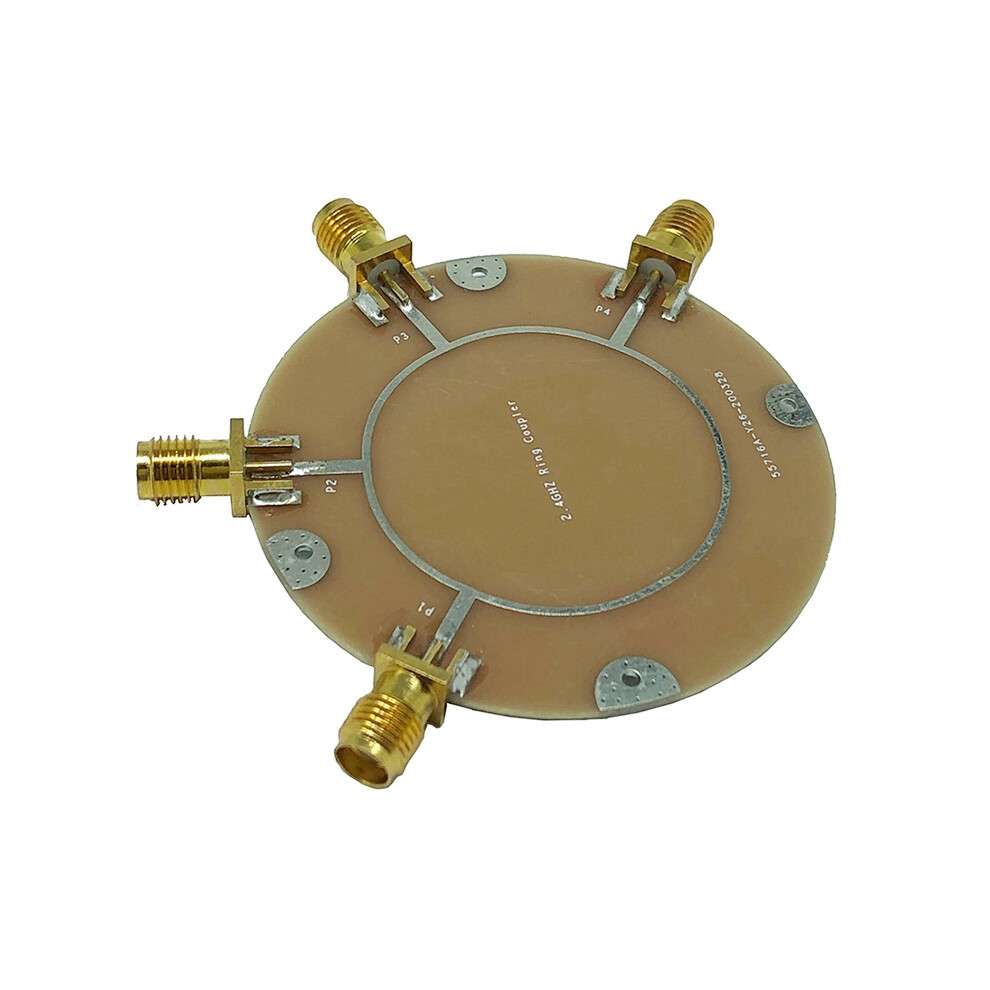

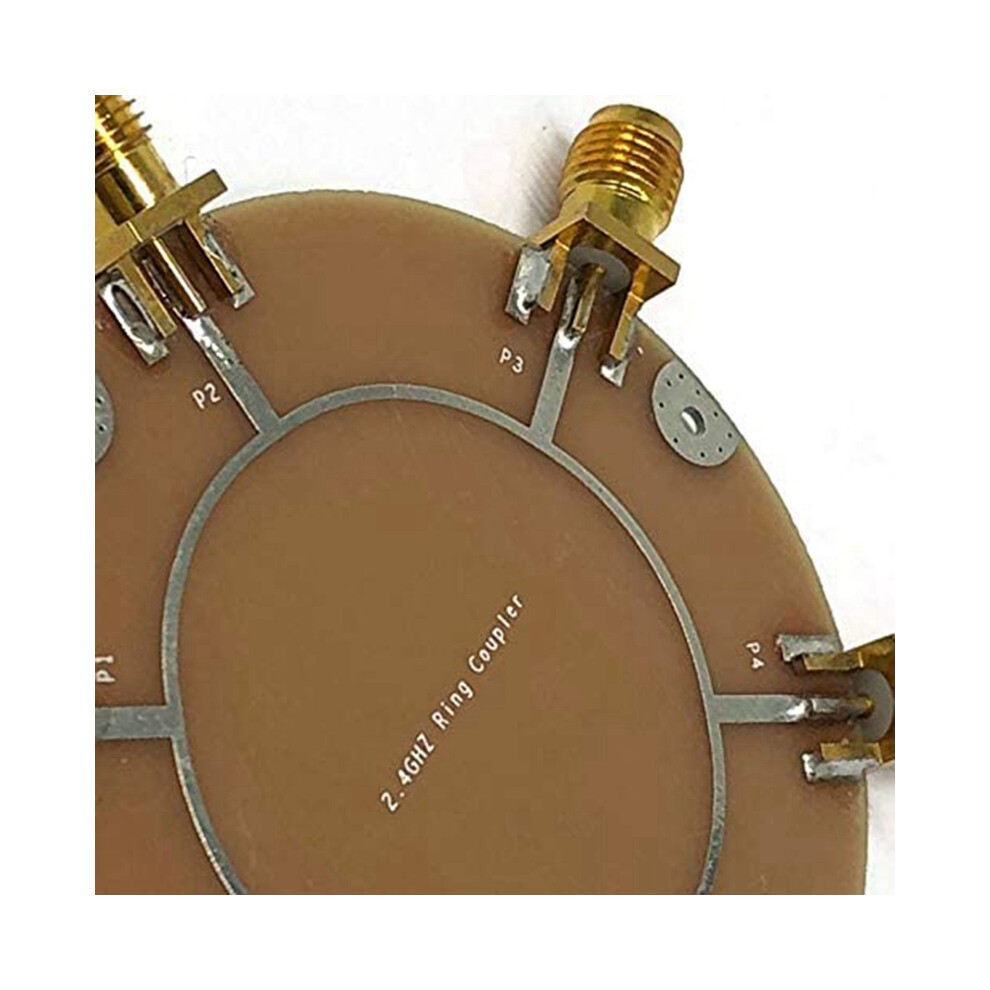

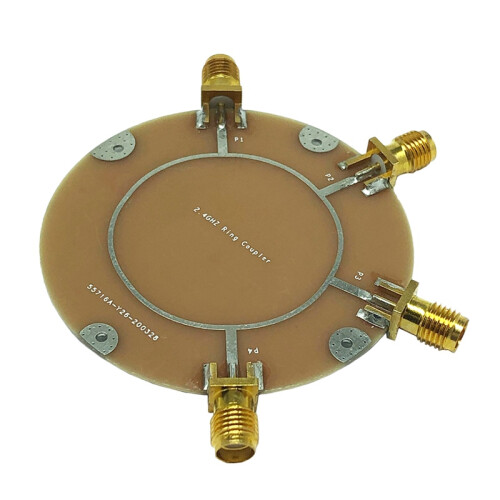

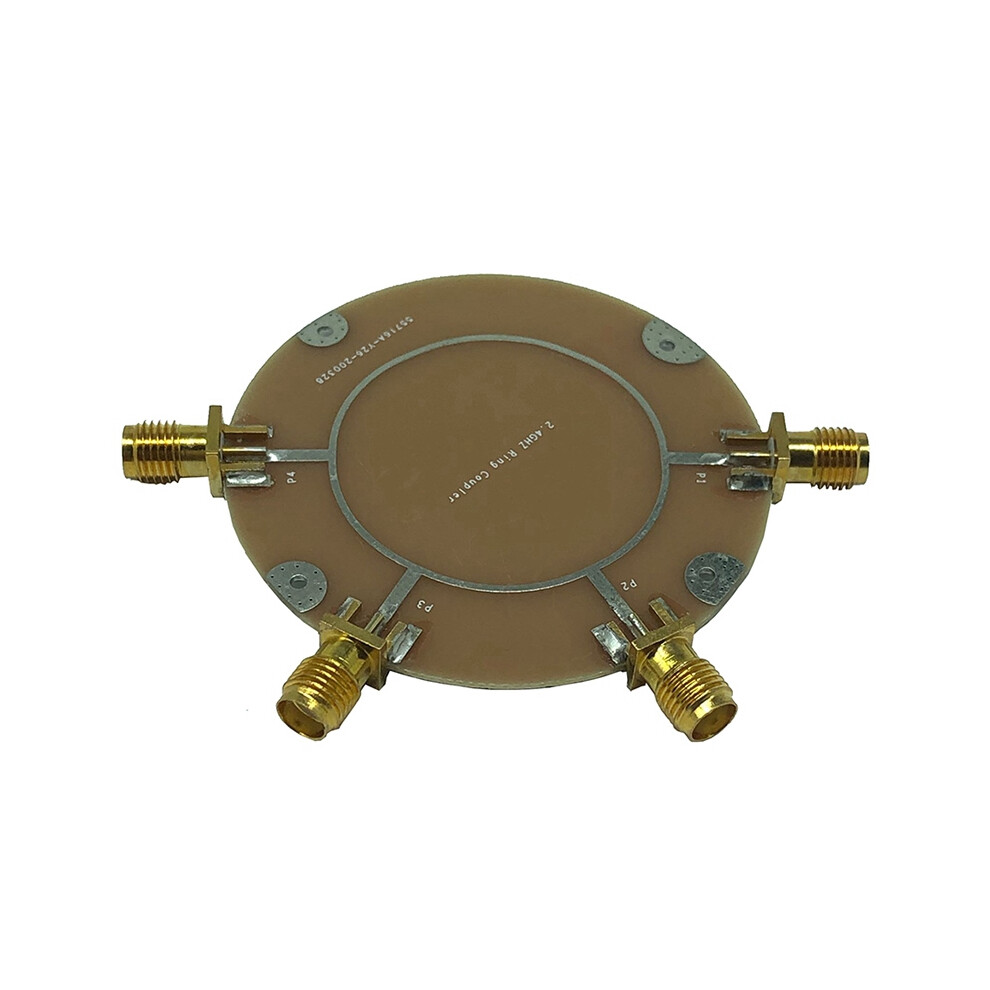

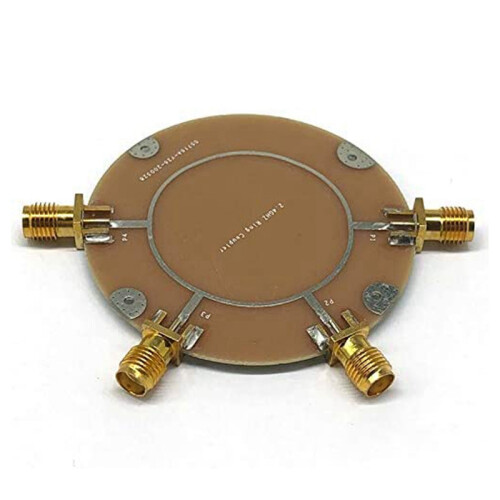

2.4GHZ Ring Coupler 3Db Electric Bridge Directional Hybrid Description

This ring coupler is also called a hybrid ring, which is a kind of power divider.
It can also be regarded as a directional coupler with 3DB coupling. Generally, when measuring the main signal, take the 3DB signal as a test Use, because there is a certain degree of isolation between the two channels, so the measurement not have much impact on the main signal product
Parameters: 1. Frequency range 2.3GHZ~2.5GHZ; 2. S21 is -3.8dB; 3. S11 is less than -15dB; 4. S22 is less than -15dB; 5. Test results

Performance parameters:
Product size: 50x50MM without SMA
SMA outer screw inner hole
Product weight: 12 grams
Material:PCB
colour:brown

Package Contents:
1 x Ring Coupler

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
