2.4Ghz Wireless LoRa SX1280PA Transmitter Module Alarm Receiver Communication

2.4Ghz Wireless LoRa SX1280PA Transmitter Module Alarm Receiver Communication Description

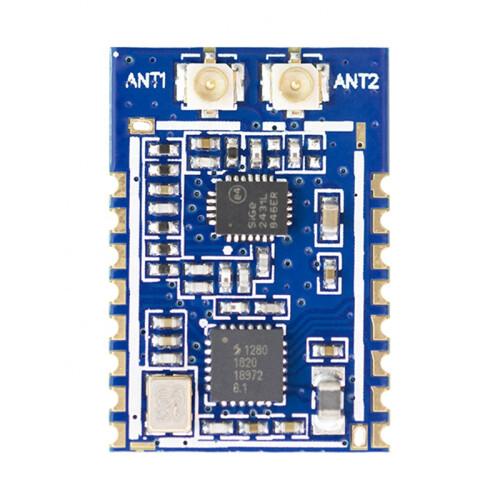

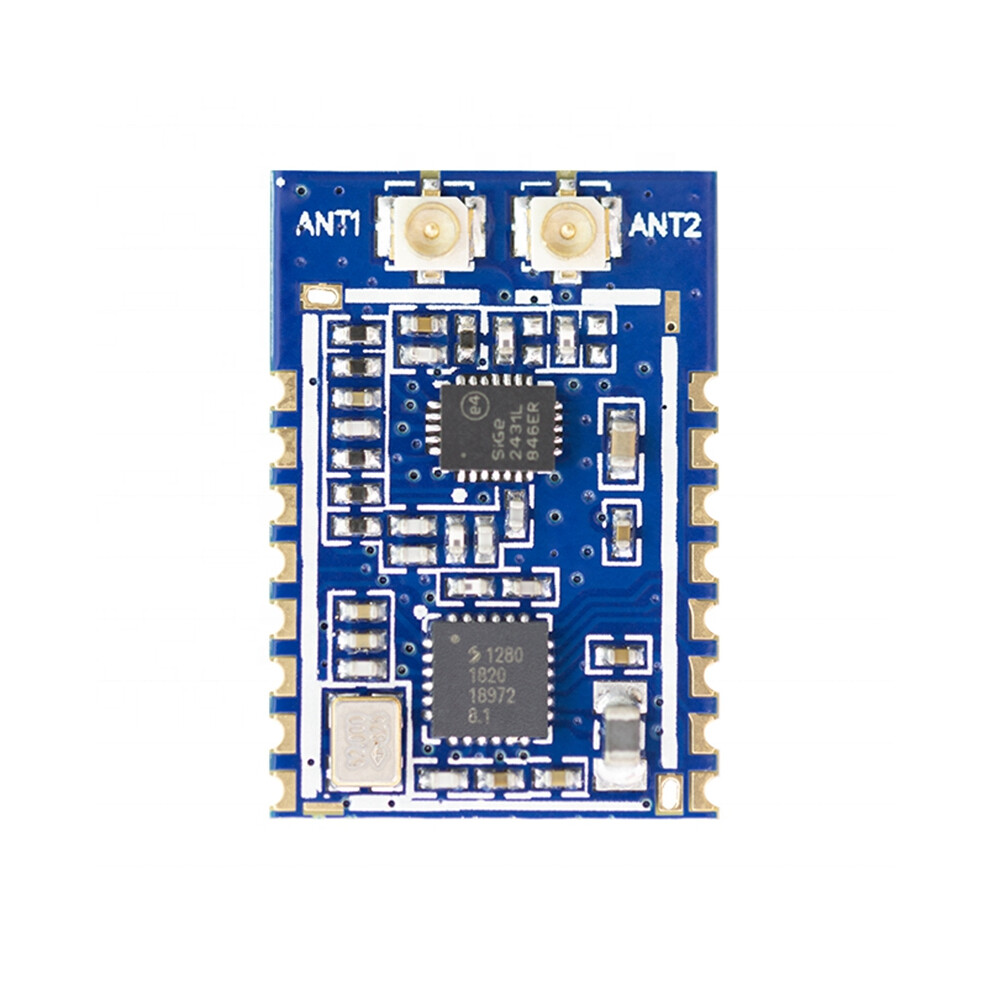

The SX1280PA wireless module is a radio frequency module based on the radiofrequency integrated chip SX1280 and the SKYWORKS radio frequency front end SE2431L. It is a high-performance lot wireless transceiver. Its special LORA debugging method can greatly increase thecommunication distance and can be widely used in occasions.
of short-distance lowireless communication. It has the characteristics of smalllow power consumption, longtransmission distance, strong anti-interference ability, etc. The module is not equipped with a micro-control chip, which is mainly used for customer secondary development.
SX1280PATR24 high-performance IOT wireless transceiverSX1280PA wireless module is a radio frequency module based on radio frequencyntegrated chip SX1280 and ORKS radio frequency front end SE2431LGs.
It is a high-performance lot wireless transceiver. Its special LORA debugging methodin greatly increase the communication distance. It can be widely used in variousoccasions in of short-distance o wireless communication.
It has the characteristics of small size, low power consumption, long transmissiondistance, and strong anti-interference ability. The module is not equipped with a microcontrol chip and is mainly used for secondary development of customers.
Working voltage: 2.0~3.7V
Working frequency band: 2.4~2.5GHz
Transmit power: 22dBm
Ultra-high receiving sensitivity: -134dBm
Ultra-long effective communication distance: 2~4Km (visual distance)
Adopt LoRa modulation method, compatible with and support FLRC, FSK, GFSK traditional modulation method at the same time
Built-in ranging engine, support TOF (Time-of-flight) function
Compatible with BLE physical layer
SPⅠ communication interface, can be directly connected to single-chip microcomputers, software programming is very convenient
Support dual antenna switching
Colour:Blue
Material:PCB
Size:1.58x2.3x0.5cm
Package Contents:
1 * SX1280PA
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
