2.4in 32Bit Laser Engraver Mainboard Control Board with Touch Screen

2.4in 32Bit Laser Engraver Mainboard Control Board with Touch Screen Description

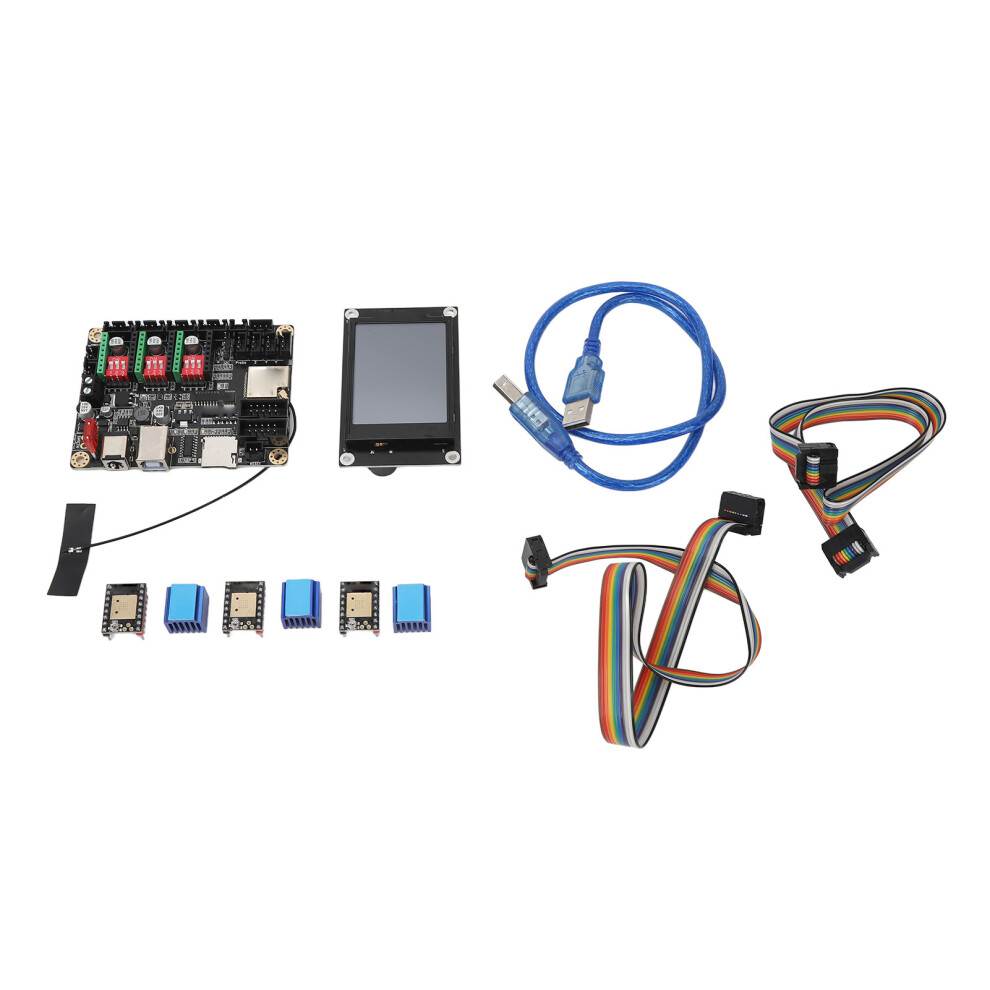

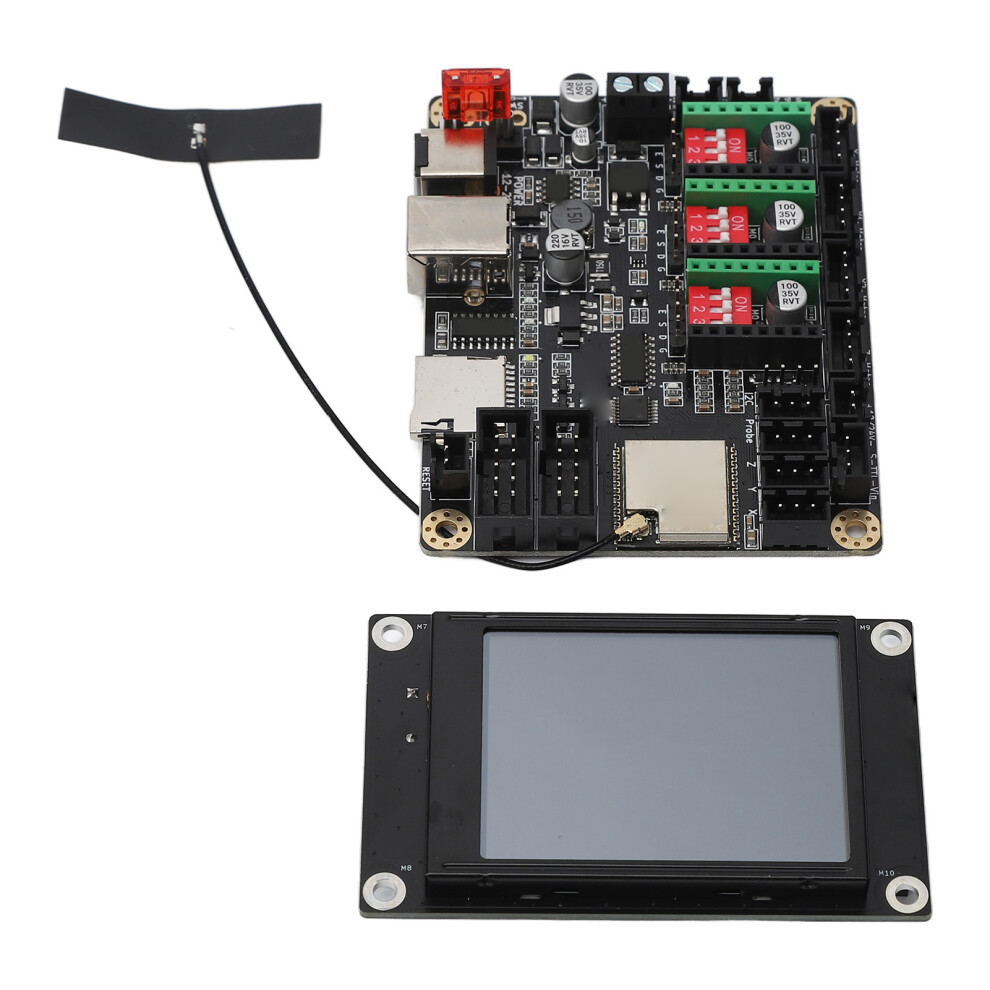

2.4in Touch Screen 32 Bit Laser Engraver Mainboard Control Board with Heat Sink 3D Printer Motherboard 12‑24VDC
Item Type: 3D Printer Motherboard Kit
Motherboard Parameter
Voltage: 12-24VDC (<10A)
MCU: For ESP32 WROOM 32U (32 Bit)
MCU Frequency: 240MHz
Flash Memory: 8192KBytes
RAM: 520KBytes
Laser Speed: < 8000mm/Min
Offline Display: For MKS TS24 R, TS35 R
Firmware: GRBL
Serial Port Driver: USB
Axes WIFI Onboard: 4(X, Y1, Y2, Z)
Website: Support
APP: Support
SD Card: Supported
MKS Laser Tools: Supported
Available Machine: CNC Laser Engraving Machine
Stepping Drive: A4988 DRV8825, TMC2208/2209/2225 (For Nema17 Motor)
Additional Driver: TB6600/TMC2160(For Nema23 Motors)
Laser: Below 20W (>20W, External Power Supply)
Compatible Software: For LaserGrbl, for Xloader, for GrblController, for Benbox, for MDraw, for LightBurn
Motherboard Introduction: Motherboard Is A Desktop Engraving Machine Developed For The Off Line Engraving Master Board. Hardware Equipped With 32 Bit High Speed Module, Integrated WIFI Function, Directly Drive 2.4/3.5 Inch Touch Color Screen; It Can Realize Fast Engraving, Web Page Control, Mobile APP Control And Other Functions. The Mounting Holes And Board Sizes Are Compatible And Can Also Be Used With PC Software.
Display Parameter
Approx. 80x50mm/3x2in
Color Touch Screen: 2.4 Inch Touch Screen
Microprocessor: 32 Bit STM32 Processor
Update Method: Storage File Update
Support Storage System: Storage Card
Supported File Format: For Gcode
Expandable Module: WIFI Module, Power Off Module, Broken Material Detection Switch, External Card Slot.
Driver Parameter
Maximum Output Current: 2.5A
Default Current: 1.25A
Microstep: Up To 1/256
Configuration: STEP Or DIR Or UART
Load Drive Voltage Range: 5.5-28V
IC Logic Working Voltage: 3.3V/5V
