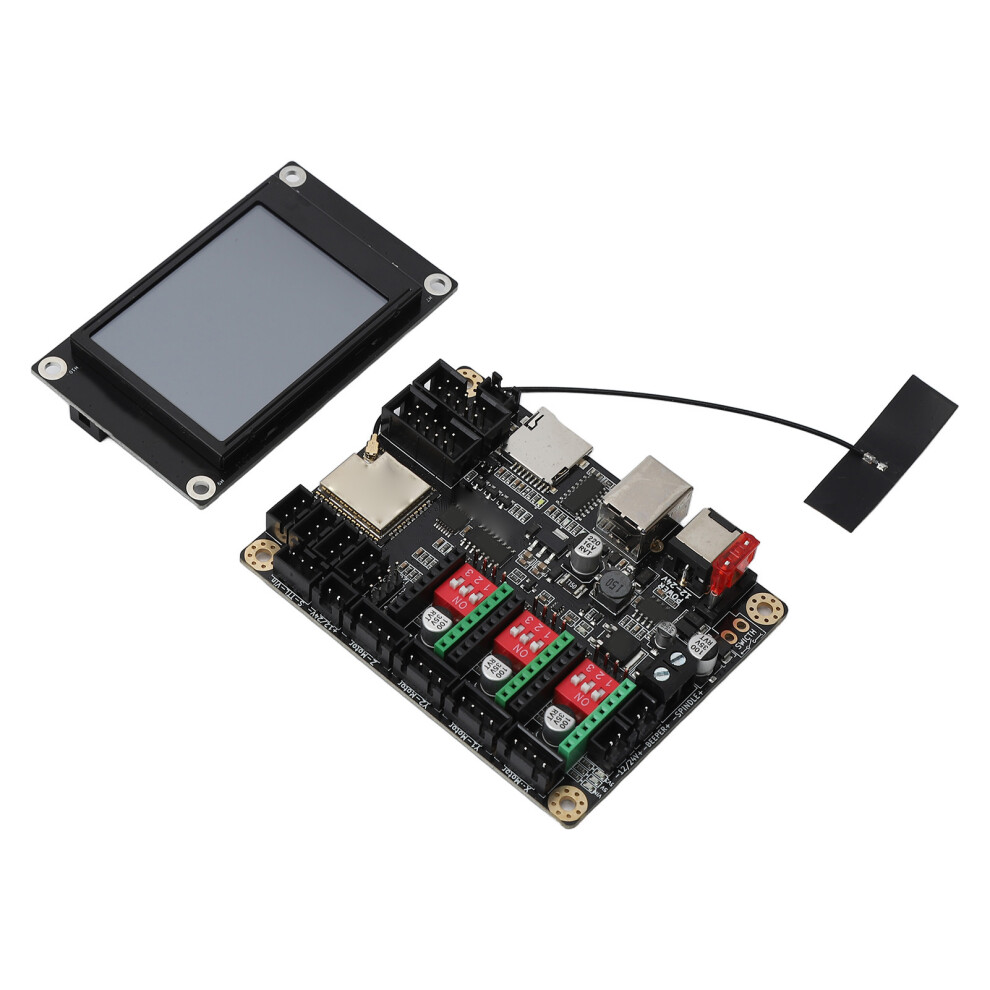

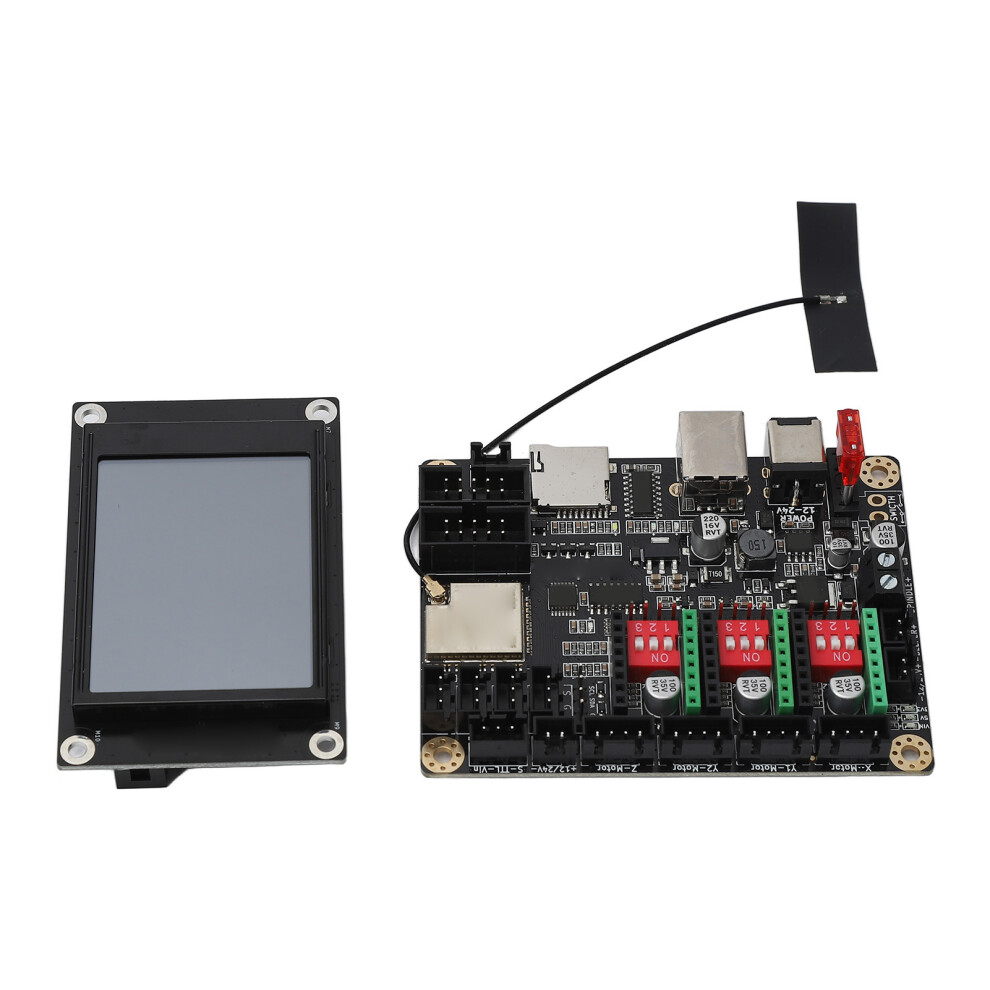

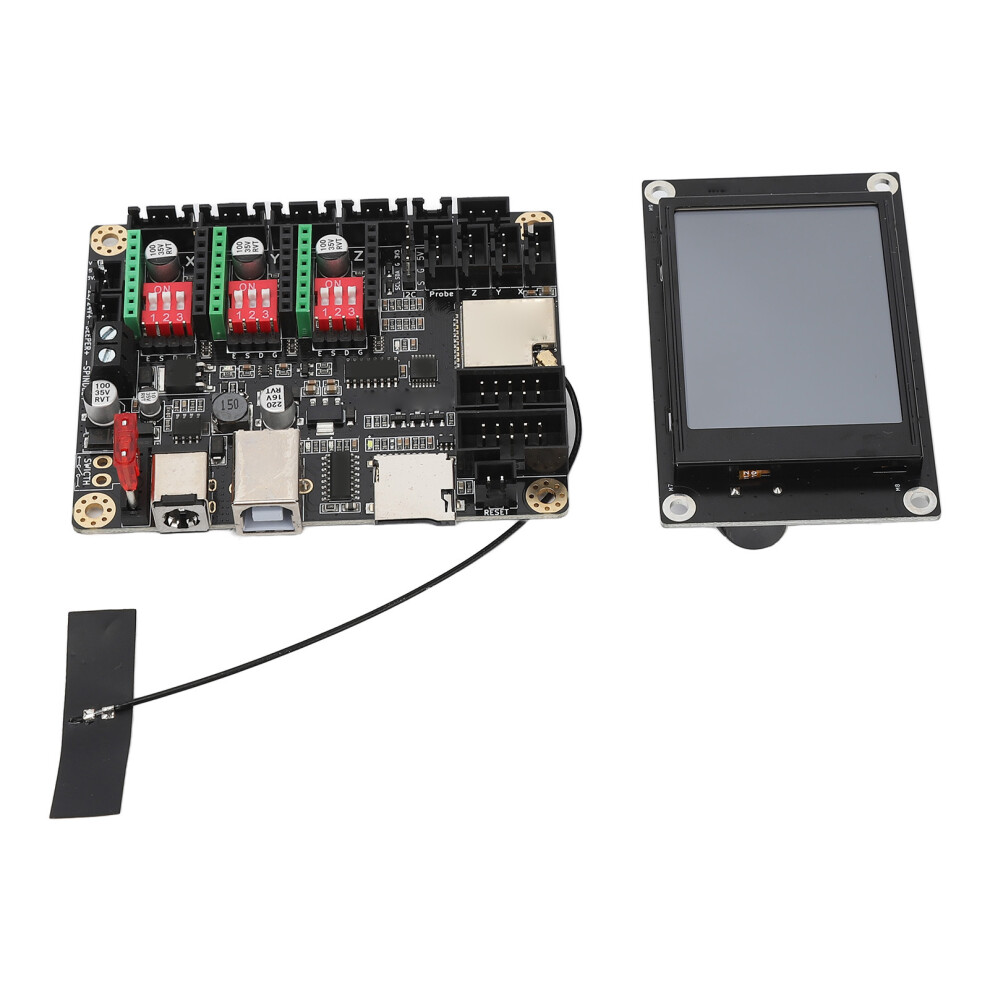

2.4in Color Touch Screen ESP32 Laser Mainboard 8MB
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£48.62
£70.46
31% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 11th - Tue 14th Jul
Sold by: Grarnstore
Returns: 30 days
180-day payment protection
Most Popular in Motherboards
Hot
Description & Details
Summary
- Expandable: The mainboard of laser engraving machine has 32 bit processor, supports storage card storage, expandable WIFI module, power relay module, broken material detection switch, external card slot.
- Module: 3D printer motherboard adopts excellent module, embedded dual core 32 bit high speed MCU, clock up to 240MHz. And integrated WIFI, Bluetooth module, performance is very powerful. In addition, the built in flash memory chip provides effective protection for more application scenarios.

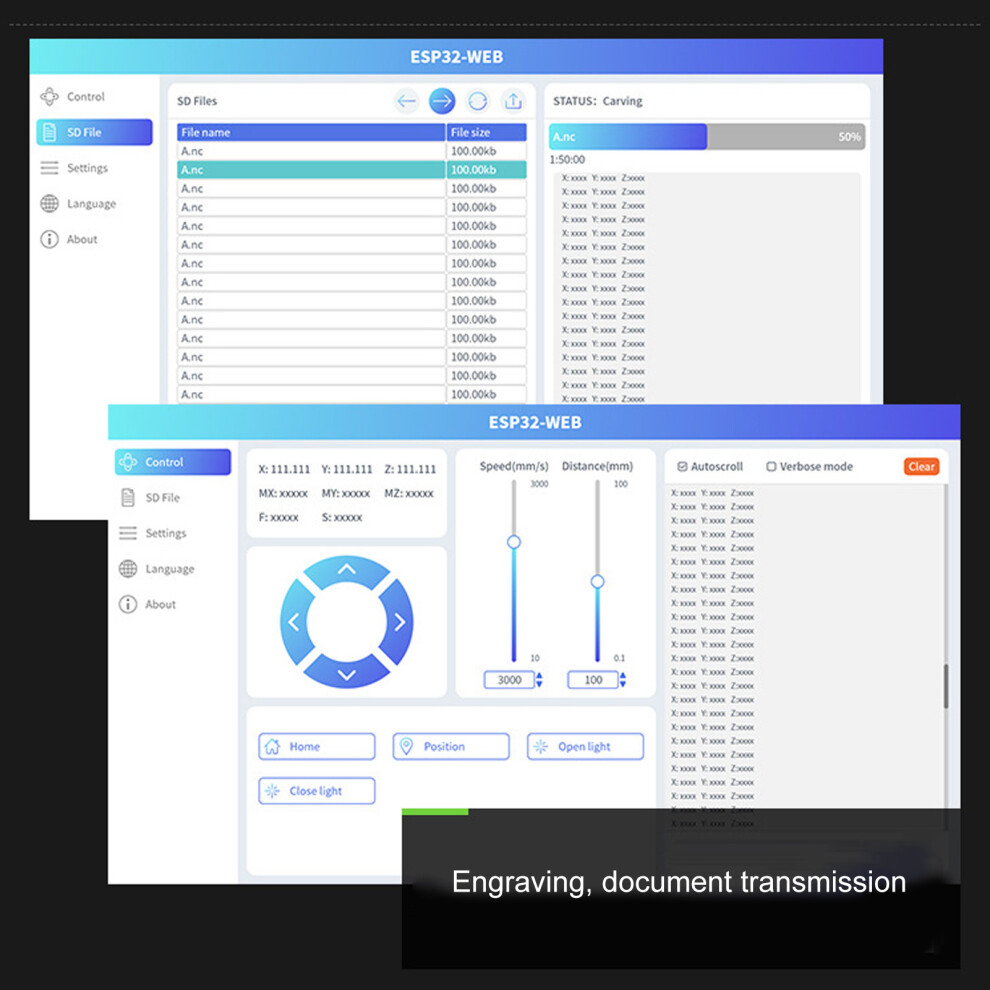

- Multi Control: Laser engraving machine motherboard can achieve fast engraving and web page control, mobile APP control and other functions. The mounting holes and board sizes are compatible and can also be used with PC software.

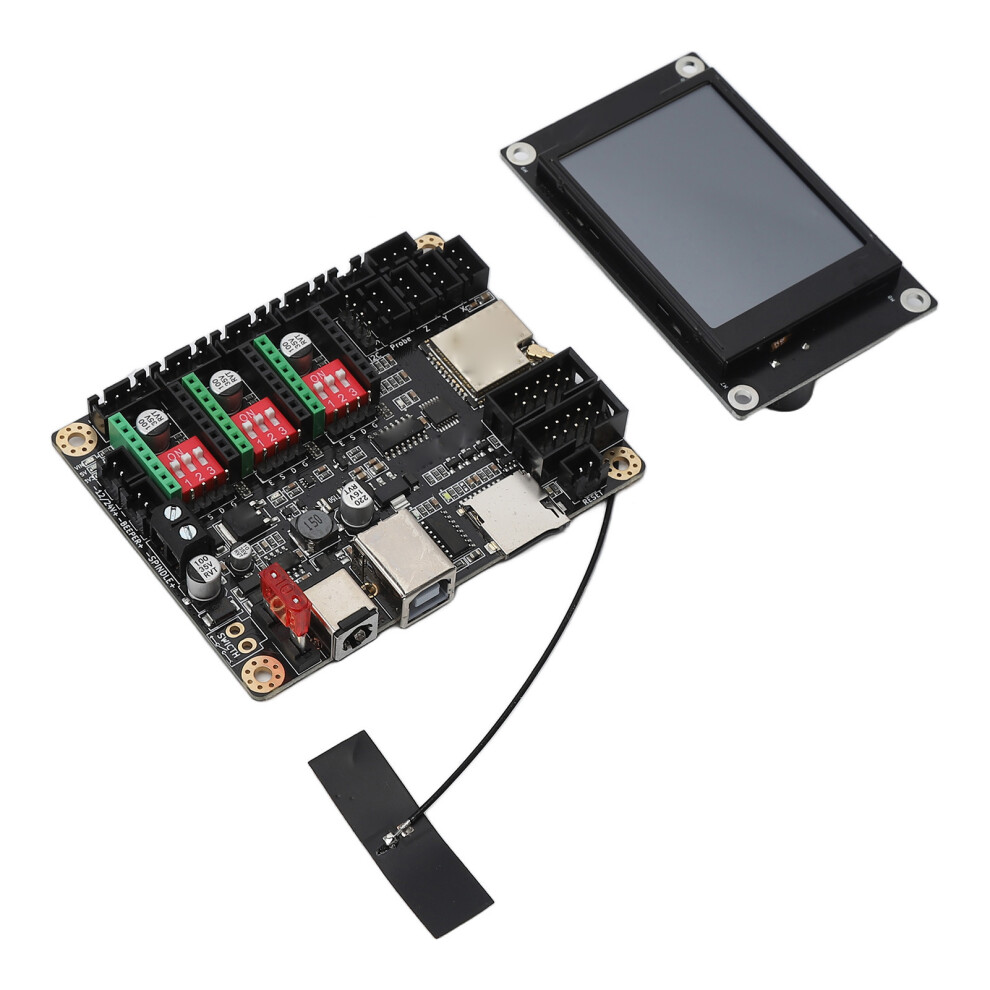

- 2.4inch Touch Screen: 3D printer motherboard uses 2.4 inch touch screen, clear reading, can simplify the user's operation process, through a clear UI interface, intuitive display of the required functions, convenient for users to operate.
- High Accuracy: The touch screen can be highly compatible with the machine controller to provide high accuracy printing operations and print, stable products.
2.4in Color Touch Screen ESP32 Laser Mainboard 8MB Description

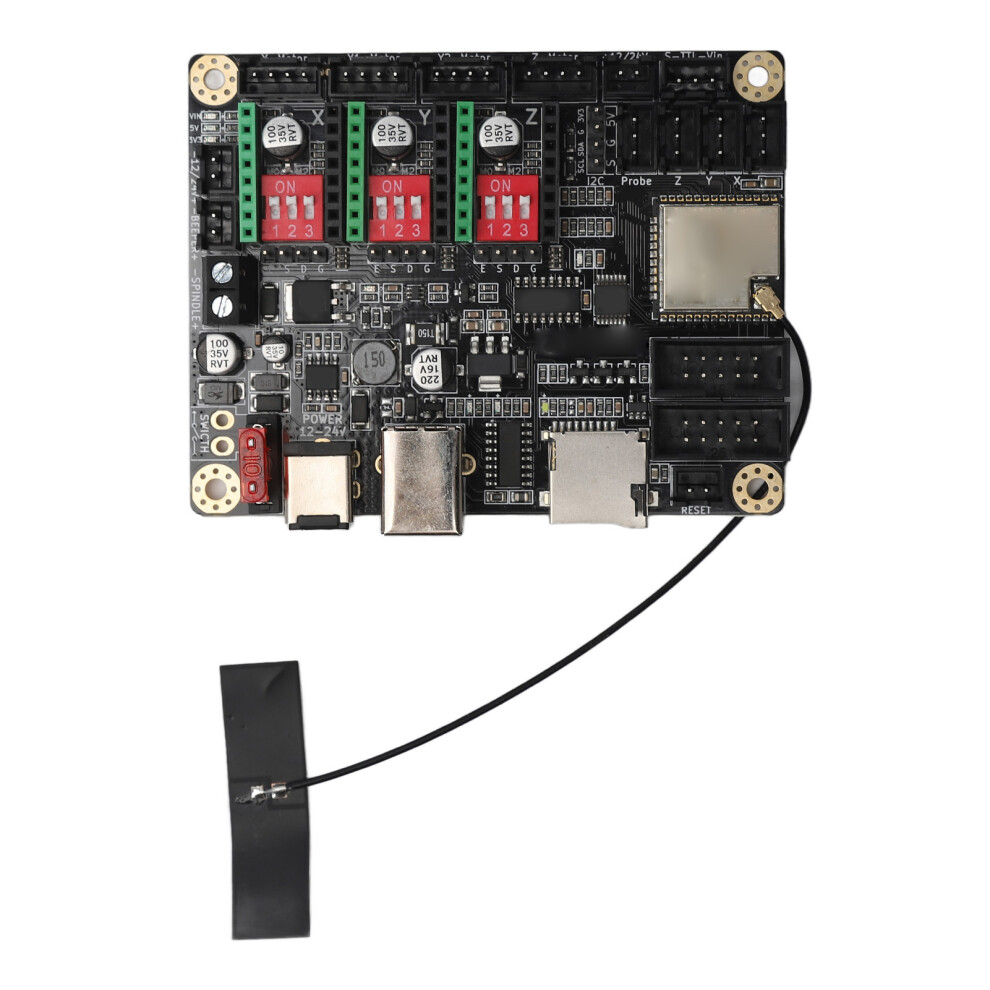

2.4in Touch Screen 32 Bit Laser Engraver Mainboard Control Board with Heat Sink 3D Printer Motherboard 12‑24VDC

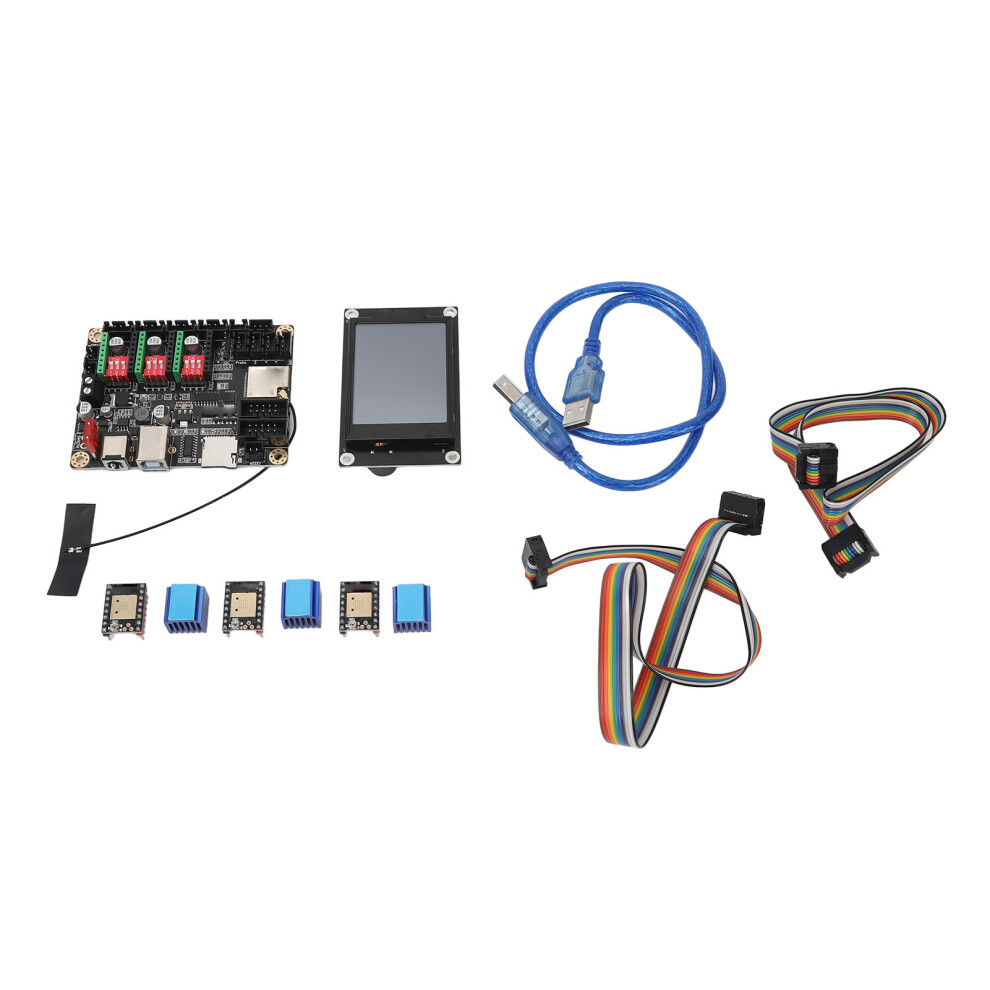

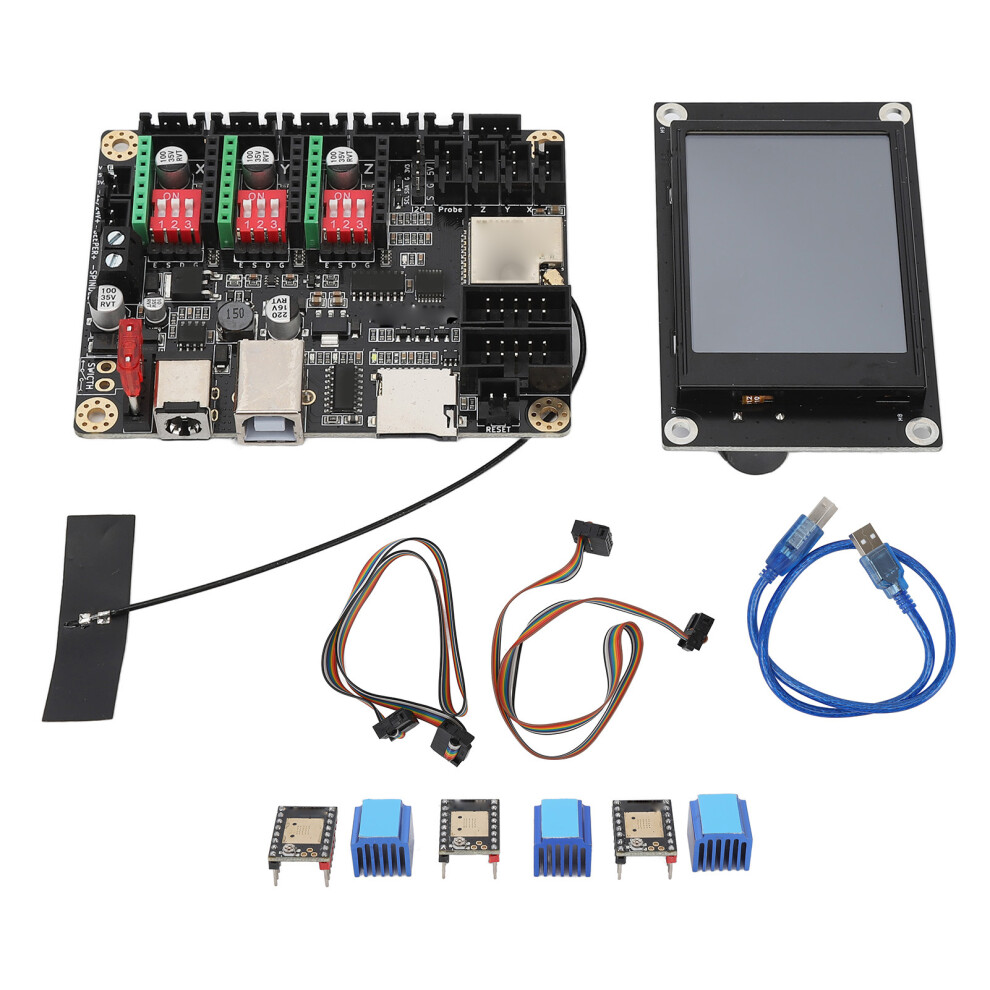

Item Type: 3D Printer Motherboard Kit
Motherboard Parameter
Voltage: 12-24VDC (<10A)
MCU: For ESP32 WROOM 32U (32 Bit)
MCU Frequency: 240MHz
Flash Memory: 8192KBytes
RAM: 520KBytes
Laser Speed: < 8000mm/Min
Offline Display: For MKS TS24 R, TS35 R
Firmware: GRBL

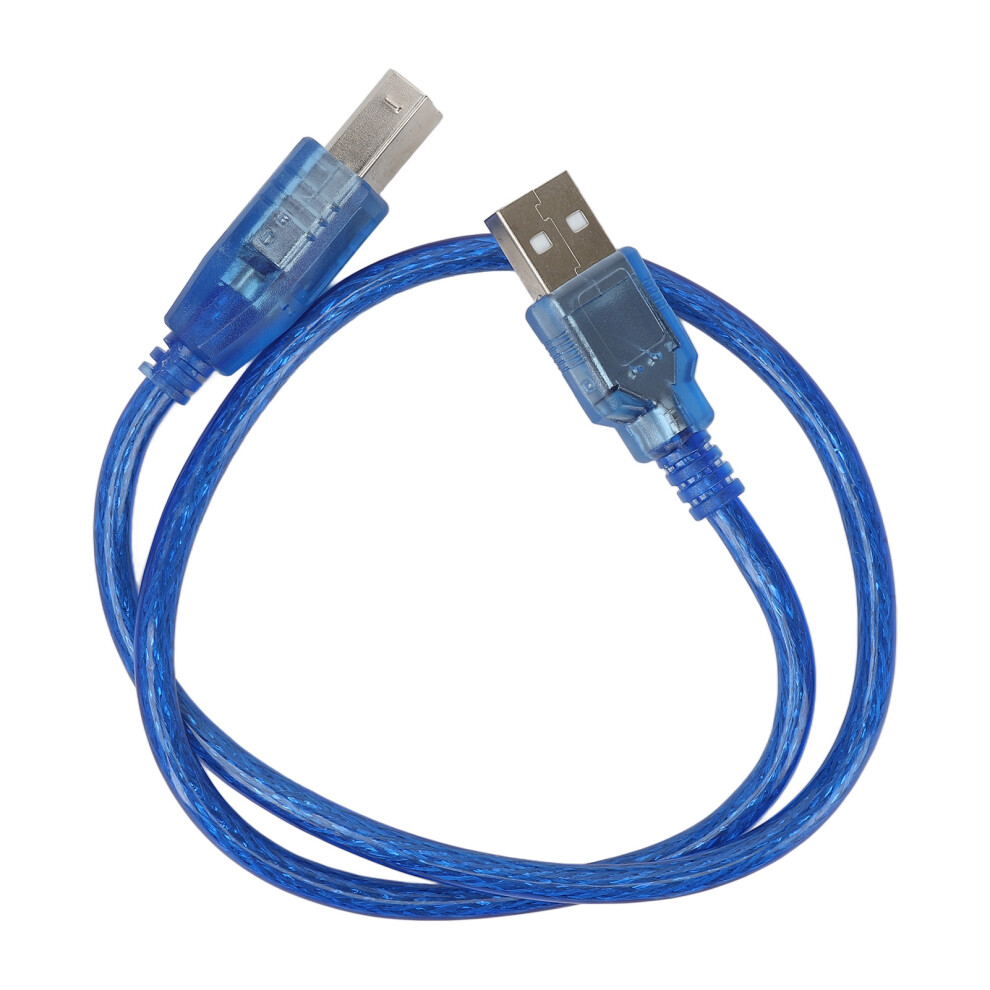

Serial Port Driver: USB
Axes WIFI Onboard: 4(X, Y1, Y2, Z)
Website: Support
APP: Support
SD Card: Supported
MKS Laser Tools: Supported
Available Machine: CNC Laser Engraving Machine
Stepping Drive: A4988 DRV8825, TMC2208/2209/2225 (For Nema17 Motor)
Additional Driver: TB6600/TMC2160(For Nema23 Motors)
Laser: Below 20W (>20W, External Power Supply)
Compatible Software: For LaserGrbl, for Xloader, for GrblController, for Benbox, for MDraw, for LightBurn

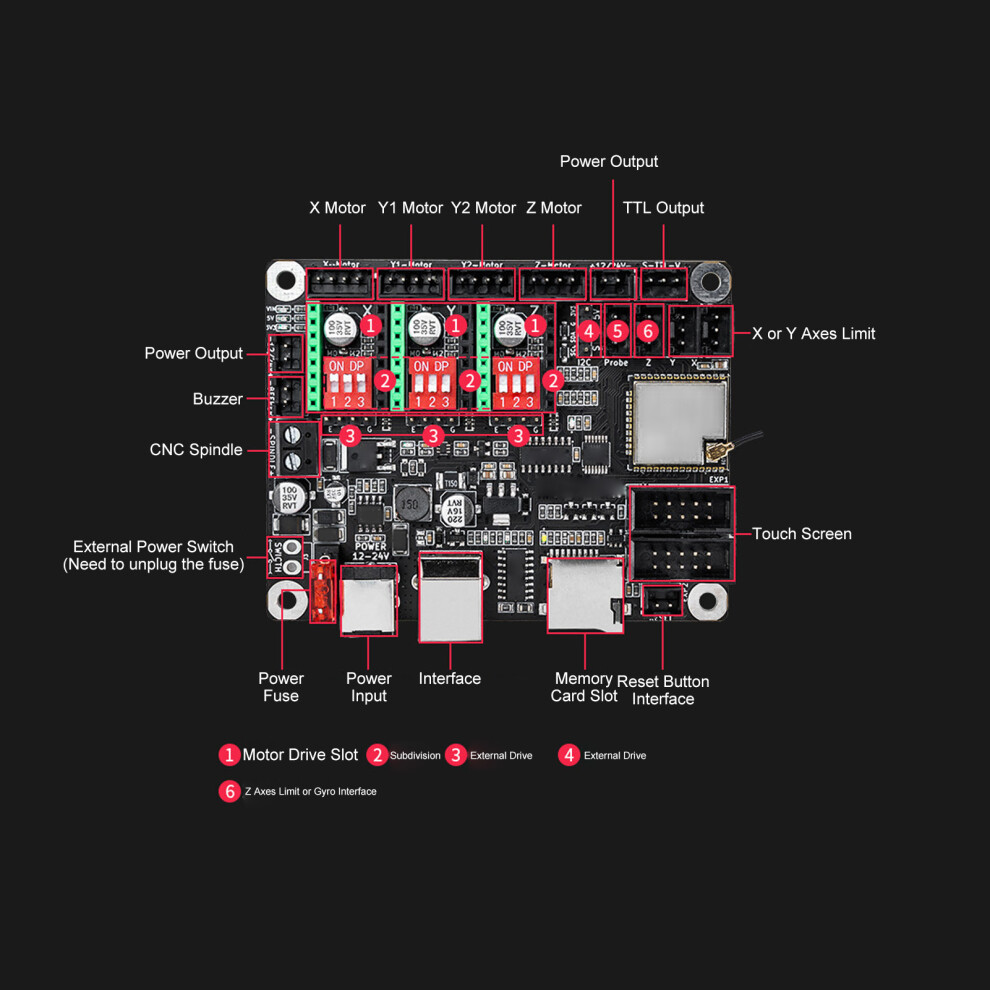

Motherboard Introduction: Motherboard Is A Desktop Engraving Machine Developed For The Off Line Engraving Master Board. Hardware Equipped With 32 Bit High Speed Module, Integrated WIFI Function, Directly Drive 2.4/3.5 Inch Touch Color Screen; It Can Realize Fast Engraving, Web Page Control, Mobile APP Control And Other Functions. The Mounting Holes And Board Sizes Are Compatible And Can Also Be Used With PC Software.

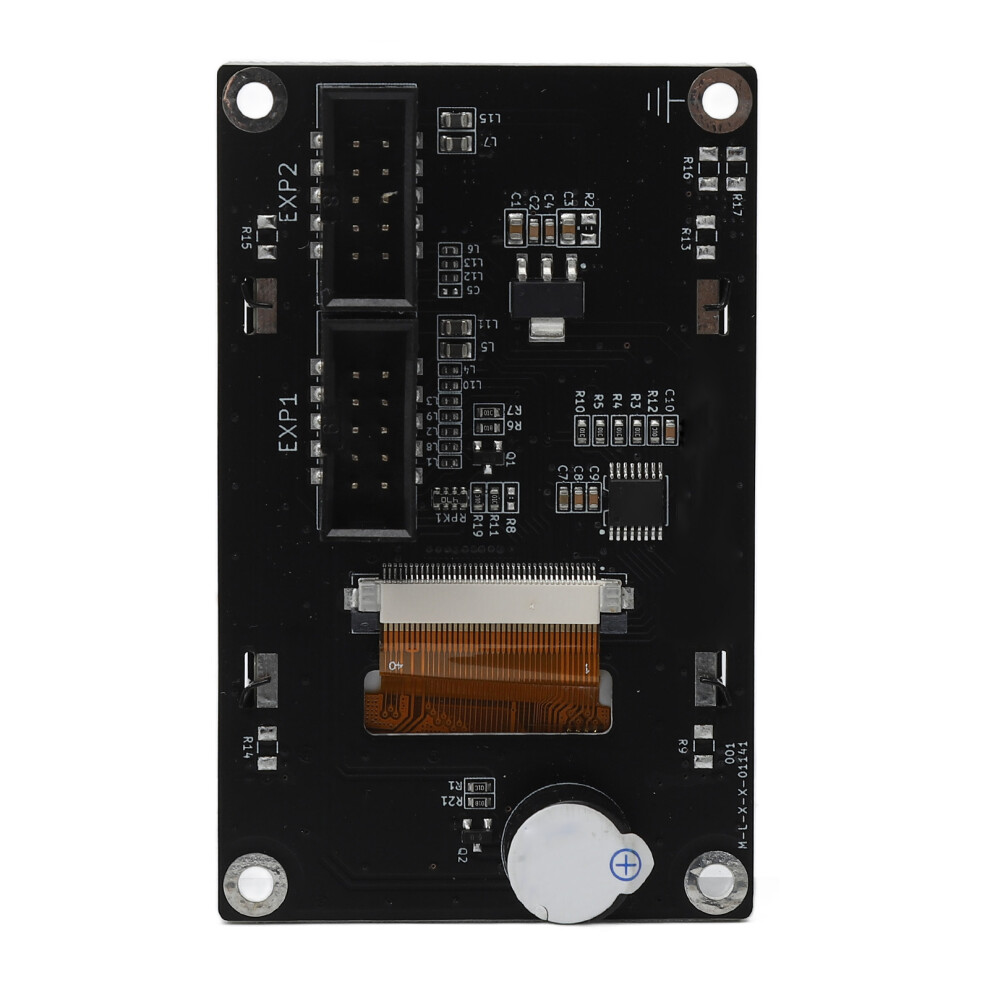

Display Parameter
Approx. 80x50mm/3x2in
Color Touch Screen: 2.4 Inch Touch Screen
Microprocessor: 32 Bit STM32 Processor
Update Method: Storage File Update
Support Storage System: Storage Card
Supported File Format: For Gcode
Expandable Module: WIFI Module, Power Off Module, Broken Material Detection Switch, External Card Slot.

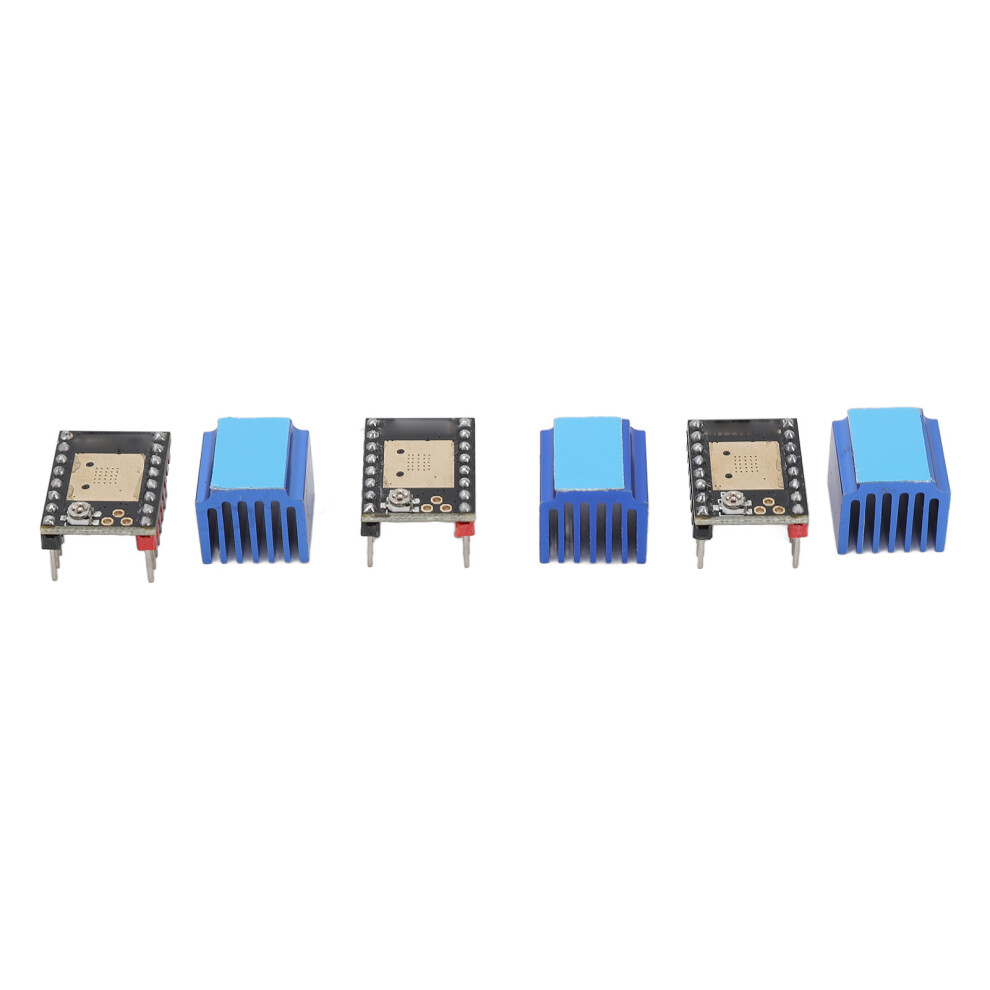

Driver Parameter
Maximum Output Current: 2.5A
Default Current: 1.25A
Microstep: Up To 1/256
Configuration: STEP Or DIR Or UART
Load Drive Voltage Range: 5.5-28V
IC Logic Working Voltage: 3.3V/5V
Details
| OPC | PT5QJMX |
|---|---|
| Codes | 4001393701808 (EAN) |
