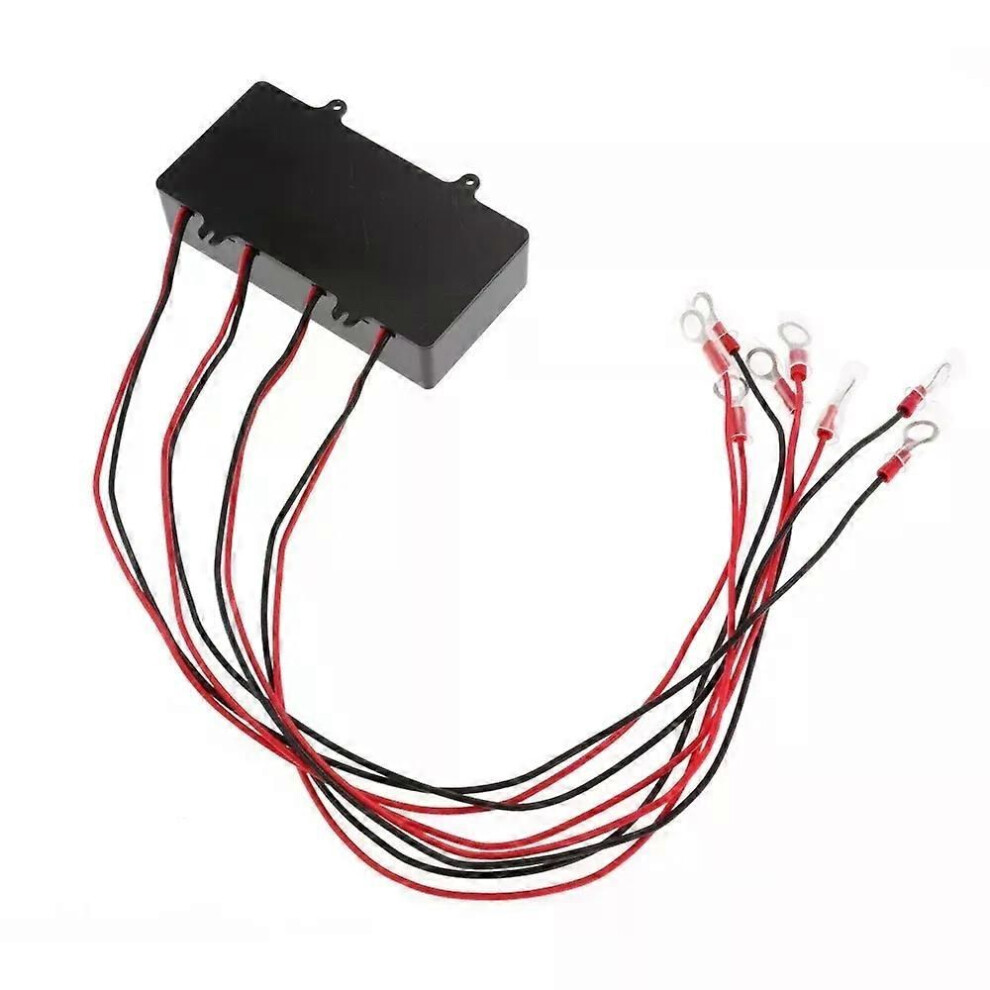

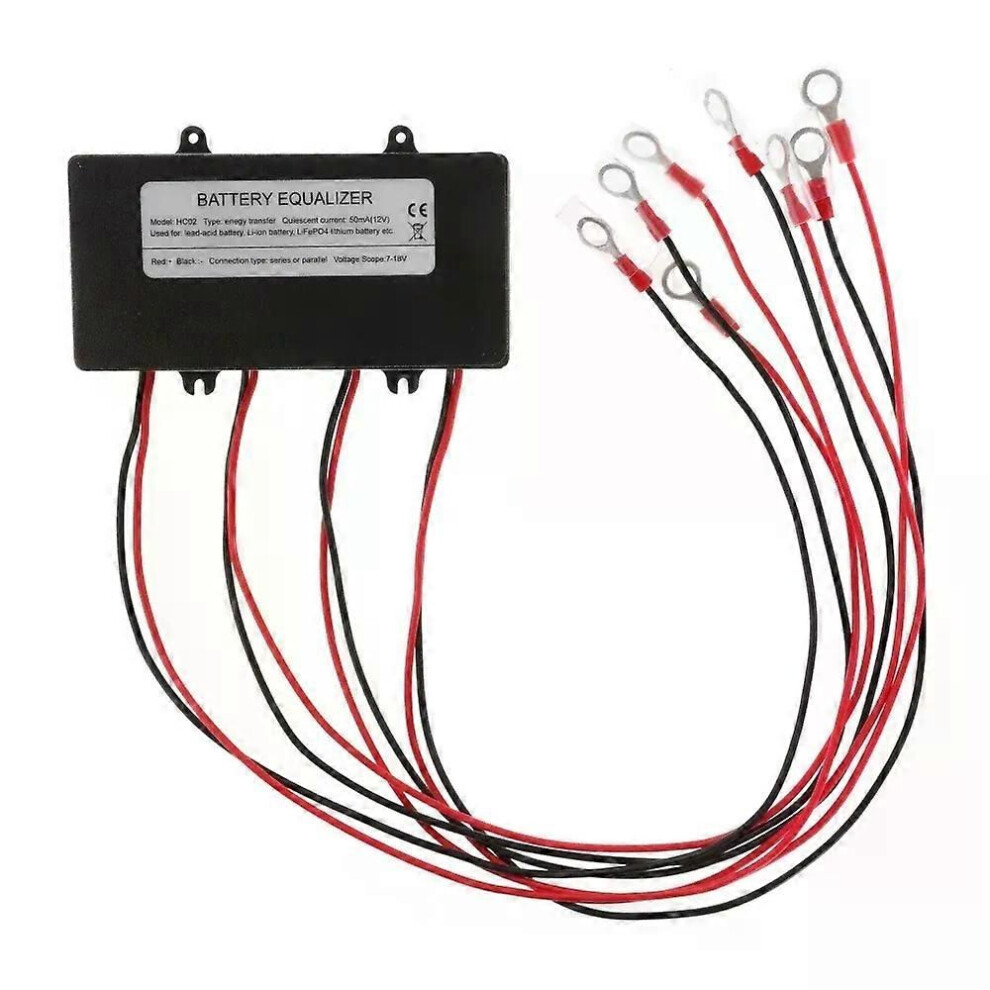

(24V HC01 LED Display) Battery Equalizer HC02 Batteries Regulators 4S Active Connect Solar System Charge Controller Voltage

(24V HC01 LED Display) Battery Equalizer HC02 Batteries Regulators 4S Active Connect Solar System Charge Controller Voltage Description

Features:


* How it works: The battery equalizer is a power transfer mode equalization. When the voltage difference between the batteries connected in series exceeds 10 mV, the battery equalizer starts to work, and the current will flow from the battery with the higher voltage to the battery with the lower voltage, and the maximum compensation current is 10A.


* When the voltage difference between the two batteries is lower than 10mV, the equalizer starts to work


* The equalizer can be used during charging and discharging, and can play a role in balancing the battery voltage.


* Can be used for lead-acid batteries, lithium iron phosphate batteries, nickel-cadmium or nickel-metal hydride batteries.

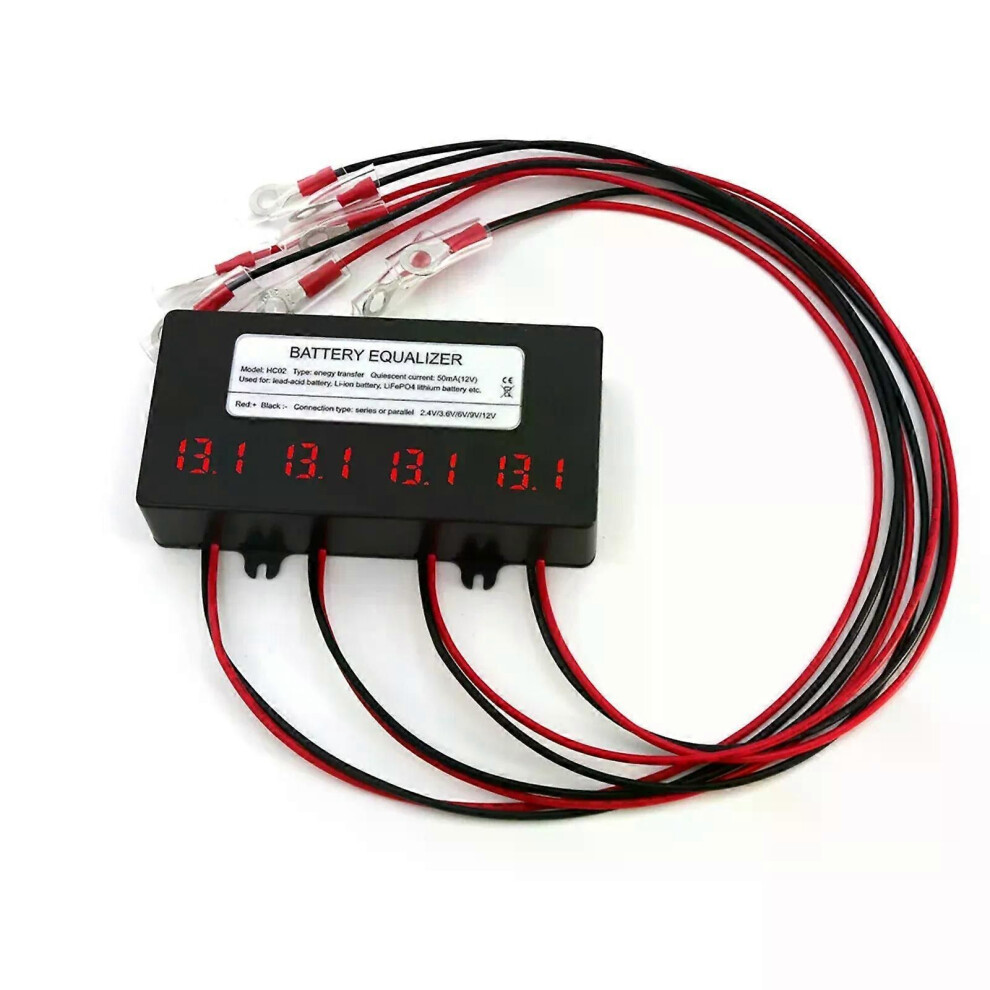

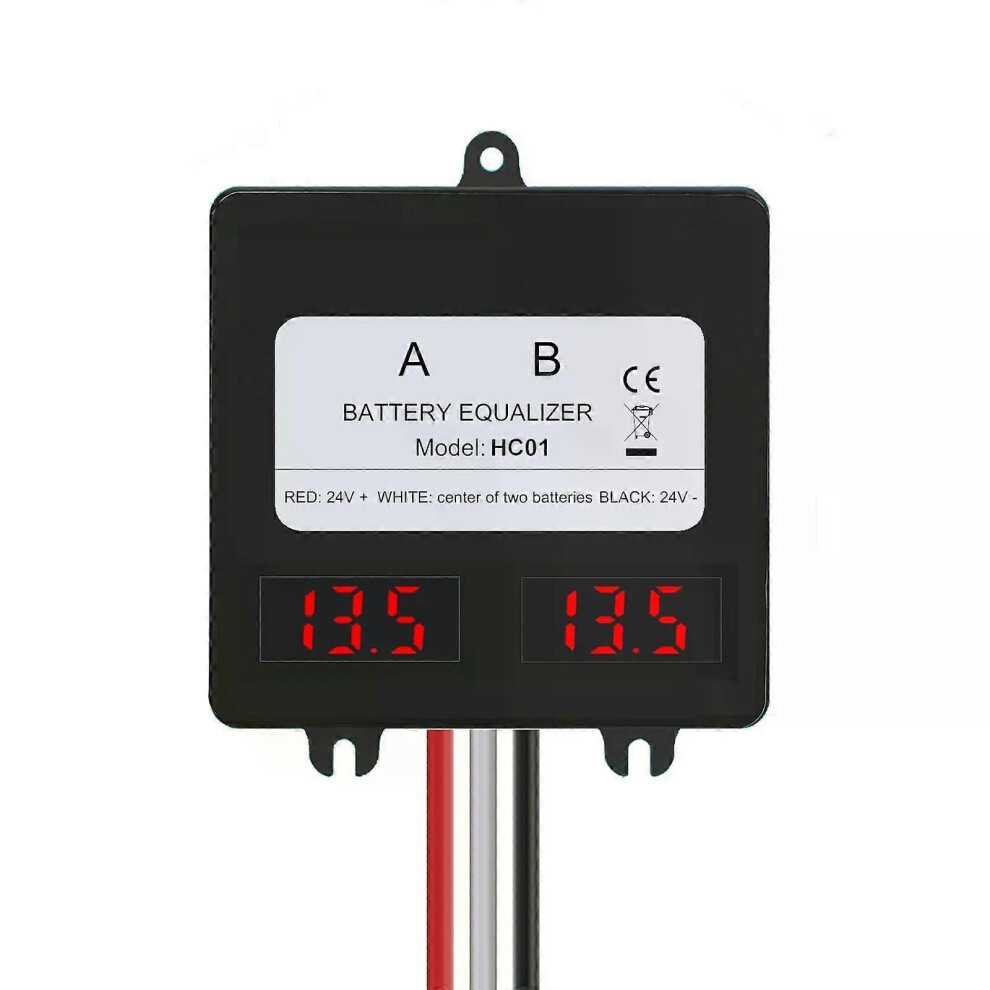

* Model HA01 is with 2 outlets but without LED display;Model HA02 is with 4outlets but without LED display;ModelHC01 is with 2 outlets andLED display;ModelHC02 is with 4 outlets andLED display;





Specification:


Name: Battery Balancer


Material: ABS


Working voltage: 4*0.4/3.6/12V; 2 * 12V


Compensation current: 0-10A


Standby current:
