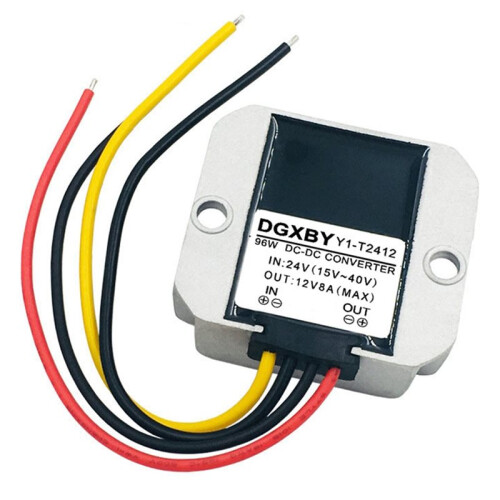

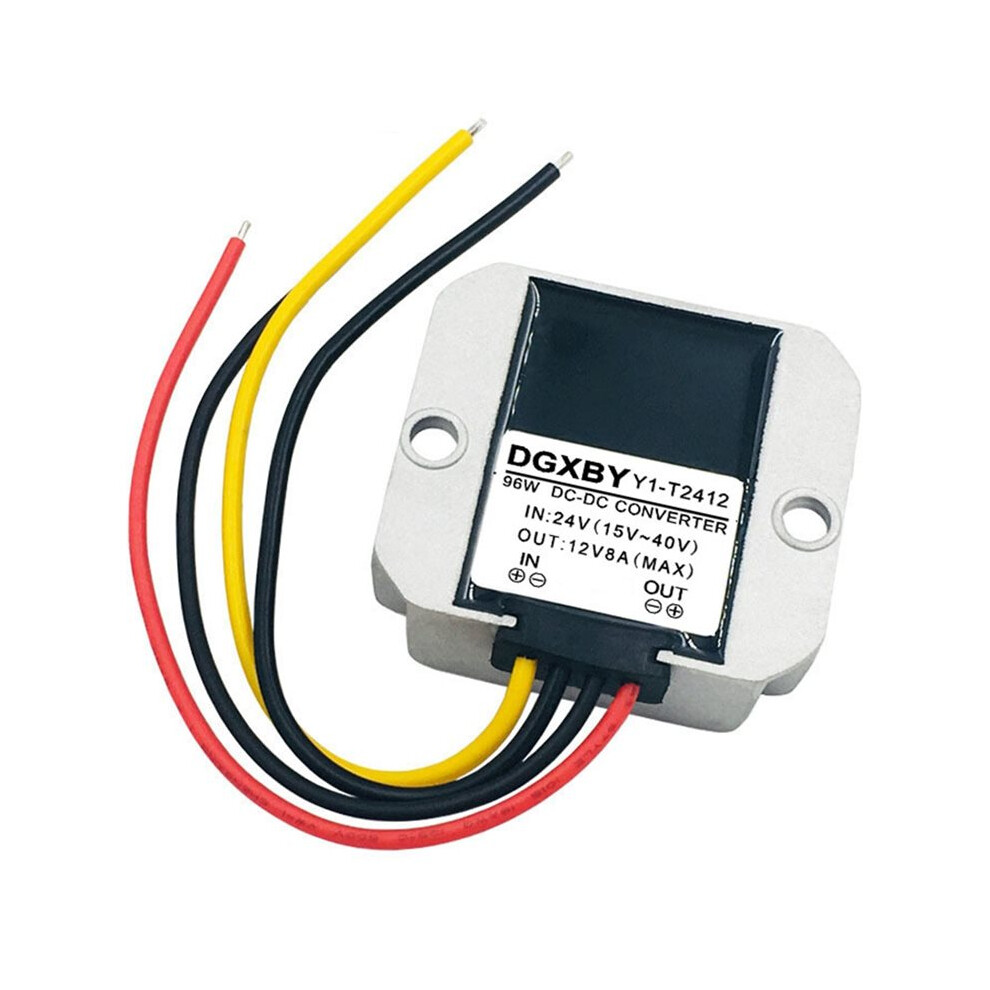

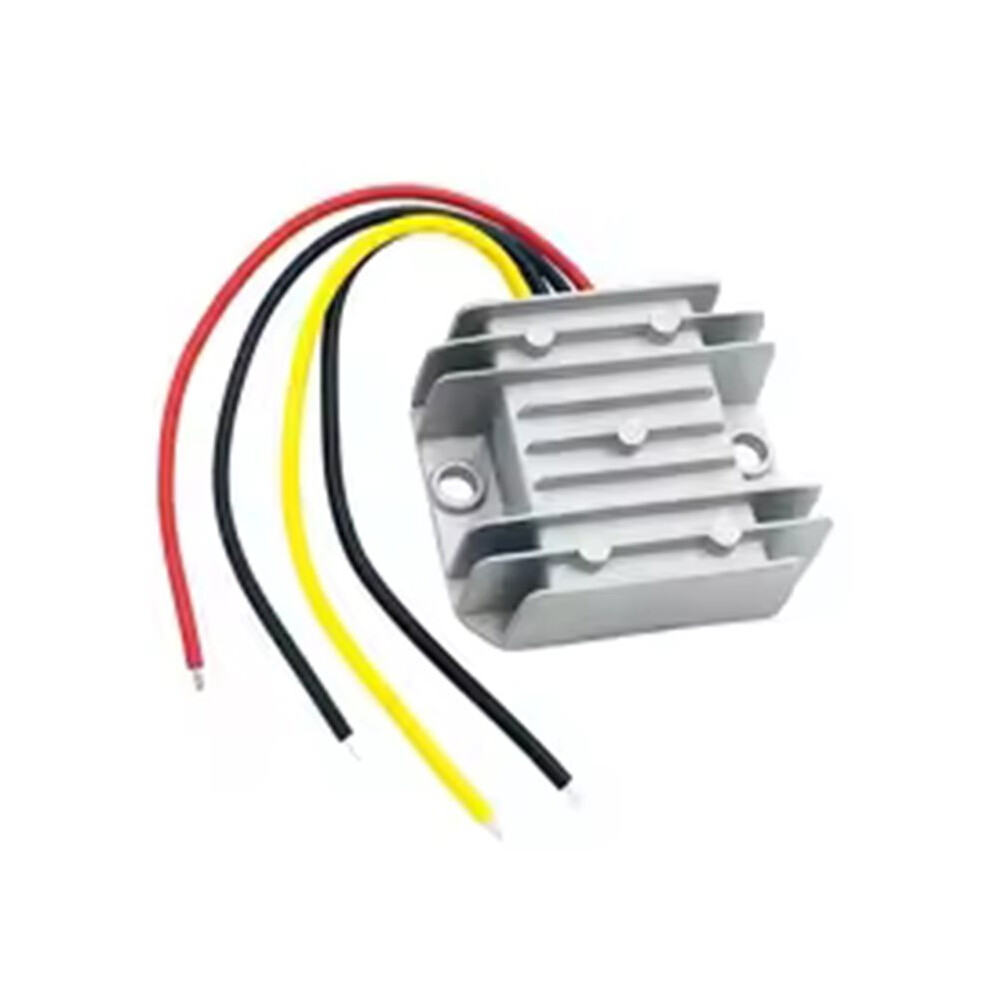

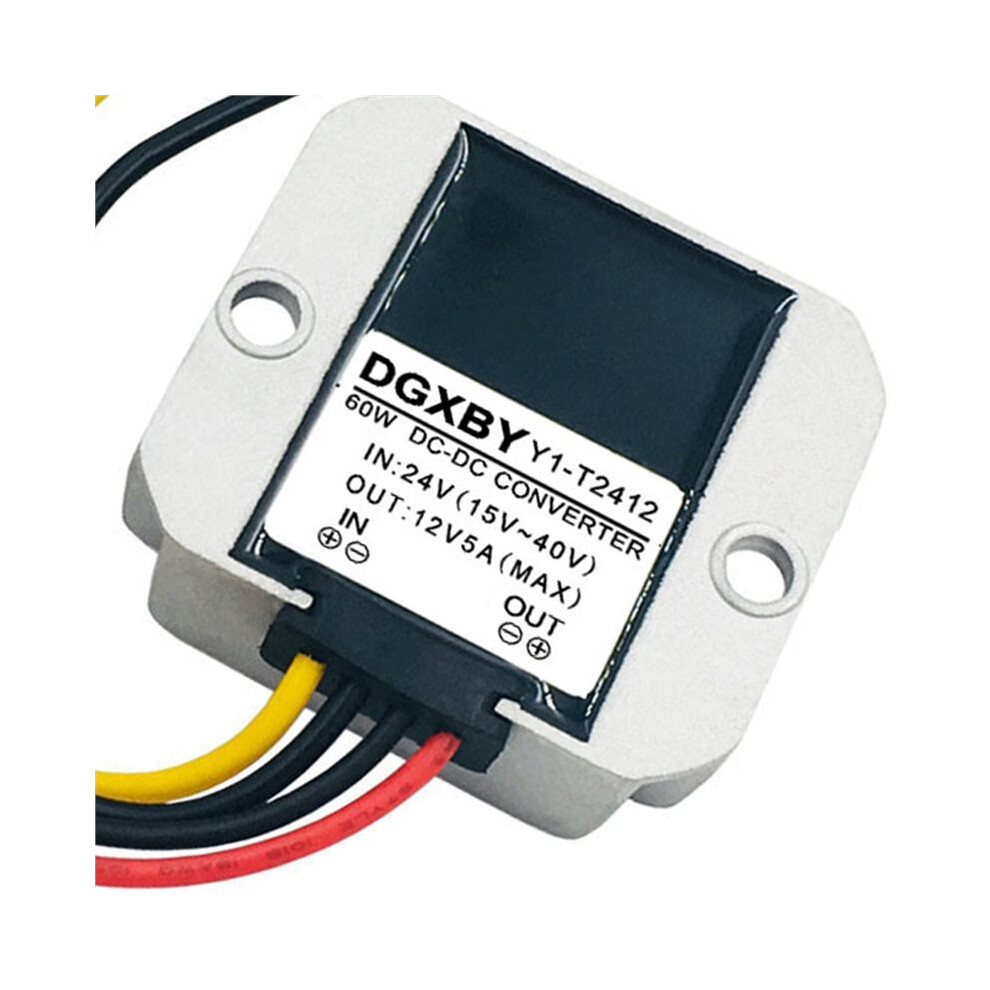

24V to 12V 5A 8A 10A Power Converter Step-Down Power Supply Step Module Automotive Use CE Certification 8A

24V to 12V 5A 8A 10A Power Converter Step-Down Power Supply Step Module Automotive Use CE Certification 8A Description

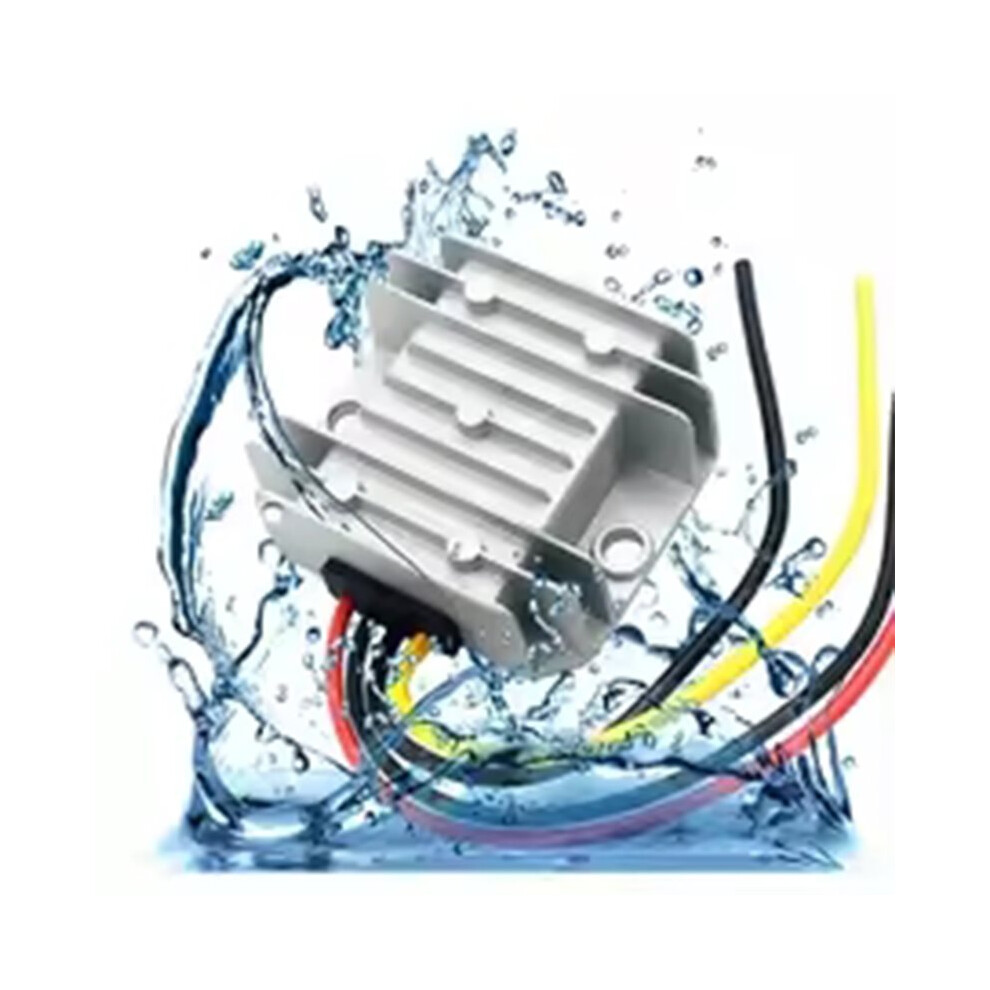

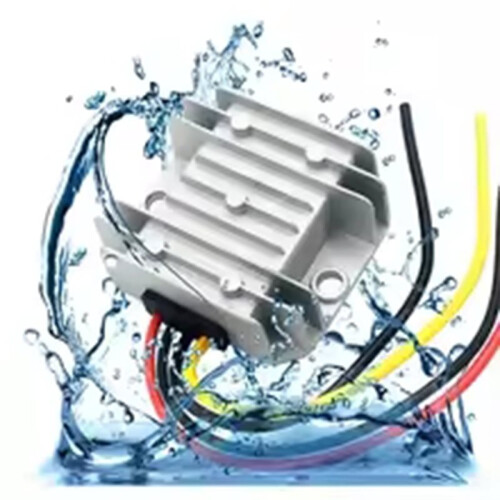

IP68 Waterproof Rating:IP68 waterproof grade ensures reliable performance in harsh environments.
Wide Input Voltage Range:Adaptable to 5A/8A/10A input, this 24v to 12v converter is ideal for various automotive applications.
High Efficiency Power Conversion:Boasting 95% power efficiency, this 24v to 12v step down converter ensures minimal loss.
Robust Protection Features:Equipped with overcurrent, short circuit, and high temperature protection for safe operation.
and Compact Design:At just 388g, this 24v step down to 12v power supply is easy to handle and install.

Specifications
Model: 24V to 12V Series
Module Type: Non-isolated
Input Voltage: 24V (15~40V)
Output Voltage: 12V
Output Current: 5A/8A/10A
Waterproof Rating: IP68
Output Power: 60W/96W/120W
Power Efficiency: 95%
Power Ripple: 200~360mV
Operating Temperature: -40~+80C
Protection Functions: Output overcurrent protection, output short circuit protection, input undervoltage protection, chip high temperature protection
Weight: 388g

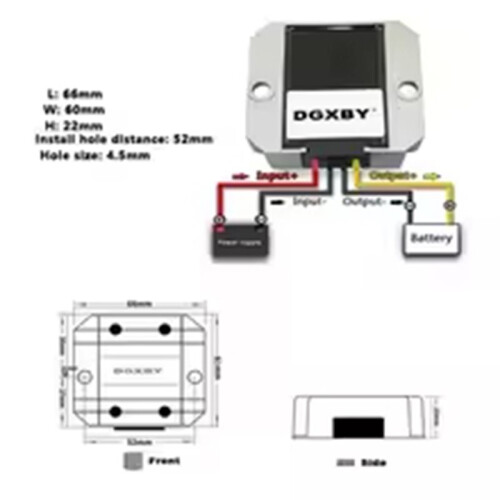

Dimensions: 66*60*22mm
No-load Current: 30~50mA
Cooling Method: Natural heat dissipation
Cable Length: 13~15cm
Wiring Method: Input red wire positive, black wire negative, yellow wire output positive. No reverse connection protection for input; please pay attention to wiring.
Color: As Shown
Material: Aluminum Alloy
Specification: 8A

Package Contents:
1* power converter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
