2500V Pointer Multimeter Voltage Current Resistance Battery Test

2500V Pointer Multimeter Voltage Current Resistance Battery Test Description

1、Pointer display multimeter design, the dial makes reading data more accurate and convenient. 2、The insulating rubber protective sleeves on both sides are designed to provide you with a more comfortable grip, and at the same time, it can effectively avert shocks and falls when using, and prolong the service time of the multimeter. 3、Multiple Measurement: This multimeter supports voltage measurement, Direct current current measurement, triode measurement, resistor measurement, capacitor measurement, battery power and on-off buzzers measurement. 4、The intelligent anti-burning design can effectively avert the multimeter from being burned out due to wrong operation, giving you a safer use experience. 5、Portable Size: The small size of this tool is very convenient for everyday use, you can carry it in your tool bag without taking up too much storage space.
Are you looking for a new multimeter? Then you can try our new pointer multimeter, which has the functions of a conventional multimeter and can meet your daily testing and work needs. If you are interested in this product, just have a try, it will not let you down.
Features:

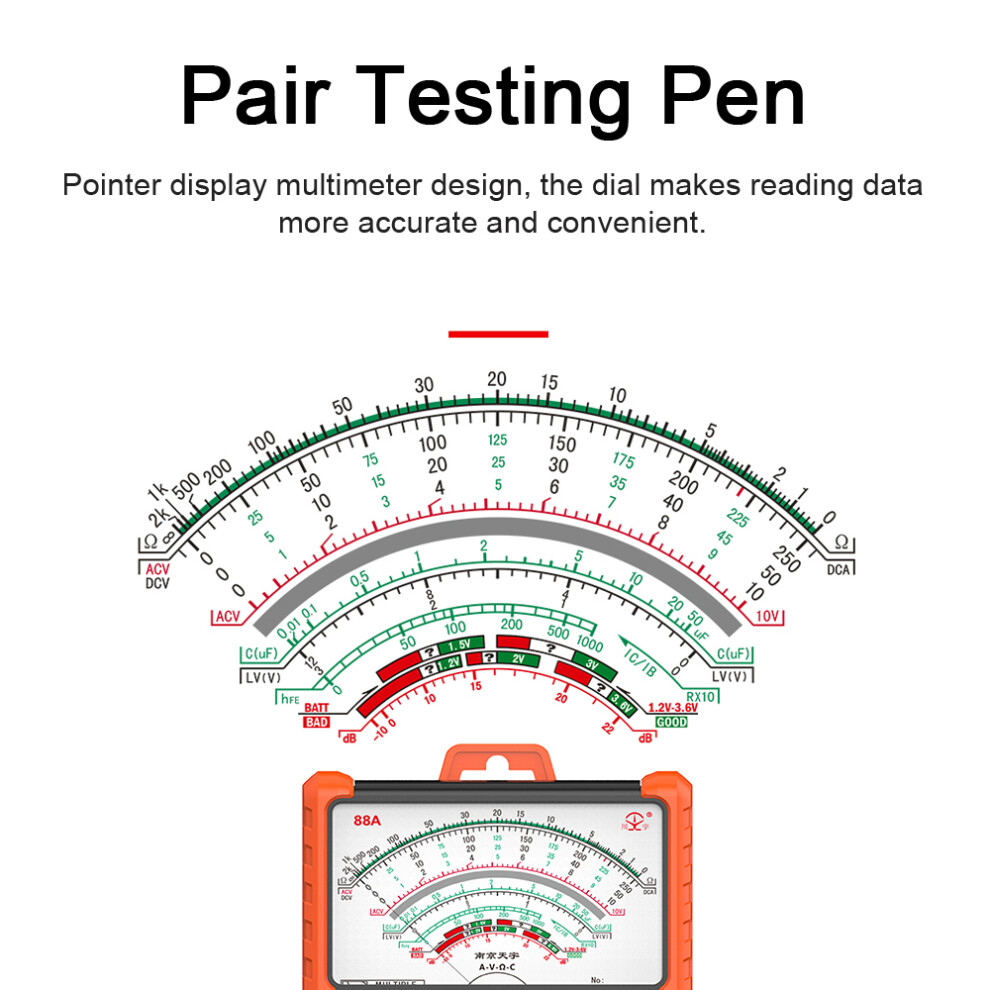

Pointer display multimeter design, the dial makes reading data more accurate and convenient.

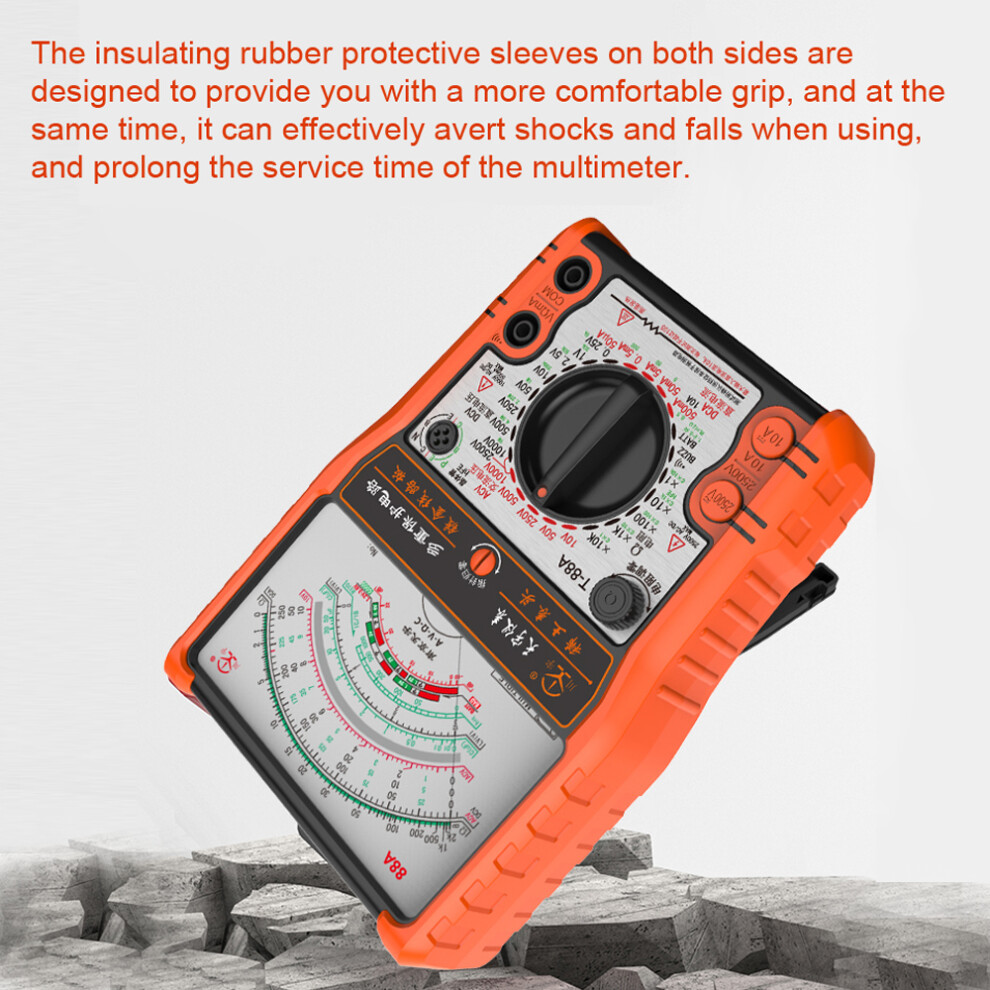

The insulating rubber protective sleeves on both sides are designed to provide you with a more comfortable grip, and at the same time, it can effectively avert shocks and falls when using, and prolong the service time of the multimeter.
Multiple Measurement: This multimeter supports voltage measurement, direct current current measurement, triode measurement, resistor measurement, capacitor measurement, battery power and on-off buzzers measurement.
The intelligent anti-burning design can effectively avert the multimeter from being burned out due to wrong operation, giving you a safer use experience.
Portable Size: The small size of this tool is very convenient for everyday use, you can carry it in your tool bag without taking up too much storage space.

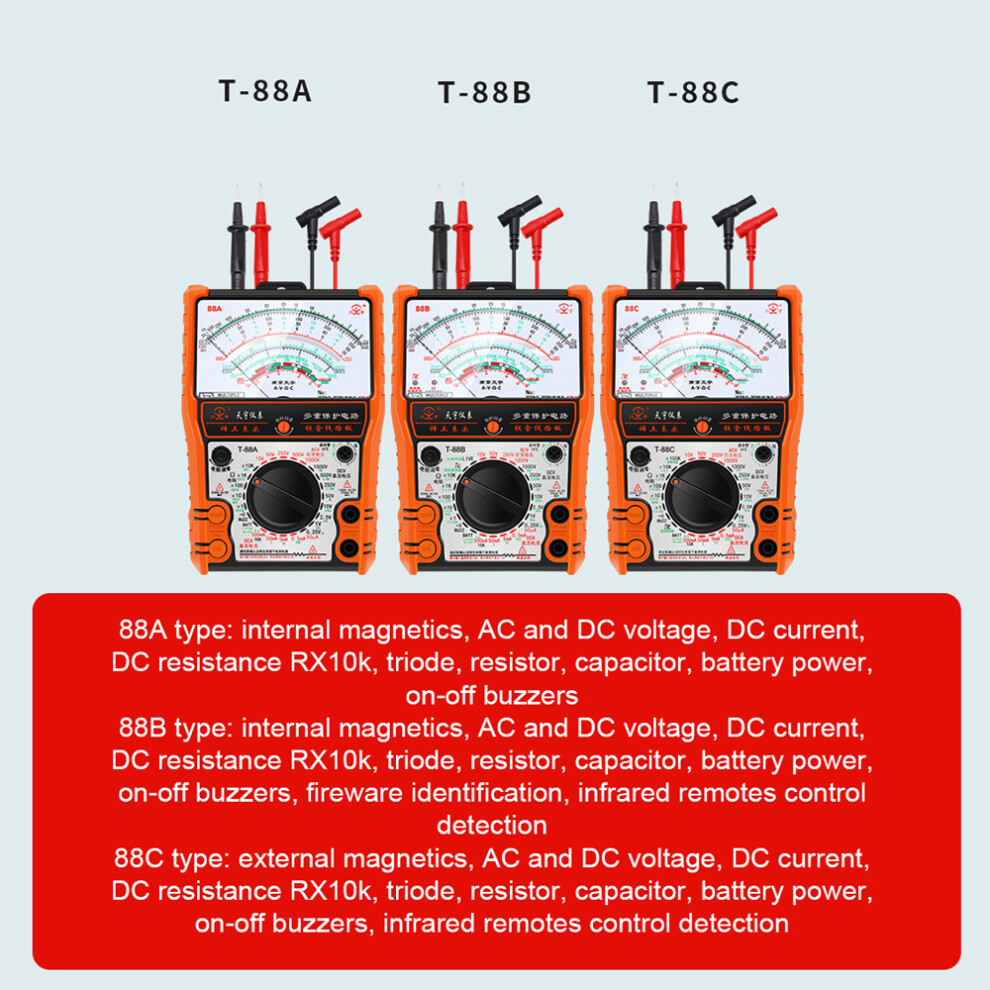

Three versions are available:
88A type: internal magnetics, AC and direct current voltage, direct current current, direct current resistance RX10k, triode, resistor, capacitor, battery power, on-off buzzers
88B type: internal magnetics, AC and direct current voltage, direct current current, direct current resistance RX10k, triode, resistor, capacitor, battery power, on-off buzzers, fireware identification, infrared remotes control detection
88C type: external magnetics, AC and direct current voltage, direct current current, direct current resistance RX10k, triode, resistor, capacitor, battery power, on-off buzzers, infrared remotes control detection
Specifications:
Material: ABS
Type: 88A, 88B, 88C (optional)
Power: 2 * AAA batteries (NOT INLCLUDED)
Direct current measurement:
Ranges: 50uA/0.5mA/5mA/50mA/500mA/10A
Sensitivity: 0.25V
Accuracy:
50uA/0.5mA/5mA/50mA/500mA: 2.5%
10A: 5%
Direct Current V: 0.25V/1V/2.5V/10V/50V/250 V/500V/1000V/2500V
Sensitivity:
0.25V/1V/2.5V/10V/50V: 20kΩ
250 V/500V/1000V/2500V: 9kΩ
Accuracy:
0.25V/1V/2.5V/10V/50V/250 V/500V/1000V: 2.5%
2500V: 5%
Battery detecting: 1.2V/1.5V/2V/3V/3.6 V

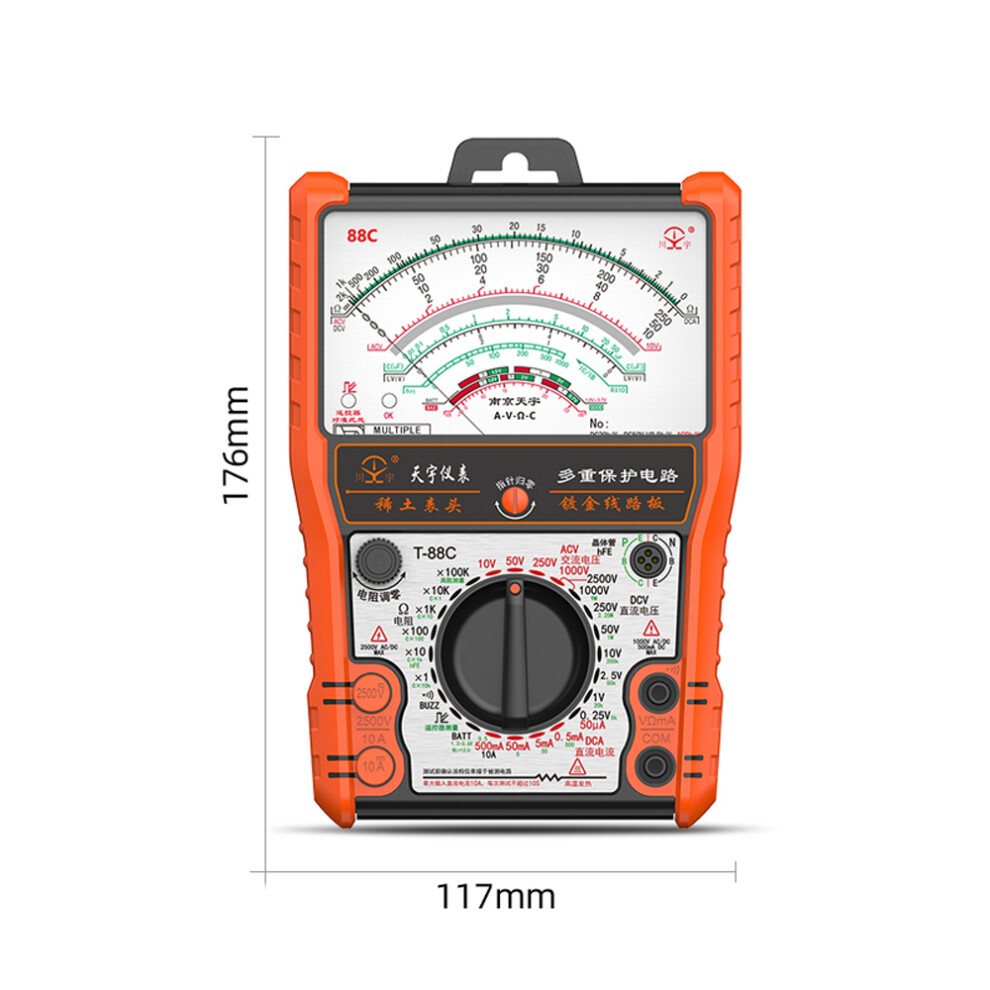

Package size: 200 * 130 * 40mm / 7.9 * 5.1 * 1.6in
Package weight:
88A: 450g / 1.0lb
88B: 450g / 1.0lb
88C: 550g / 1.2lb
Packing list:
1 * Multimeter
1 * Pair Testing Pen
1 * Manual
