2.5K200MHz Clock Signal Generator Module For DIY With STM32 TFT Display Frequency Square Wave

2.5K200MHz Clock Signal Generator Module For DIY With STM32 TFT Display Frequency Square Wave Description

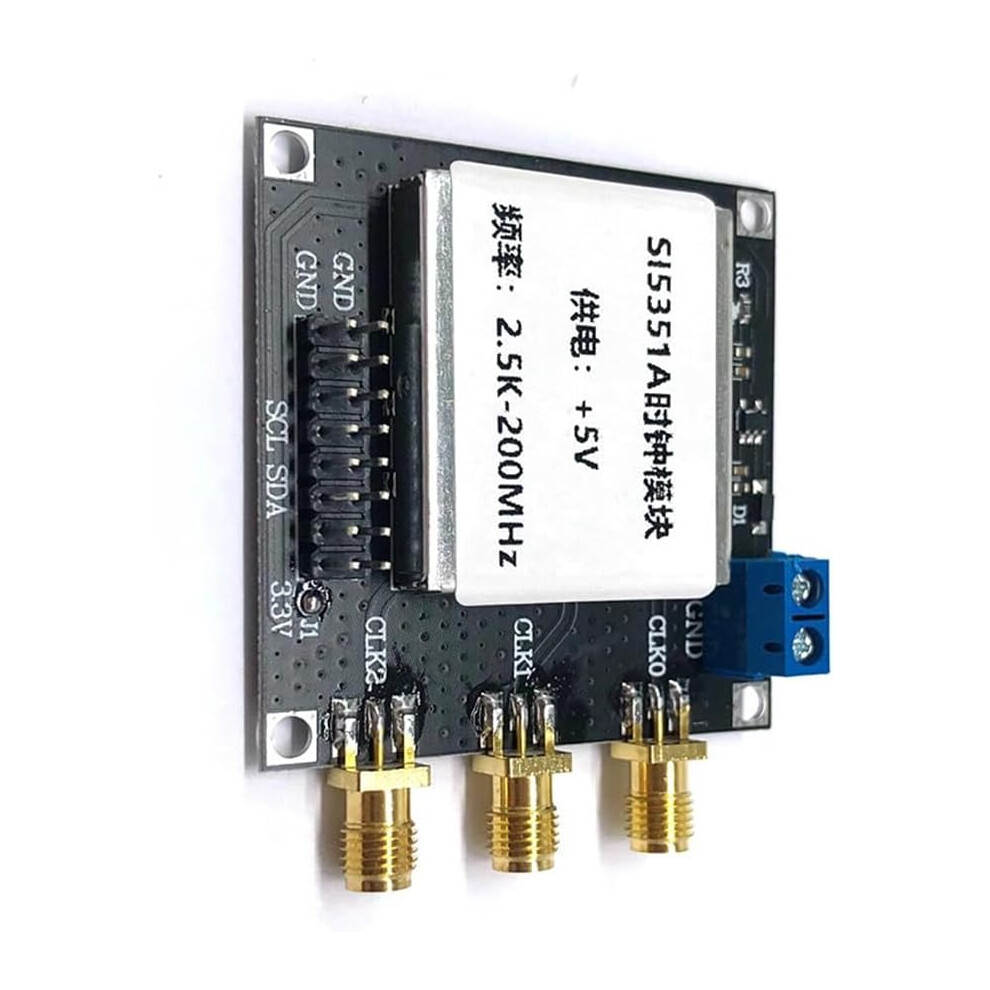

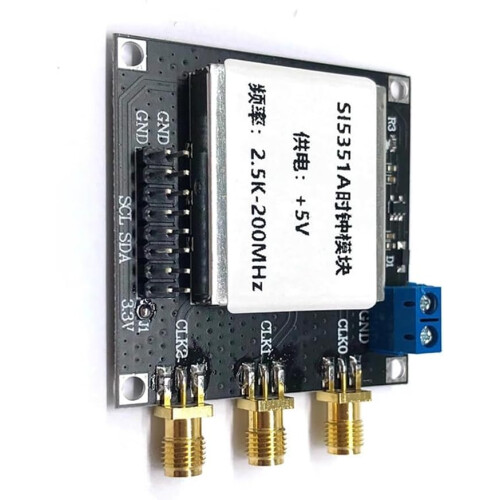

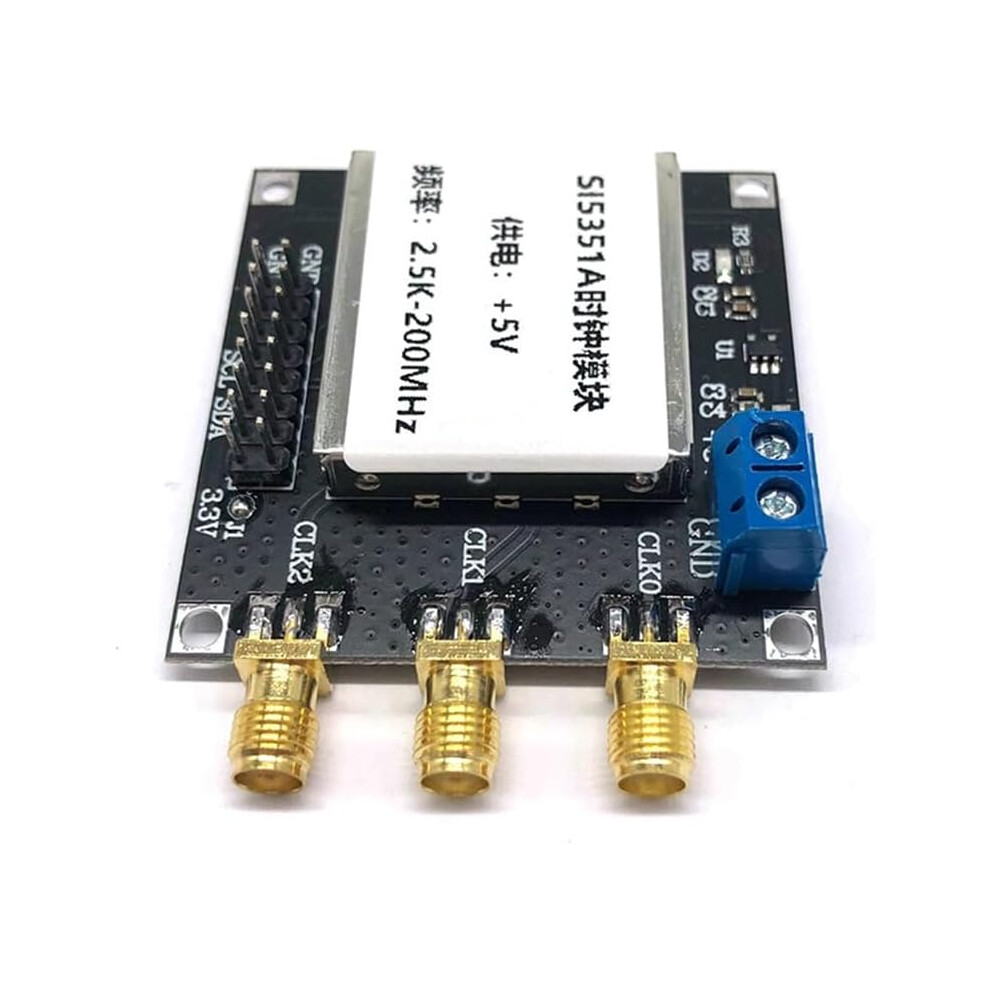

Output interface: SMA female connector Frequency range and PLL F0 and F1 can be configured from 2.5 k to 200 MHz F2 and F1 share a phaselocked loop (PLL) The frequency division ratio in the PLL is configurable Power Power supply voltage: +5V Key benefits Broad and tunable output range supports multiple RF testing needs with a single device Standard SMA female connector enables straightforward compatibility with common RF cables and test equipment PLLbased frequency generation provides stable, repeatable outputs with configurable division for flexible signal relationships Singlesupply operation simplifies power integration in laboratory benches or embedded test setups Applications and use scenarios RF lab bench use: generate precise local oscillator signals for mixers, modulators, or downconverter experiments RF system development: act as a versatile signal source for evaluating PLLs, mixers, and RF frontend components Educational and demonstrations: illustrate PLL operation, frequency synthesis, and configurable division in teaching labs Notes All specifications are provided as stated: SMA female output interface, F0/F1 range of 2.5 k to 200 MHz, PLL with configurable division for F2 and F1, and +5V supply.
