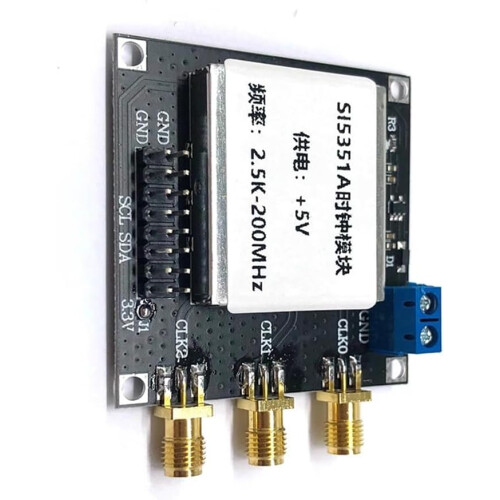

2.5K200MHz Clock Signal Generator Module Frequency Square Wave Generator With TFT Display For DIY Ref: 1676

2.5K200MHz Clock Signal Generator Module Frequency Square Wave Generator With TFT Display For DIY Ref: 1676 Description

Key benefits Flexible frequency source: F0 and F1 can be set from 2.5 kHz to 200 MHz, supporting a wide range of RF and test scenarios without multiple instruments. PLL based frequency synthesis: F2 and F1 share a phaselocked loop with a configurable division ratio, enabling versatile output configurations. Easy integration: powered from a +5 V supply and delivers output through a standard SMA female connector, compatible with common SMA cables and test equipment. What it does Provides a programmable signal output with precise frequency control in the 2.5 kHz to 200 MHz range for F0 and F1. Uses a shared PLL for F2 and F1, with an adjustable frequency division ratio to tailor output signals for specific applications. Specifications Power supply: +5 V Output interface: SMA female connector Output frequencies: F0 and F1 selectable in the range 2.5 kHz to 200 MHz PLL: F2 and F1 share a phaselocked loop Division ratio: configurable Applications RF test bench and lab experiments: generate reference signals for amplifiers, filters, and mixers. Measurement and calibration: provide stable reference signals for oscilloscopes, spectrum analyzers, and other test equipment. Educational demonstrations: illustrate PLL based frequency synthesis and multioutput frequency relationships. Compatibility and usage notes Output is via SMA female connector; use SMA male cables/connectors for connections to equipment. All specifications pertain to the described model and are to be maintained as provided.
