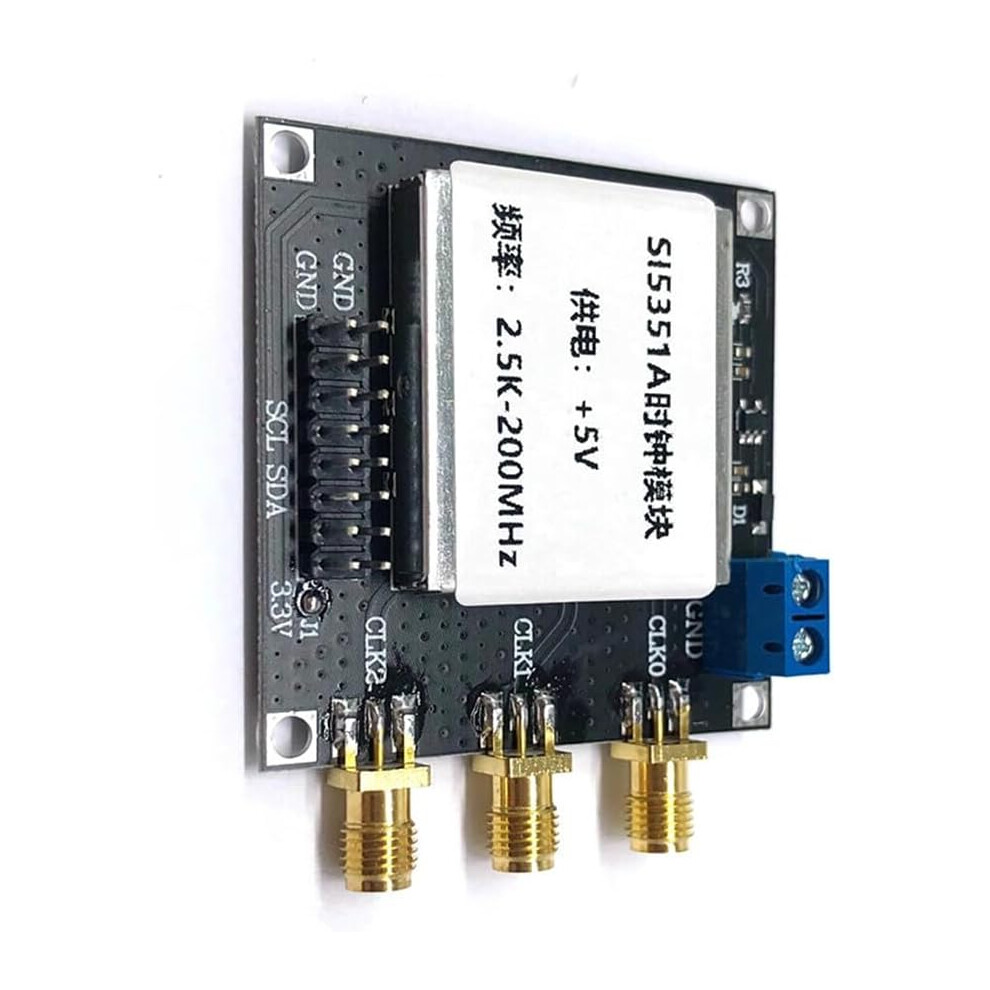

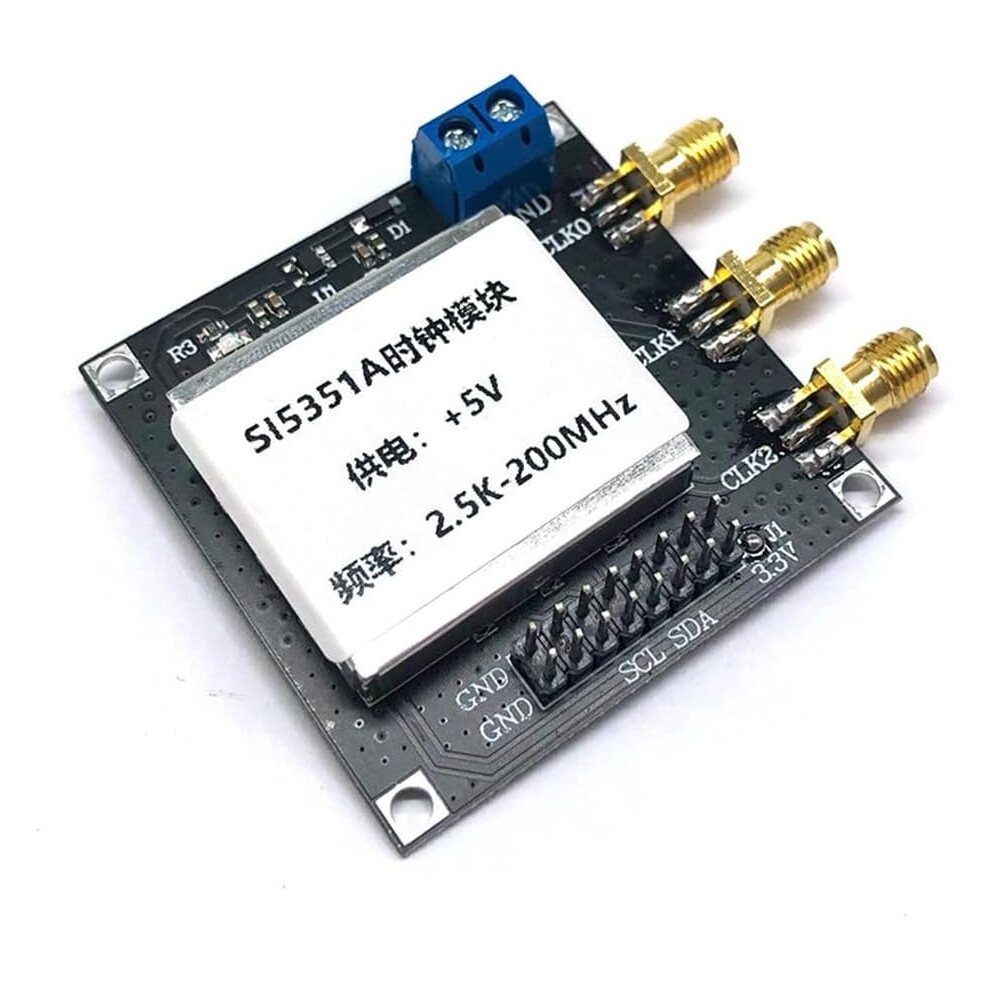

2.5K200MHz Clock Signal Generator Module Frequency Square Wave Generator With TFT Display For DIY

2.5K200MHz Clock Signal Generator Module Frequency Square Wave Generator With TFT Display For DIY Description

Key specifications Power supply: +5 V DC Output frequencies: F0 = F1 = 2.5 kHz to 200 MHz. F2 and F1 share a phaselocked loop, and the frequency division ratio can be configured Output interface: SMA female connector Benefits and standout features Wide and programmable frequency range provides a flexible RF signal source for diverse test and development needs F0 and F1 operate at the same nominal frequency, with F2 sharing a PLL, enabling coherent multioutput configurations for synchronized test setups Configurable frequency division ratio offers flexible scaling to match different instruments and measurement requirements Standard SMA female output ensures straightforward integration with common RF equipment, cables, and test benches Practical applications RF bench testing and calibration: use as a versatile signal source for receivers, mixers, filters, and spectrum analyzers in development and verification workflows Local oscillator and reference signal: employ as a LO or reference frequency in RF frontend design, downconversion, or upconversion experiments Test rig synchronization: provide a repeatable, configurable frequency reference to synchronize multiple instruments or devices in a lab environment
