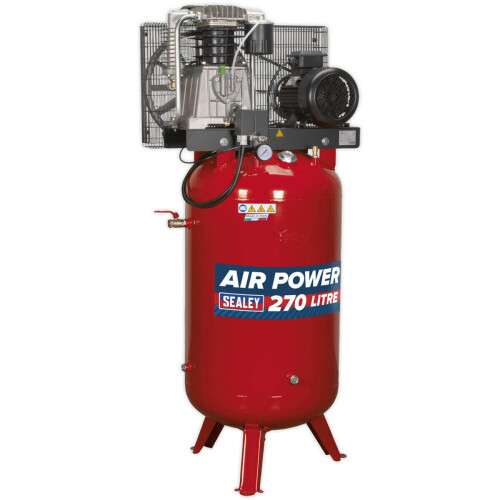

270 Litre Vertical Belt Drive Air Compressor - 2-Stage Pump - 7.5hp Motor

270 Litre Vertical Belt Drive Air Compressor - 2-Stage Pump - 7.5hp Motor Description

270 Litre Vertical Belt Drive Air Compressor - 2-Stage Pump - 7.5hp Motor

Overview:

Heavy-duty 3-phase compressor suitable for the professional workshop. 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

Features:

• Air Displacement: 29.3cfm(830L/min).
• Maximum Free Air Delivery: 22.6cfm(640L/min).
• Maximum Pressure: 145psi(10bar).

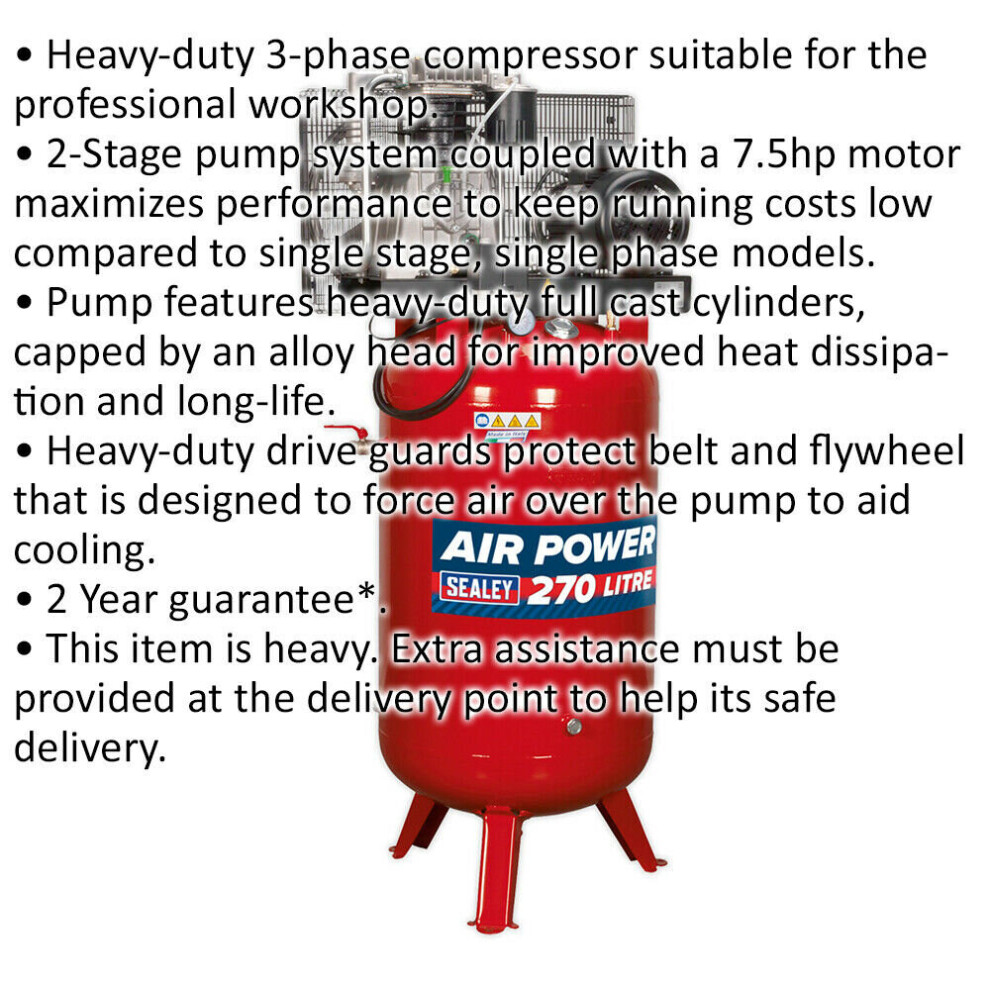

• Heavy-duty 3-phase compressor suitable for the professional workshop.
• 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.

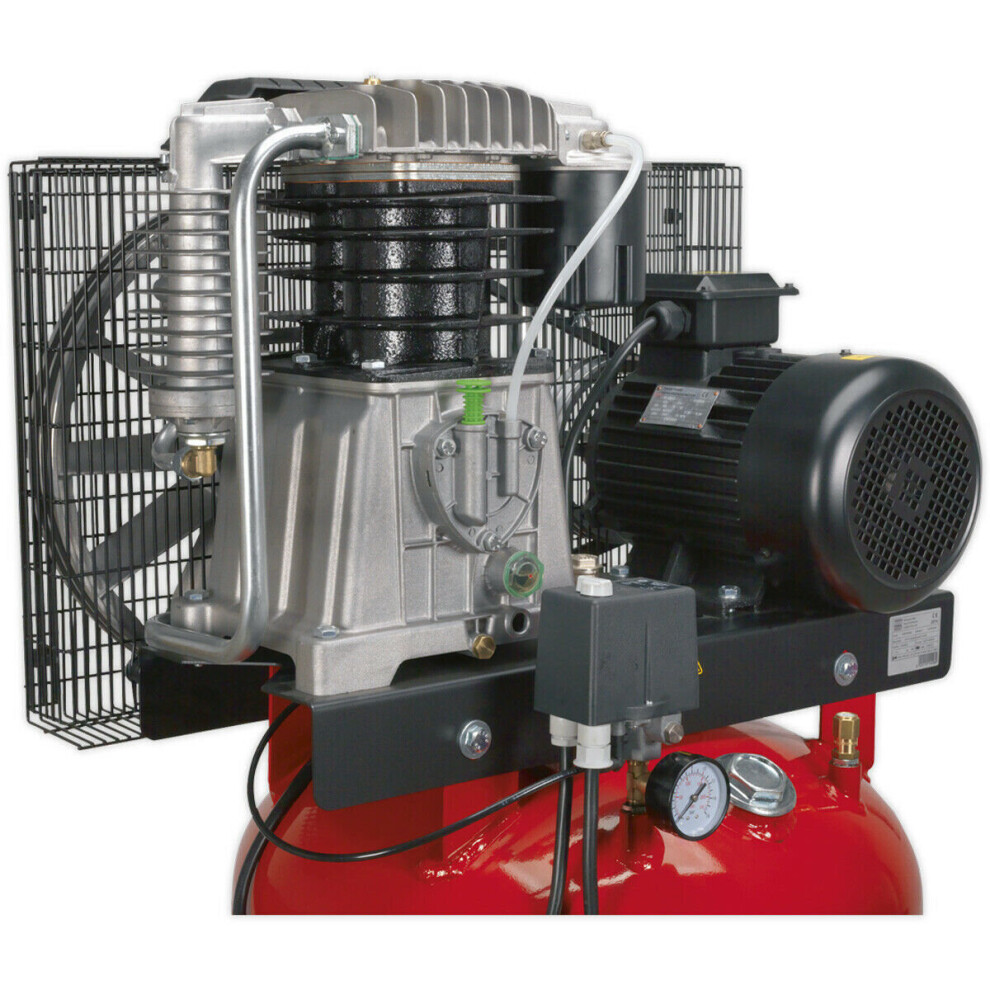

• Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• 2 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Air Displacement cfm(L/min) - 29.3(830)
• Maximum Free Air Delivery cfm(L/min) - 22.6(640)
• Maximum Pressure - 145psi(10bar)
• Minimum Rated Supply - 32A
• Motor Output - 7.5hp
• Net Weight - 200kg
• Outlet - 3/4"BSP Female Tap
• Phase - 3ph
• Receiver Capacity - 270L
• Size (W x D x H) - 770 x 620 x 1775mm
• Speed - 1280rpm
• Supply - 415V
