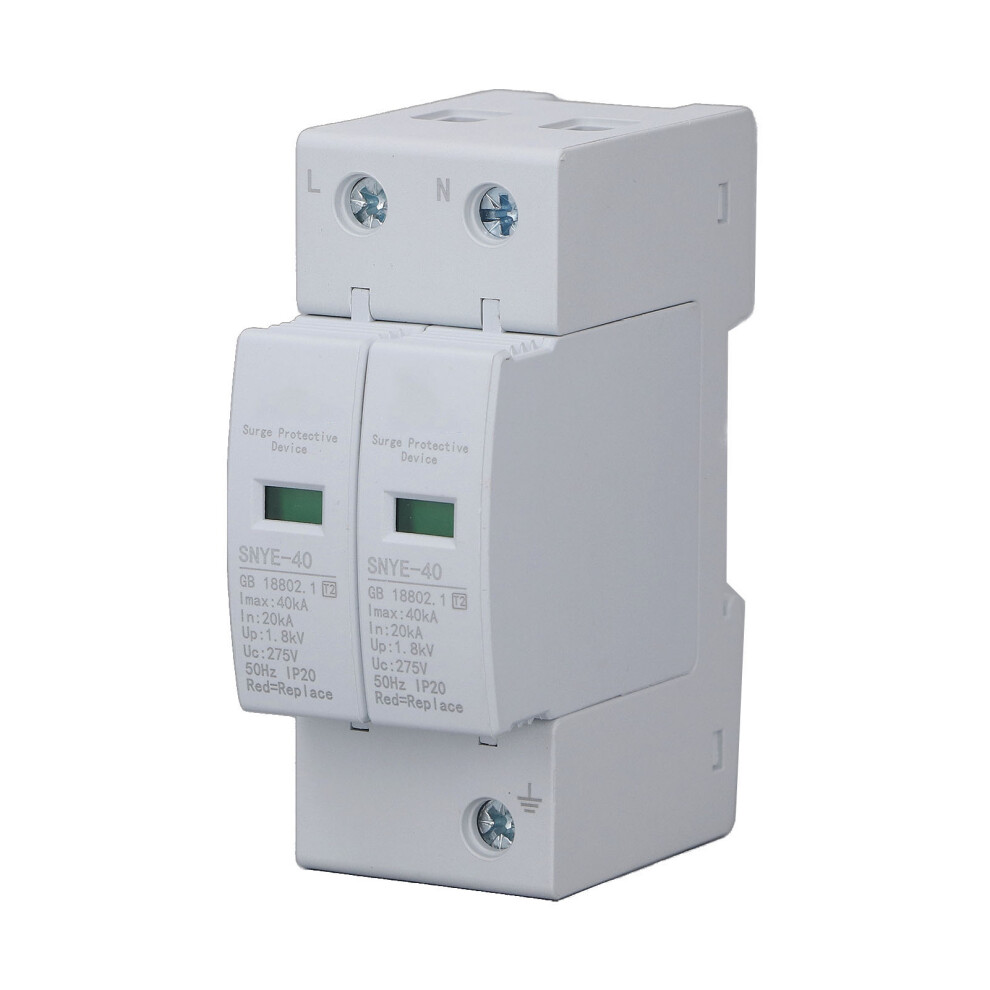

(2P 275V) Surge Protector 2P 275V Quick Response Fire Corrosion Resistance

(2P 275V) Surge Protector 2P 275V Quick Response Fire Corrosion Resistance Description

1、Surge Protection: When there is a surge overvoltage, this protector will turn on quickly within nanoseconds, introduce the surge overvoltage into the ground, protect the electrical equipment. 2、High Performance: The surge protector has quick response speed, strong carrying capacity, and will not affect the normal operation of the power grid. 3、Fault Indication: There is a working status indication window, green means normal, red means fault, which can effectively reflect the working status and facilitate timely replacement and maintenance. 4、High Safety: The surge protector is fire and corrosion resistance, adopts insulated terminal blocks, more reliable and safe, supports hot line operation and is easy to use. 5、Rail Installation: The surge protector is modularly designed and adopts 35mm electrical rail installation method, simple and convenient.
Item Type: Surge Protective Device
Material: PC
Color: White
Maximum Discharge Current (Imaximum): 40KA
Nominal Discharge Current (In): 20KA
Protection Level (up): 2p/3p: 1.8KV, 4p: 1.2KV
Protection Class: IP20
Response Time: 25ns
Maximum Wire Diameter: 35 hard wire or multi strand wire (mm²)
Recommended Connection: 4-25 (mm²)
Installation Method: 35mm electrical rail installation
Ambient Temperature: -40 to +80
Main Structure and Working Principle:
1 x
Surge Protective Device
