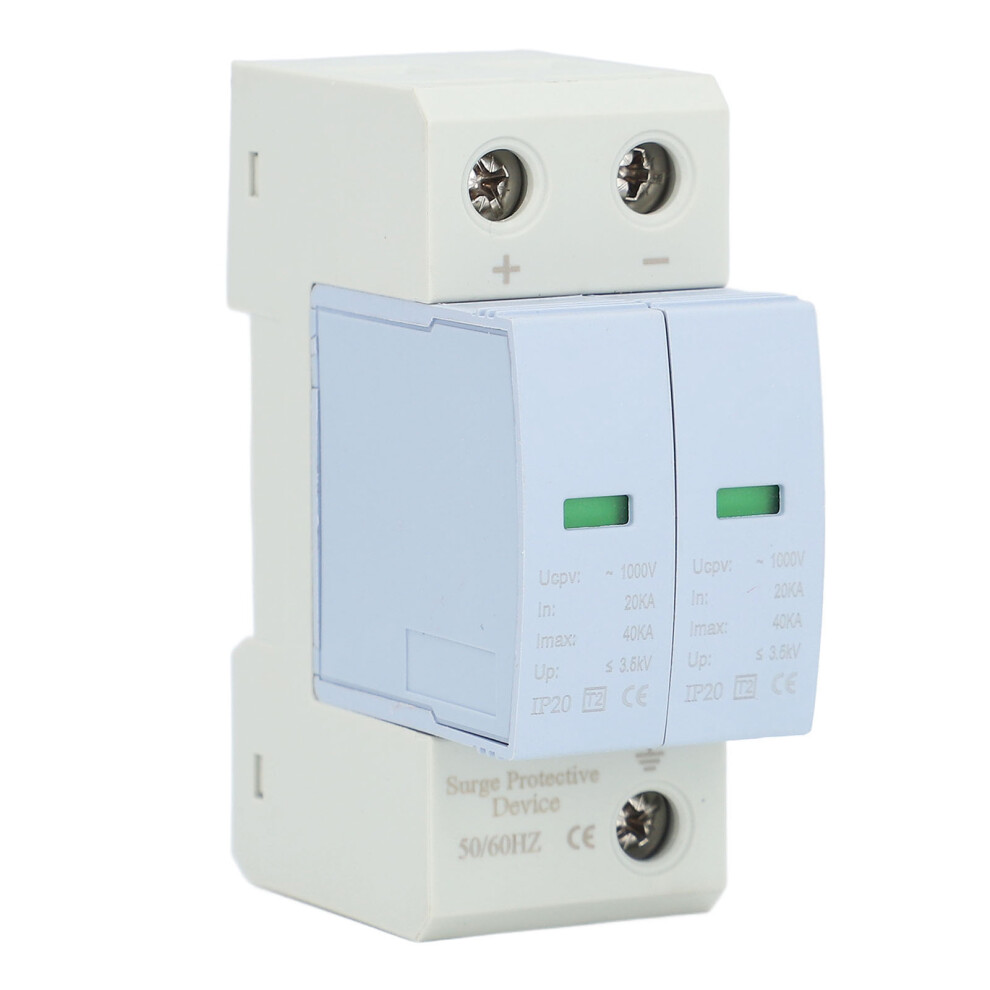

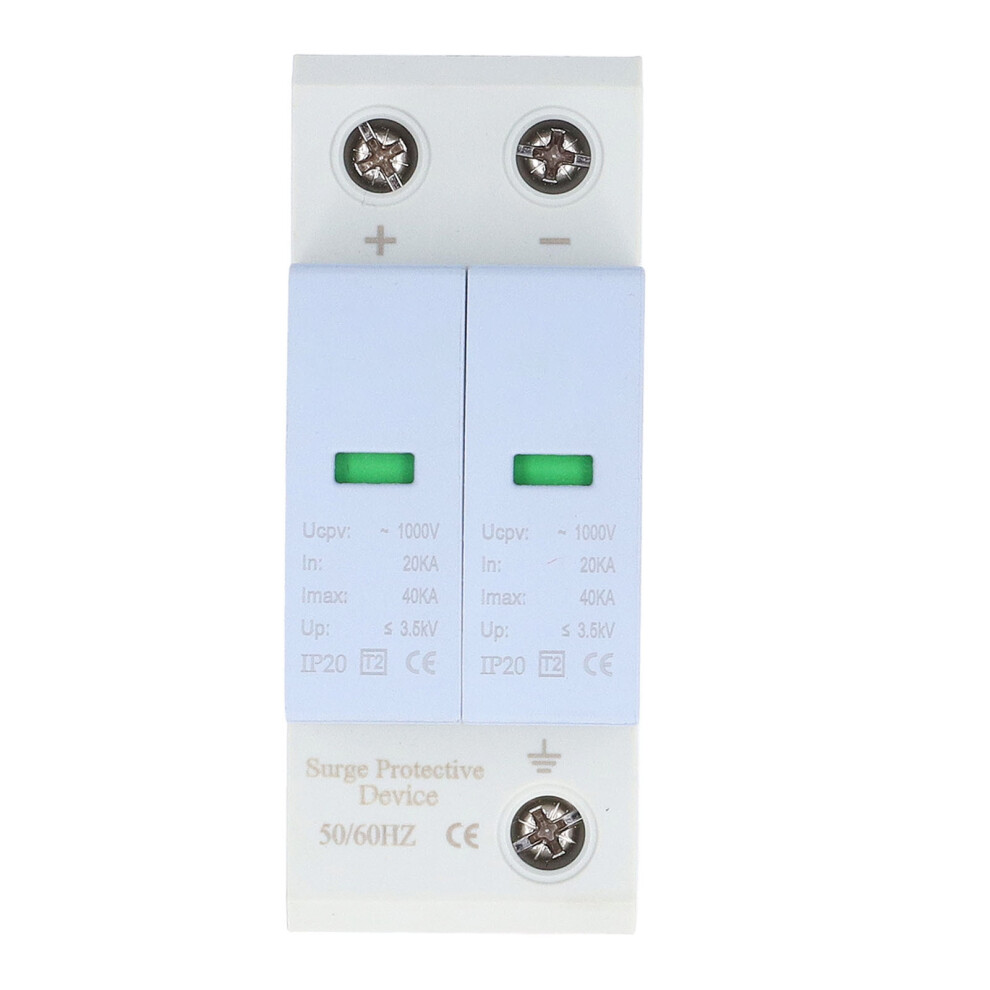

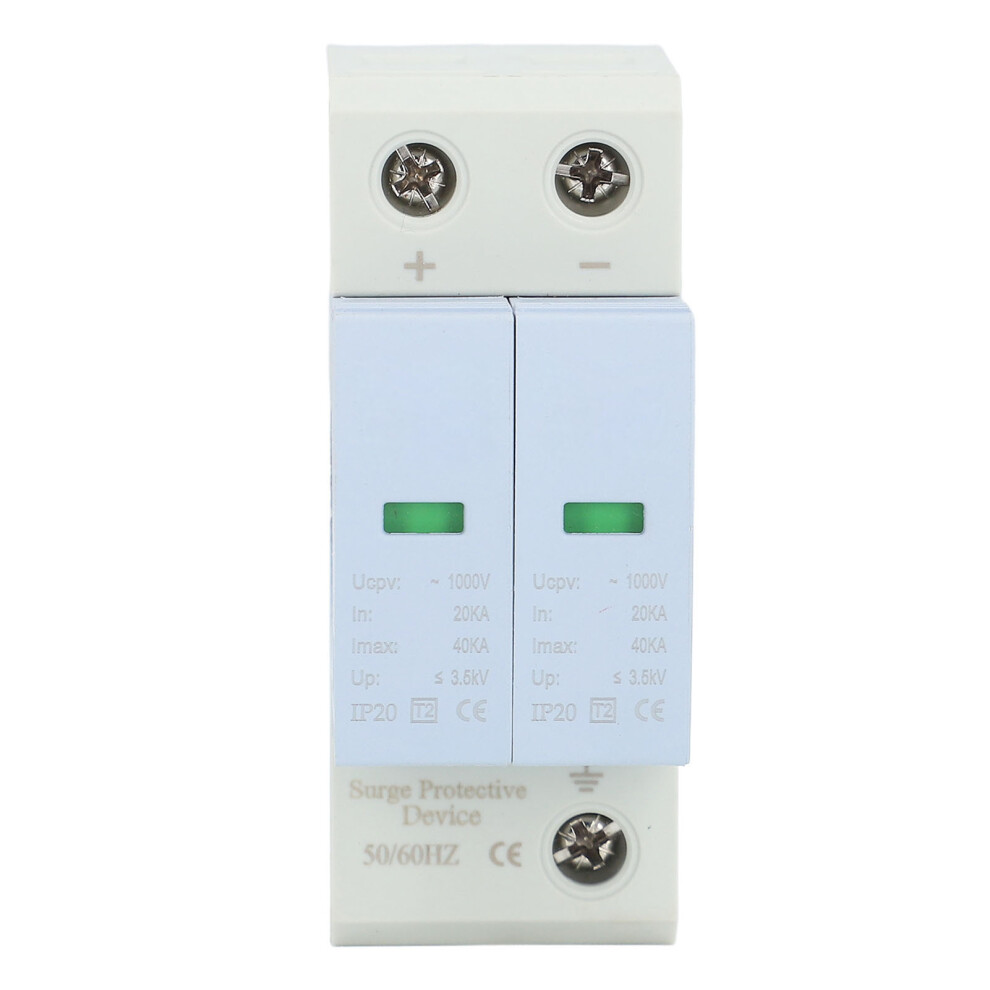

2P 40KA Surge Protector 35MM Rail Mount DC1000V for PV System

2P 40KA Surge Protector 35MM Rail Mount DC1000V for PV System Description

1、PC Material: The DC surge protector is crafted from flame retardant PC material, ensuring lasting durability, high reliability, and a long lifespan, guaranteeing excellent performance and effectiveness. 2、Multiple Guards: This DC surge protective device features both overcurrent guard and overvoltage guard functions, effectively safeguarding DC power system, with a maximum voltage of DC1000V. 3、Efficient Design: The optimized design of the surge protective device enhances its effectiveness against electromagnetic interference and arrester effect, and providing a higher level of guard. 4、Easy Installation: This 2P photovoltaic surge protector is designed for simple installation, featuring standard 35MM rail mounting, seamlessly integrating with distribution boxes and circuit breakers. 5、Wide Application: This DC surge protective device is suitable for photovoltaic DC power system and various other DC power system, which has extensive application value and versatility.
Item Type: Surge Protective Device
Product Material: PC
Product Model: CHLT 40PV
Maximum Voltage: DC 1000V
Nominal Discharge Current: 20kA
Maximum Discharge Current: 40kA
Voltage Protective Level: 3.5kV
Indication: Green Normal, Red Fault
Installation: 35mm Standard Rail
Poles: 2P
1 x Surge Protector
