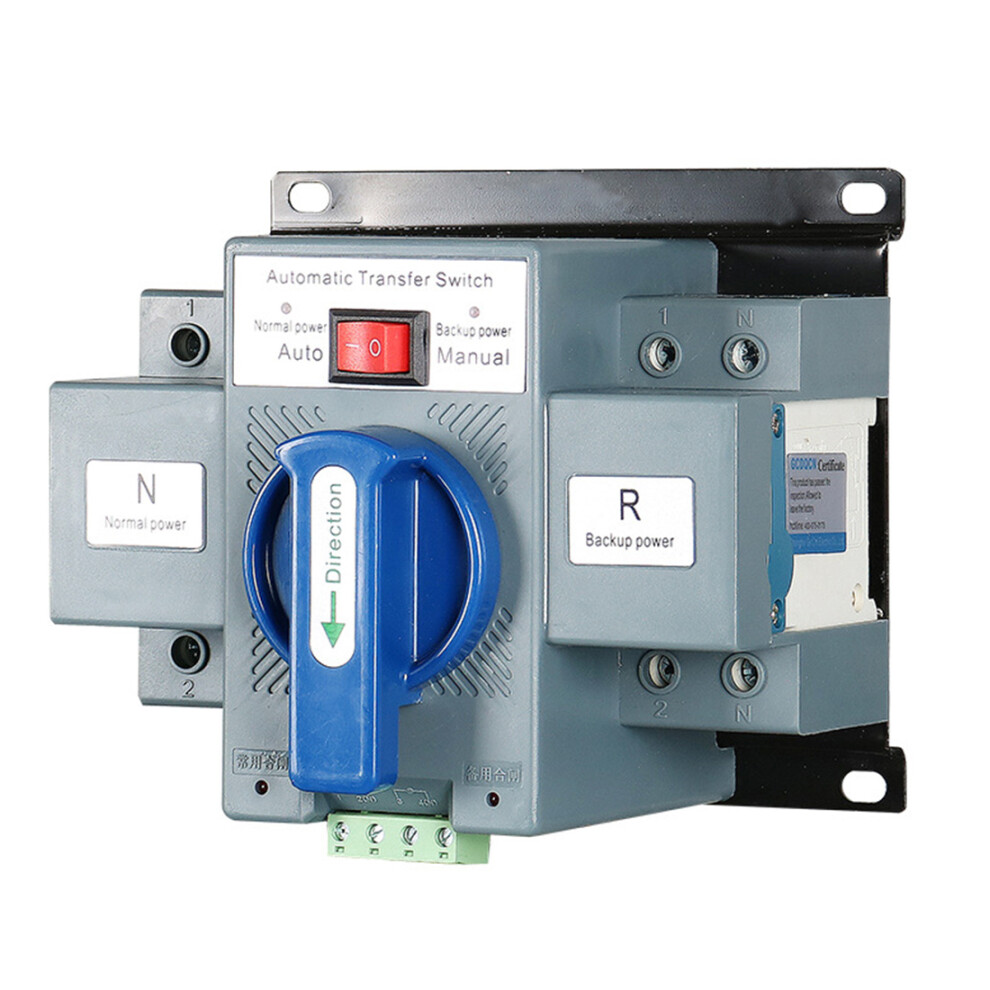

2P 63A 230V MCB Type Dual Power Automatic Transfer Switch

2P 63A 230V MCB Type Dual Power Automatic Transfer Switch Description

1. Dual power Automatic transfer switch can switch to Normal power or reserve power automatically. Please noted that the switch can't turn on or turn off the generator. This switch Normal power first. If normal power on, the switch switch to Normal power. If normal power off, and reserve power on, the switch switch to reserve power.
2.Wire
the button to Automatic, the switch switch to Normal power or reserve power automatically.
the button to Manual, Then you have to switch the Direction manually.
3. The Automatic Transfer Switch is terminal type automatic transfer device. It's suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase),it automatic connect one or several load circuits from one power to the other power automatically, to normal power supply of load circuits.

Rated voltage: AC230V 50/60HZ
Noted: power be interrupted when Switching.
Max current: 63A.
Color: Grey+Black+Blue
Material: PC plastic

Package Contents:
1 x Automatic Transfer Switch

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
