2Pc 150Psi DC5V 1/8NPT Pressure Transducer Transmitter Sensor

2Pc 150Psi DC5V 1/8NPT Pressure Transducer Transmitter Sensor Description

For oil, , , gas, air pressure(Cannot use measuring water pressure), Can be used in oil tank, gas tank, tank etc.
It's an advance pressure transducer than traditional mechanical pressure transducer.
2% small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
It has complete surge voltage protection function.
Light weight and small size, convenient to install and operate.

Product Name:Oil PressureTransducer
Voltage:DC 5V
Pressure:150psi
Input:0-150 psi
Output:0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Accuracy:+/-0.5%
Thread:1/8inch NPT

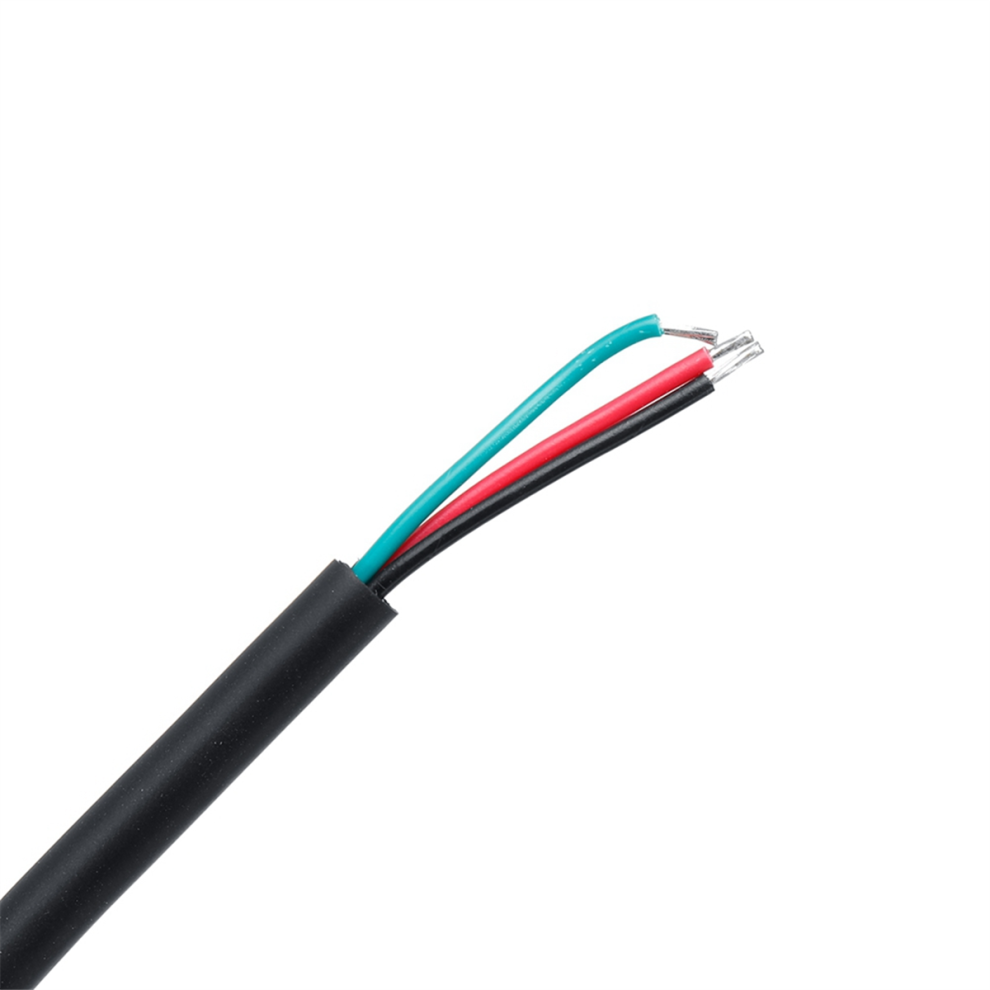

Wiring:Red for +5V; Black for ground; Green for signal output
Overload Capacity:2-4 times of rated pressure
Working Temperature:-40 - +120
Compensation Temperature:0 - +80
Protection Class:IP67
Pressure Medium:Oil, gas which is compatible with 304 stainless steel
Load Resistance:less than equal (supply power-6.5V/0.02A)ohm
Long-term Stability:Less than 0.1%/year
Temperature Effect on Zero:Typical:0.02%/; Maximum:0.05%/
Temperature Effect on Sensitivity:Typical:0.02%/; Maximum:0.05%/
Shock Resistance:1000g
Anti-Shock:less than equal +/-0.01%(X,Y,Z axes, 200Hz/g)
Response Time:less than equal 1ms
Insulation Resistance: 100mohm 500VDC
Explosion-proof Class:ExiaTTCT6
Electromagnetism Compatibility:EN50051-1
Note:Due to different production batches, there may be slight differences in products, which does not affect use.
Colour:As Shown
Material:Metal

Package Contents:

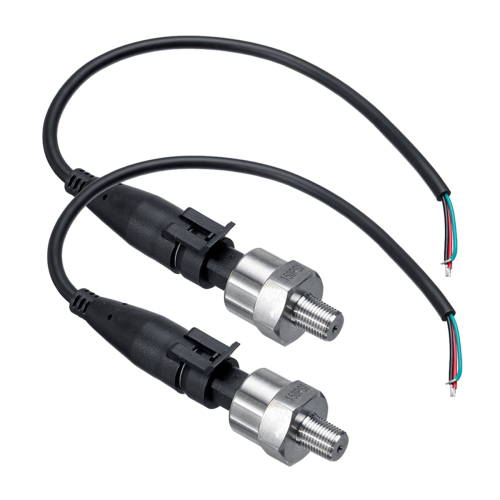

2 x Pressure Transducer (With Cable)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
