2pcs -005 Electric Accelerator Pedal Electric Accelerator Pedal for

2pcs -005 Electric Accelerator Pedal Electric Accelerator Pedal for Description

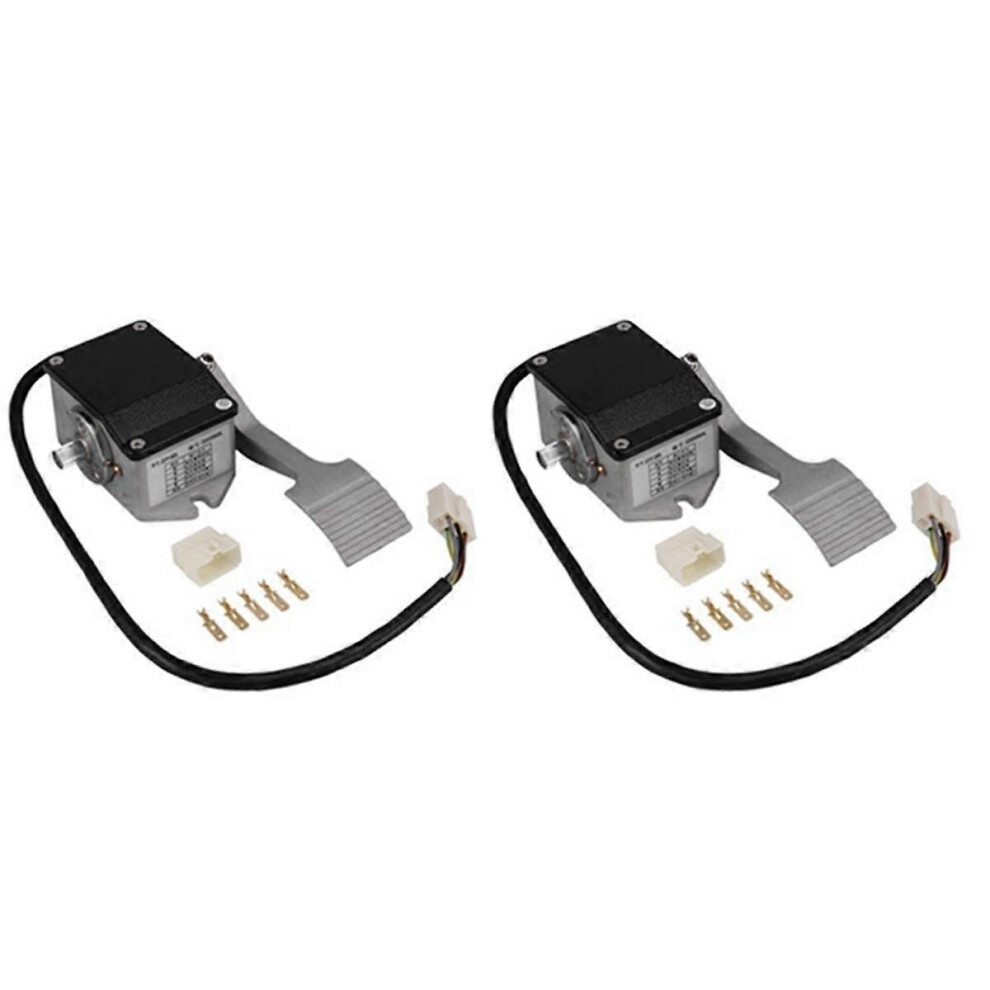

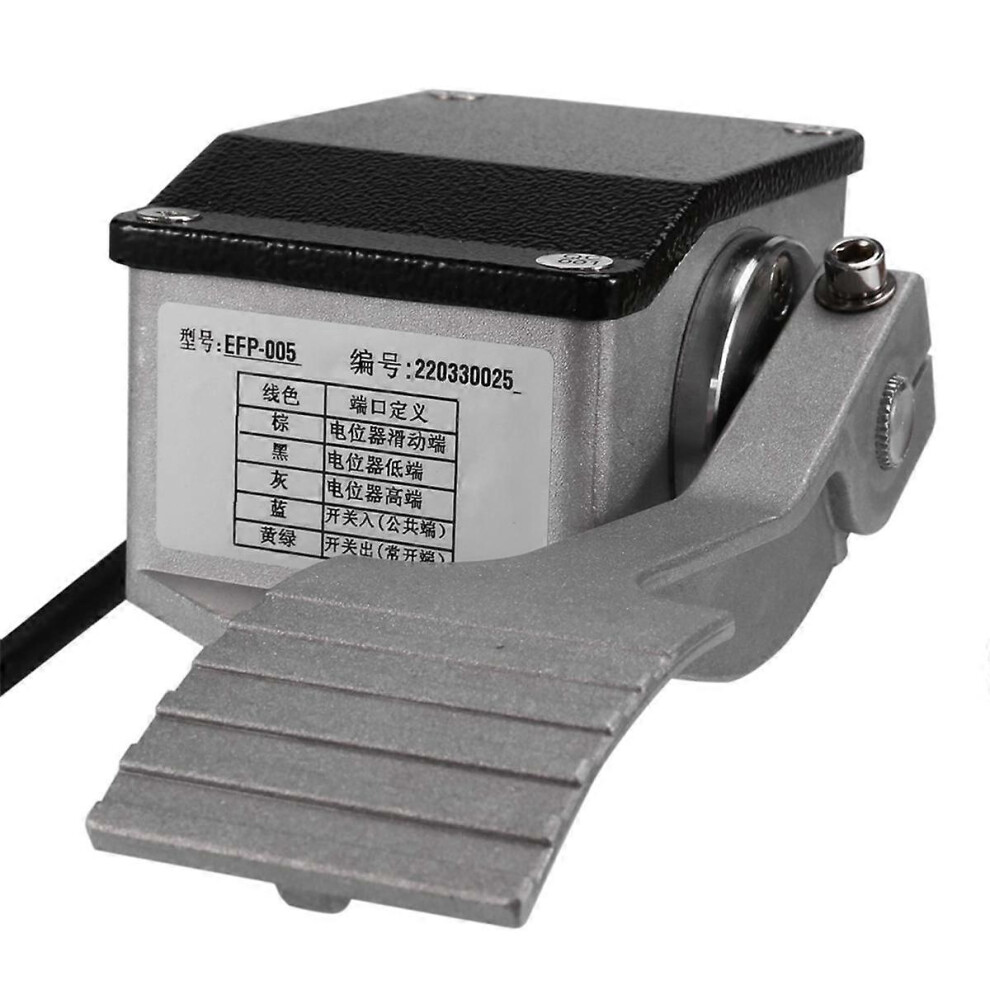

Name:Throttle Foot Model: -005 (3-wire potentiometer throttle, working with 1204M-4201 Series Motor Controller, 1268-5403 SepEx Motor Controller and other controllers) Applicable models:Forklift Signal output: 0-5K 0.1K (BI potentiometer P270-033B) Switch on/off signal: 0V - power supply voltage Operation temperature range: -55 Celsius -120 Celsius Storage temperature range: -40 Celsius - 80 Celsius Notice: This is replacement, not parts. Ingress protection: IP55 Mechnical lifespan: 1,000,000 times Product Description: 54793 Potentiometer Throttle (Foot Pedal) 0-5K Speed Signal Device (3-Wire Pot Throttle) Specifications: The foot pedal could be installed at both ends of rotating shaft Signal output: 0-5K 0.1K (BI potentiometer P270-033B) Solid metal case, ingress protection: IP55 Attention: Wires: There are 5 wires, 3 of them are potentiometer wires, and another 2 is switch wires. Brown: Potentiometer Wiper Black: Potentiometer Low Red: Potentiometer High Blue: Switch Input (common) Yellow & Green: Switch Output (normally open) Colour:Black & Silver Material:Metal Package Contents: 2x Throttle Foot Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
