2PCS 616 Multi Coin Acceptor Electronic Roll Down Coin Acceptor Selector Mechanism Vending Machine A

2PCS 616 Multi Coin Acceptor Electronic Roll Down Coin Acceptor Selector Mechanism Vending Machine A Description

Suitable for a variety of coins.
CPU process control, and accurate scoring.
Special precision/normal stall, coins smoother.
Pulse output available widths.
Prevent phishing and other means of cheating,cheat alarm.
Suitable of water vending machine, snack vending machine or game machine.
Identify accuracy rate: 95%
Applying coins:
Diameter: Ф15mm-Ф29mm
Thickness: 1.8mm-3.0mm
Applicable to all kind of coins and foreign currencies.
Atmospheric pressure: 80Kpa-106Kpa
Operating voltage: DC12V 10%
Working current: 50mA
Moment maximum current: 350mA (less than 0.5S)
Humidity: 95%
Storing temperature: -20--+85
Operating temperature: -15--+60
Recognition speed: 0.6sec
Recognition: 99.5%
Instructions:

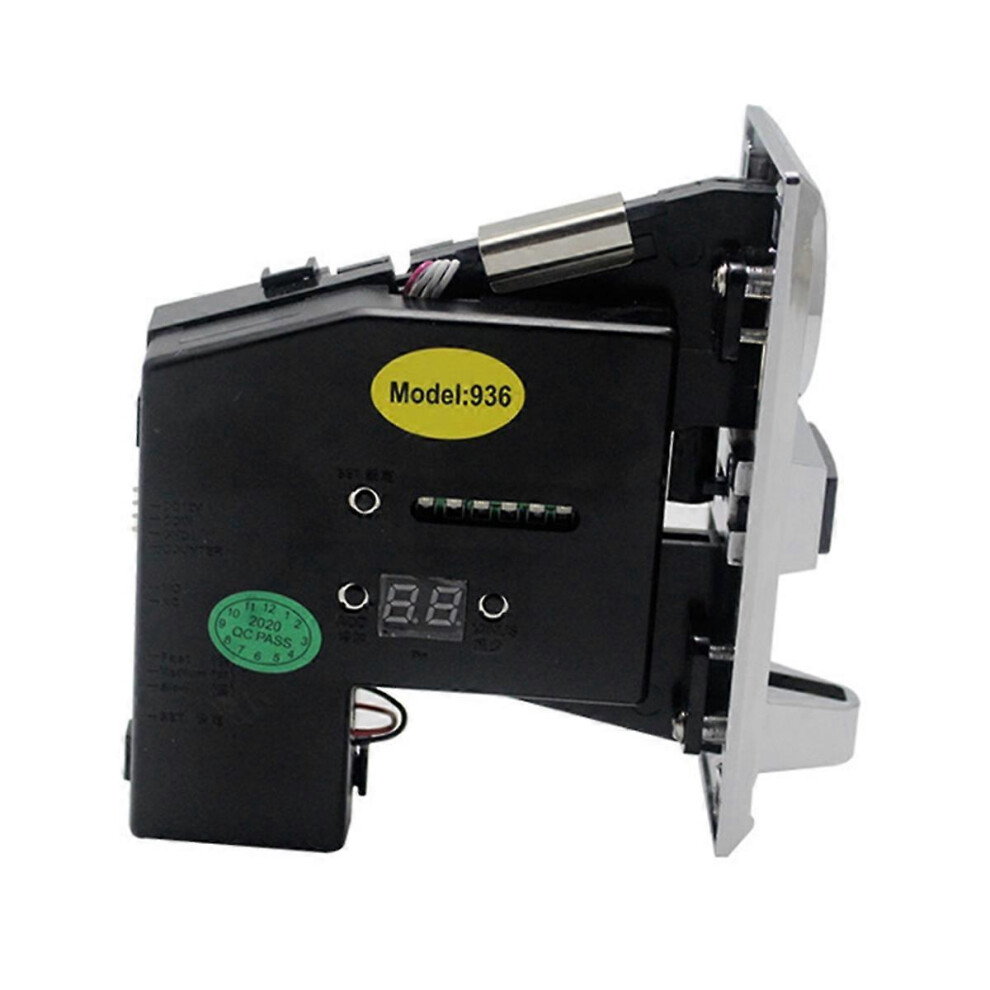

1. Pressing the setting for key(8), and then you will see the letter E (choosing several currency system).
After that you can press the accurate for key or broaden for key to increase or decrease the numerical value.
After setting up, please press the setting for key to confirm.
2. Appearing the letter H (the quantity of sampling for various currency value).
3. Appearing the letter P (the numerical valuef for signal output of various currency value).
4. Appearing the letter F (the precision of various currency value).
5. By parity of reasoning , setting is finished with your chosen currency.
When the letter E is shown, plase turn off the power and it will reopen again.
Colour:
Material:plastic+metal
Package Contents:

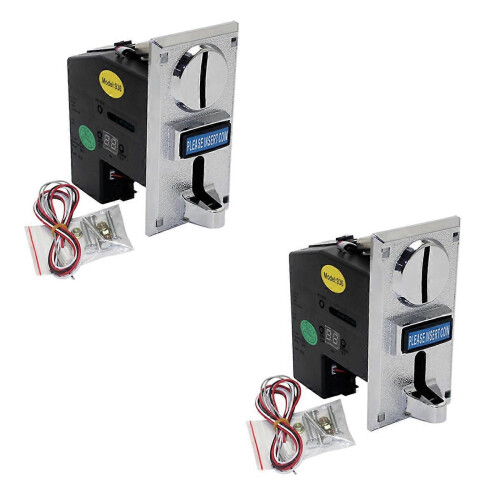

2 x Coin Acceptor Kit
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
