2pcs Precision BNC Oscilloscope Probe Kit 100MHz 1X/10X Switchable

2pcs Precision BNC Oscilloscope Probe Kit 100MHz 1X/10X Switchable Description

1、This probe is 100MHz Oscilloscope probes with a switch for either 1x or 10x attenuation 2、Compact size, several functions combined in one, this probe is convenient to use 3、Detachable hook tip, the hook is well protected by the plastic case 4、Locating sleeves ensure the stability and reliability of the tip exposed to the test point 5、Marker rings in different colors help to identify different channels
Descriptions:
This probe is good oscilloscope accessories, compact size, several functions combined in one, this probe is convenient to use.This probe is 100MHz ,with a switch for either 1x or 10x attenuation, stable performance. And providing several accessories designed to make probing and measurements a simple task.
Features:
This probe is 100MHz Oscilloscope probes with a switch for either 1x or 10x attenuation.
Compact size, several functions combined in one, this probe is convenient to use.
Detachable hook tip, the hook is well protected by the plastic case.
Locating sleeves ensure the stability and reliability of the tip exposed to the test point.
Marker rings in different colors help to identify different channels.
Features stainless steel interface, stable performance,with CE certification, IEC1010 standard ,great choice for oscilloscope probe.
Specifications:
Model: P6100
Attenuation ratio: 1X/10X
Input resistance: 1 M Ω / 10MΩ
Input capacitance: 1X:85pF~120pF,10X:18.5pF~22.5pF
Compensation range: 10pF~30pF
System bandwidth: 1X: DC-6Mhz, 10X: DC-100Mhz
Operating temperature range: 15 ~ + 75
Not working temperature range: - 20 ~ + 60
Process: injection molding integration
Color:grey
Cable length: 120cm/47.2inch
Humidity: less than 85% (relative humidity)
Weight:126g

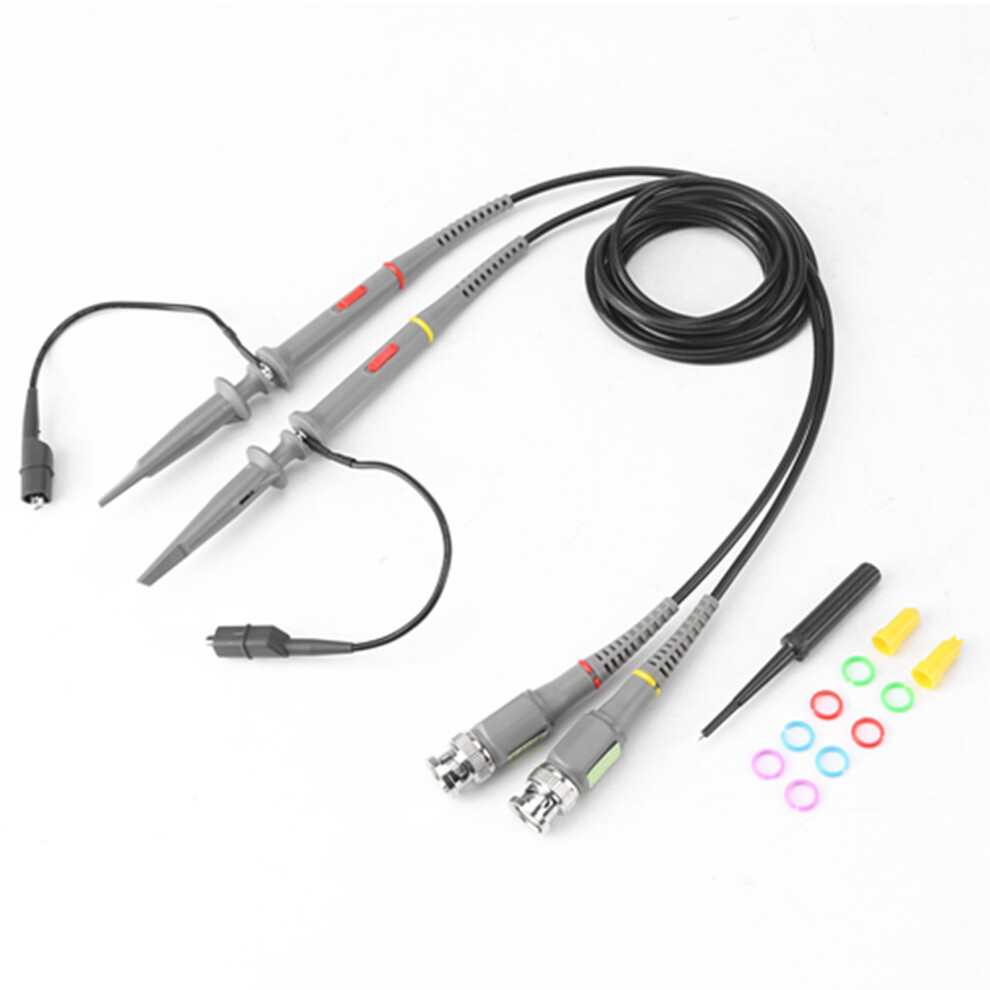

Package Included:
2 x Oscilloscope Probes
1 x adjust tool
2 x tip locating sleeve
8 x color circle
