-2RX Audio Isolator Signal Filter Processor Current Sound Elimination Noise Reduction Lotus Interface XLR

-2RX Audio Isolator Signal Filter Processor Current Sound Elimination Noise Reduction Lotus Interface XLR Description

1. Noise occurs when computer is connected to a large screen or projector; the large screen leaks electricity
2. Noise occurs when mixer and power amplifier are not on same ground. The computer audio is transmitted over long distances using a card-by-wire cable;
3. Send signals to TV station to prevent fires and burn mixer
4. Prepare several channels for musical instruments during performances. When musicians change instruments, the mixer does not need to lower volume. There is no impact sound when changing cables or instruments
5. The computer audio cable is converted to a dual card-by-wire cable through a pigtail, but it is still unbalanced transmission. The cable cannot be too long. For long-distance transmission, it must be converted through an isolator to be truly balanced cable transmission.

The instrument has a 6.35 unbalanced signal interface. If it is to be used in a place far away from mixer, it must be converted to a balanced cable with an isolator on site (no more than 3 meters of audio cable) before it can be sent to mixer over a long distance.

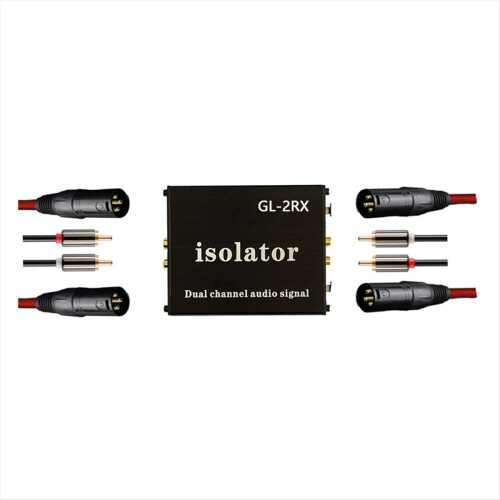

The audio signal isolator has two-way XLR cable input and XRL cable output. It can input unbalanced signals and output balanced signals, as well as balanced signals. It is also suitable for a series of audio equipment systems such as large-scale outdoor performances, -Pattern protection, sound engineering, conferences, entertainment venues, exhibitions, etc. It is a cascade device for audio systems.
Input impedance: 6002 (AC impedance)
Output impedance: 600Q (AC impedance)
Frequency response: 20HZ-20KHZ
Nominal loss: Less than 0.7db (ref 1khz 1Vms)
Insulation resistance: DC1000V 100MQ
Isolation voltage: AC 50Hz-60Hz0V-1500V
Colour:Black
Material:Metal

Package Contents:
1 x Audio Isolator

Only above package content, other products are not included.
Note: Light reflection and different displays may cause color of item in picture a little different from real thing. The measurement allowed error is +/- 1-3cm.
