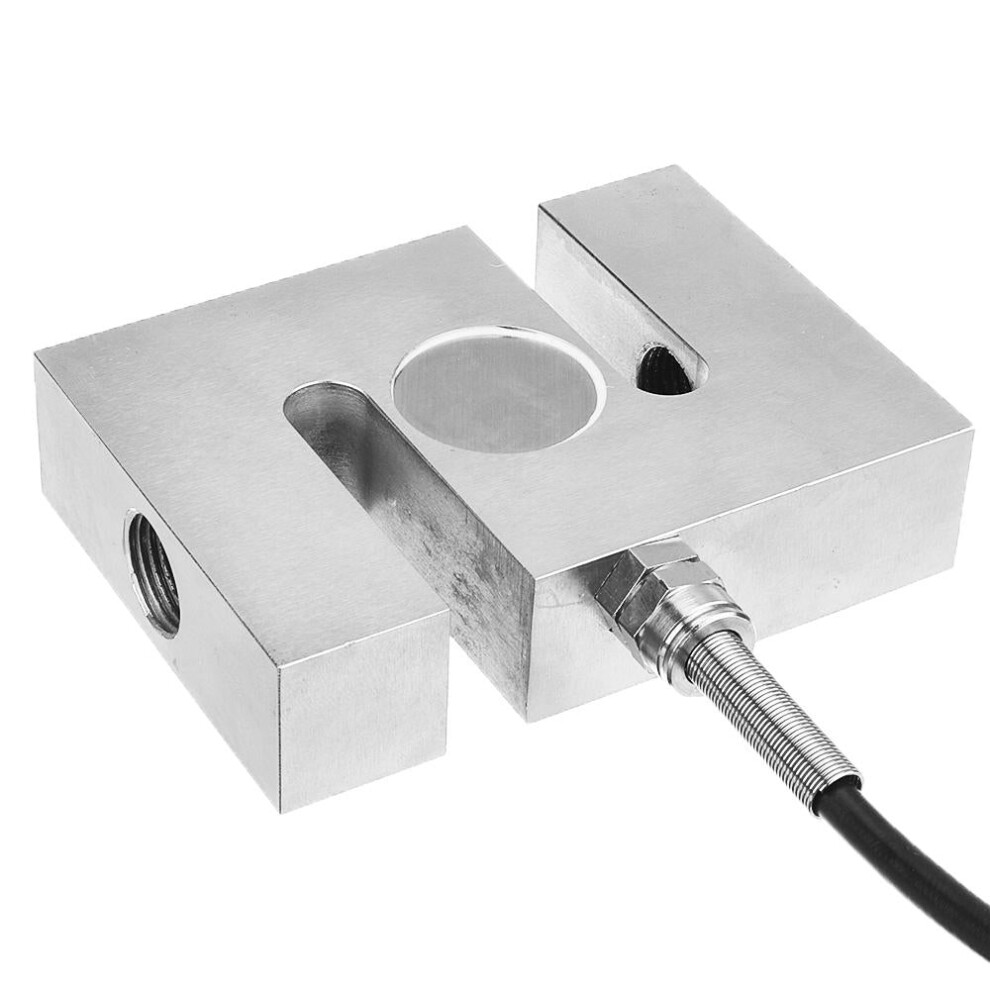

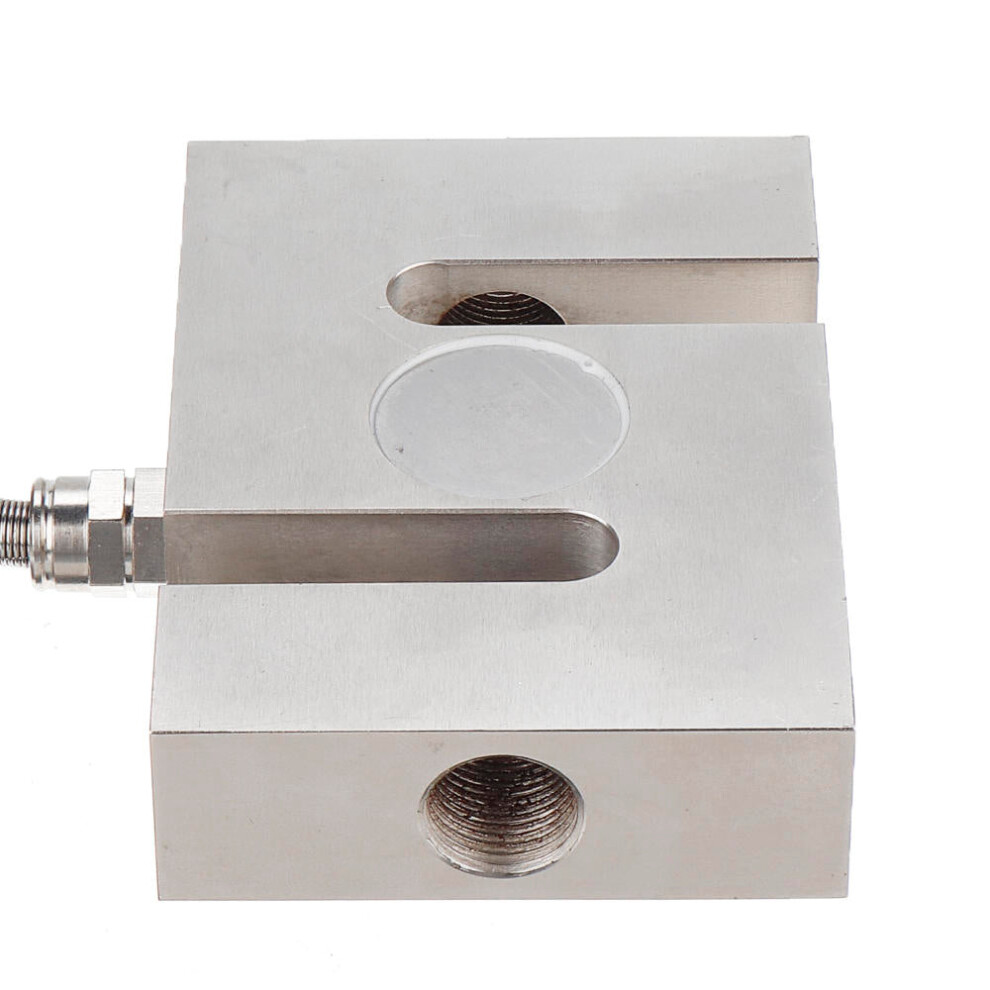

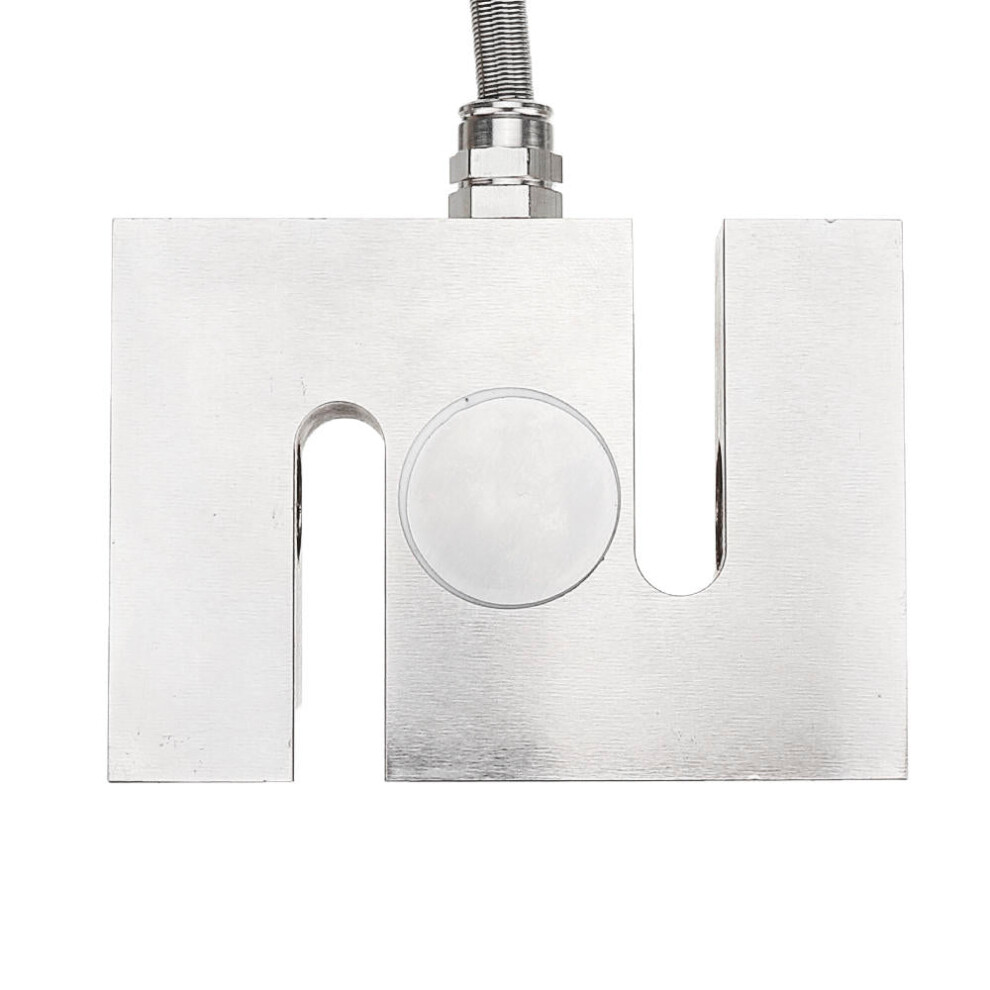

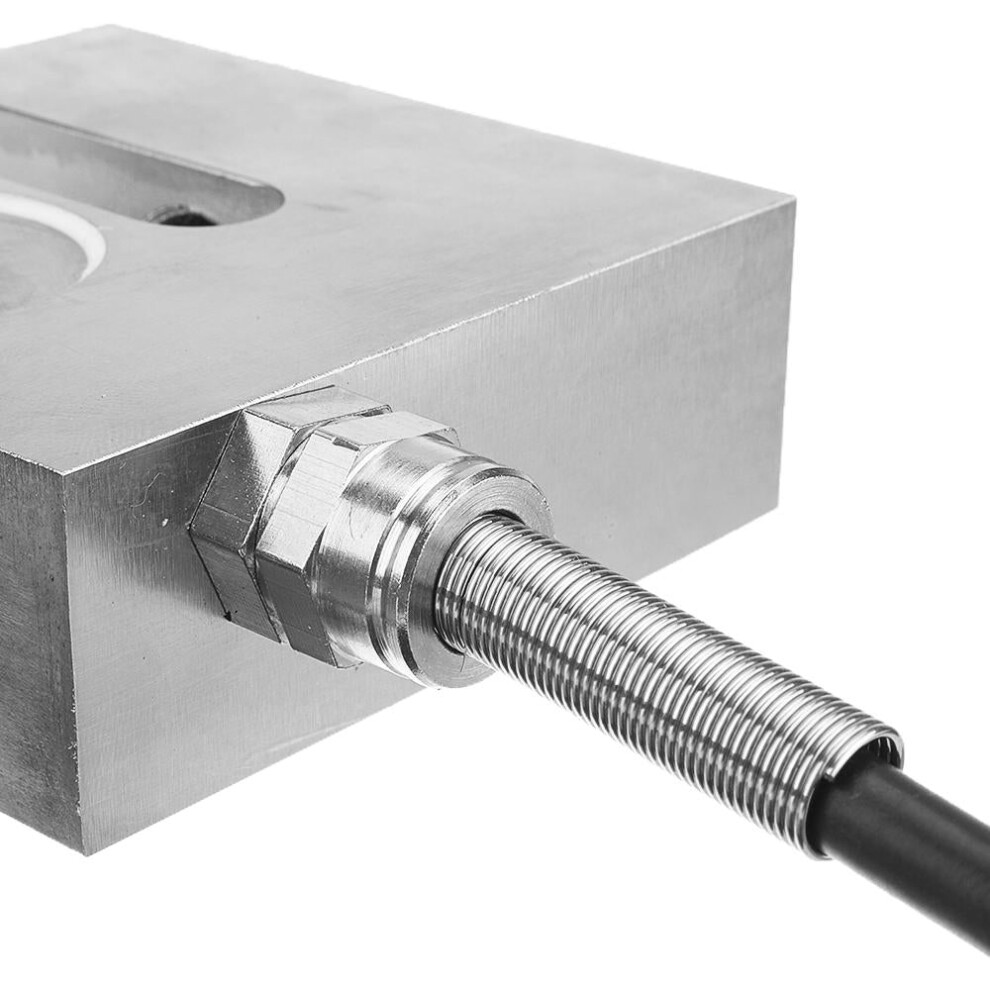

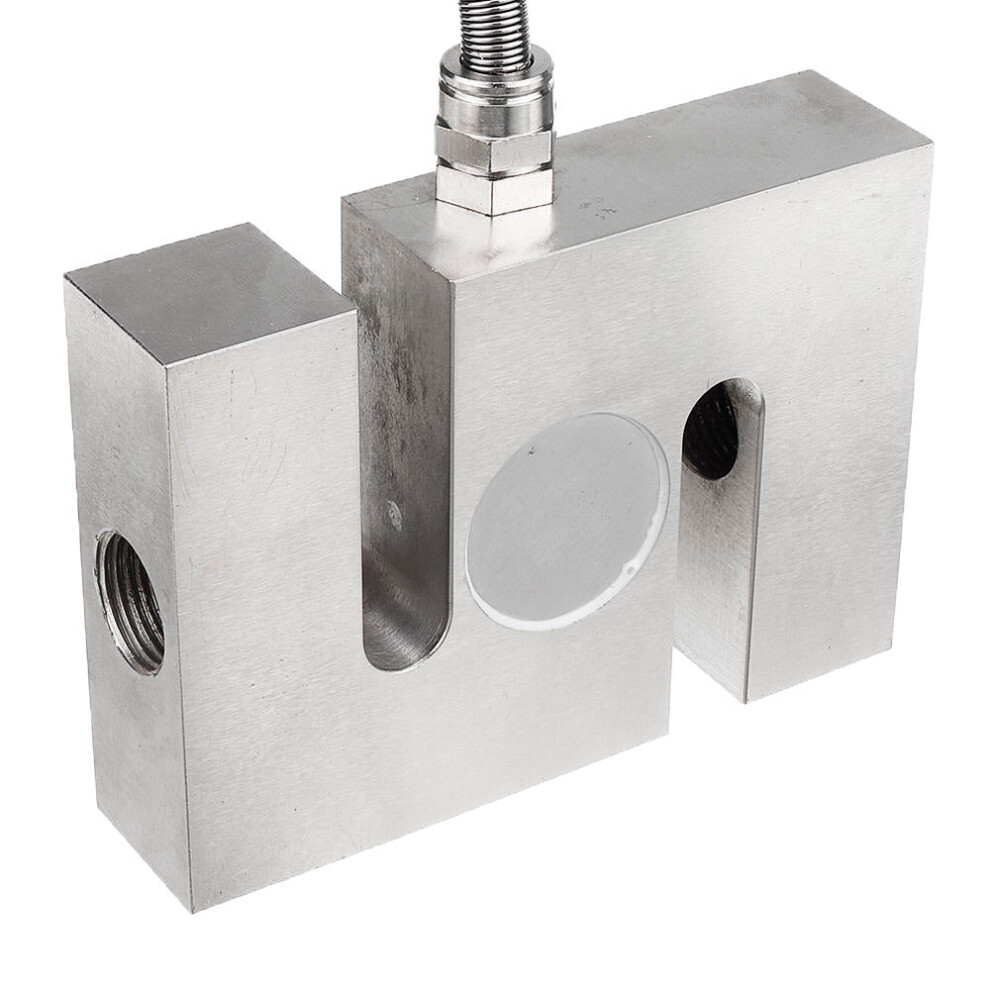

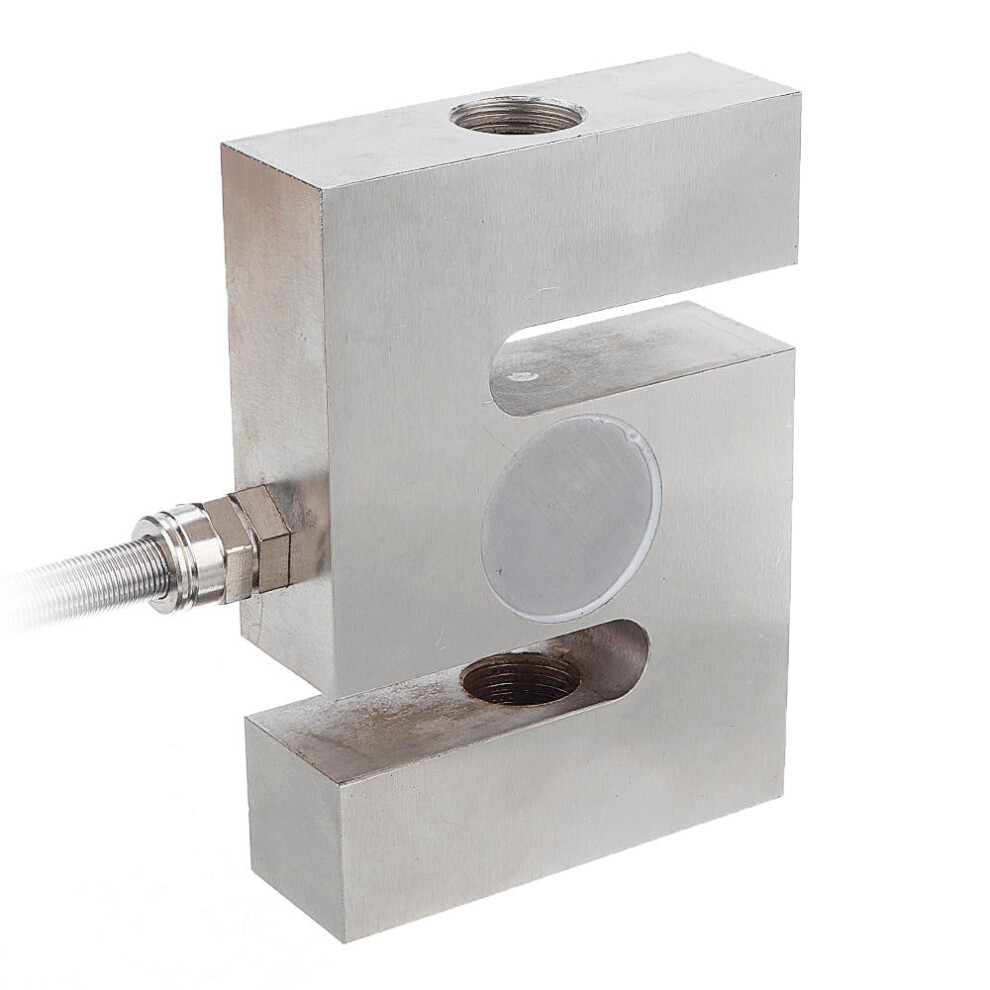

(2T) 100kg-3T Strain Gauge Pressure Sensor S Load Cell Electronic Scale Sensor Weighing Sensor

(2T) 100kg-3T Strain Gauge Pressure Sensor S Load Cell Electronic Scale Sensor Weighing Sensor Description

Feature:
Range: 100kg, 200kg, 300kg, 500kg, 1T, 2T, 3T (optional).
Overall accuracy: 0.03% F S.
Sensitivity: 2, 0.1 mV / V.
Creep: 0.05% FS/30min.
Nonlinear: 0.03% F S.
Hysteresis error: 0.03% FS.
Repeatability error: 0.02% F S.
Zero temperature coefficient: 0.03% F S/10.
Output temperature coefficient: 0.03% F S/10.
Input impedance: 700, 15.
Output Impedance: 650, 15.
Insulation resistance: 5000 M.
For the bridge voltage: Recommended 10 VDC (standard signal 12V 24V).
Operating temperature range: - 20 ~ +70 degree.
Safe overload: 150%.
Sealing Rating: IP67.
Material: Alloy steel (40CrNiMo).

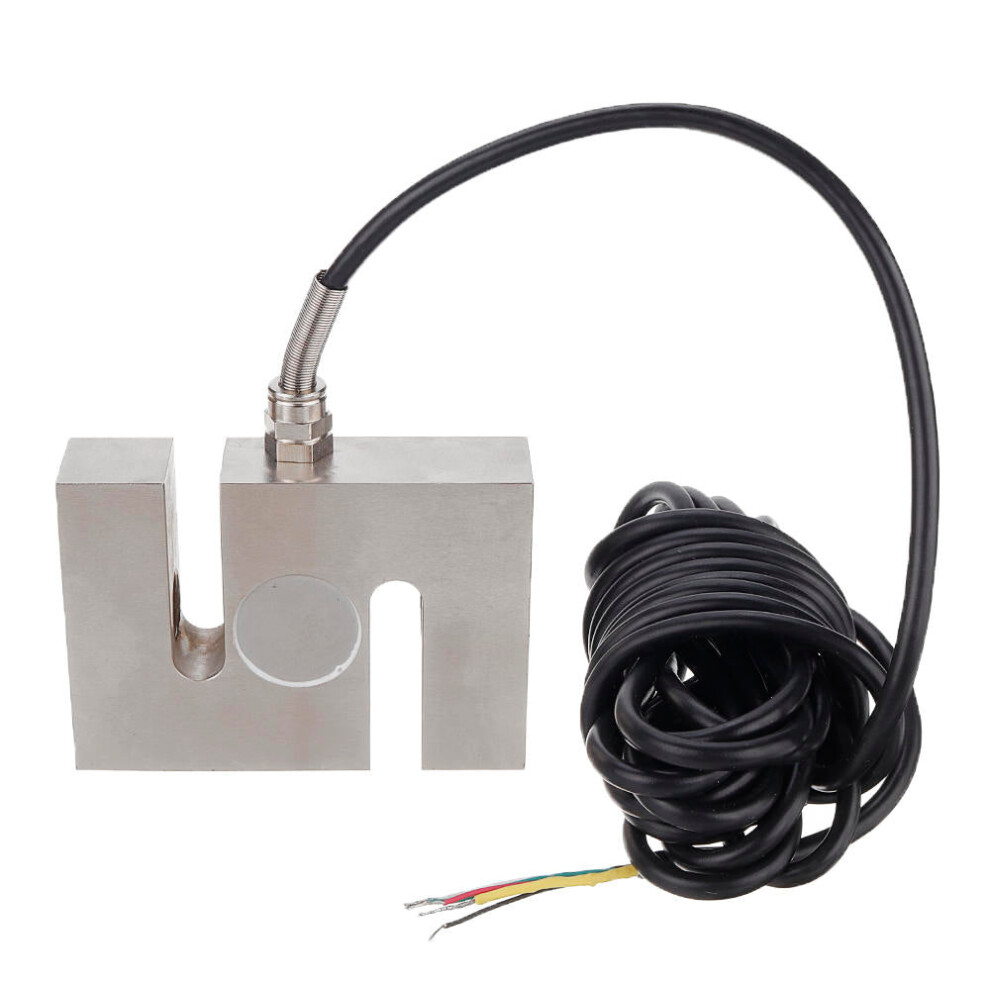

Wiring Instructions:
Power Positive: Red Power Negative: green.
Output Positive: Yellow Output Negative: white.

Package includes:
1 x Weighing Sensor
