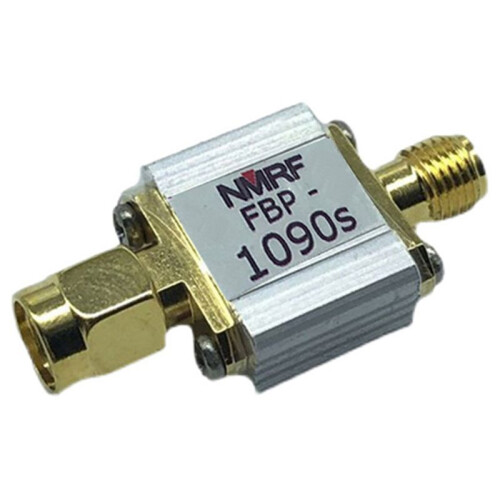

2X 1090MHz ADS-B Bandpass SAW Filter SMA Interface 1090S Bandpass Filter

2X 1090MHz ADS-B Bandpass SAW Filter SMA Interface 1090S Bandpass Filter Description

This filter can guarantee a passband bandwidth of 30MHz, low insertion loss, and a steep cut-off characteristic.
Performance optimization of ADS-B receivers for 1090MHz to effectively filter out-of-band signals, reduce noise, and increase dynamic range.
The device is ultra-small and easy to use.

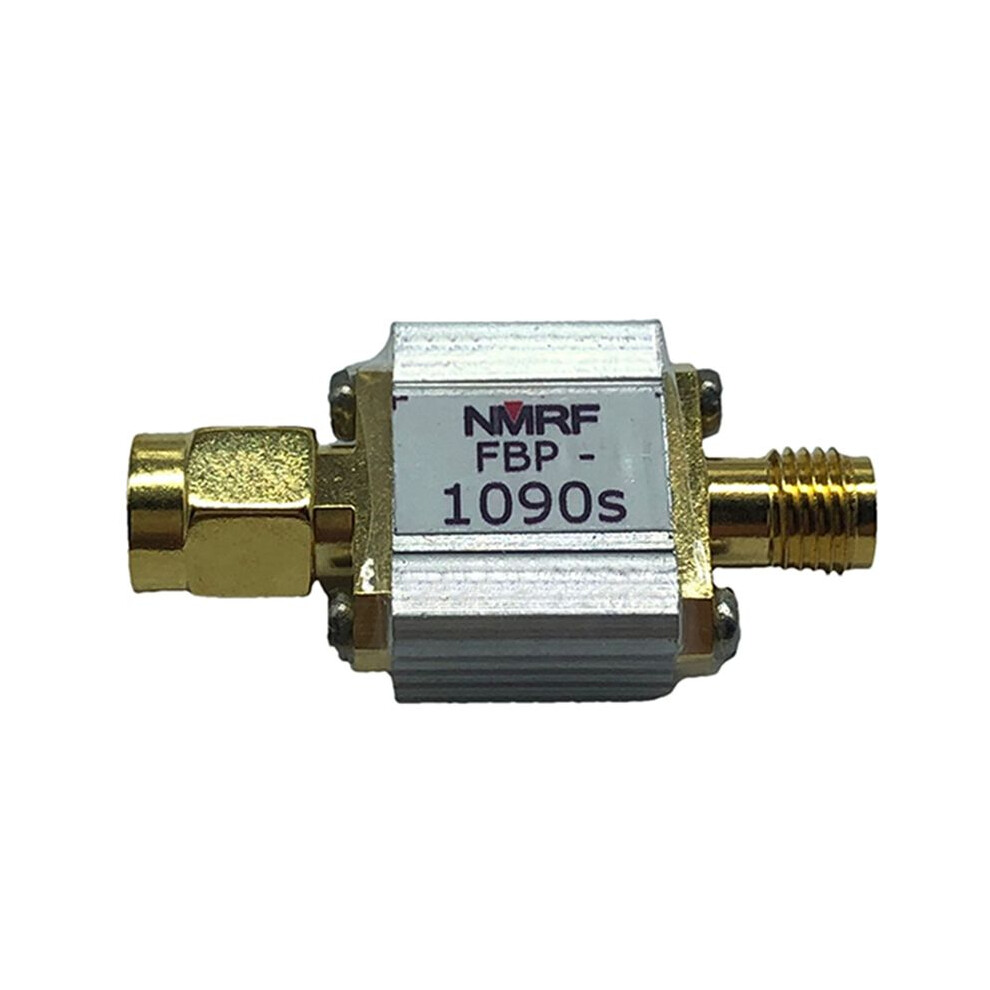

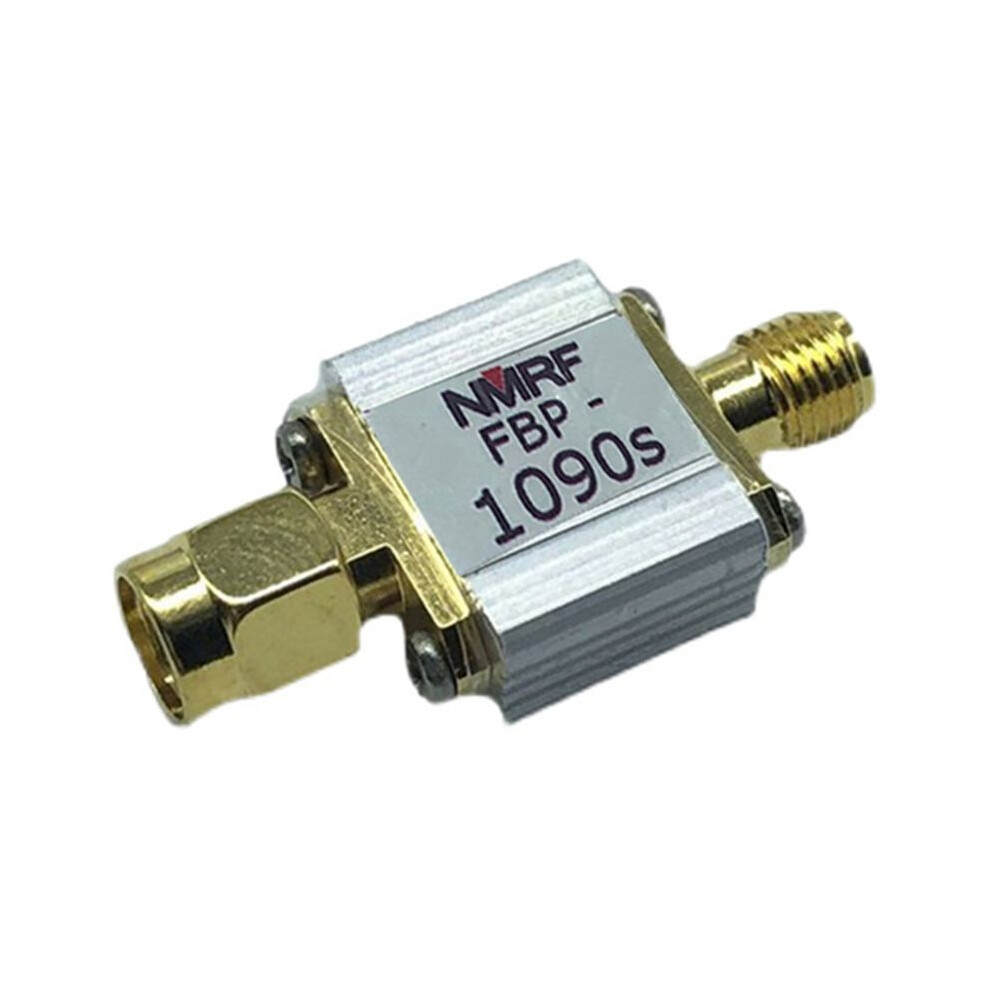

Model: FBP-1090s
Impedance: 50 Ohms
Center frequency: 1090 MHz

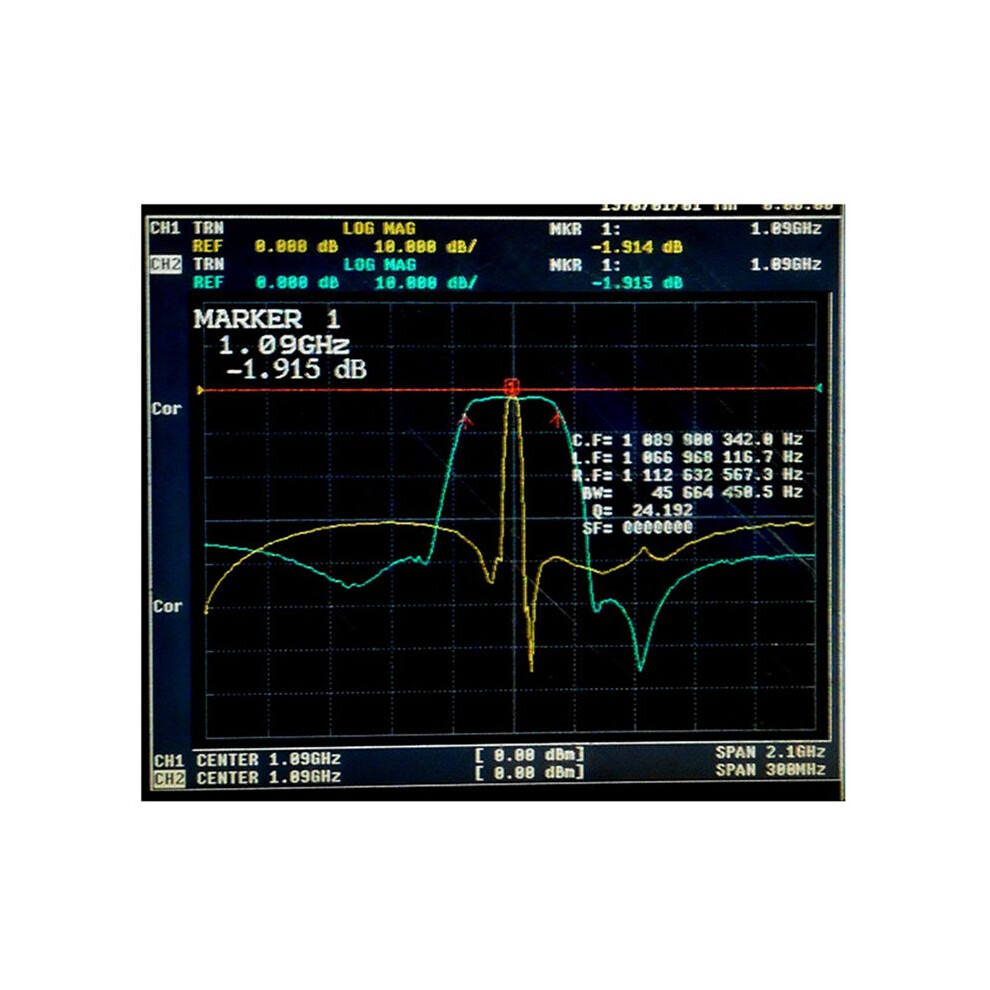

Passband (1 dB bandwidth): 30 MHz (see measured frequency response diagram for details)
30 dB bandwidth: Less than 80 MHz
In-band insertion loss: 1.7 to 2.2 dB
Maximum Carrying Power: 100 mW (20 dBm)
Interface: SMA-M, SMA-F
Material: Metal
colour: As shown

Package Contents:

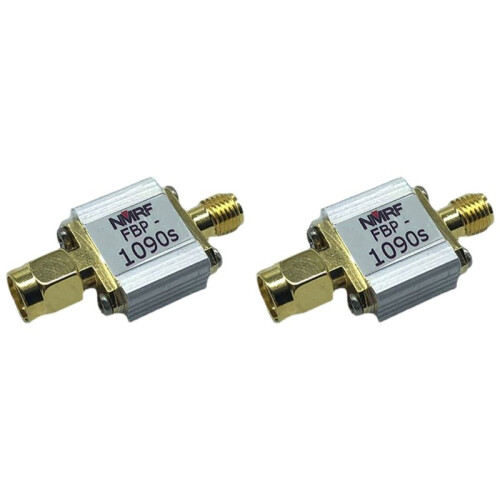

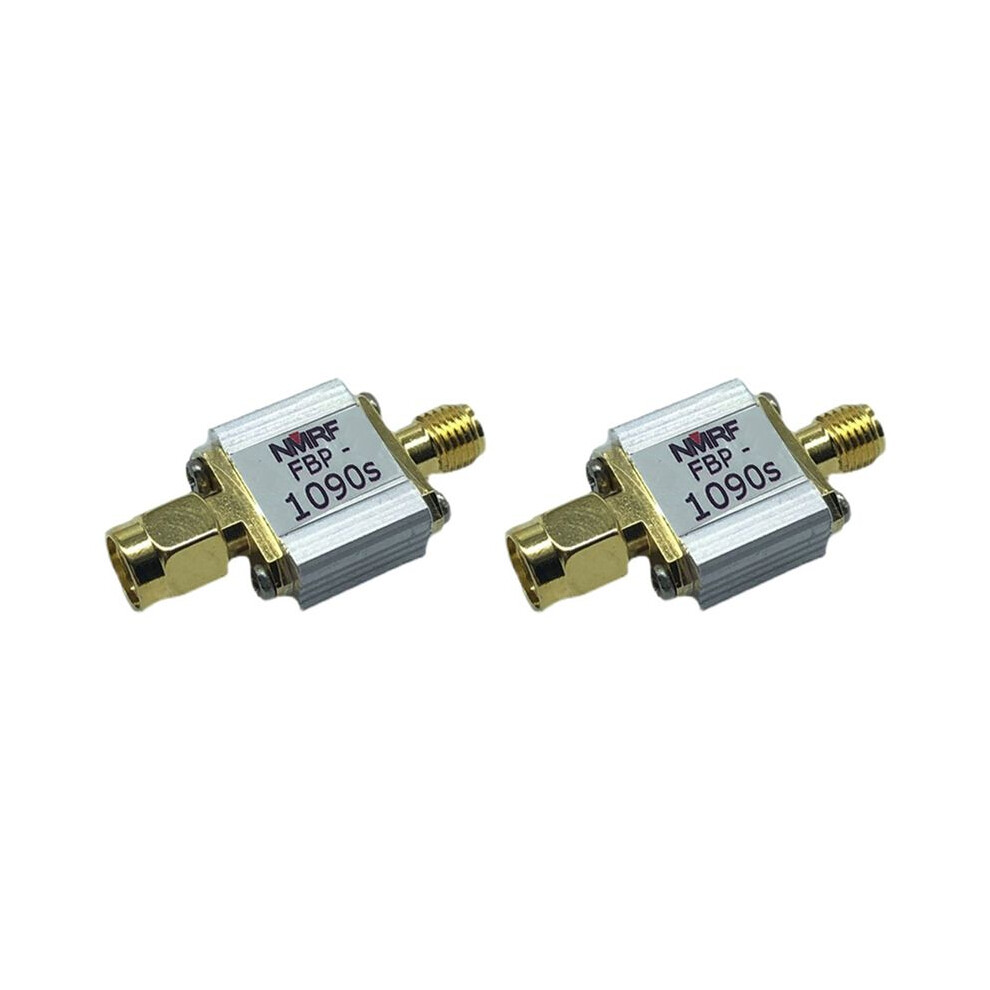

2 x 1090S bandpass filter
