2X 20A In-Line Diode Connector IP67 Solar Panel Cable Connectors

2X 20A In-Line Diode Connector IP67 Solar Panel Cable Connectors Description

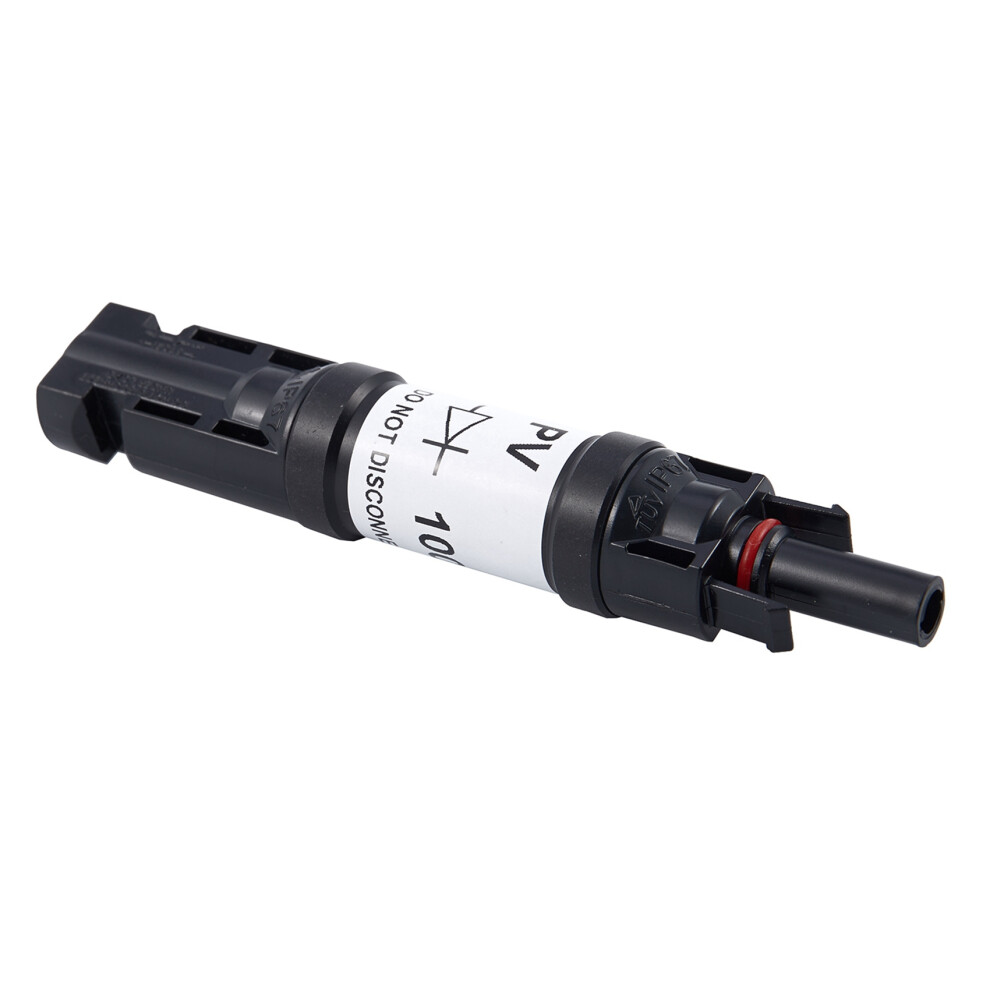

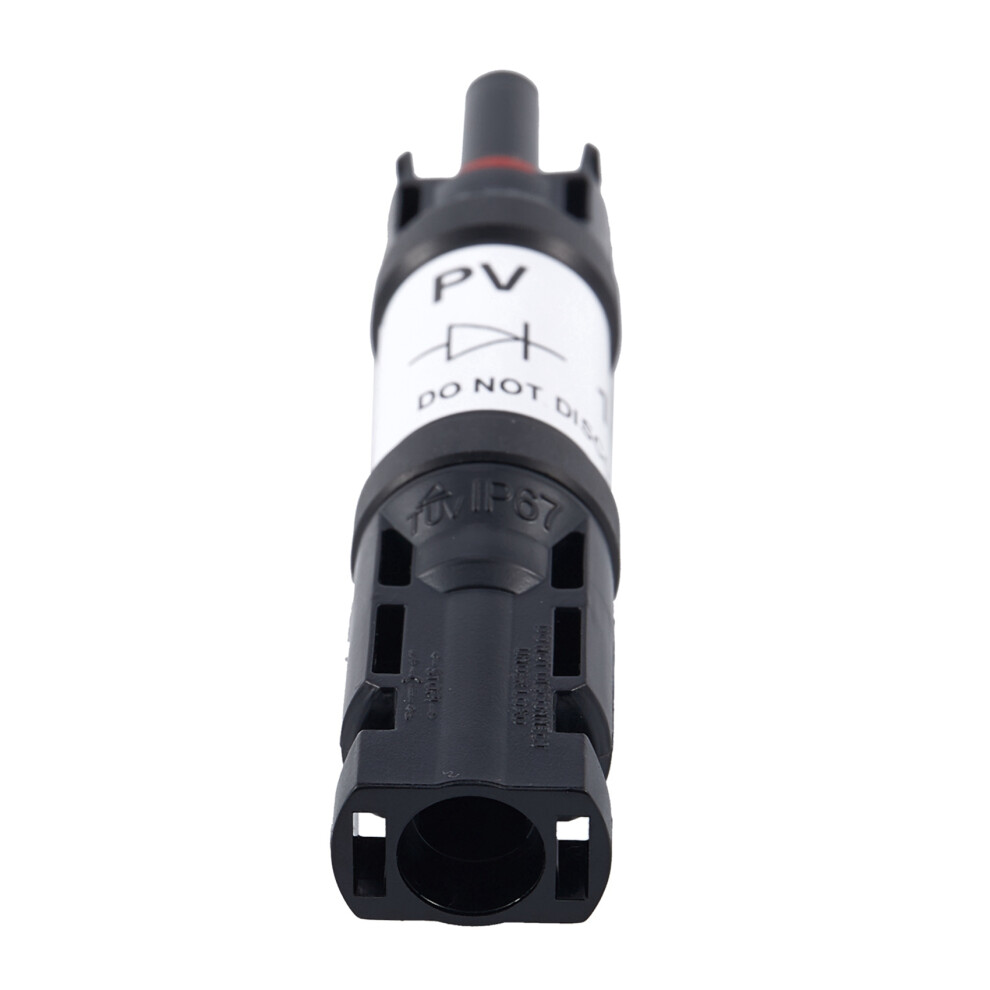

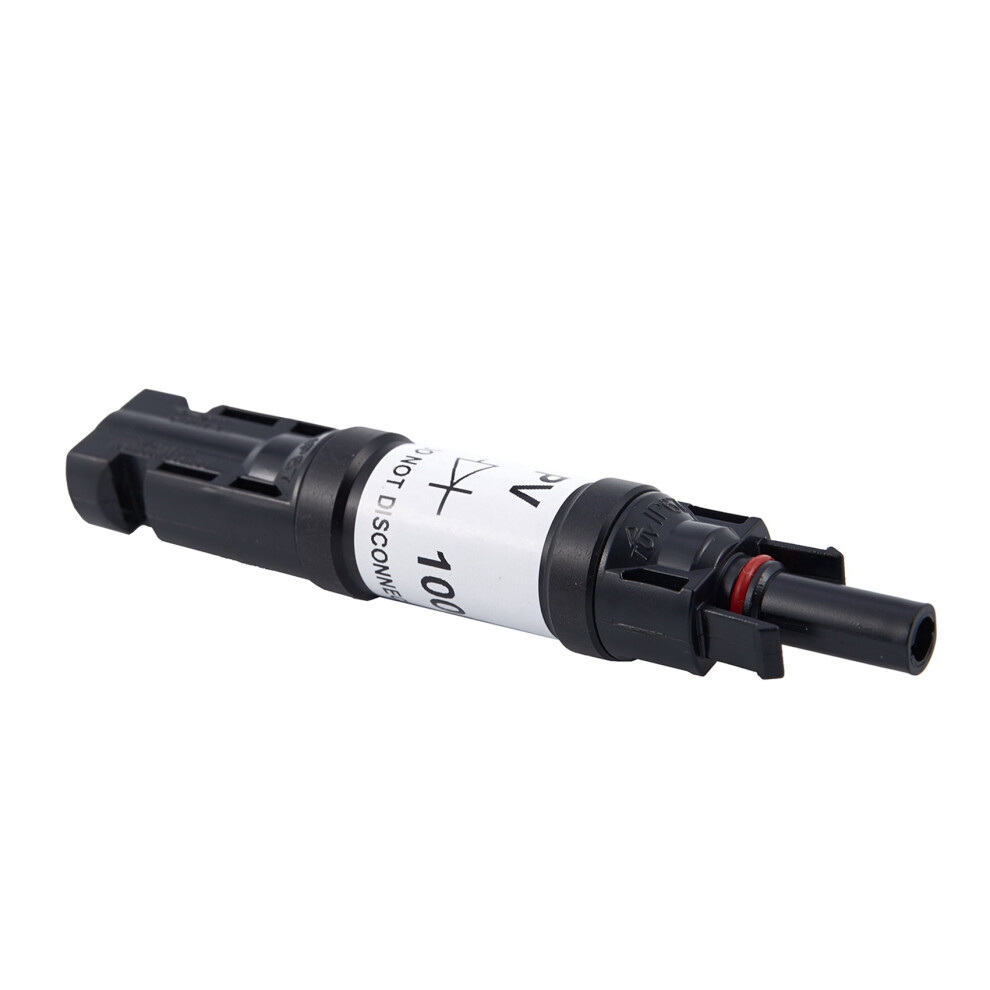

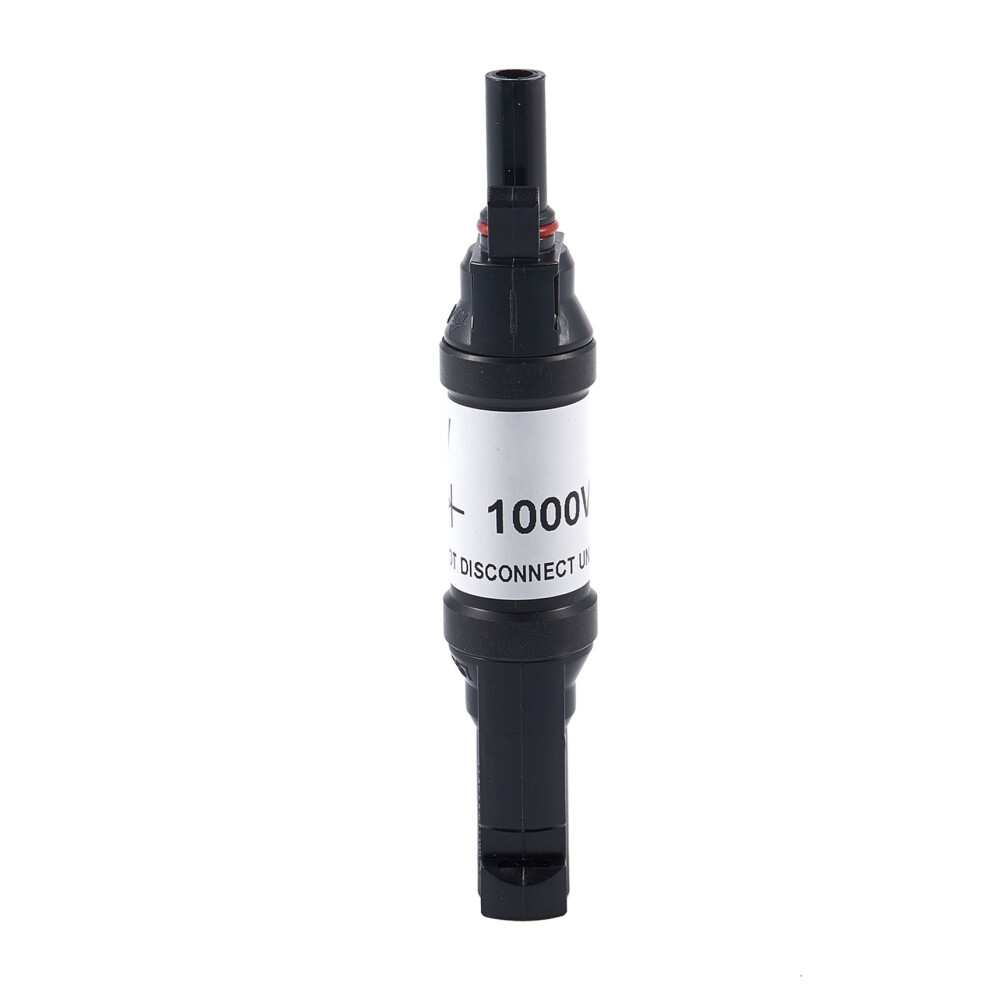

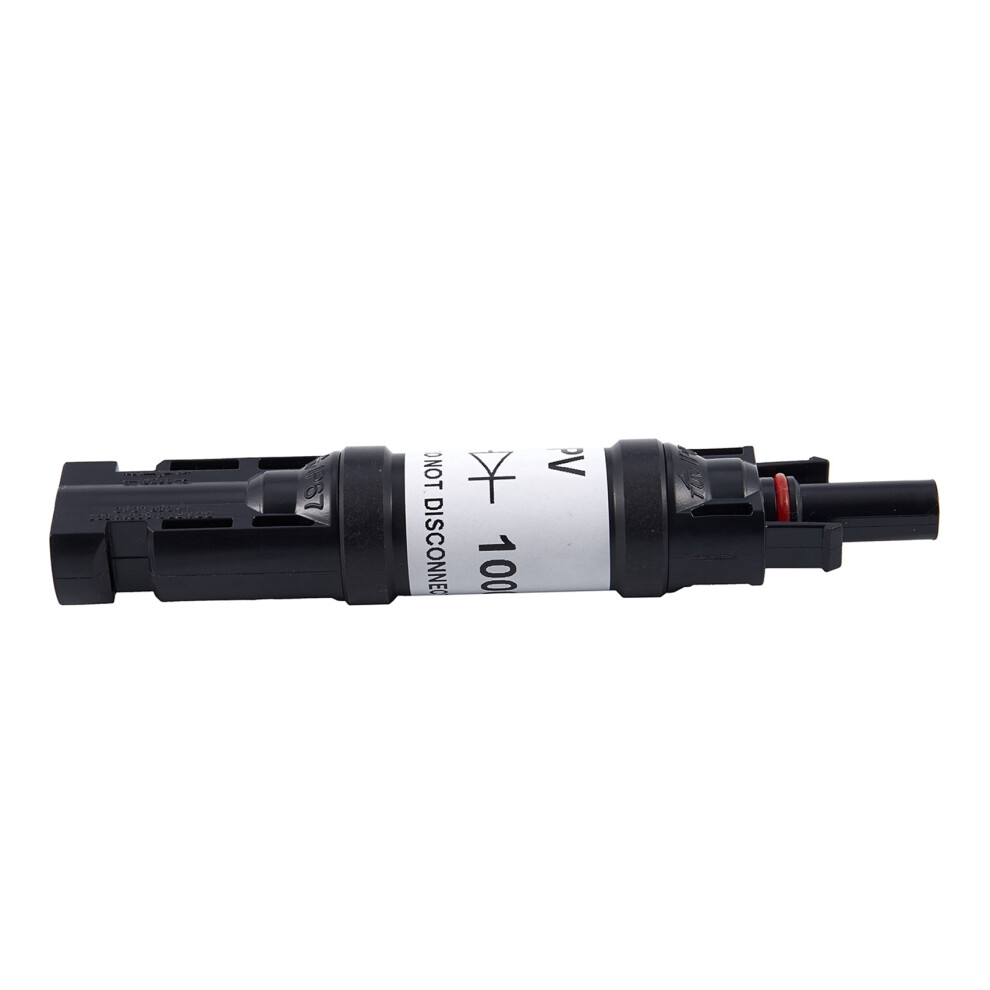

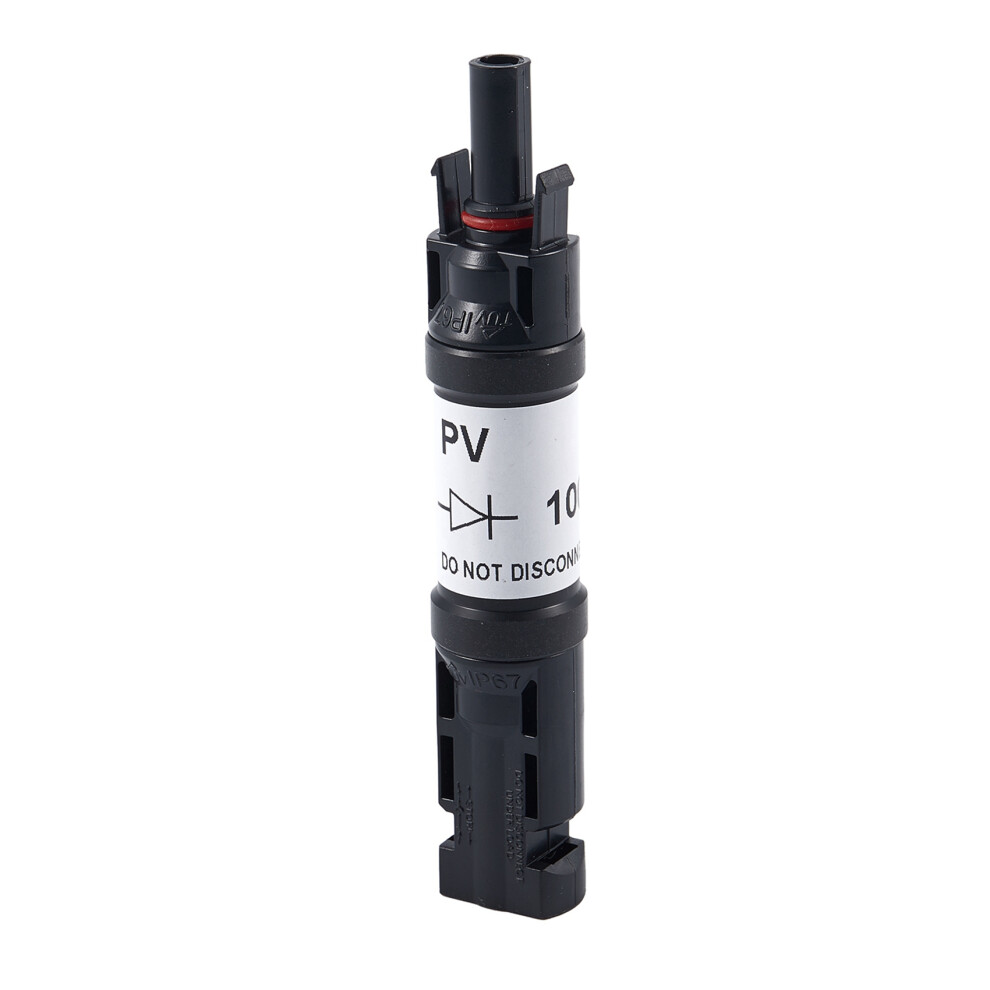

20A in-line Diode Connector Solar Panel cable Connectors
Practical and easy connector used between Solar panel and switch box to prevent the reversal of current.
Contacts for the connector are copper, coated with tin for easy solder adhesion. Each end nuts comes with rubber bushings for air tightening.
This connector is rated as IP67. IP (Ingress Protection) ratings the first numeral refers to the level of dust resistance and the second numeral refers to the level of water resistance.

Specification:
Connector Material: PPO,PC
Degree of protection:IP67
Rated current :20A
Flame class :UL94-V0
Rated voltage: 1000V(TUV)&600V(UL)
Test voltage: 6kV(50Hz,lmin)
Insertion force/withdrawal force: Less than equal 50N/ equal 50N
pin dimensions: F4.0mm
Connecting System: Crimp connection
Contact resistance of plug connector: Less than equal 5mOhm
Temperature range: (-40 Celsius ~ 85 Celsius)
Contact material: Copper, Tin plated
Highest Temperature: 110 Celsius
Insulation material: PPO
Package:

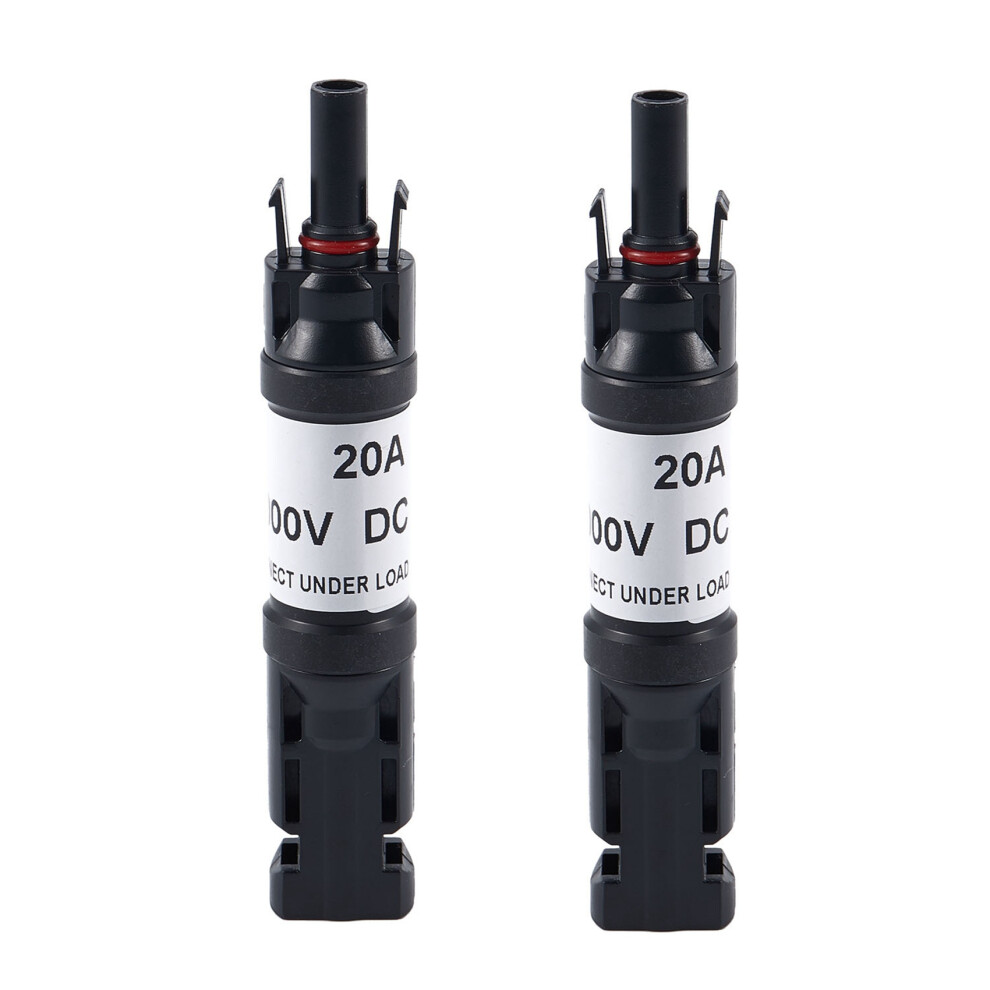

2 x PV Diode connector

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
