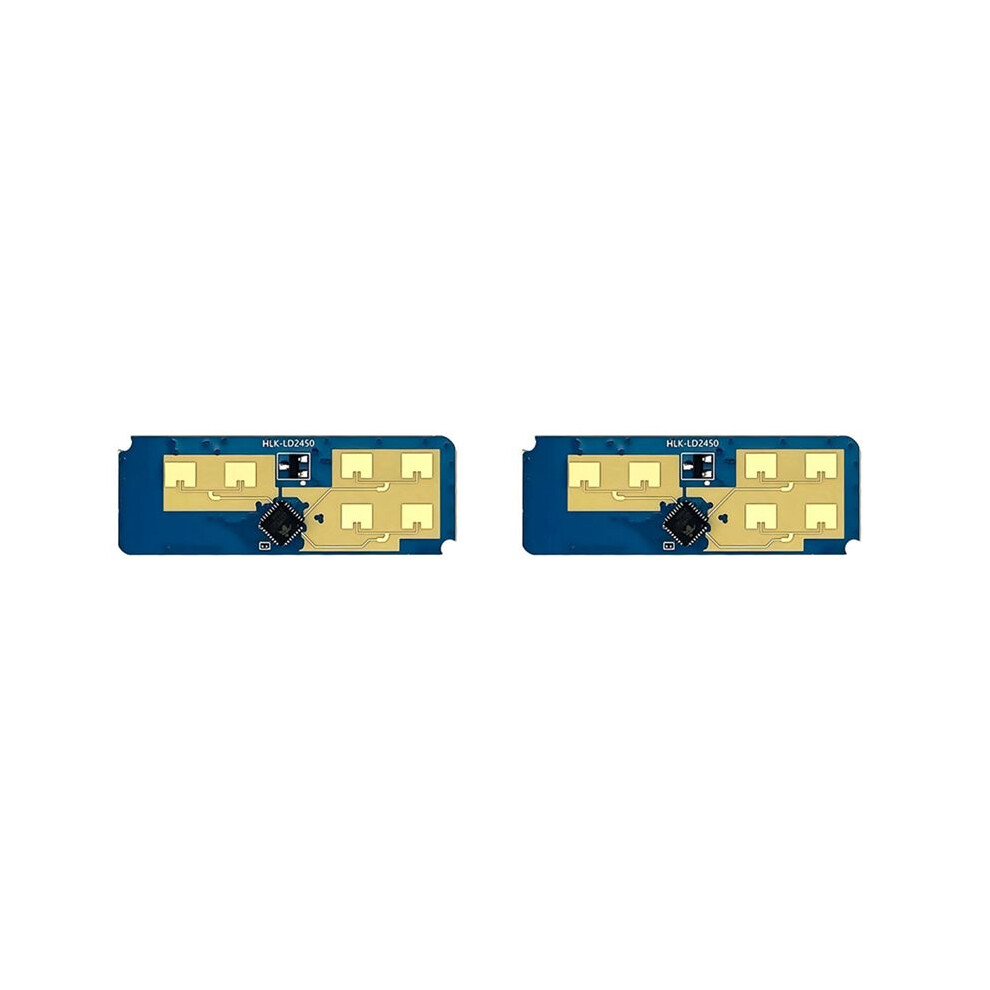

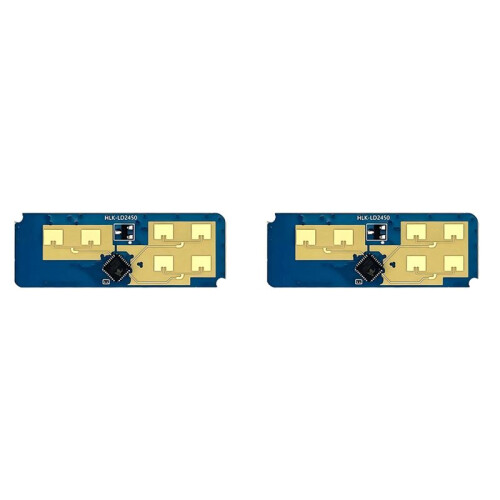

2X 24G HLK-LD2450 Millimeter Wave Human Movement Tracking Sensor Module LD2450 Sensing Distance 8M Home A
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 137,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Thu 12th - Sat 14th Nov
Sold by: moresk
Returns: 30 days
180-day payment protection
You might also like
Summary
- The LD2450 is a motion target tracking sensor module from FOR the Hilink 24G millimeter wave radar series, which includes extremely simplified 24 GHz radar sensor hardware and intelligent algorithm firmware. The solution is mainly used in general indoor scenarios such as homes, offices and hotels to enable the location tracking of moving human bodies.
- Motion target tracking is to track the position of the moving target in the region in real time, and realize the distance, angle and speed measurement of the moving target in the region.
- The sensor hardware consists of an AloT millimeter wave radar chip, a high performance one-transmitter-two-receiver microstrip antenna and a low cost MCU and peripheral auxiliary circuitry. The intelligent algorithm firmware uses FMCW waveforms and the radar chip's proprietary advanced signal processing technology.
- It supports serial output of detection data, which is plug-and-play and can be flexibly applied to different smart scenarios and end products.
- LD2450 sensing module
2X 24G HLK-LD2450 Millimeter Wave Human Movement Tracking Sensor Module LD2450 Sensing Distance 8M Home A Description
The LD2450 is a motion target tracking sensor module from FOR the Hilink 24G millimeter wave series, which includes extremely simplified 24 GHz sensor hardware and intelligent algorithm firmware. The solution is mainly used in general indoor scenarios such as homes, offices and hotels to enable the location tracking of moving human bodies.
Motion target tracking is to track the position of the moving target in the region in real , and realize the distance, angle and speed measurement of the moving target in the region.
The sensor hardware consists of an AloT millimeter wave chip, a high performance one-transmitter-two-receiver microstrip antenna and a low cost MCU and peripheral auxiliary circuitry. The intelligent algorithm firmware uses FMCW waveforms and the chip's proprietary advanced signal processing technology.
It supports serial output of detection data, which is plug-and- and can be flexibly applied to different scenarios and end products.
Type: LD2450
style: A-1 x Sensing module
Communication method: other
Compatibility: Other
Current: 5v
Average operating current: 120 mA
Detection distance: 8m
Modulation method: FMCW
Detection angle: 60
Ambient temperature: -40-85
Working current: 50mA
Azimuth angle: 60
Pitch angle: 35
Material: abs
colour: As Shown
Package Contents:
2 x Sensing module
Details
| OPC | PXMZ98B |
|---|---|
| Brand | TAUOH |
| Codes | 6033031380562 (EAN) |
Product Data
| Height | 4cm |
|---|---|
| Width | 2cm |
| Length | 4cm |
| Weight | 0.007kg |
| Colour | As Shown |
| Size | A |
| Material | abs |
